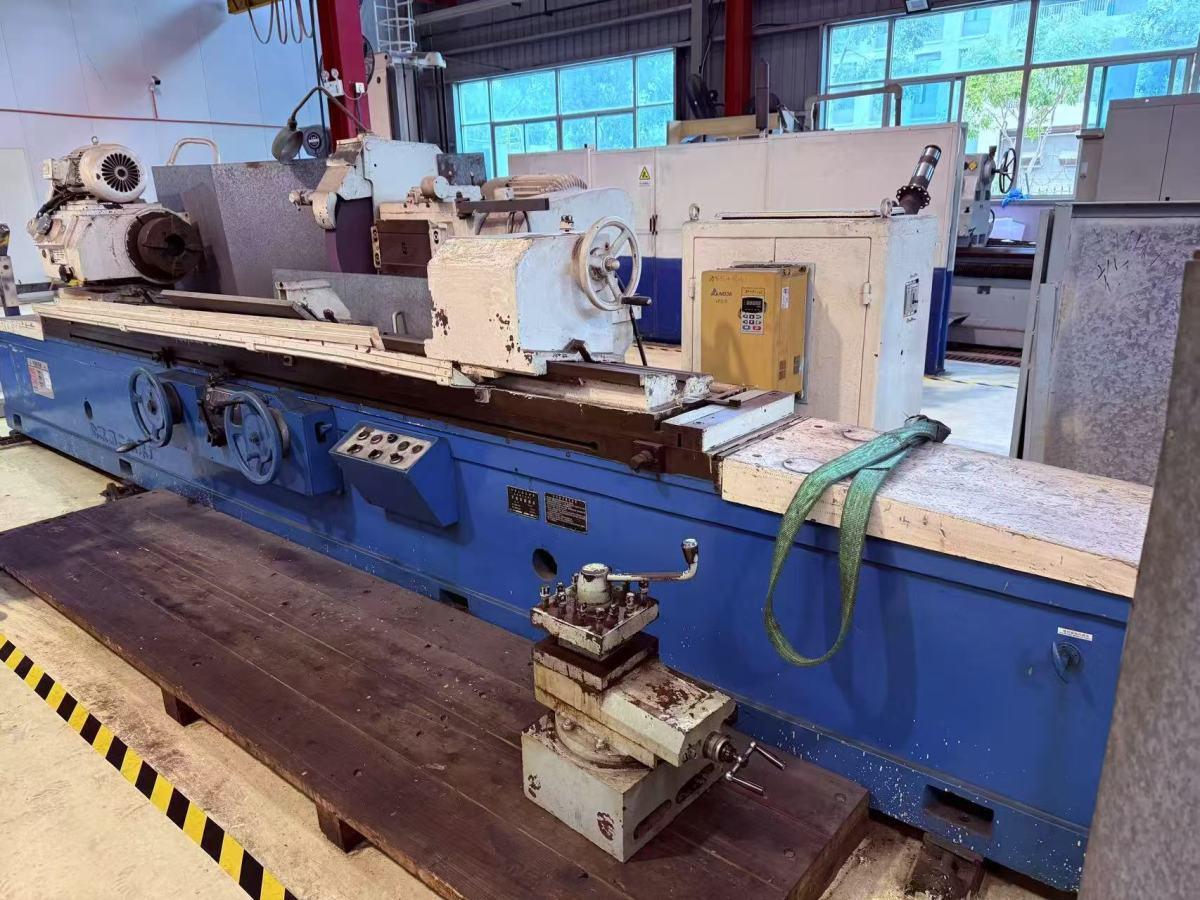

Beijing NO.2 M1450 Cylindrical grinder

Center Height: 335 mm
Maximum Swing Diameter: 630 mm
Maximum Grinding Length: 2500 mm
Grinding Range
External grinding diameter：30–630 mm
Internal grinding diameter：50–300 mm
Workpiece Capacity
Maximum workpiece weight：1000 kg
Grinding Wheel System
Grinding wheel specification：Φ750 × 75 × Φ305 mm
Maximum linear speed：35 m/s (45 m/s optional)
Headstock / Tailstock
Spindle taper：Metric 80 / Morse 6#
Tailstock taper：Metric 80 / Morse 6#
Worktable
Rotation angle：
Clockwise 2° / Counterclockwise 4°
