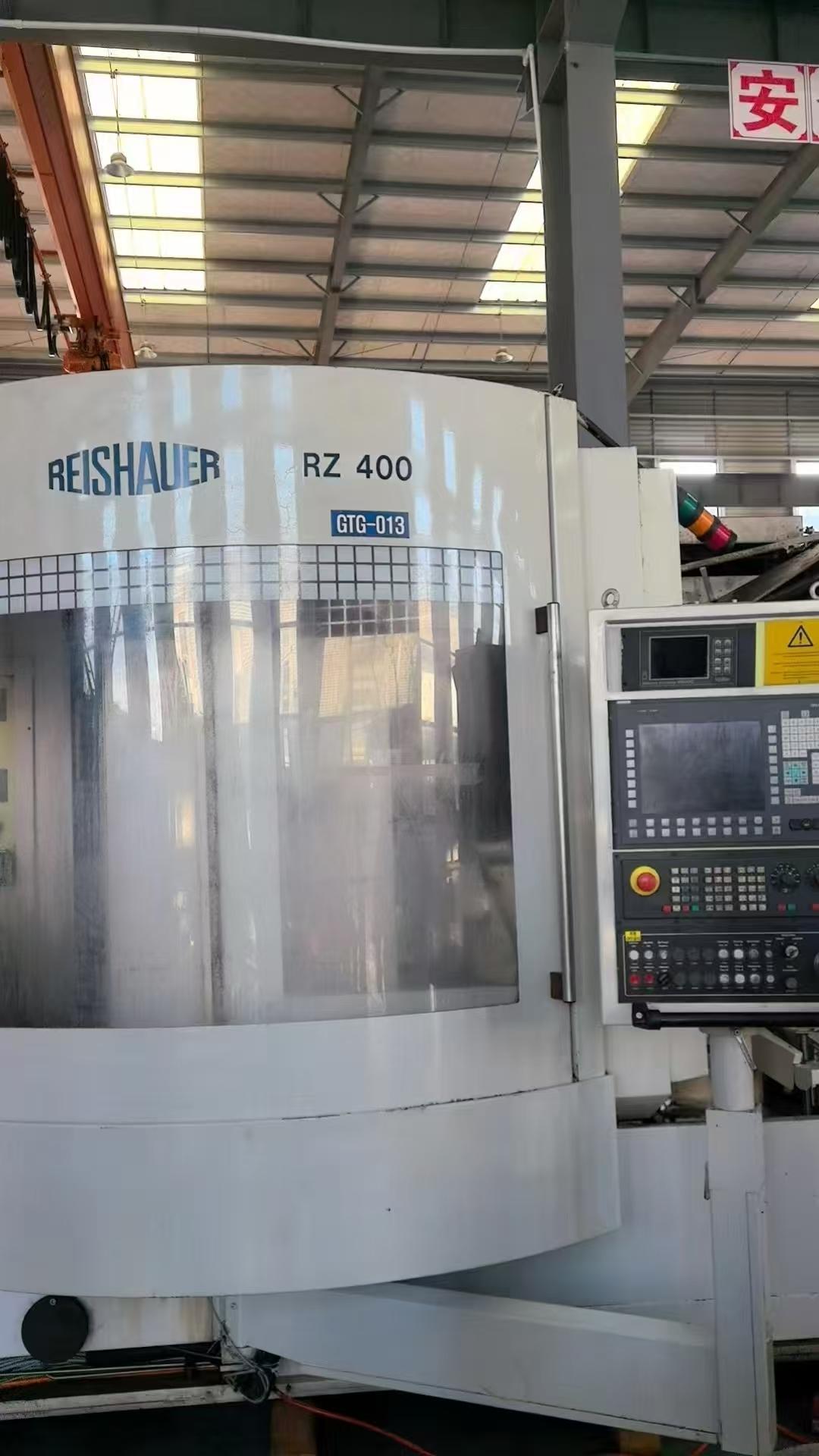

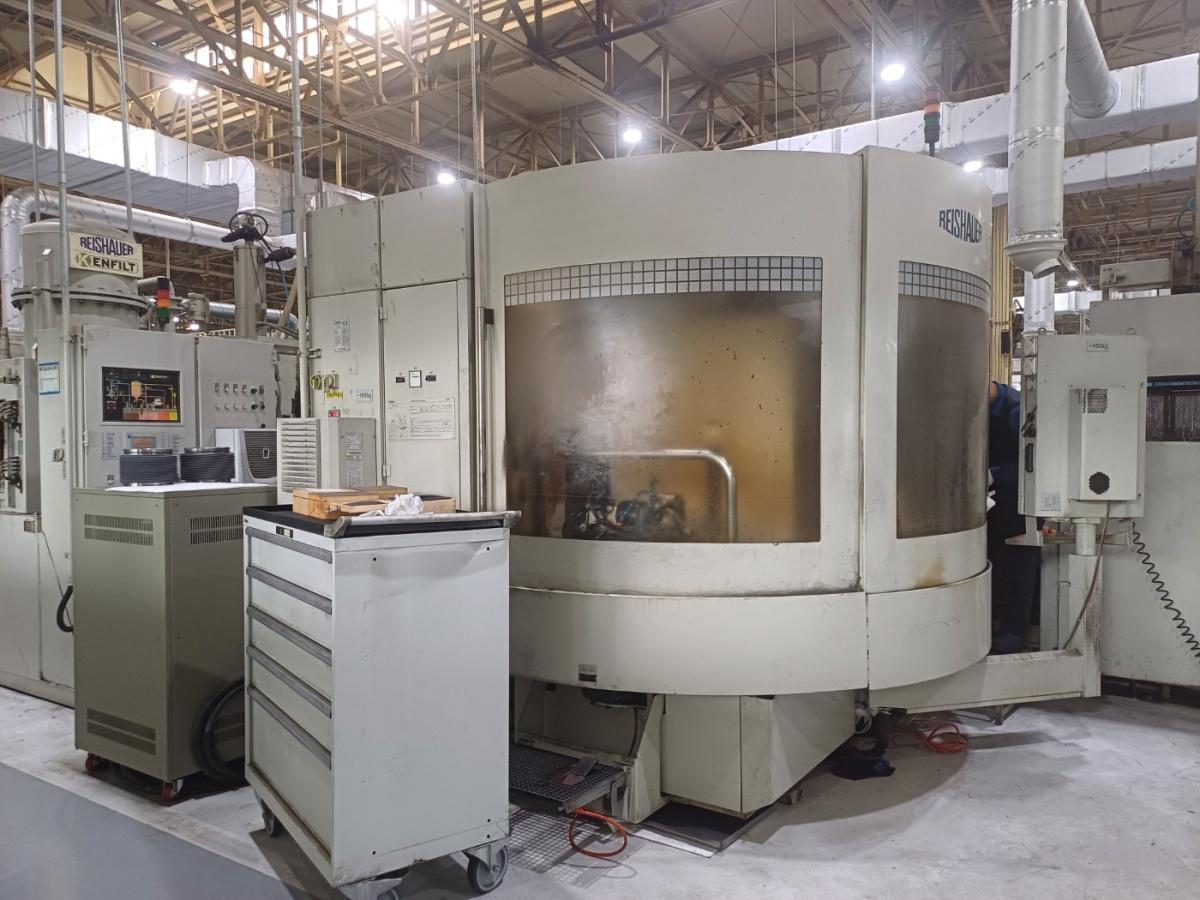

REISHAUER RZ400 Gear grinding machine

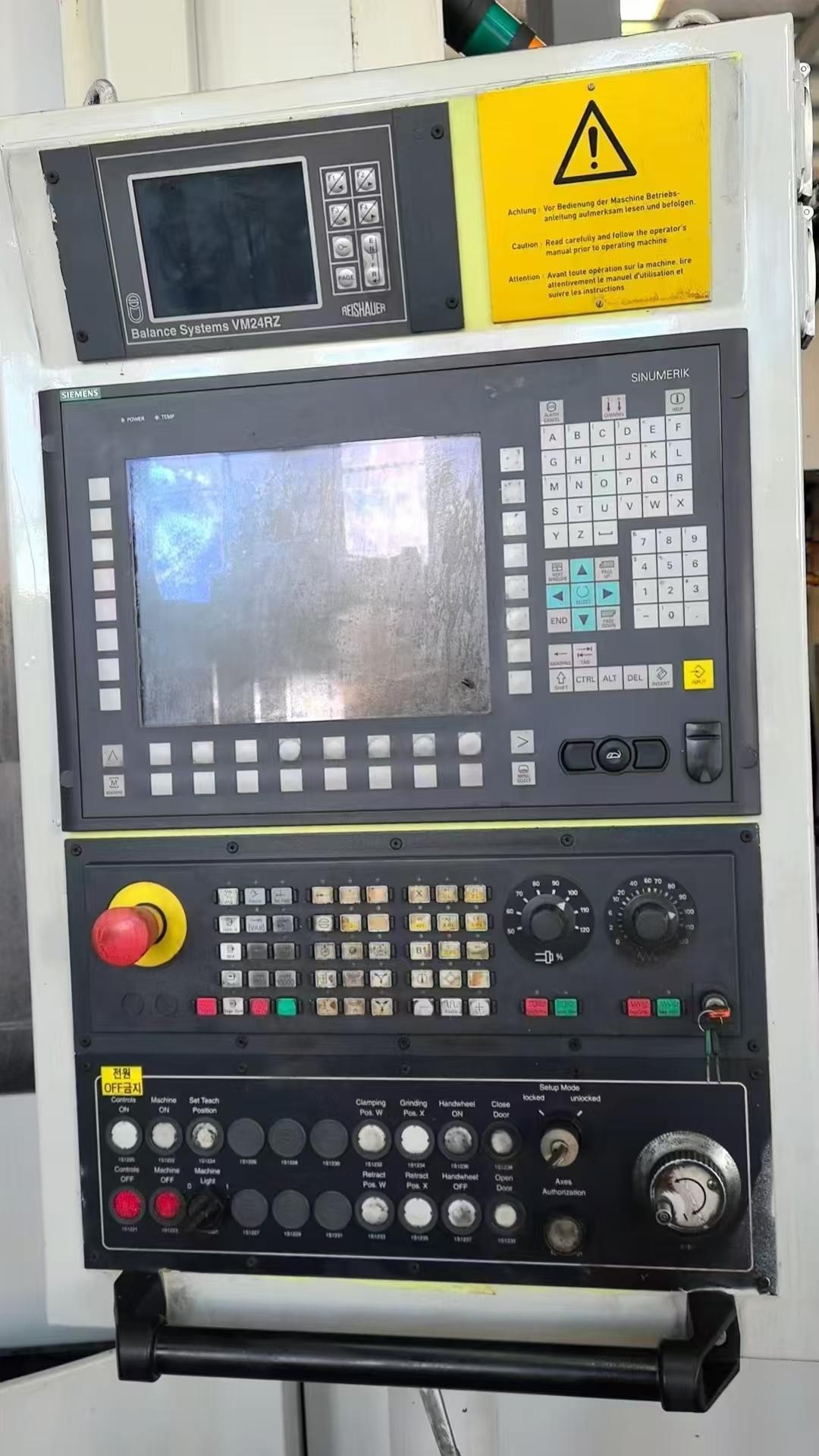

CNC System：Siemens Sinumerik 840D
Machining Capacity
Maximum gear diameter：400 mm
Tooth width：300 mm
Maximum module：8
Minimum module：0.3
Number of teeth range：5–999
Pressure angle：14–30°
Helix angle：-45° / +45°
Maximum workpiece weight：300 kg
Number of starts：1–5
Axis Travel & Feed
X-axis travel：490 mm
Y-axis travel：220 mm
Z-axis travel：300 mm
Rapid traverse X-axis：15 m/min
Rapid traverse Y-axis：5 m/min
Rapid traverse Z-axis：5 m/min

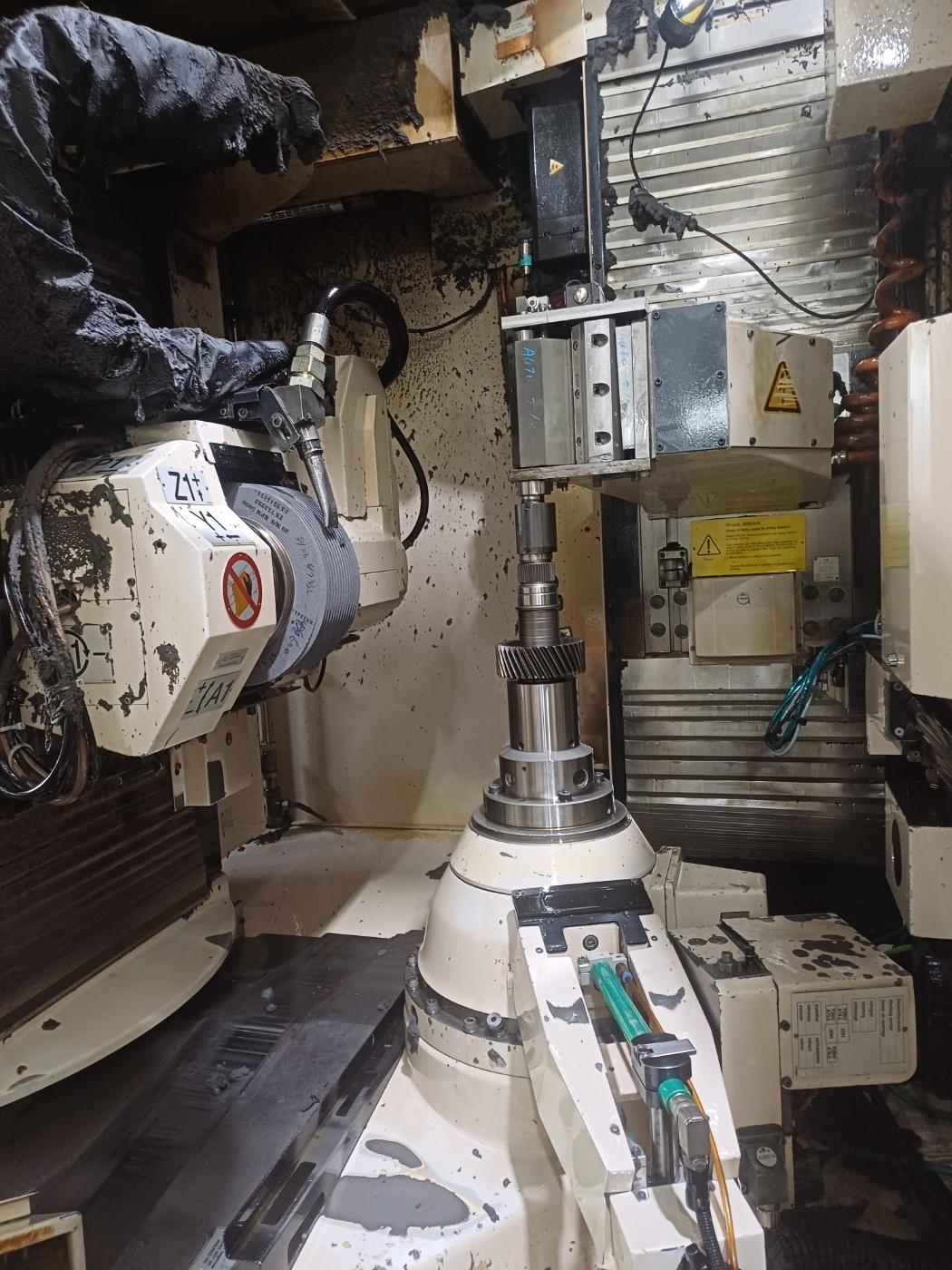

Grinding Wheel System
Grinding wheel diameter：205–300 mm
Maximum grinding wheel width：125 mm
Machining Specification
Boring diameter：160 H7 mm

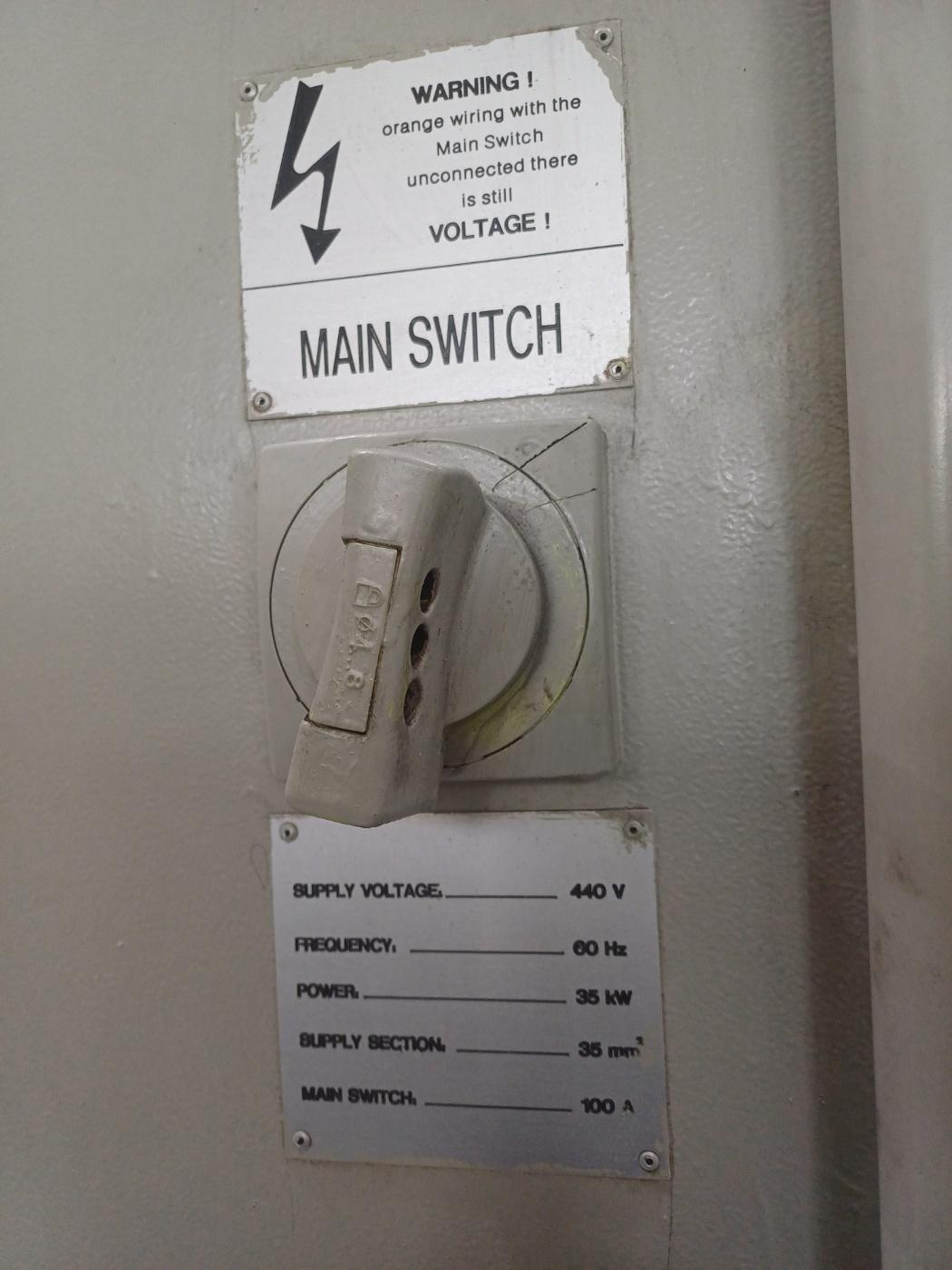

Power & Machine Data
Total power requirement：42 kW
Machine weight：approx. 12 tons
Machine dimensions (L × W × H)：7.70 × 5.00 × 2.90 m
