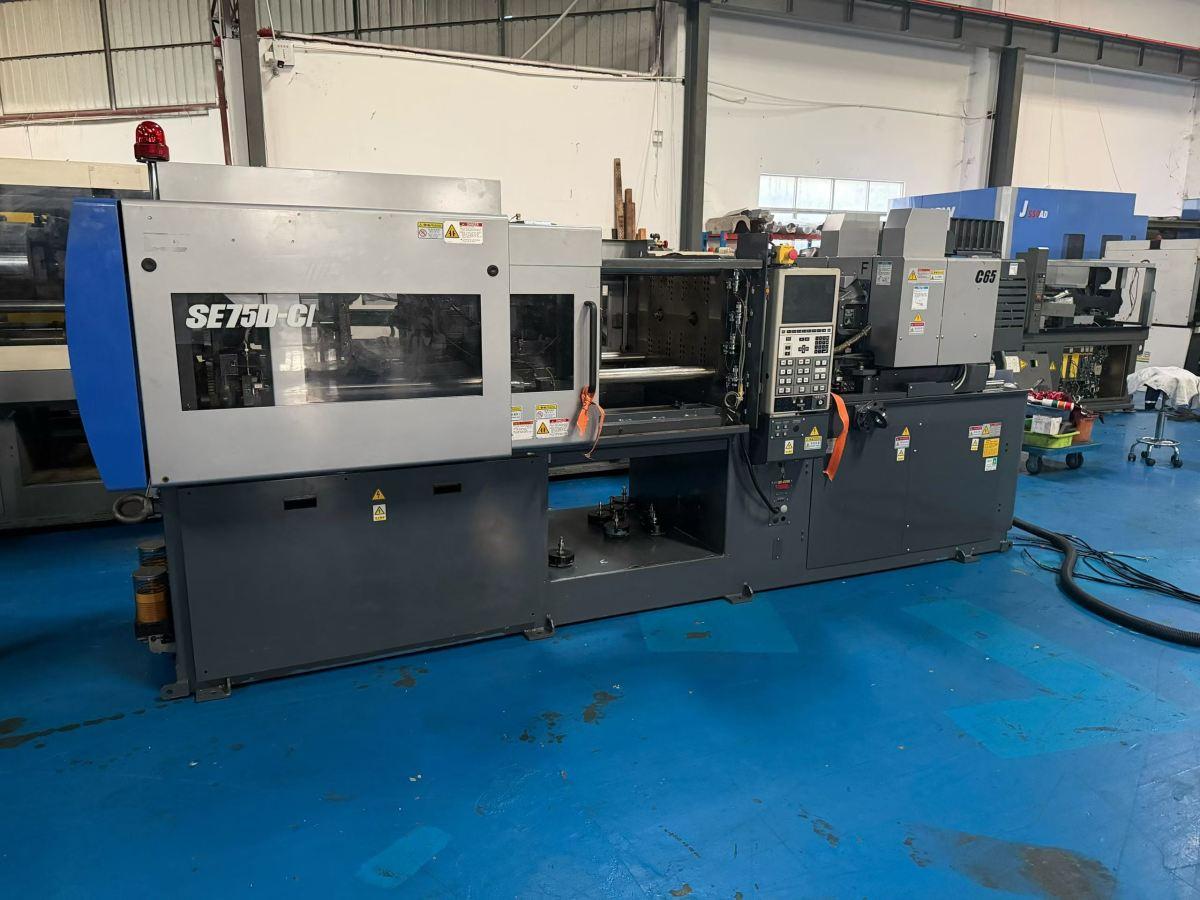

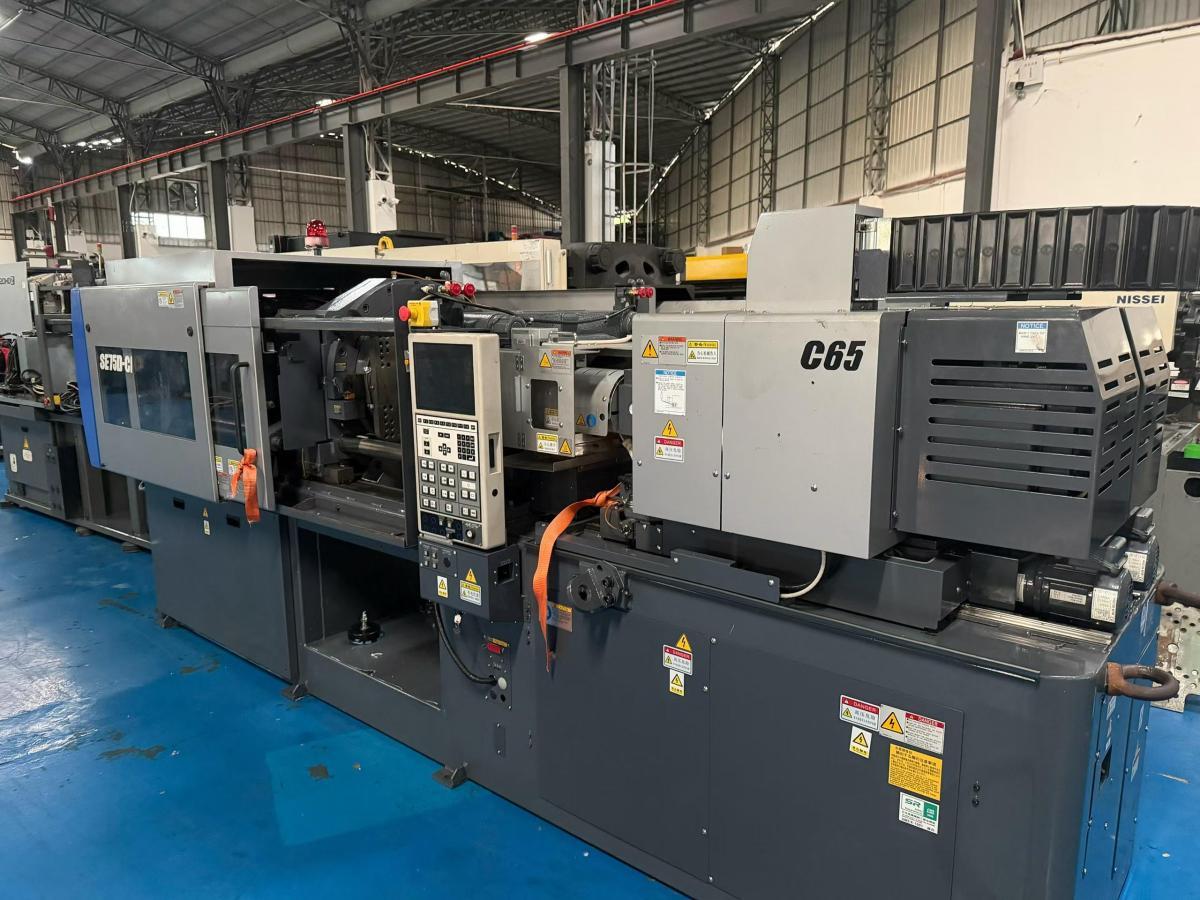

Sumitomo SE75D C1 injection molding machine

Rated clamping force: 750kN
The inner spacing of the pull rod: 360x360mm
The size of the movable/fixed template is 580x580mm
Maximum mold opening travel: 300mm
AppVertical machining centerble mold thickness range: 150 to 400mm
Maximum top force: 50kN
Maximum ejection travel: 100mm
swing diameter: φ26mm
Theoretical injection volume: 56cm³
Maximum injection pressure: 294MPa
Maximum injection rate: 130mm/s
The maximum speed of the screw is 300rpm
