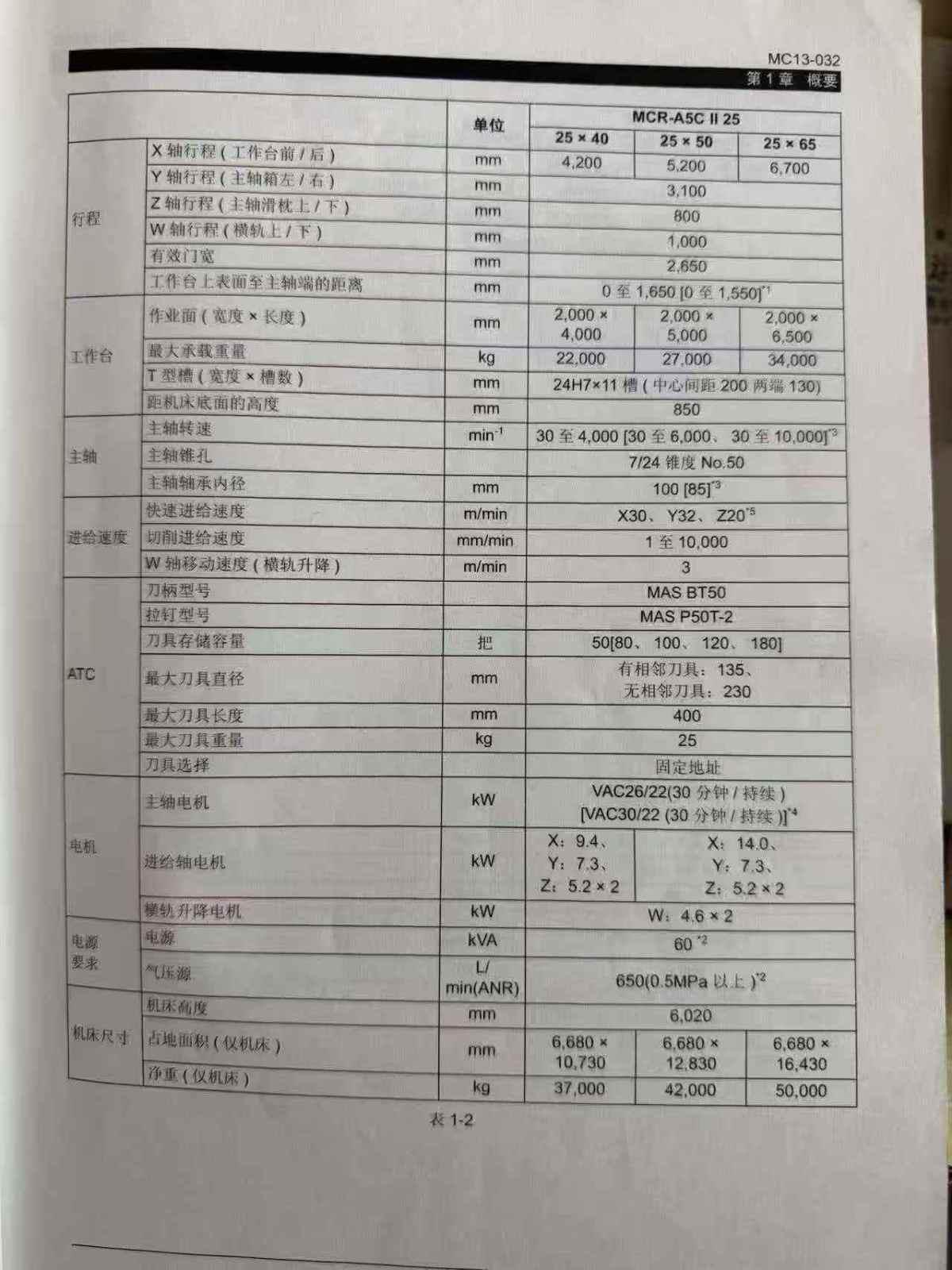

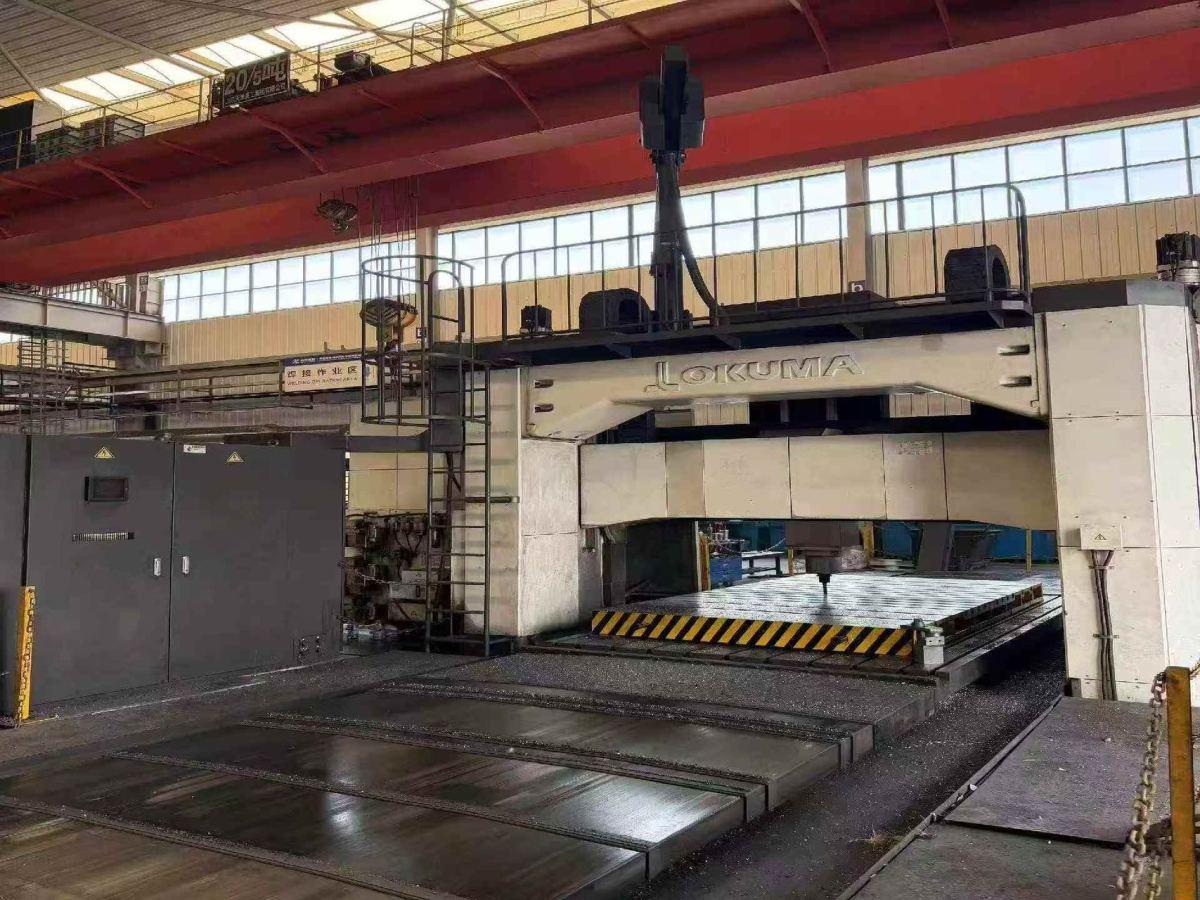

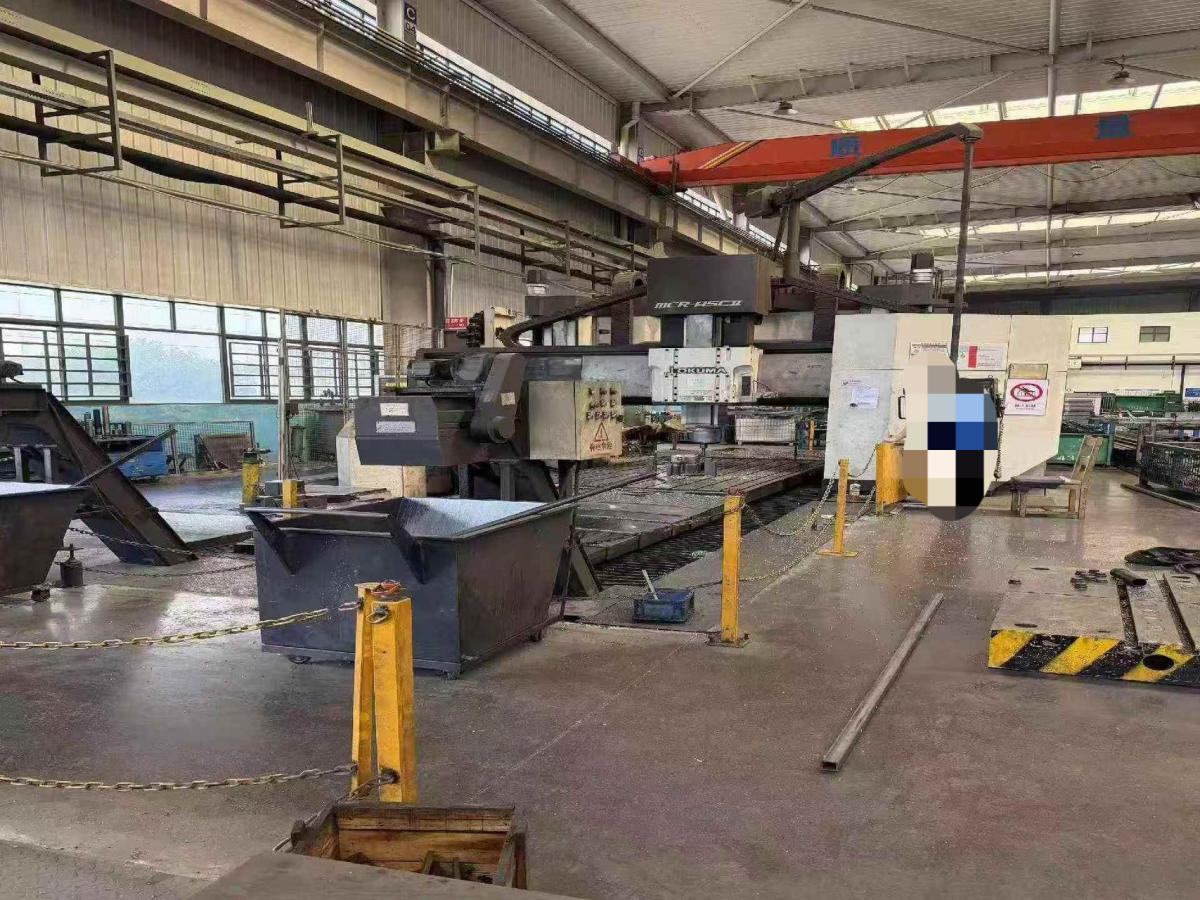

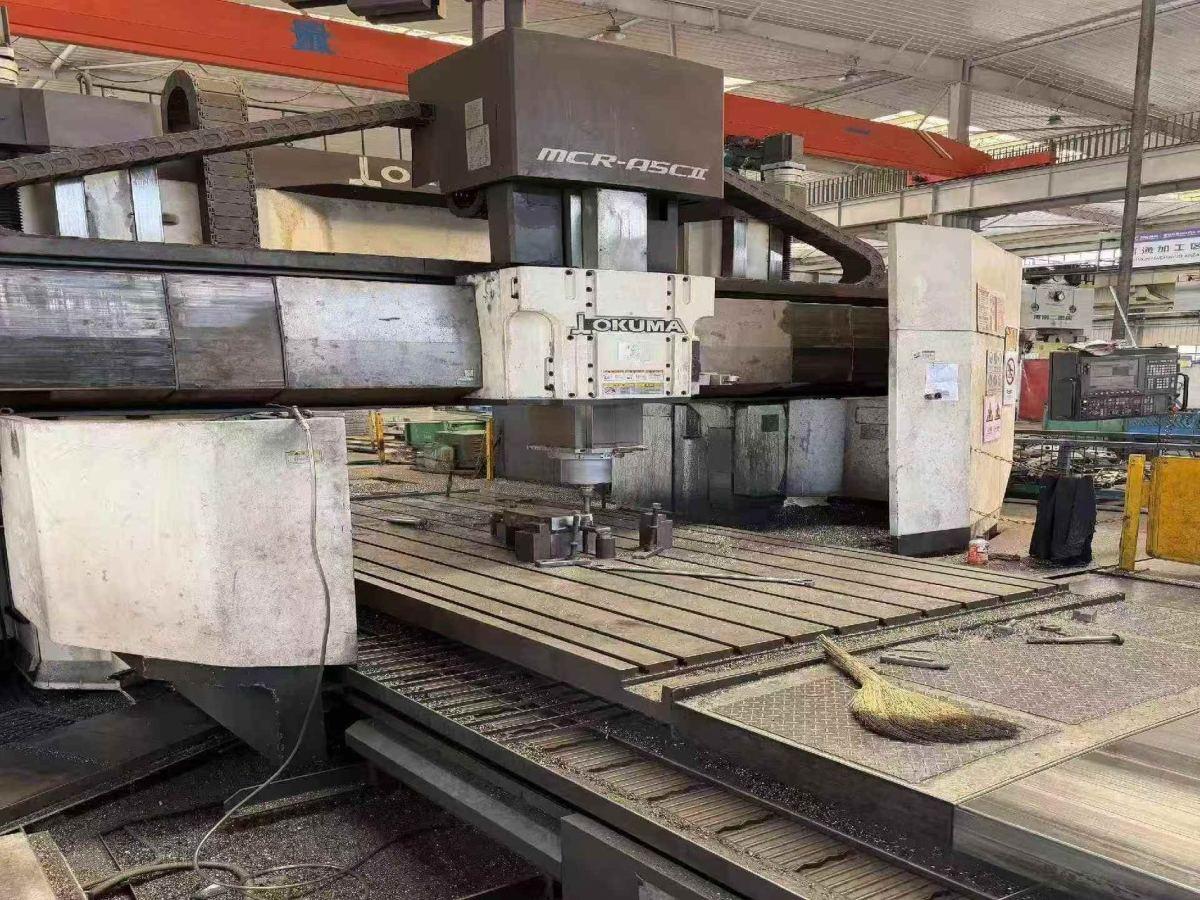

OKUMA MCR-A5Cll CNC gantry milling machine

Three-axis travel (X/Y/Z): 4200 × 3100 × 800 mm
W-axis travel: 1000 mm
Worktable size: 2000 × 4000 mm
Distance from worktable surface to spindle nose: 1650 mm
Maximum spindle speed: 10,000 rpm
Gantry width: 2650 mm
Floor space: 6680 × 10730 mm
Machine net weight: 37,000 kg
Tools magazine capacity: 60
Configuration:
Four-axis glass scales
T301 straight milling head
T302 90° milling head

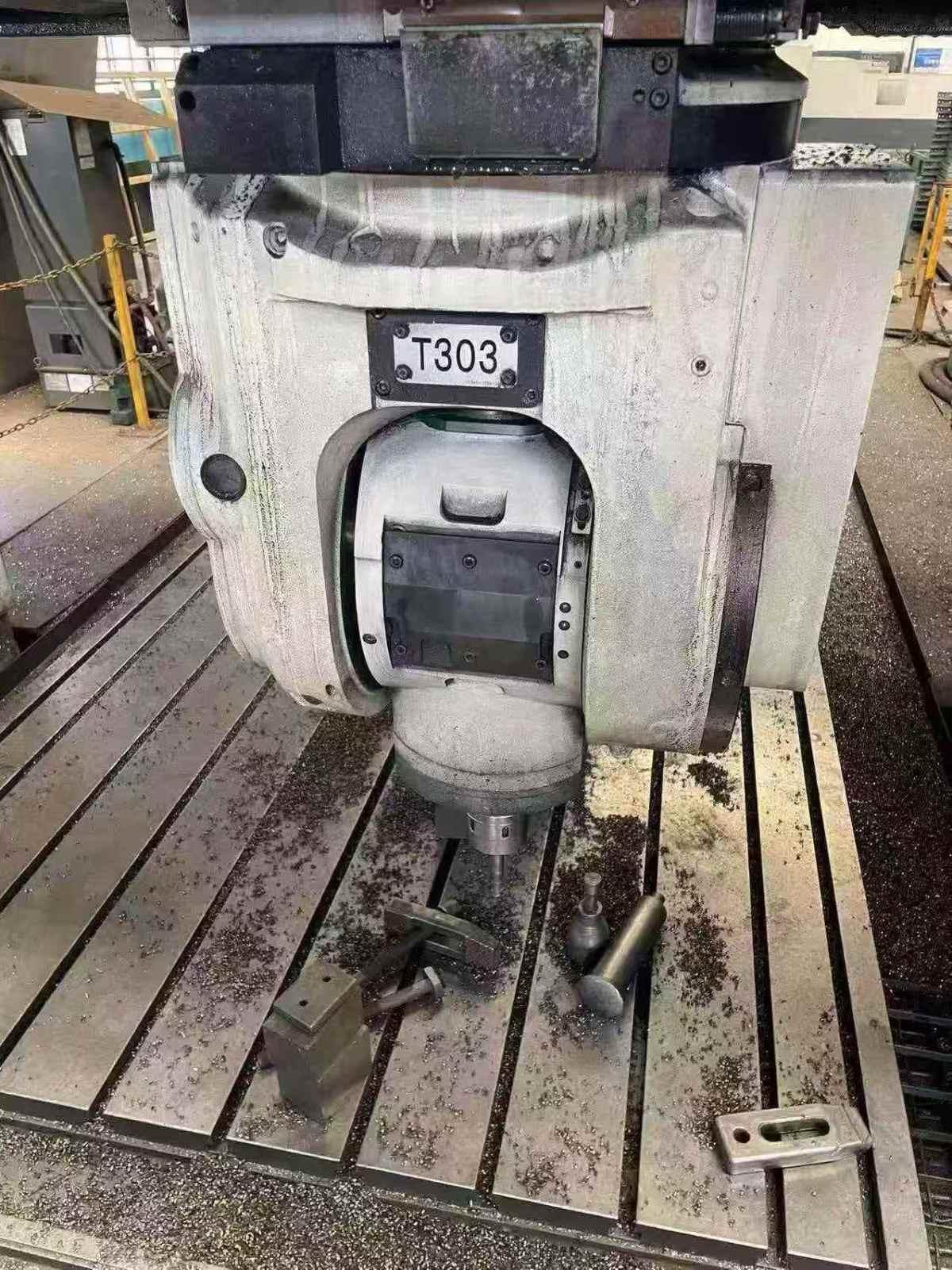

T303BC five-face milling head
