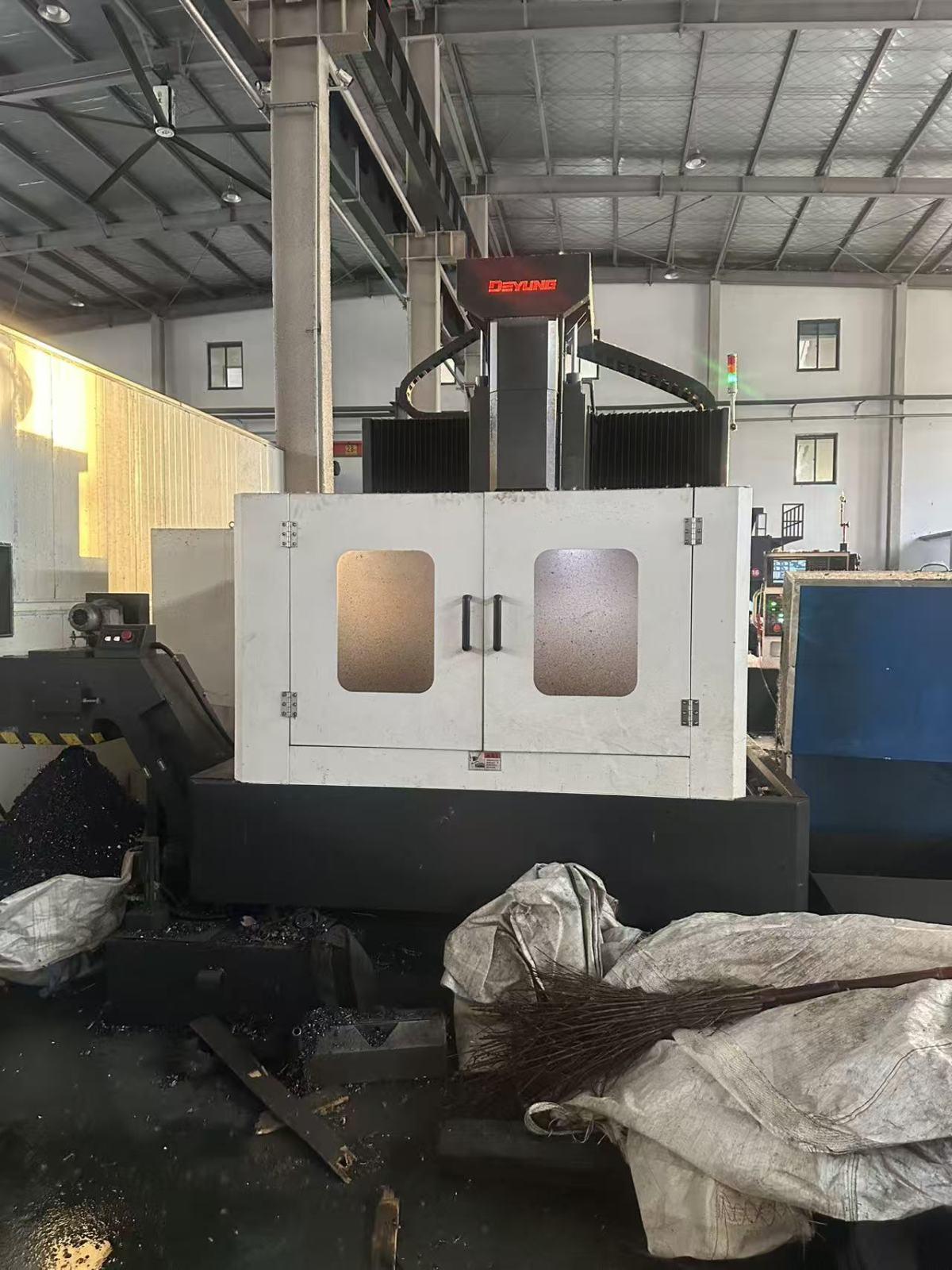

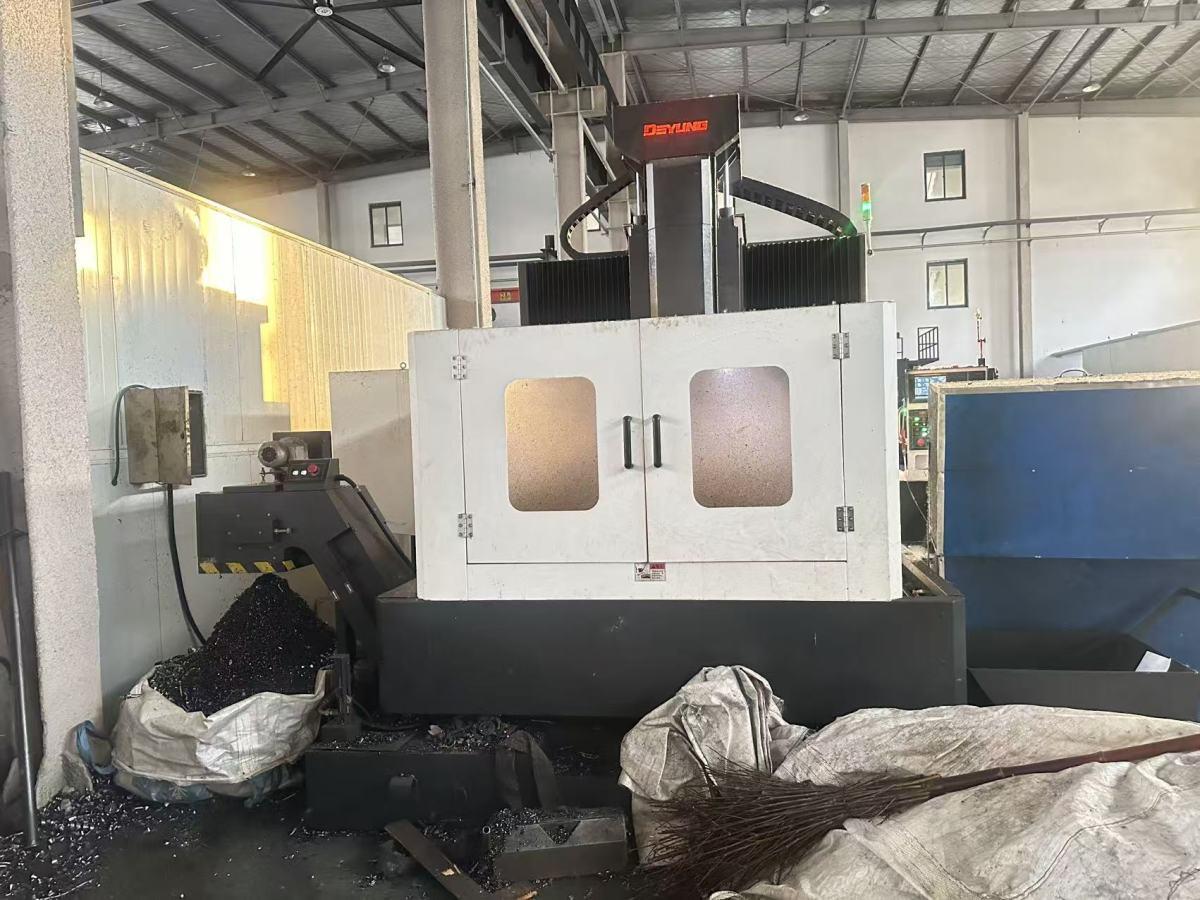

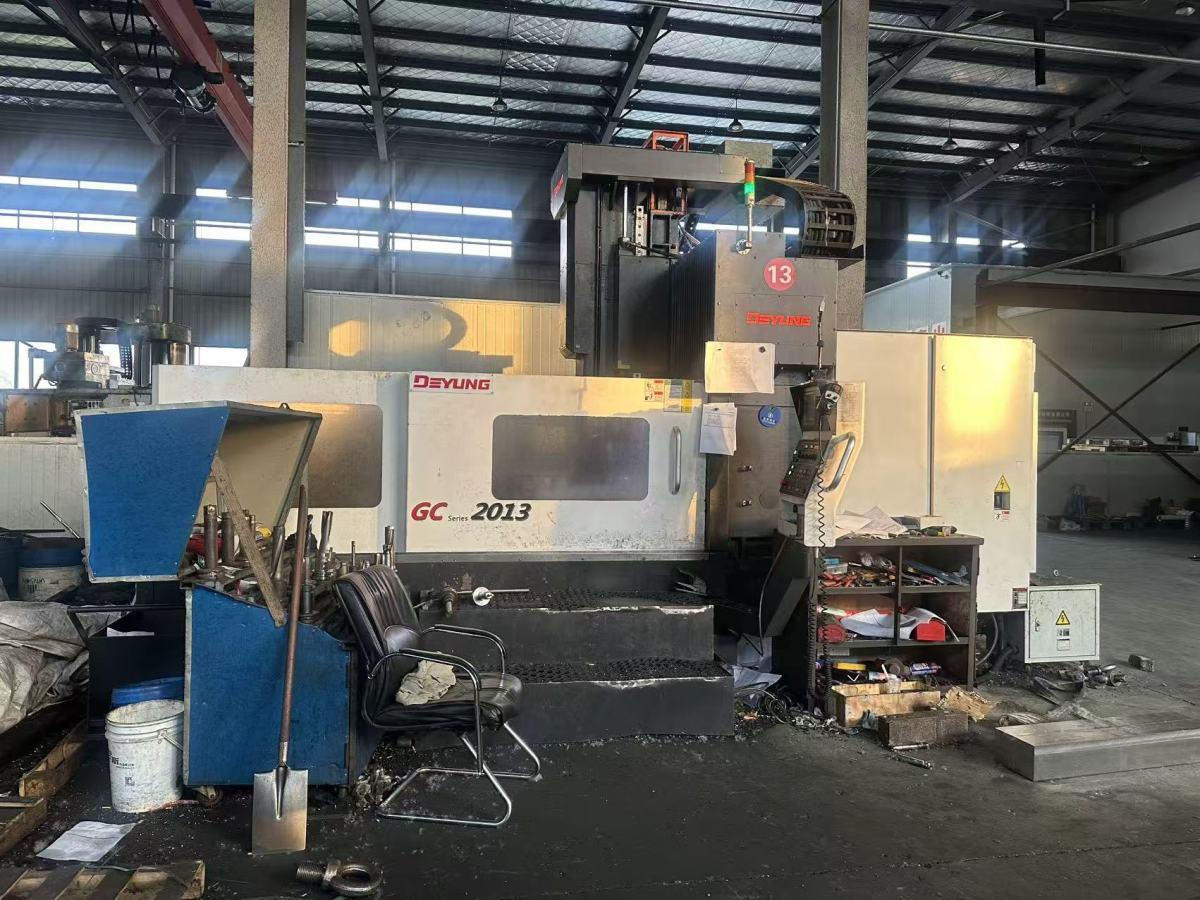

Deyung GC-2013 Gantry machining centre

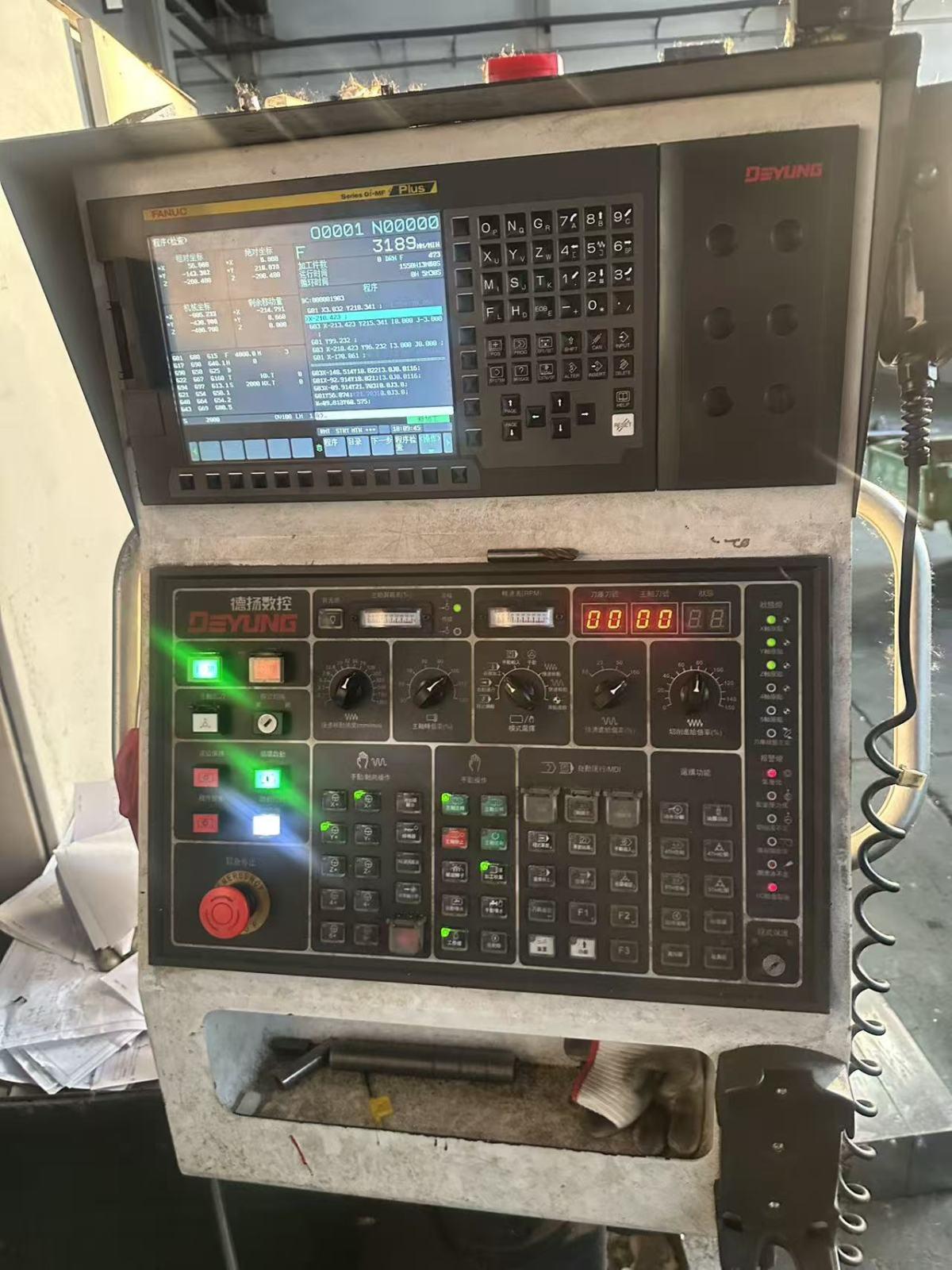

CNC System: FANUC MF Plus
Worktable size: 2000 × 1100 mm
Three-axis travel (X/Y/Z): 2000 × 1200 × 800 mm
Worktable load: 3.5 tons
Gantry width: 1300 mm
Gantry height: 1100 mm
Spindle taper: BT50
Spindle speed: 6000 rpm
Spindle motor power: 15 / 18.5 kW
Gear shifting method: ZF gearbox (automatic high/low speed shifting)
Guideway type: Three-axis  THK 55 heavy-duty roller linear guideways
Configuration:
Spindle oil chiller
Nitrogen counterweight balancing system
Twin-chip removal system (screw-type + chain-type chip conveyors)
