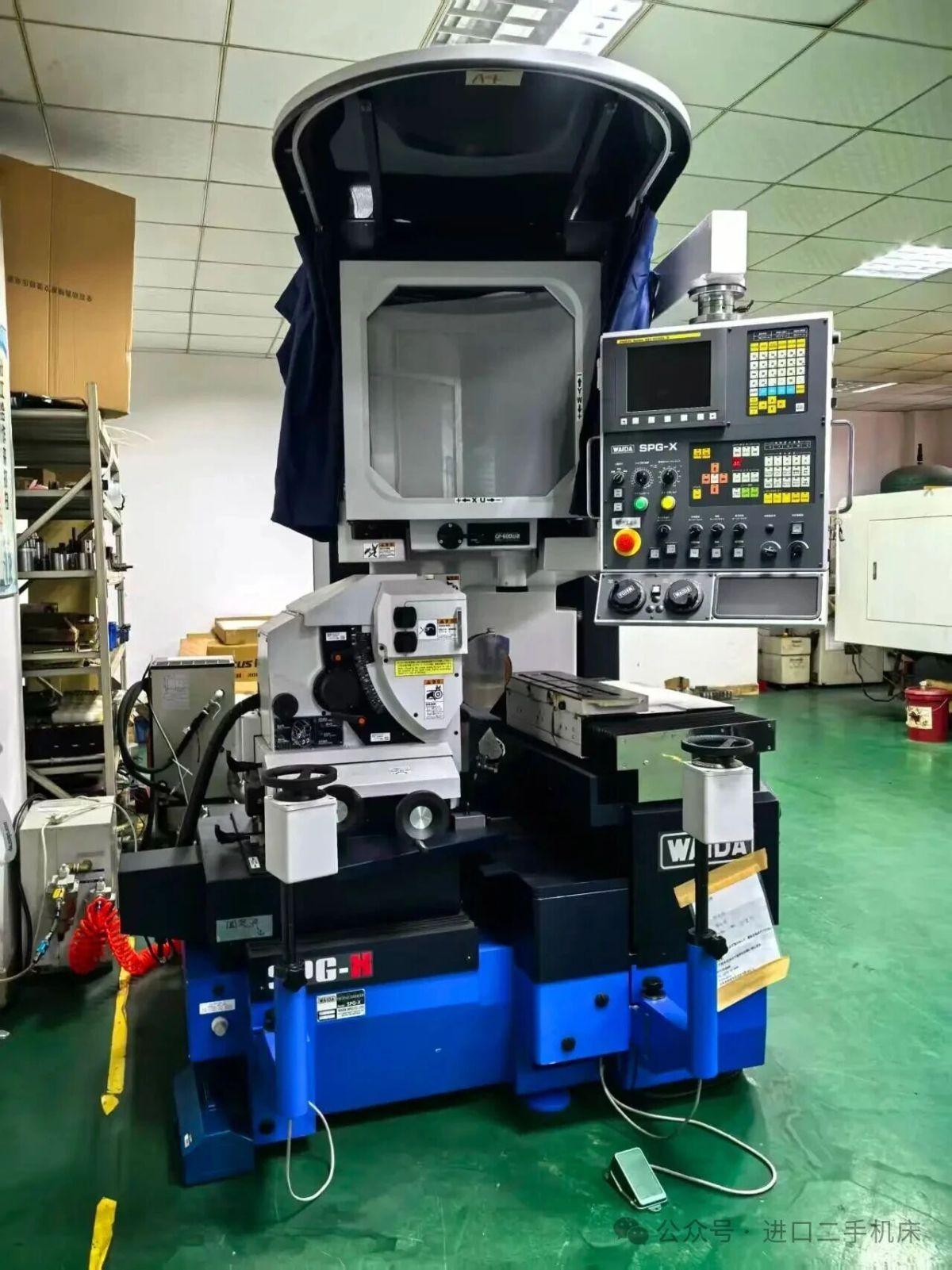

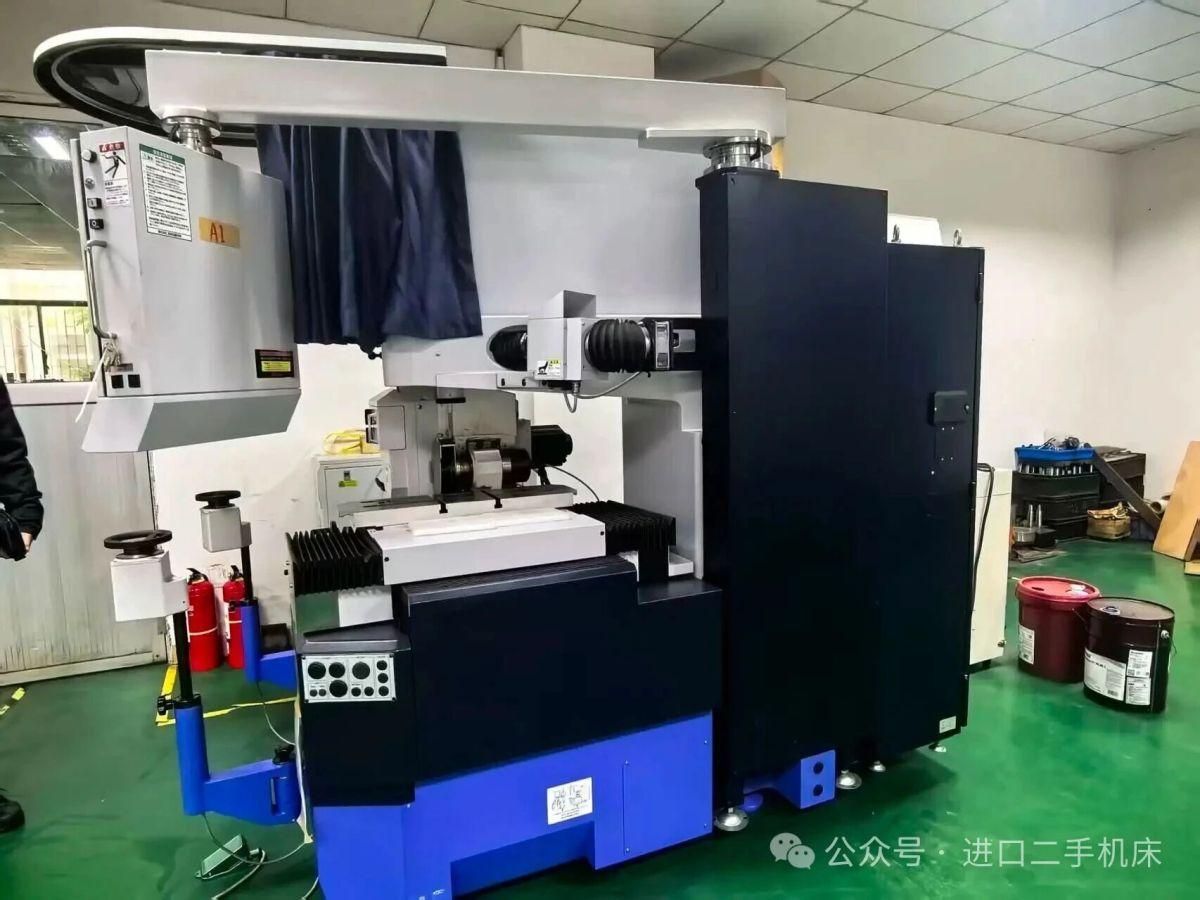

WAIDA SPG-X Optical profile grinding

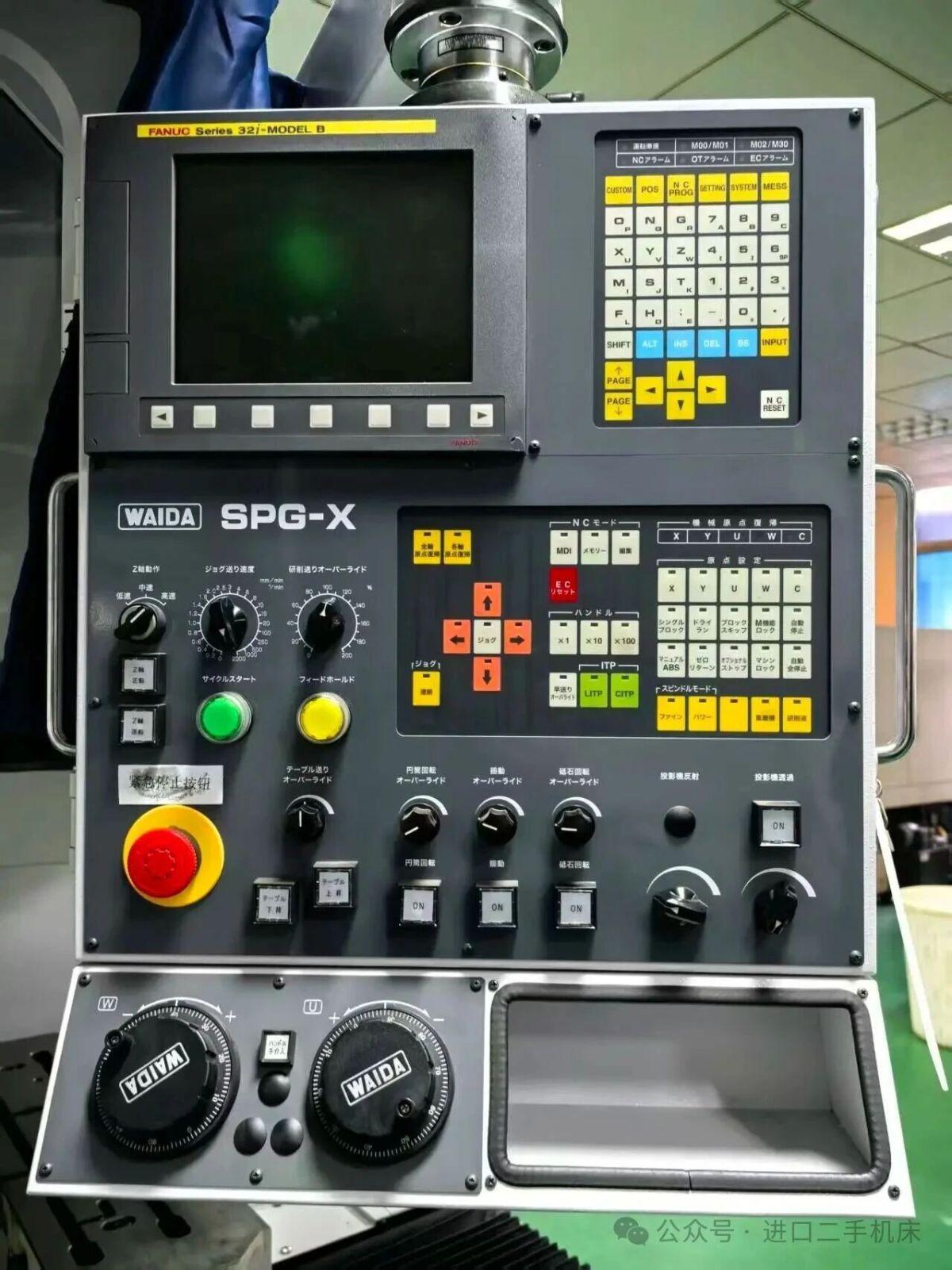

CNC System: FANUC 32i-B
Three-axis travel (X/Y/Z): 200 × 170 × 150 mm
U×W-axis travel: 300 × 150 mm

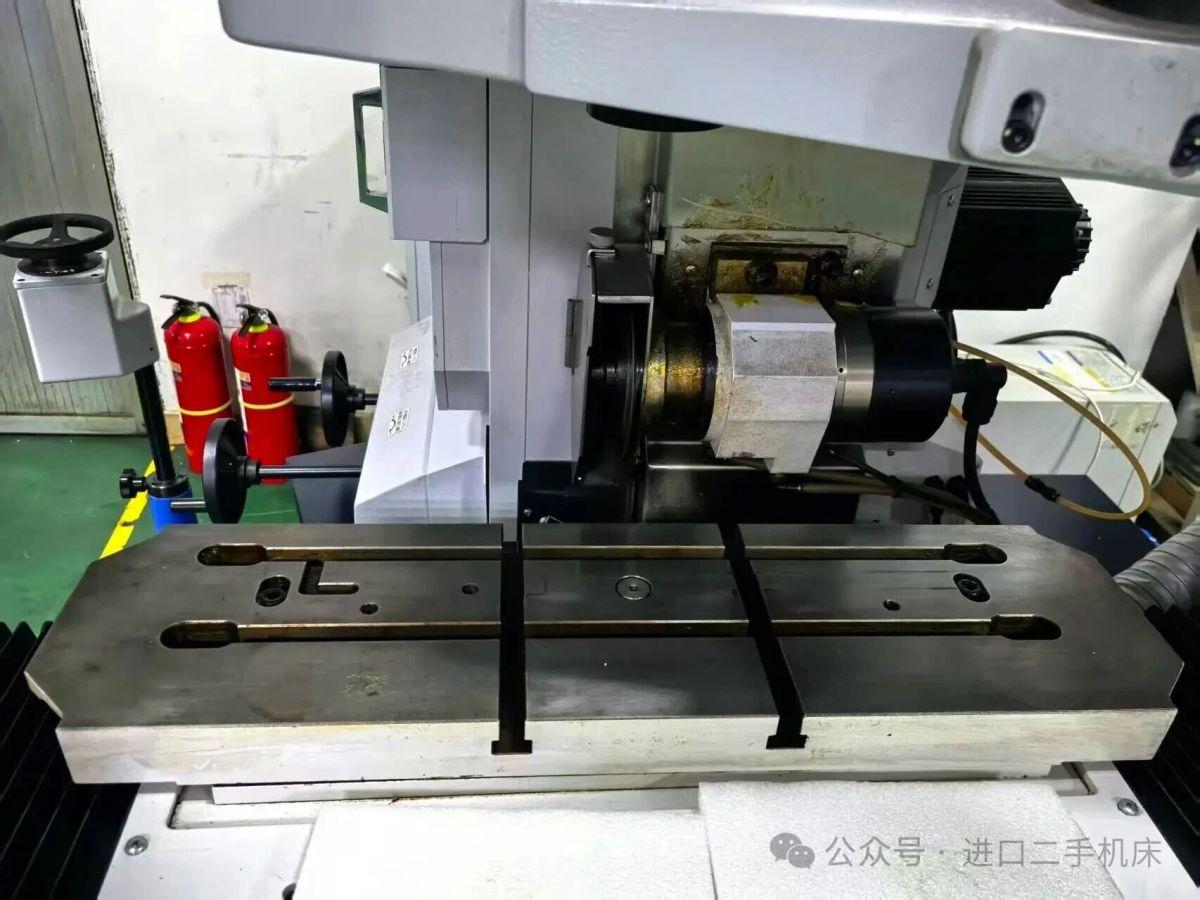

Worktable size: 600 × 180 mm
Grinding wheel spindle speed: 20,000 rpm
Minimum feed unit: 0.1 μm

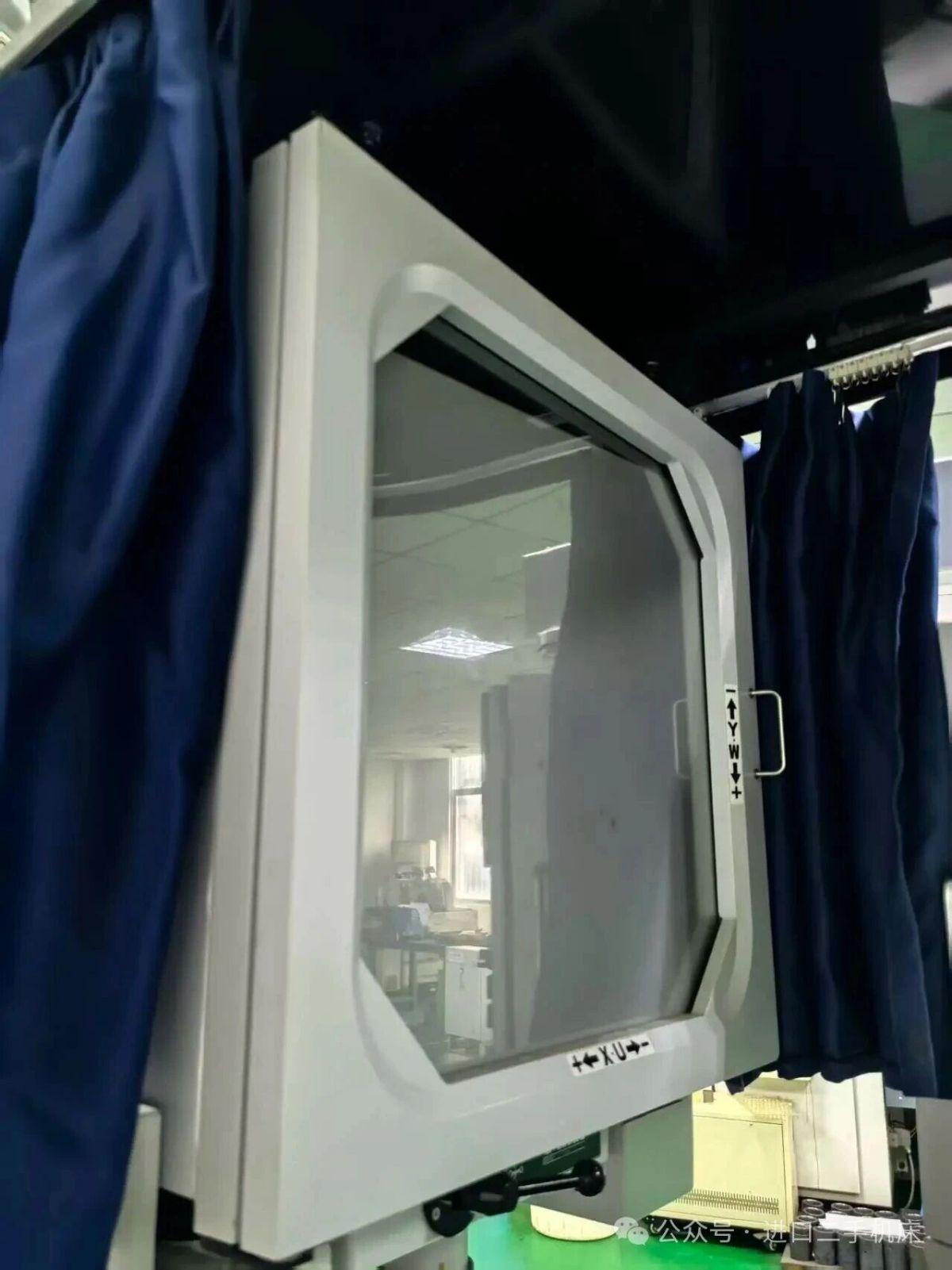

Effective projection area: 500 × 500 mm
Projection magnification: 20× / 50× (switchable)
Machine dimensions: 1615 × 1995 × 2120 mm
Machine weight: 4500 kg
Usage time: Approximately 500 hours

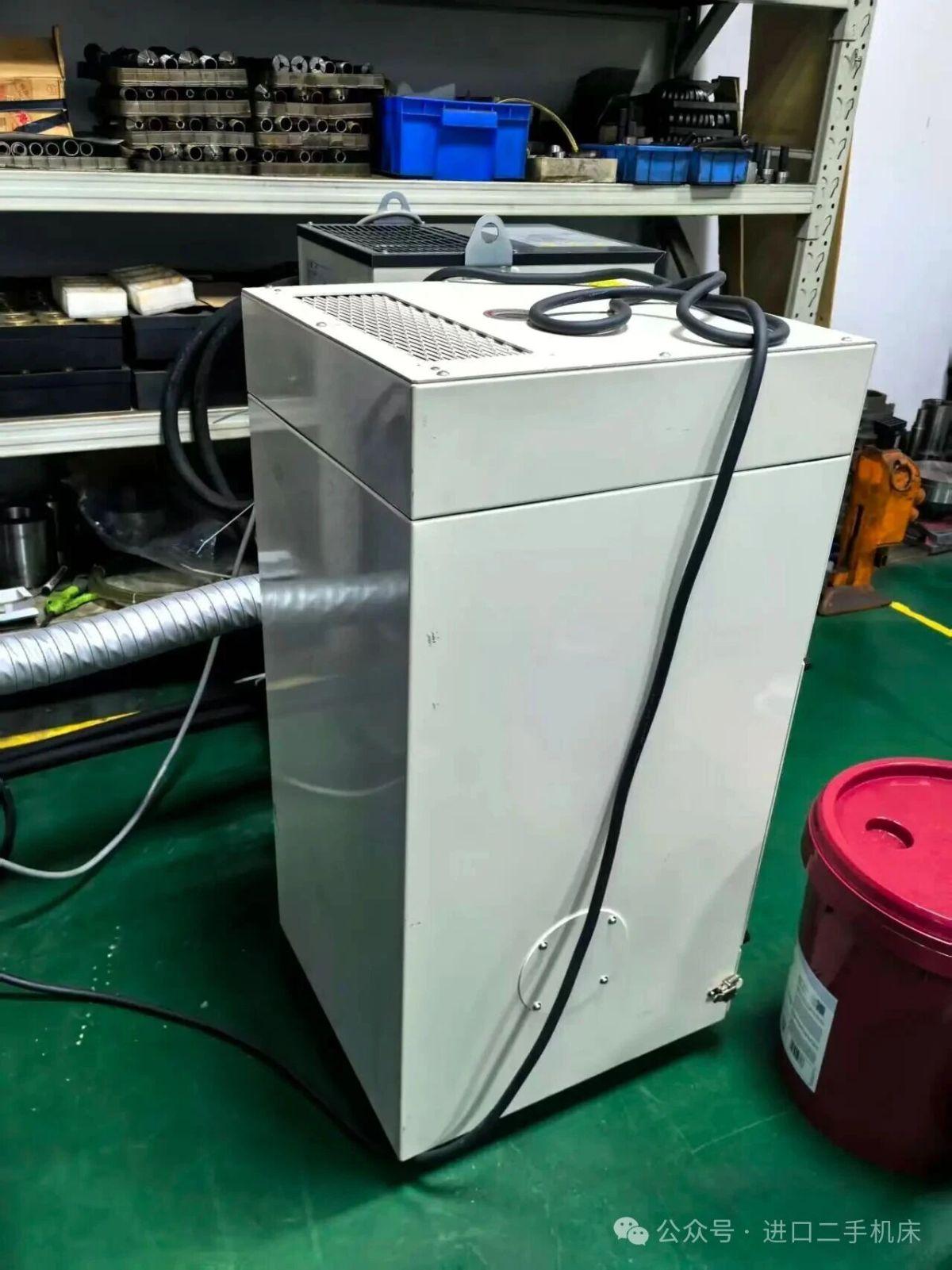

Accessories: Dry grinding dust collector
