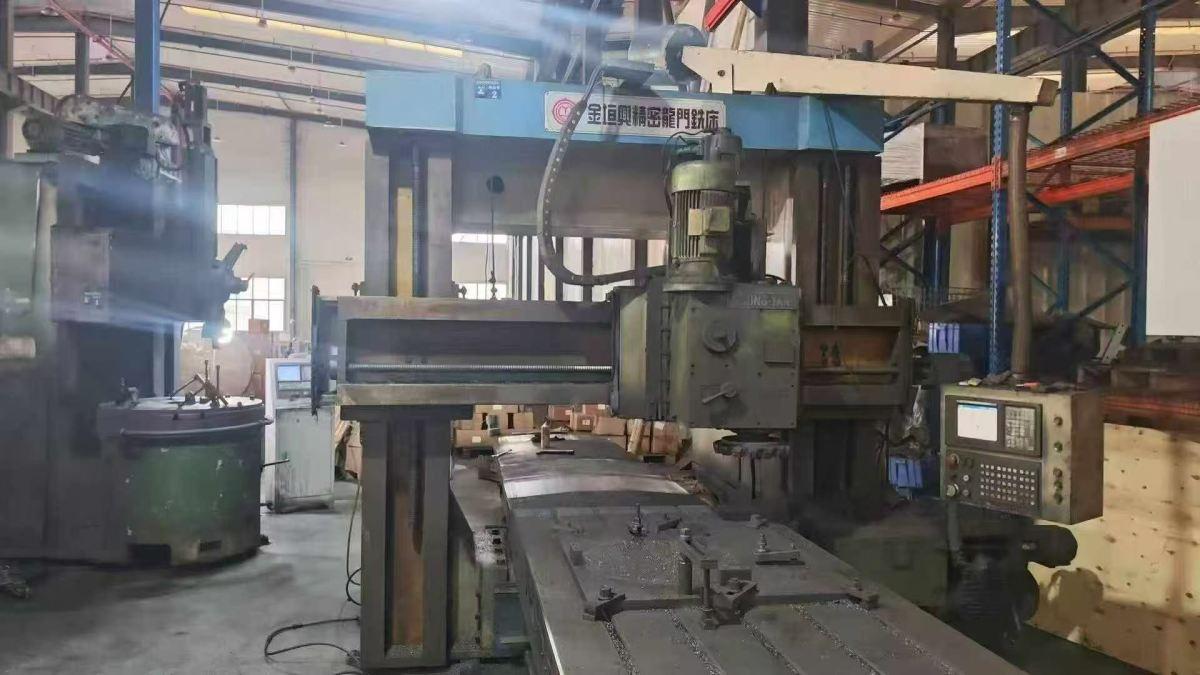

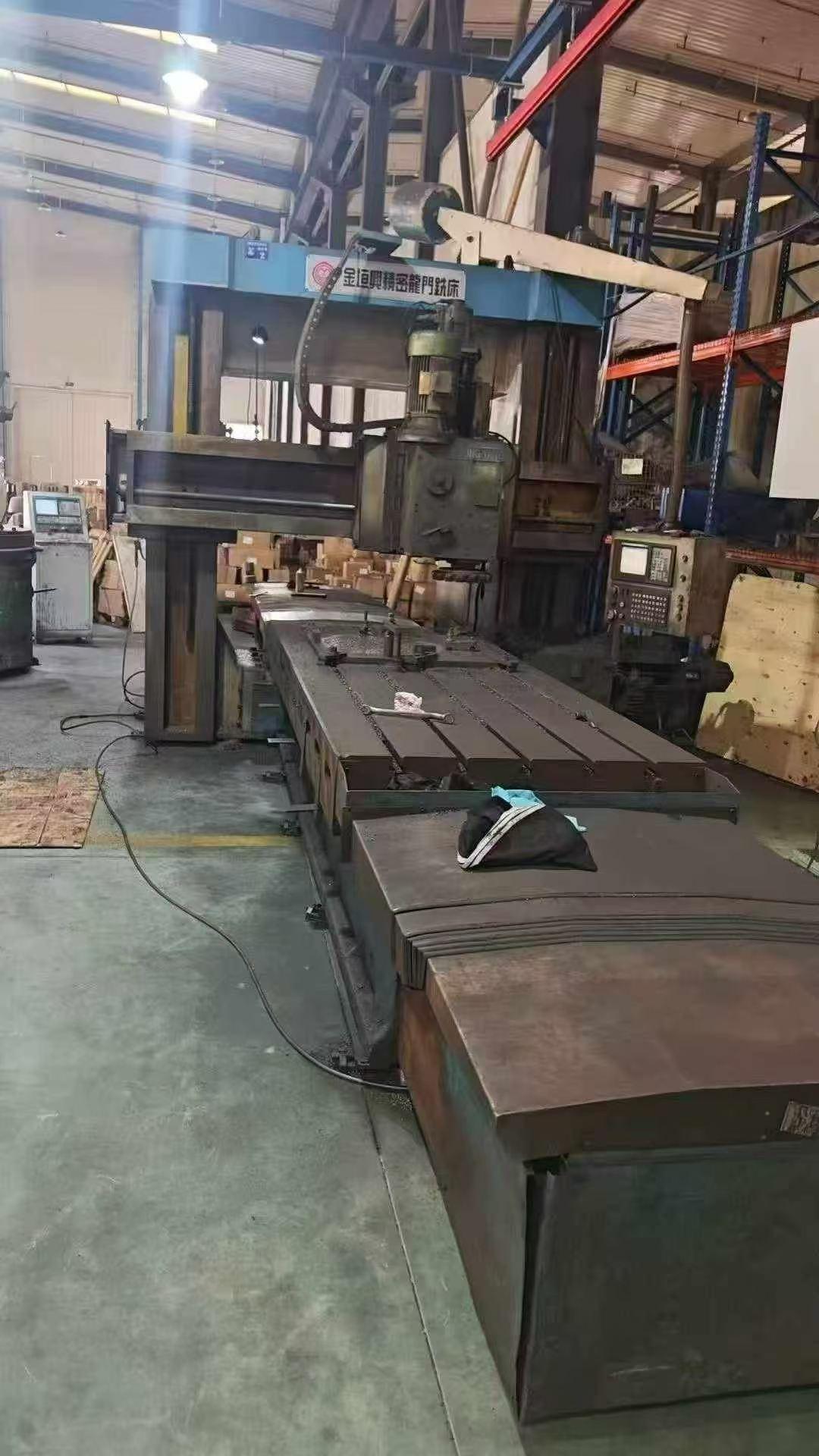

ChinYuanSing CH-3016 Gantry milling machine
[Product Information]:
- Inventory number：68361
- Brand：ChinYuanSing
- Model：CH-3016
- Origin：Taiwan, China
- Location：China
- Year：2019
- Create Time：2026-06-27
Specifications:
Worktable size: 3000 × 1300 mm
three-axis travel: 3000x1600x300mm
The passage width of the double-column gantry is 1630mm
Distance from spindle nose to Worktable surface: 1000mm
The left-right travel of the side milling head: 300mm
The up and down travel of the side milling head: 550mm
The maximum load of Worktable: 4000 kg
