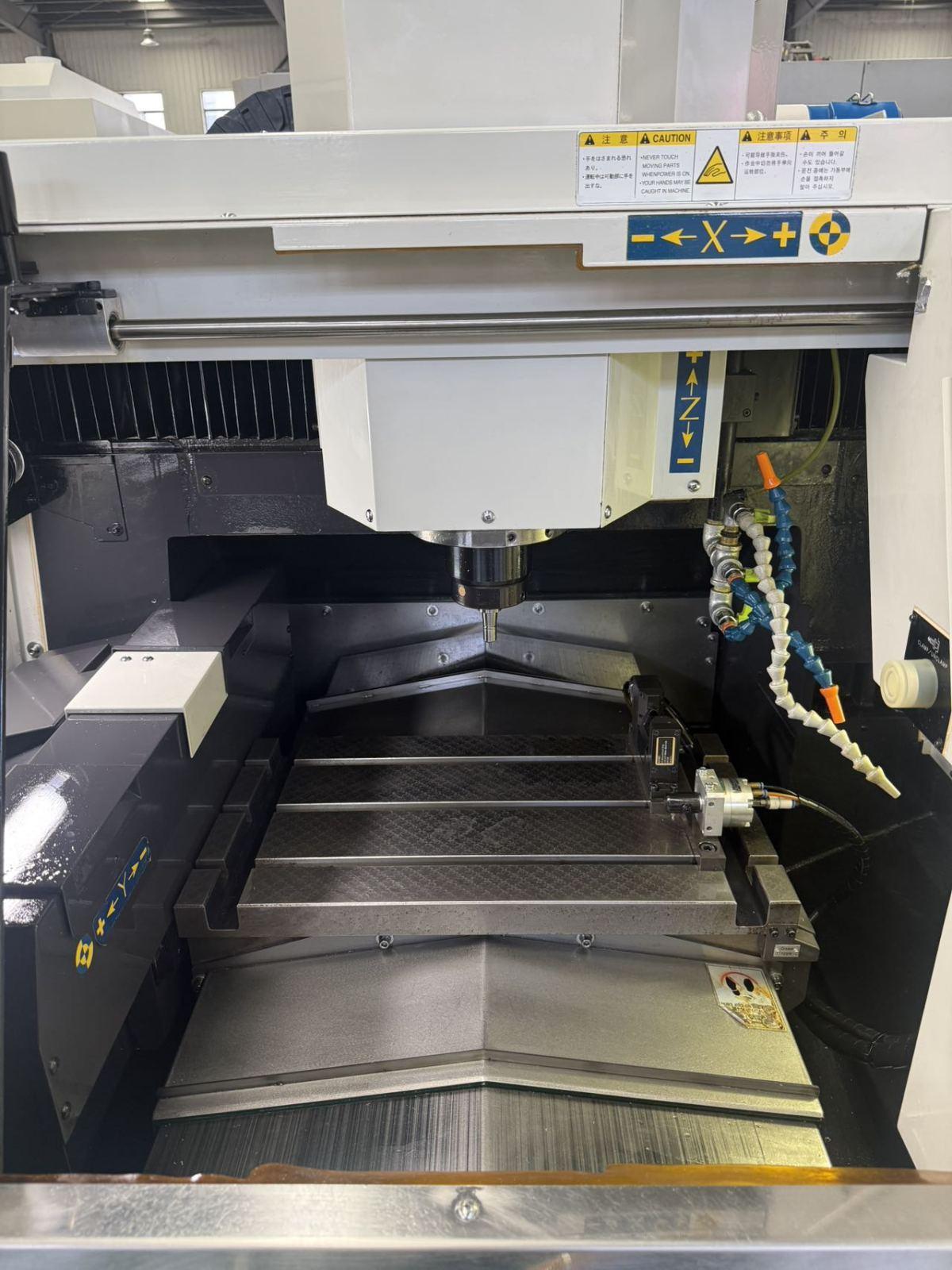

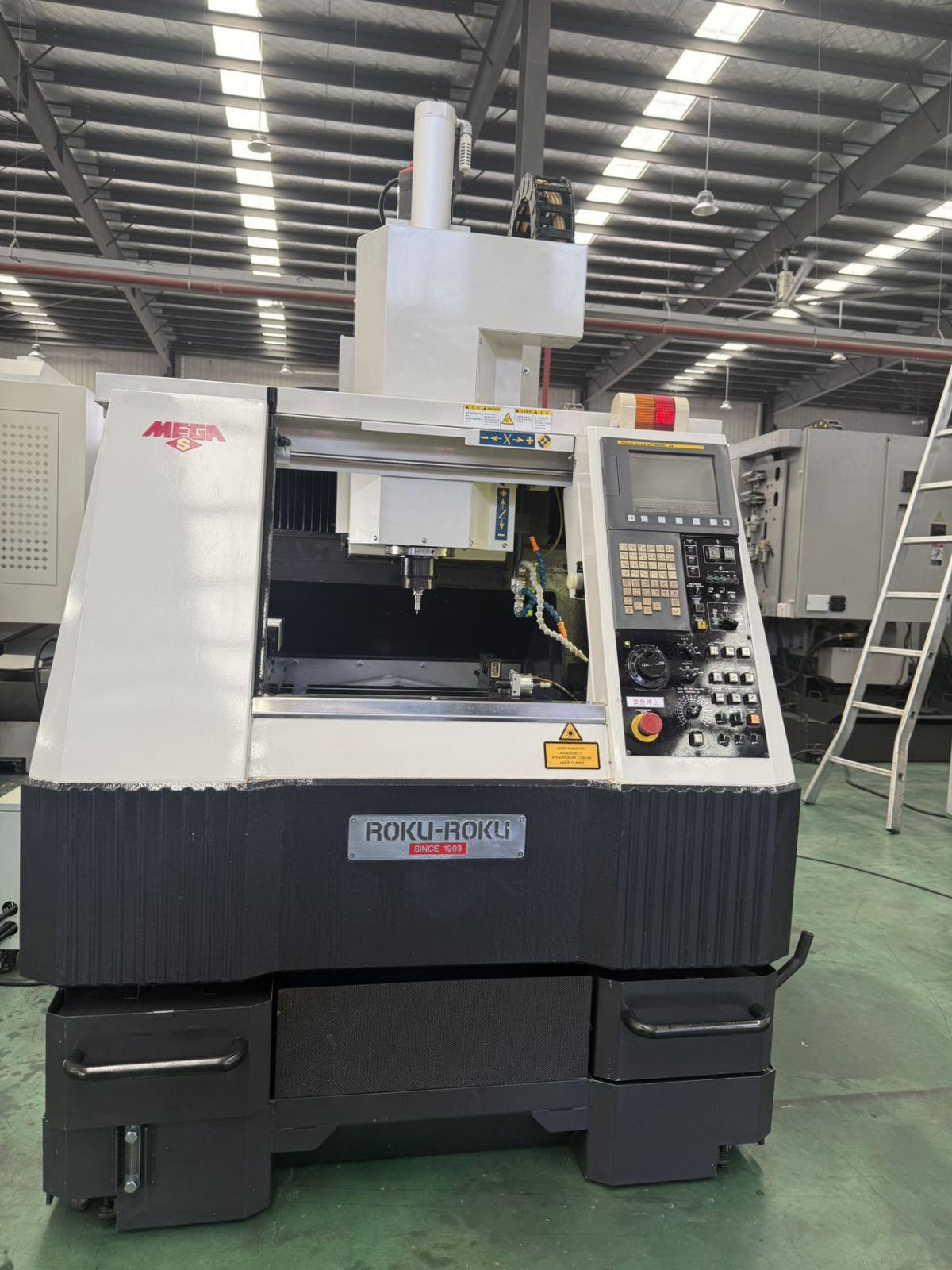

ROKU-ROKU MEGA-SS400 Machining centre

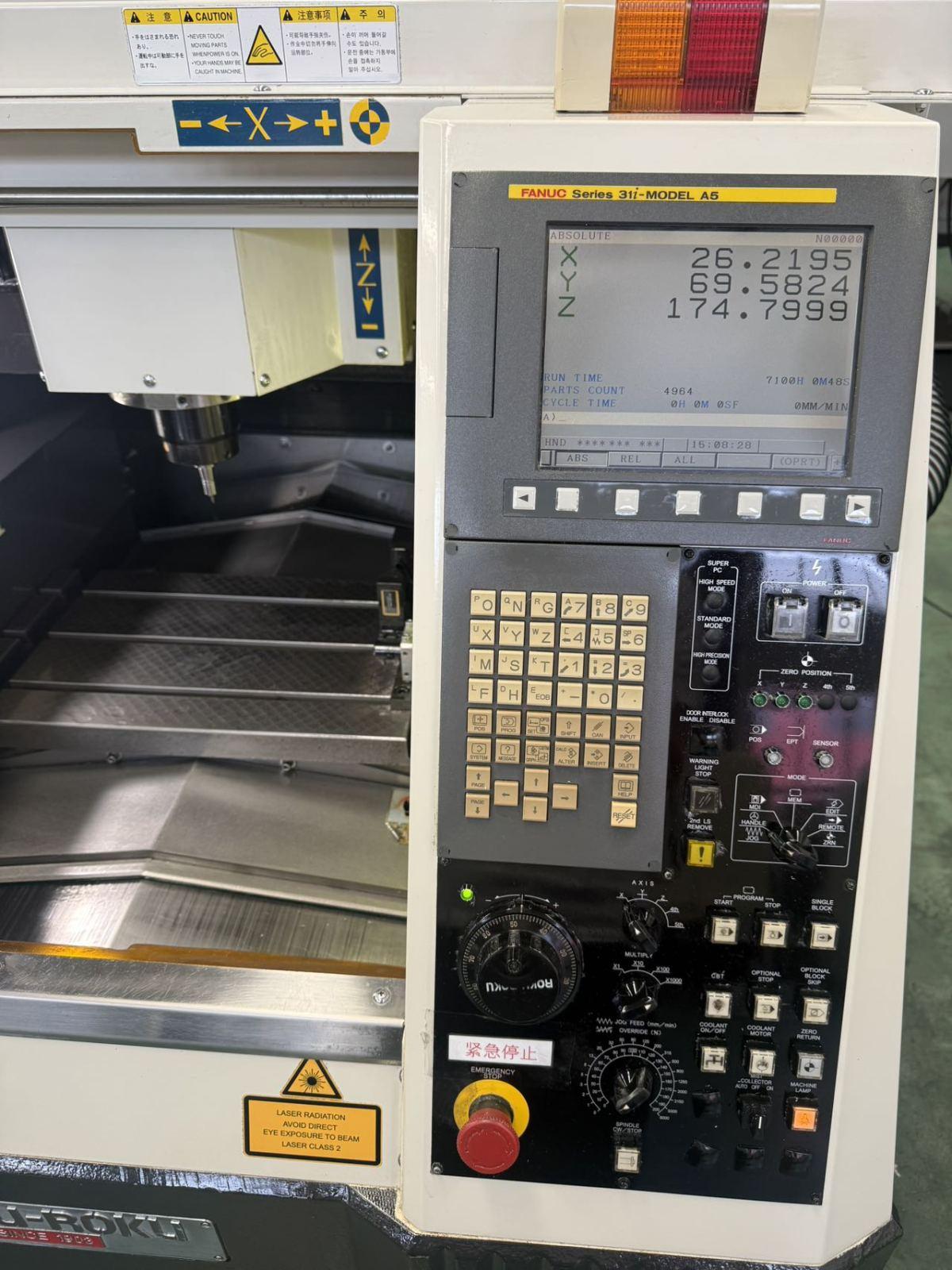

CNC System: FANUC 31i-A5
three-axis travel: 410x330x200mm
Worktable size: 450×350mm
Maximum load: 200kg
Tool holder specification: HSK-E25
Spindle speed: 40,000 RPM
spindle power: 4.0kW
Standard tools magazine: 11 pieces
Fast movement: X/Y 32m/min, Z 24m/min
Cutting feed: 1 to 10,000 mm/min
The self-weight of the equipment: approximately 2,500 kg
AppVertical machining centerble Tool: minimum φ0.01 micro-hole drill bit, R0.05 ultra-small diameter milling Tool
Optional:

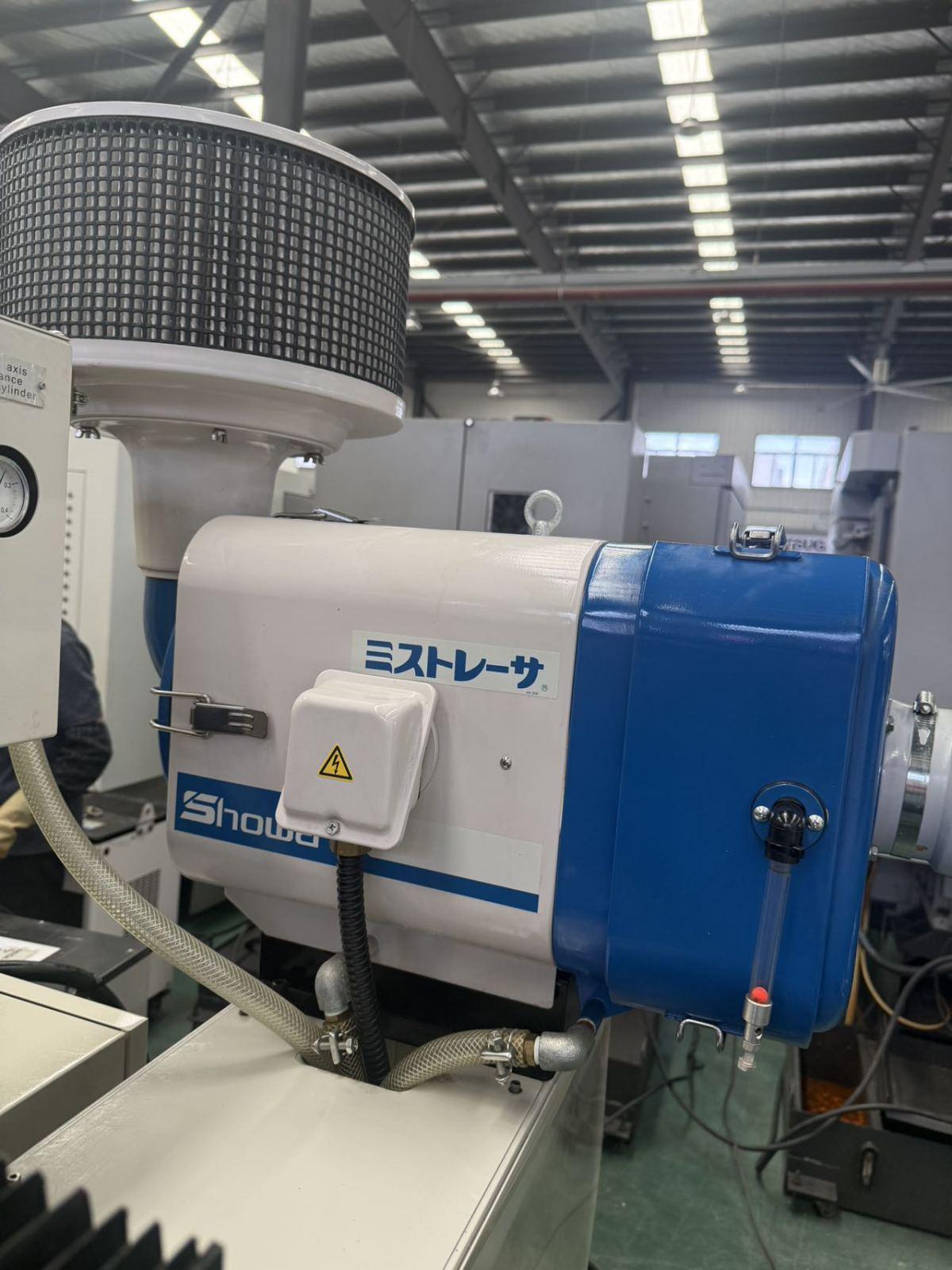

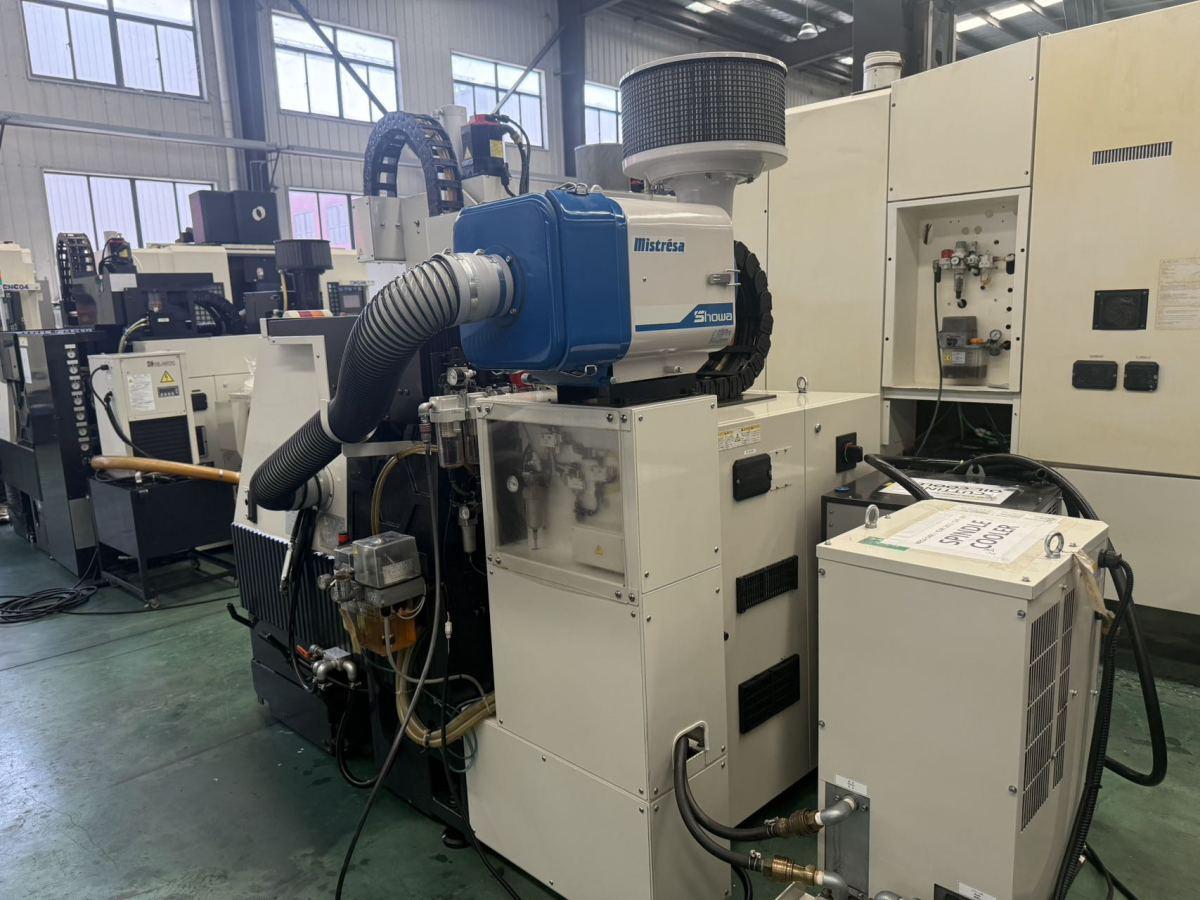

Original Showa oil oil collector from Japan

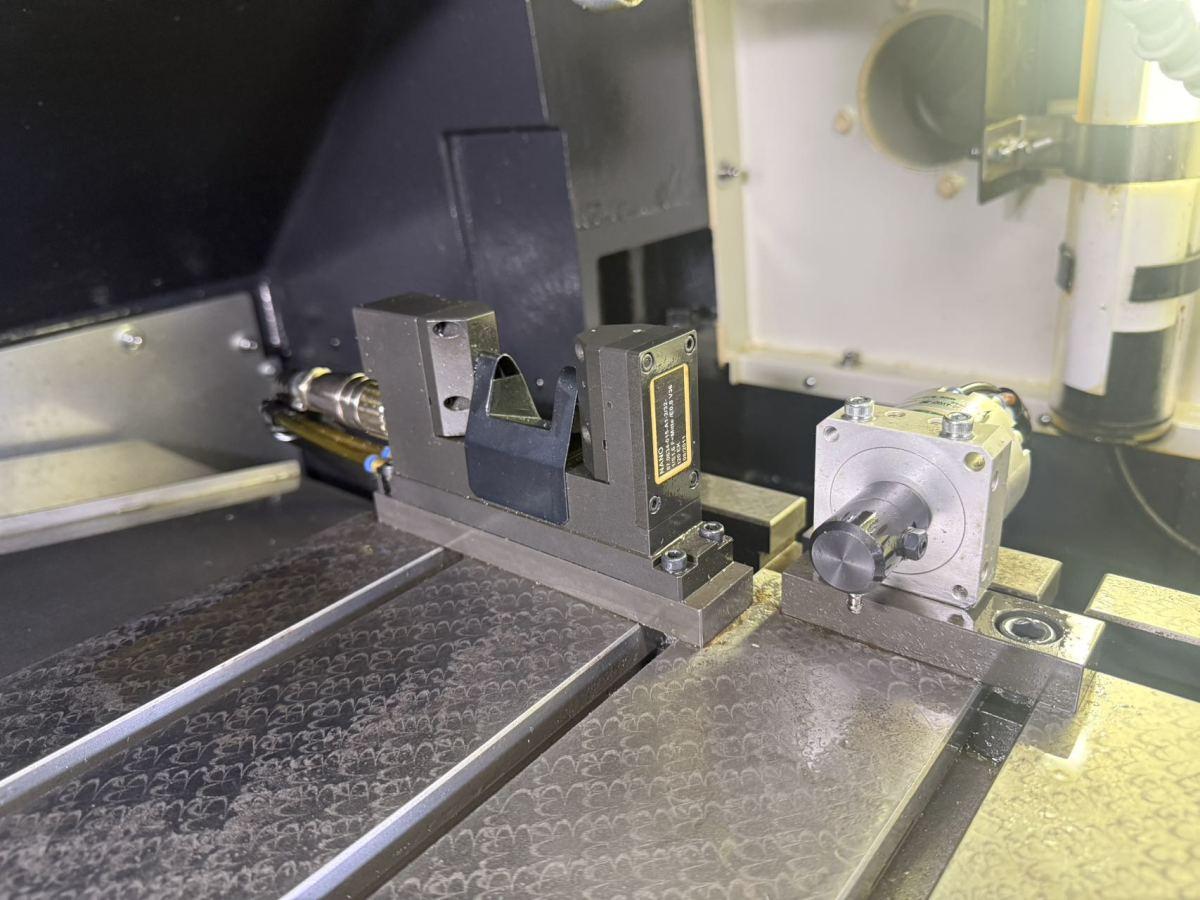

NAKO high-precision contact automatic Tool Aligner
