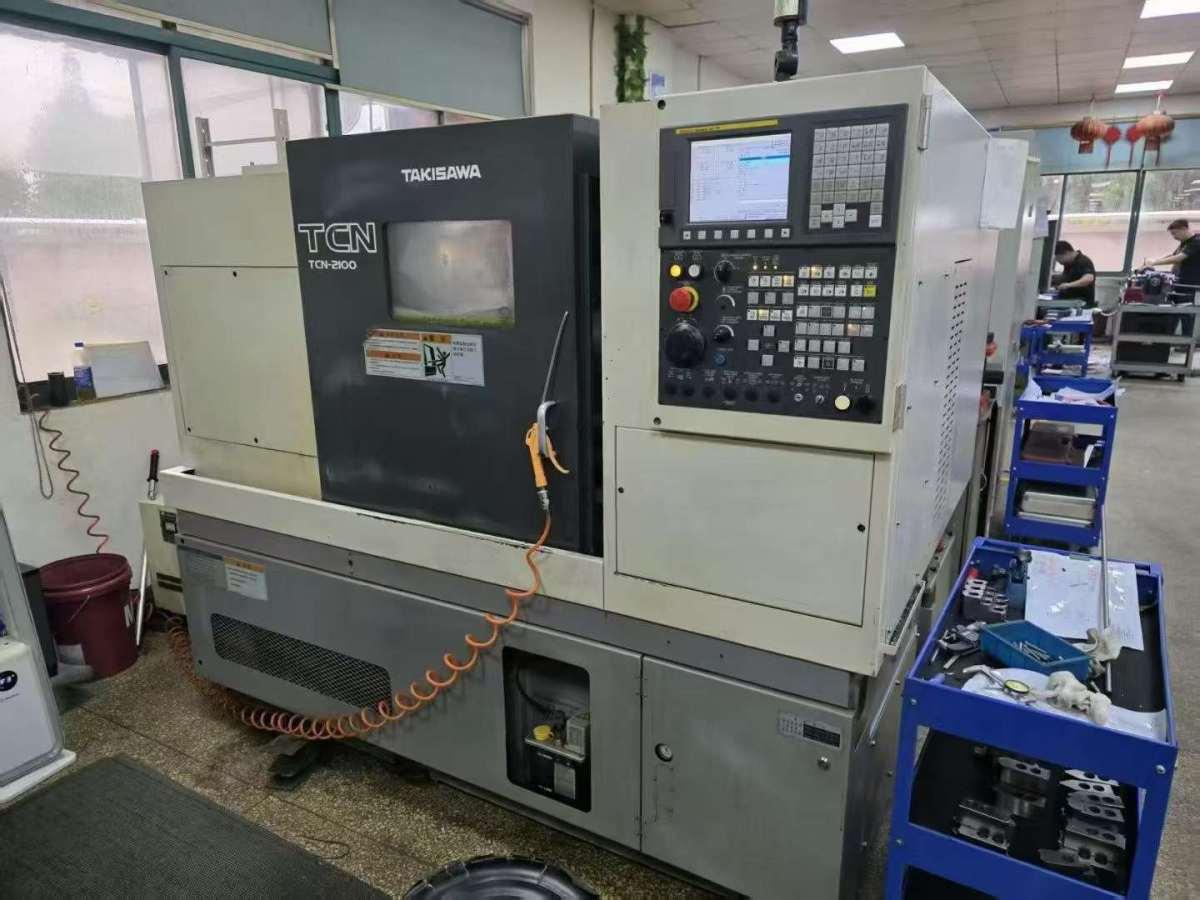

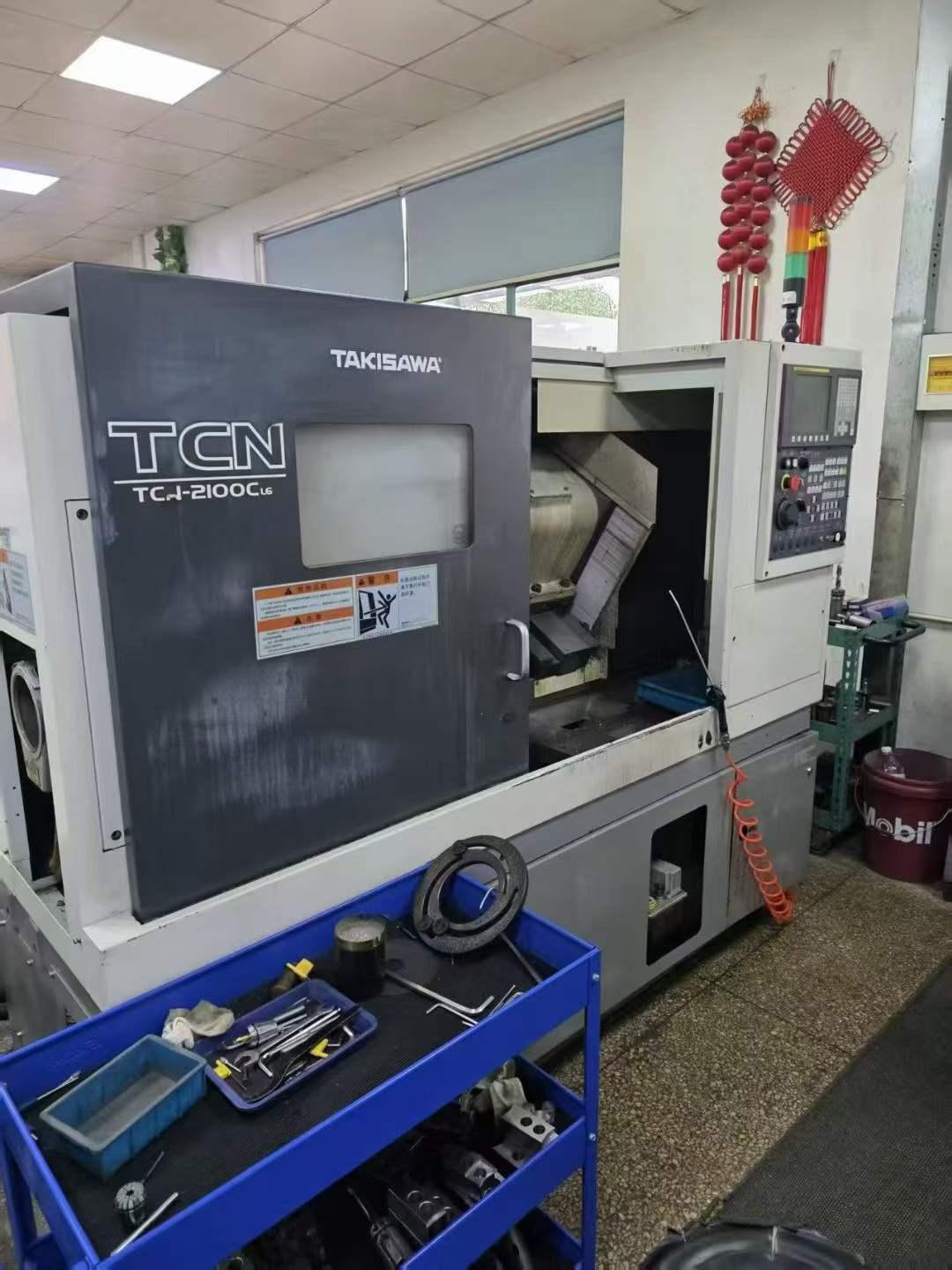

Takisawa TCN-2100CL6 CNC turning lathe

[Product Information]:

Inventory number：68338
Brand：Takisawa
Model：TCN-2100CL6
Origin：Taiwan, China
Location：China
Year：2019
Create Time：2026-06-26

Specifications:

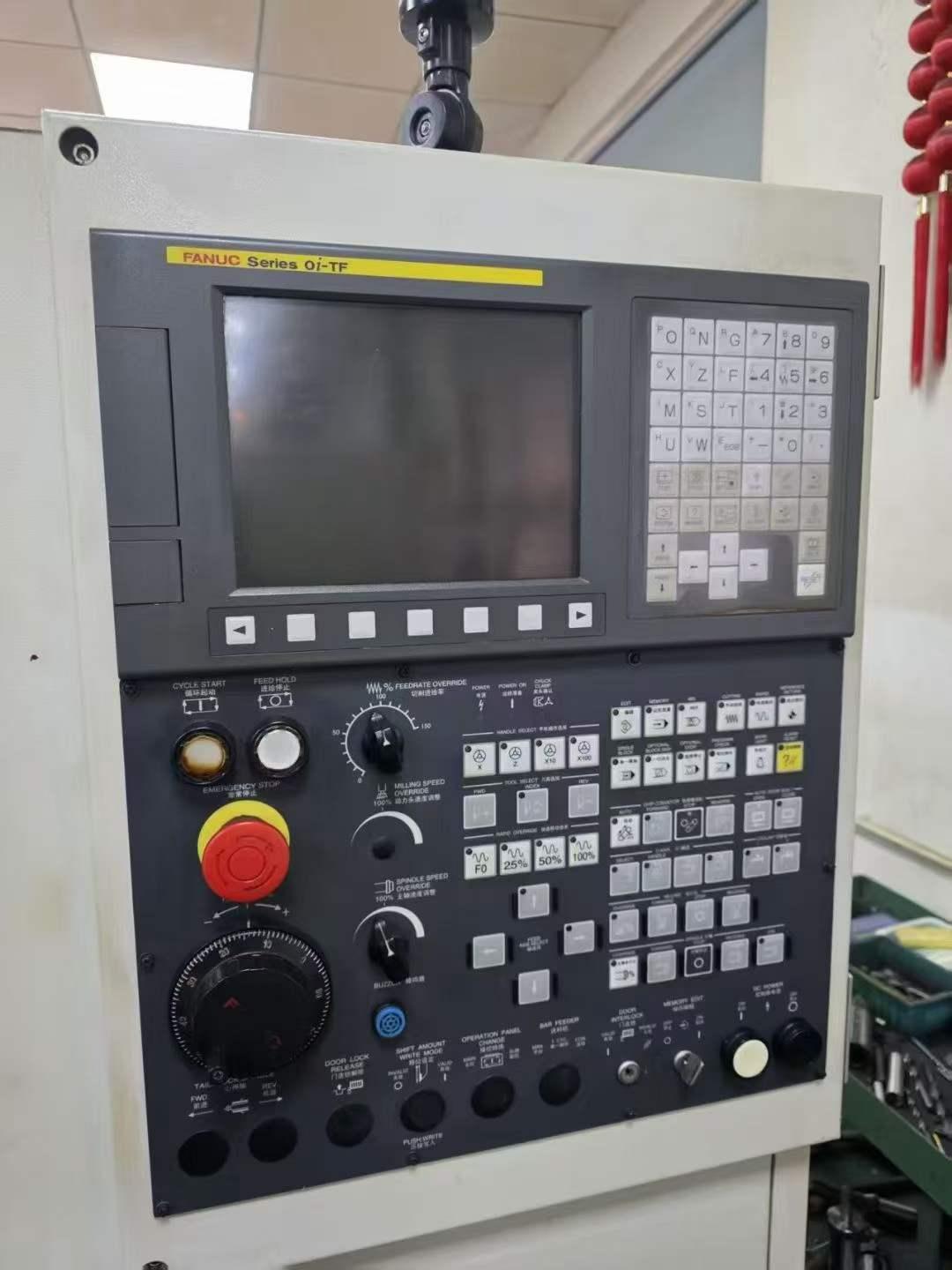

CNC System: FANUC
Overall dimensions ‌: 2095*1532*1700mm‌
Worktable size: 500*500mm
weight ‌: 3300kg‌
Spindle speed ‌: 3200rpm‌
spindle motor power: 11/9 kw ‌
machining precision ‌: 0.01mm‌

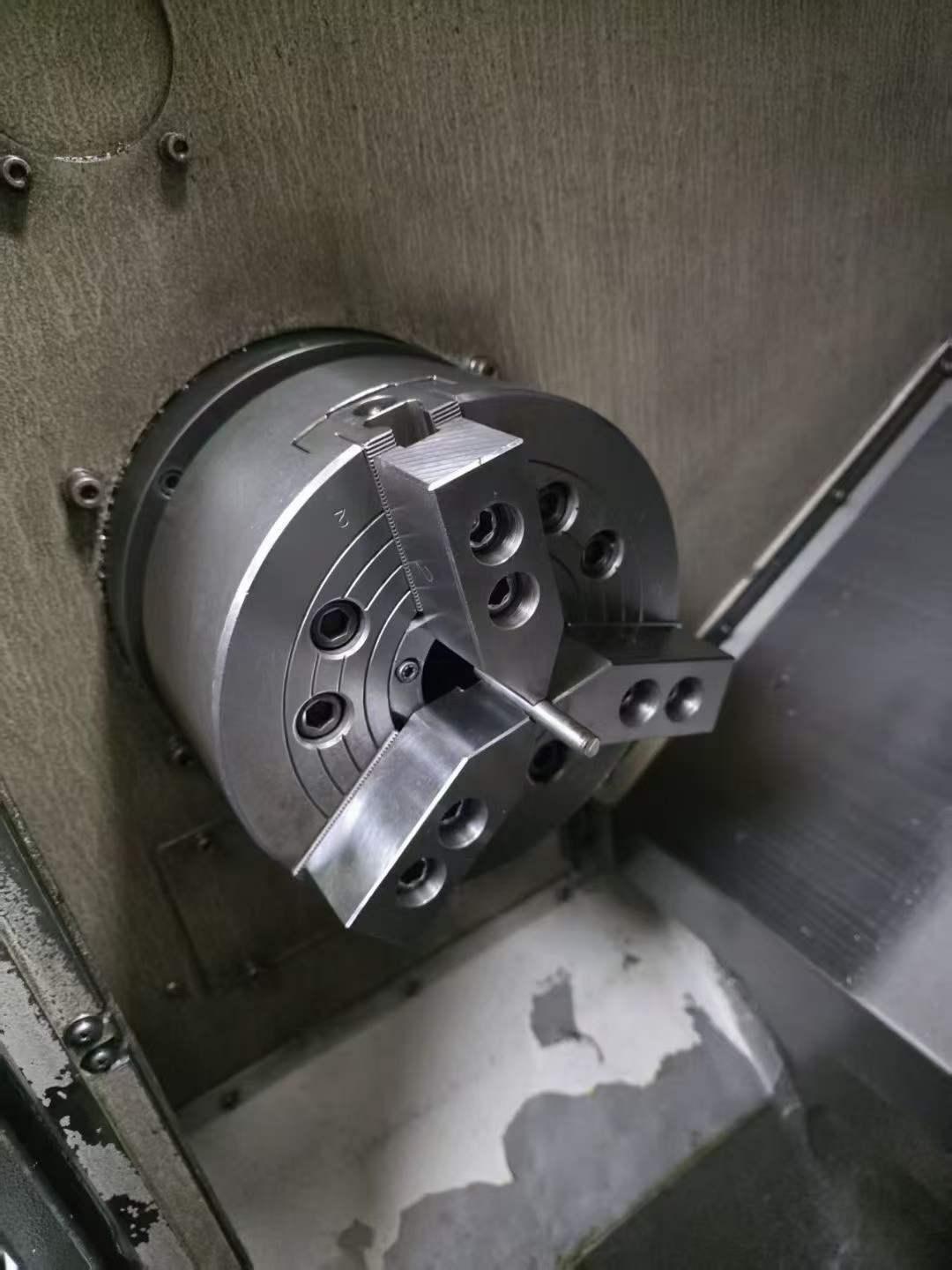

chuck : 8-inch hydraulic chuck

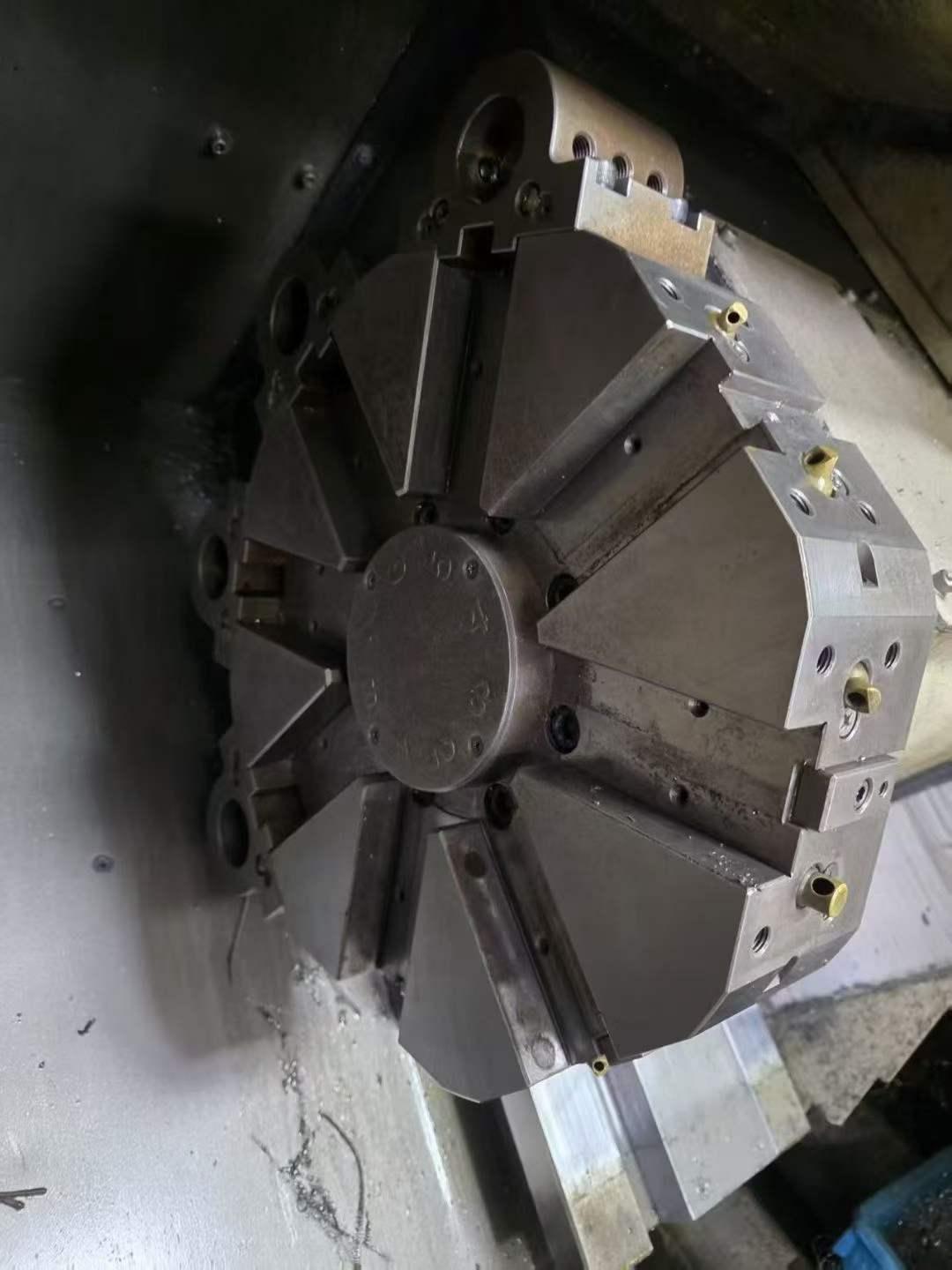

Tool Turret position: 8-station servo tool turret
Maximum rotational diameter: 420mm
Disc cutting diameter: 410mm
Maximum machining length: 600mm
