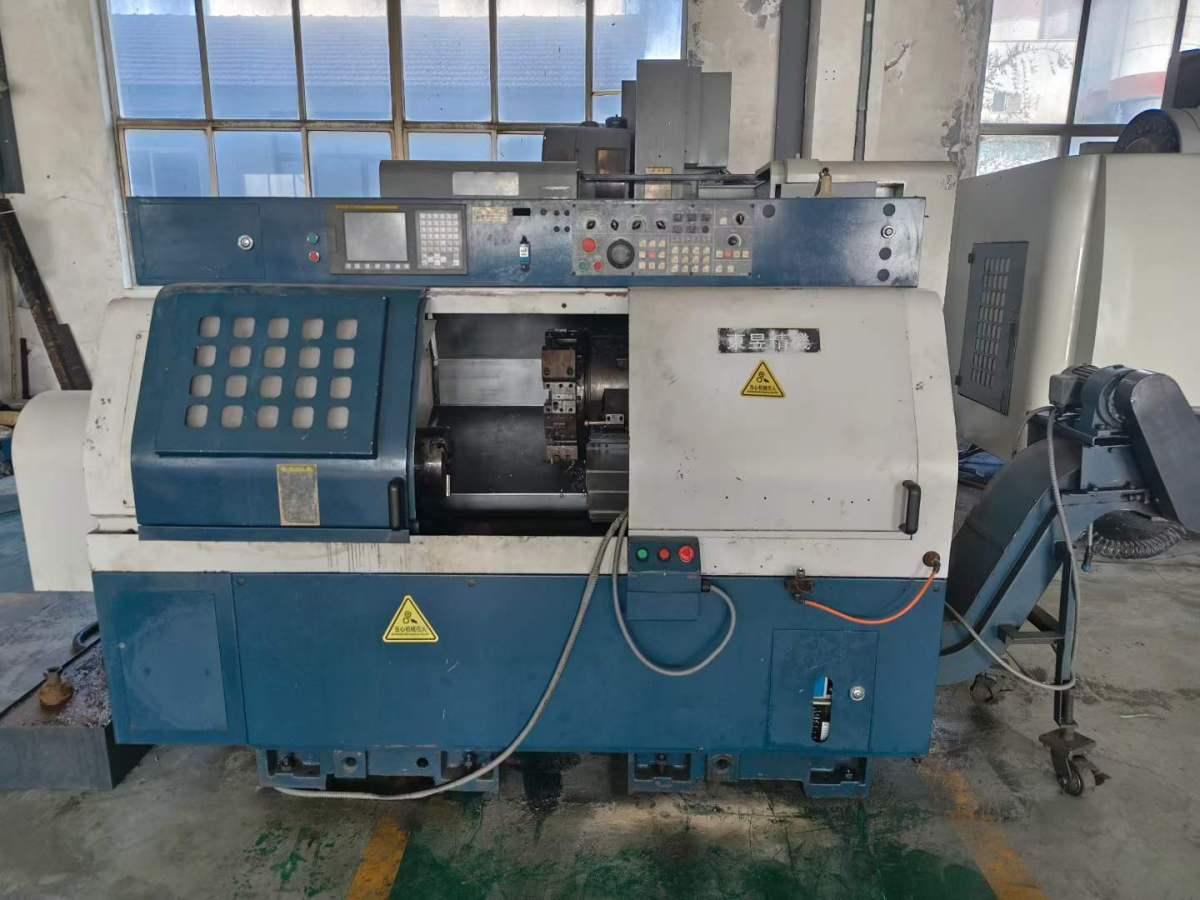

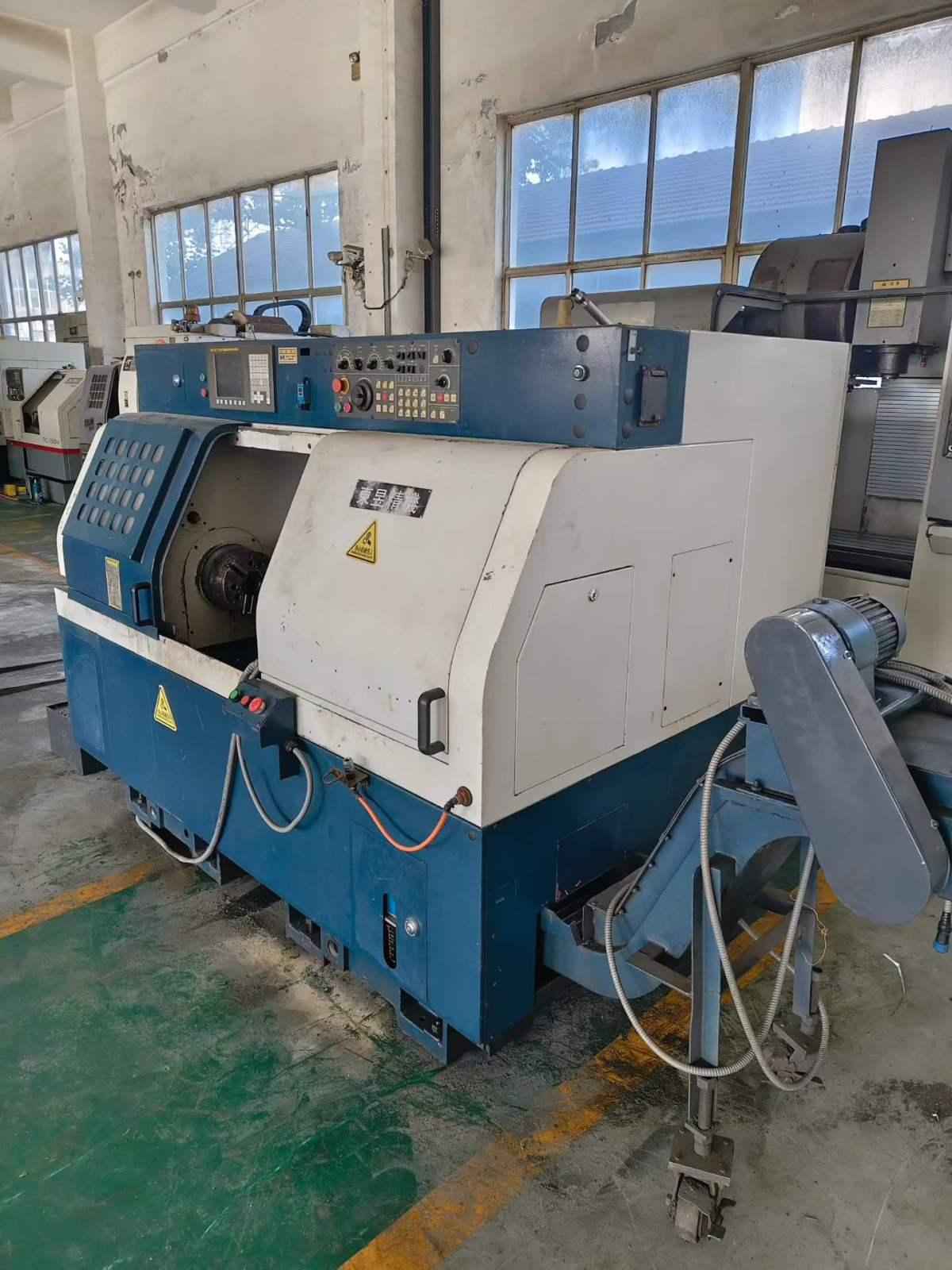

Tongtai CNL-100AL CNC turning lathe

The maximum rotation diameter of the bed: 520mm
The maximum rotational diameter of the slide seat is 320mm
Maximum cutting diameter: 264mm
Maximum cutting length: 400mm
Maximum diameter of bar stock passing through: 44mm
spindle through hole diameter: 100mm
chuck : 8-inch hydraulic chuck
Spindle speed range: 0-3000rpm
The rated power of the main motor: 11/15kW
X-axis travel: 150 mm
Z-axis travel: 400 mm
X-axis rapid movement speed: 20m/min
Z-axis rapid movement speed: 24m/min

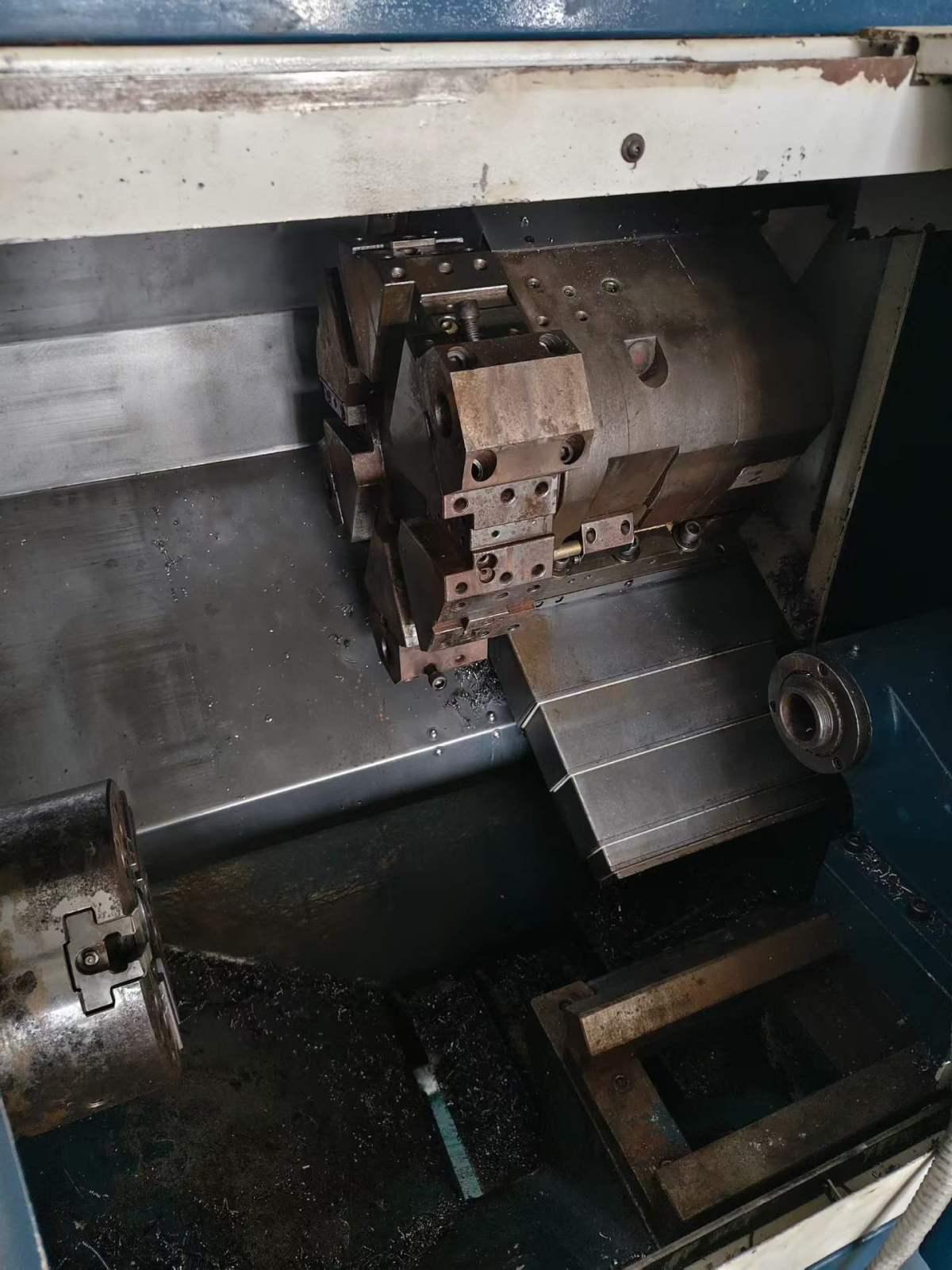

Tool Turret position: 12 positions
CNC System: FANUC 0i-TD
