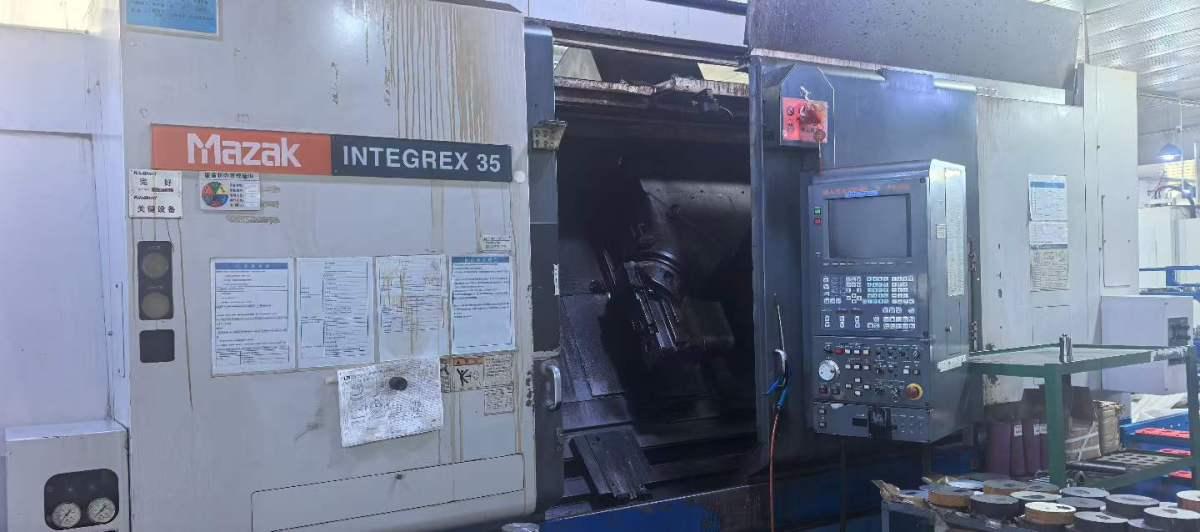

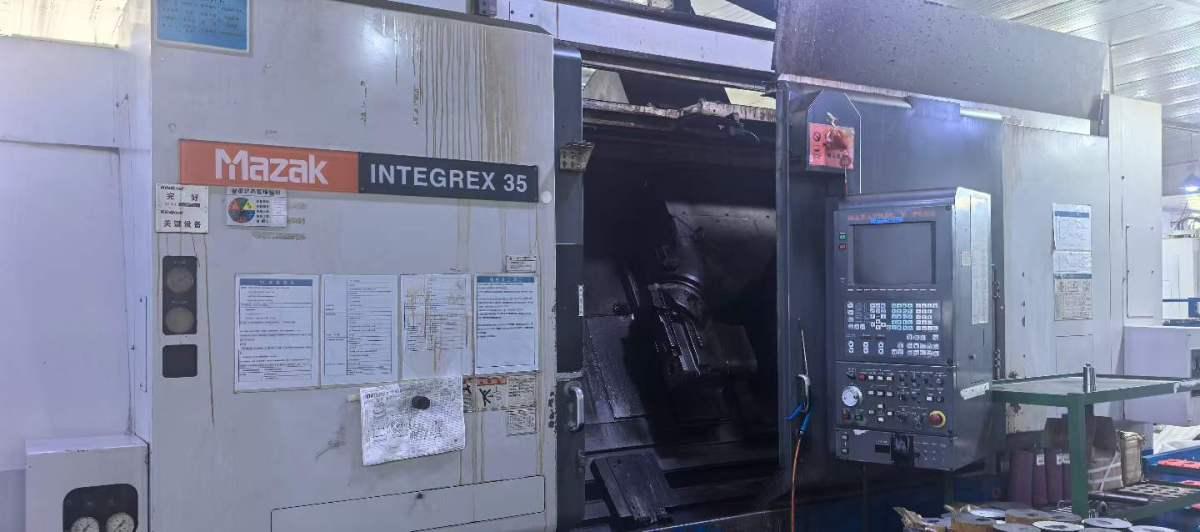

MAZAK INTEGREX 35 Turn Mill Machining Centre

Maximum swing diameter over bed: Φ670 mm
Maximum machining diameter of upper turret: Φ620 mm
Maximum machining length: 1250 mm

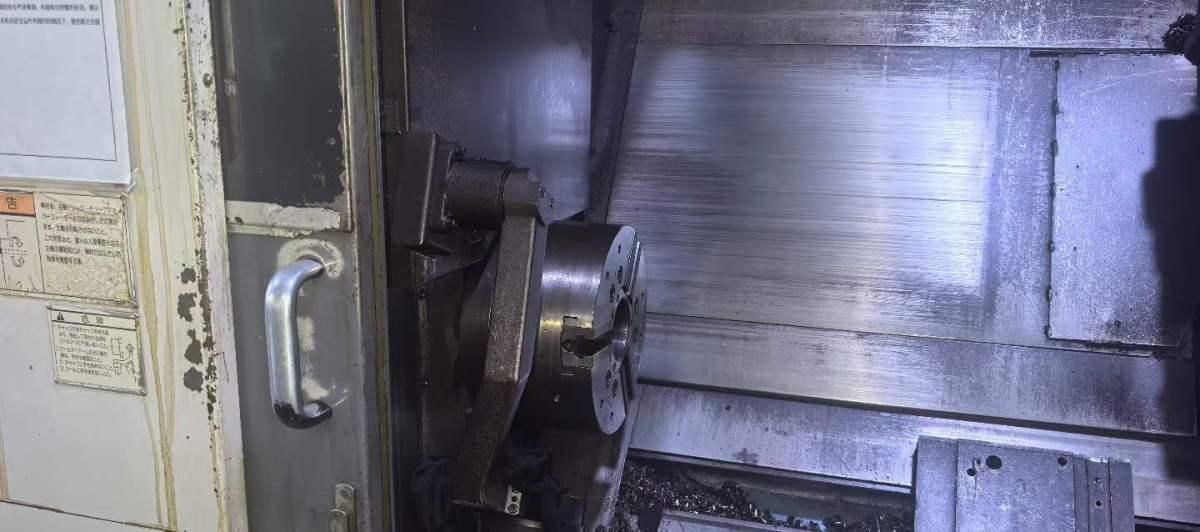

Standard chuck: 10-inch hydraulic chuck
Maximum bar capacity (through spindle): Φ80 mm
X-axis travel: 690 mm (rapid traverse: 50 m/min)
Y-axis travel: ±150 mm (total 300 mm, rapid traverse: 30 m/min)
Z-axis travel: 1077 mm (rapid traverse: 50 m/min)
B-axis: -30° to +210° (0.0001° indexing, 5-axis capability)
C-axis: 360° continuous indexing (0.0001° indexing accuracy)
Turning spindle:
Speed range: 0–3500 rpm
Power: 22 kW (continuous) / 30 kW (40% ED)
Torque: 420 N·m

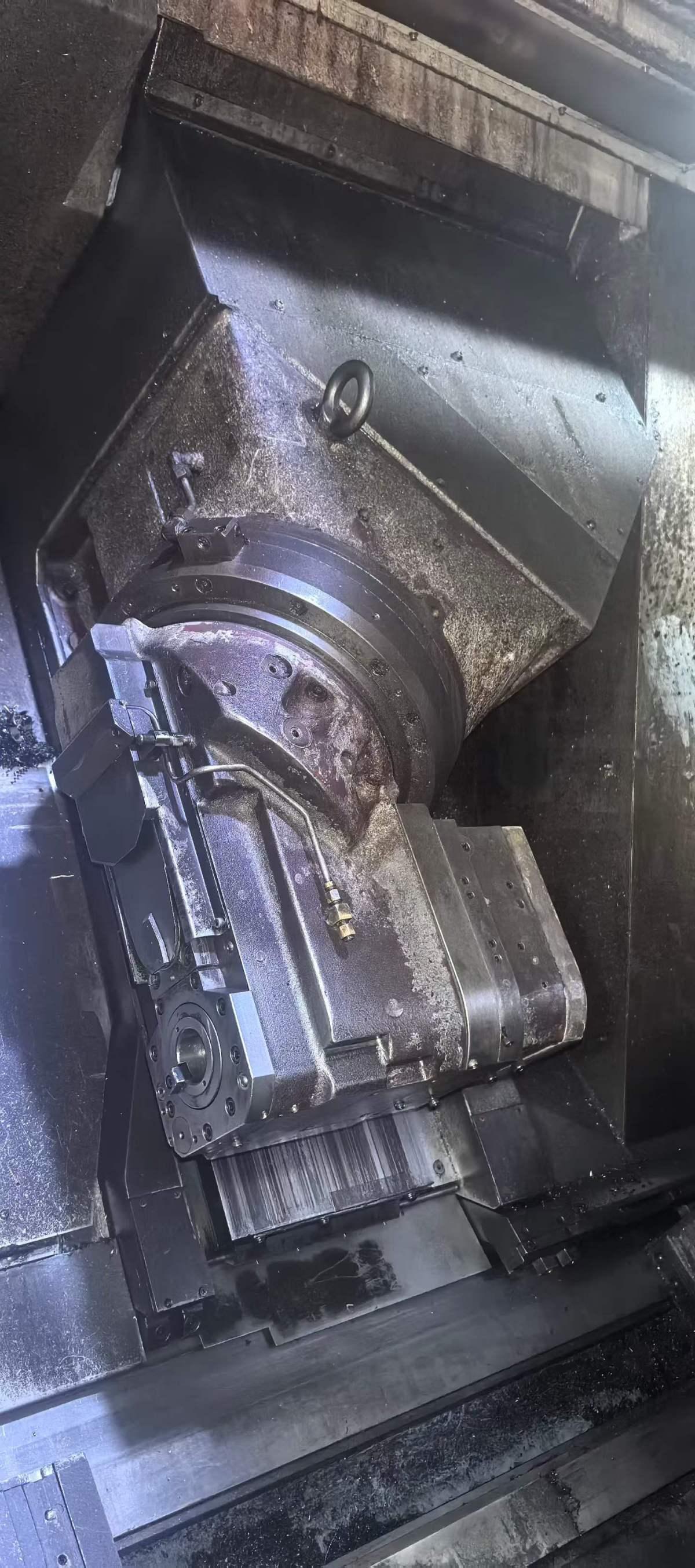

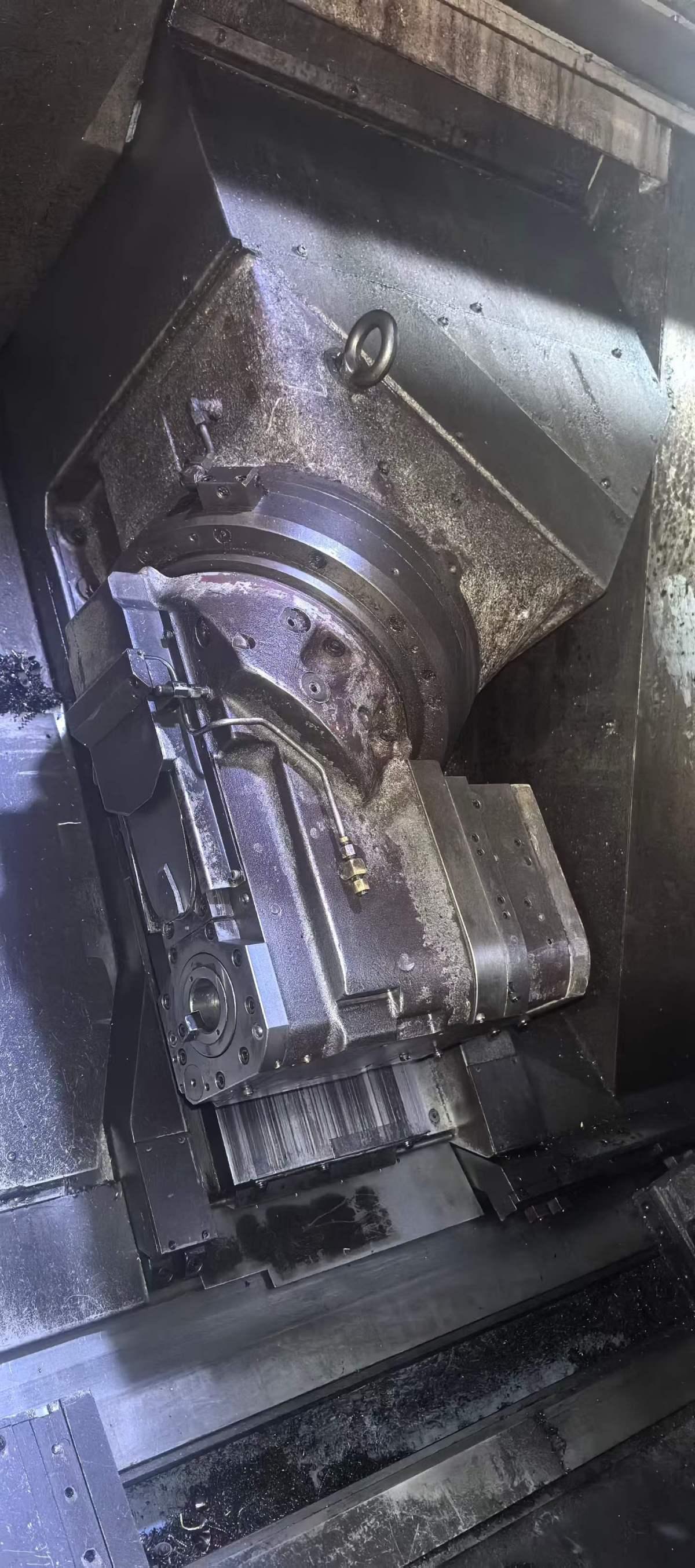

Milling spindle (B-axis head):
Maximum speed: 12,000 rpm
Power: 7.5 kW
Tool taper: BT40
Tool system:
12-position power tool turret (all stations live tooling capable)
Optional external tool magazine: 38 tools (max tool diameter Φ90 mm)
Max tool length: 400 mm
Machine dimensions: 3500 × 3180 × 2800 mm
Machine weight: 7200 kg
Power requirement: approx. 60 kVA
