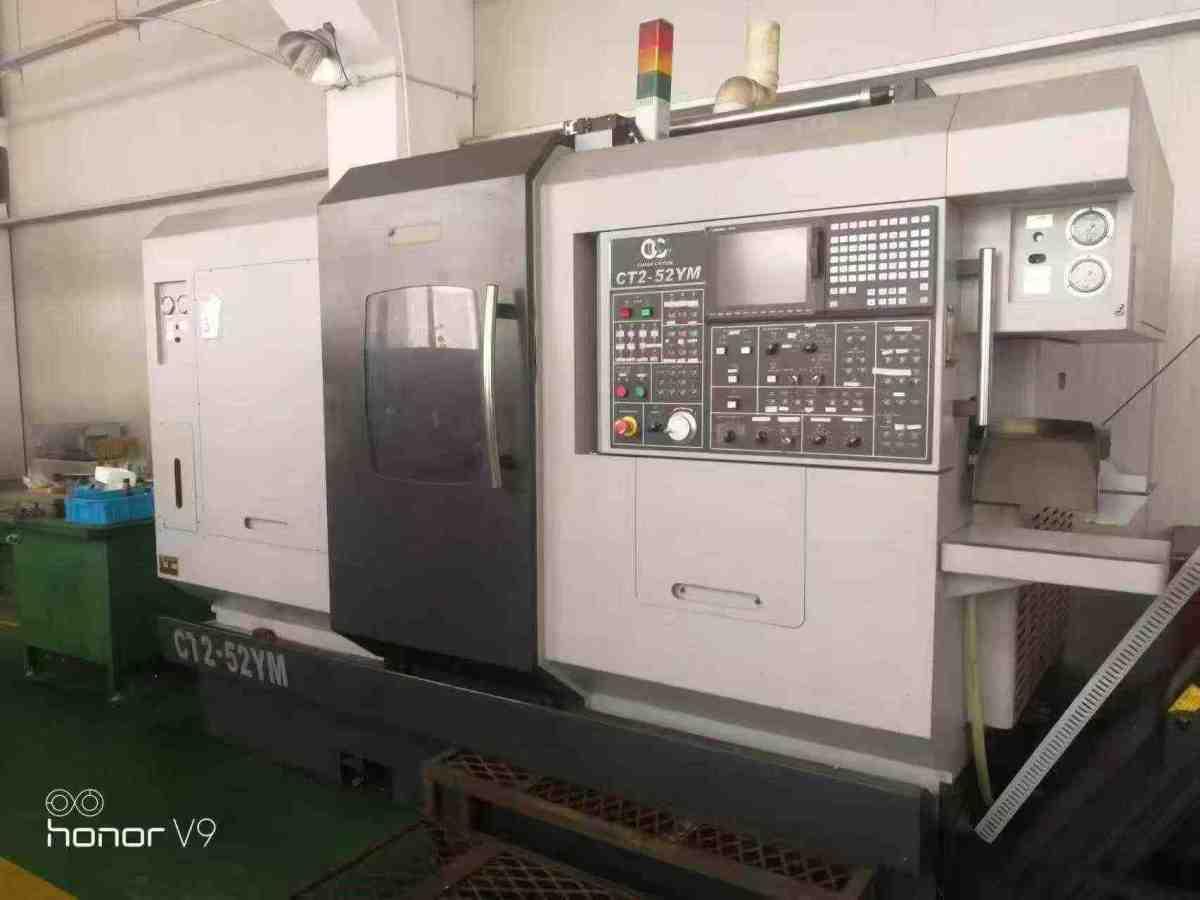

Chiah Chyun CT2‑52YM Turn Mill Machining Centre

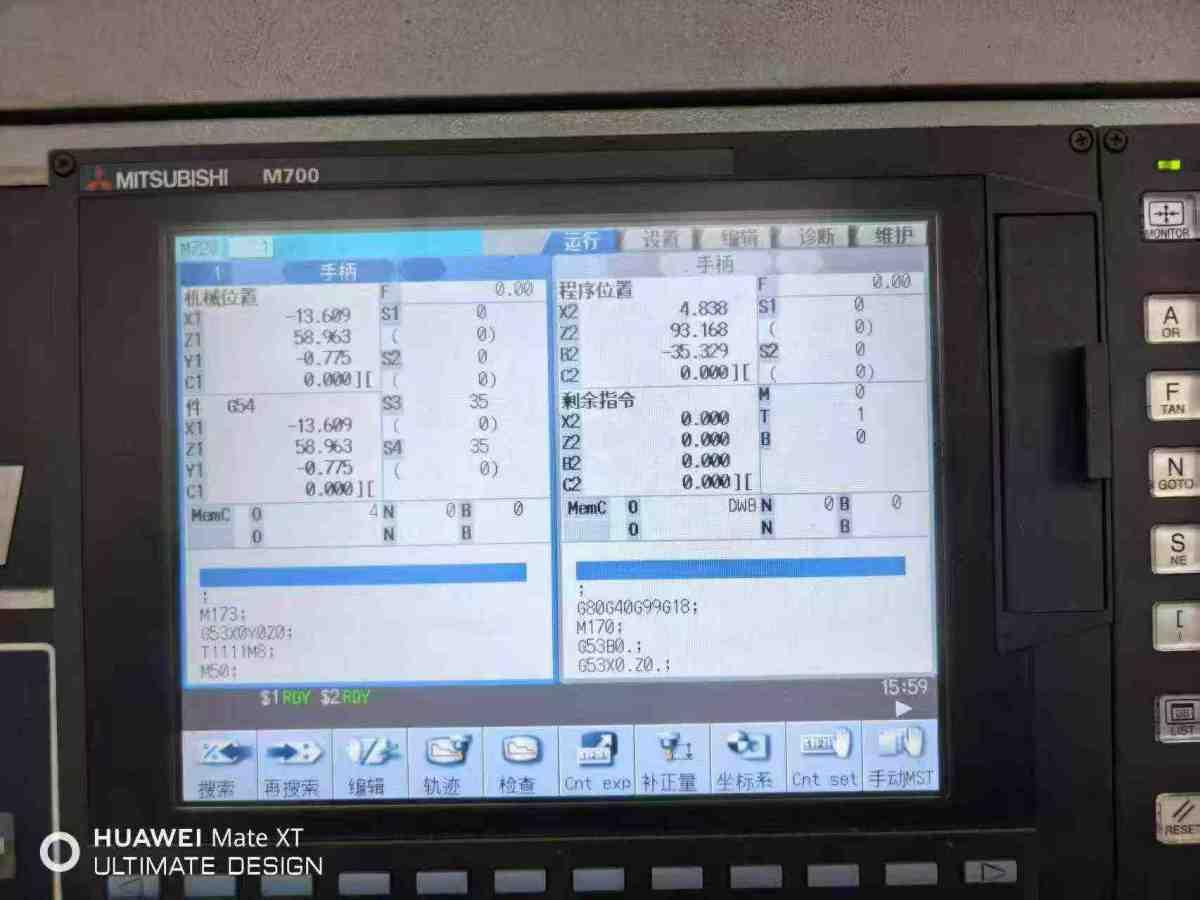

CNC System: Mitsubishi M700
Machining external diameter range: Φ210–360 mm
Swing diameter over Bed: Φ830 mm
Machining length: 440 mm
Bar machining capacity: Φ51 mm
Distance between centers: 920 mm
B-axis travel: 650 mm
Z-axis travel: 440 mm
Spindle speed: 6000 rpm
Spindle bore diameter: Φ60.5 mm
Spindle center height: 1188 mm
Spindle bearing outer diameter: 90 mm
Main motor power: 11–15 kW

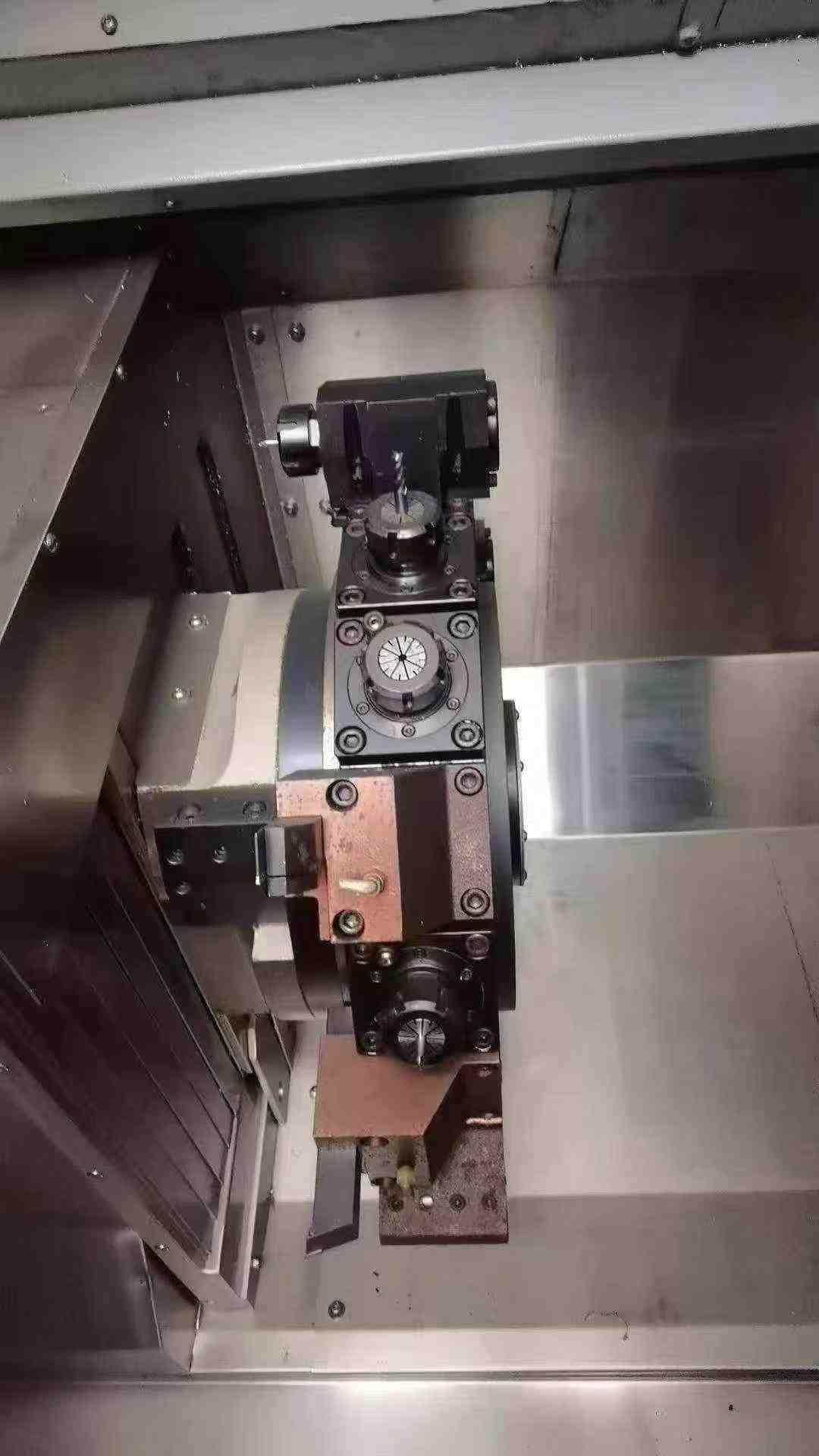

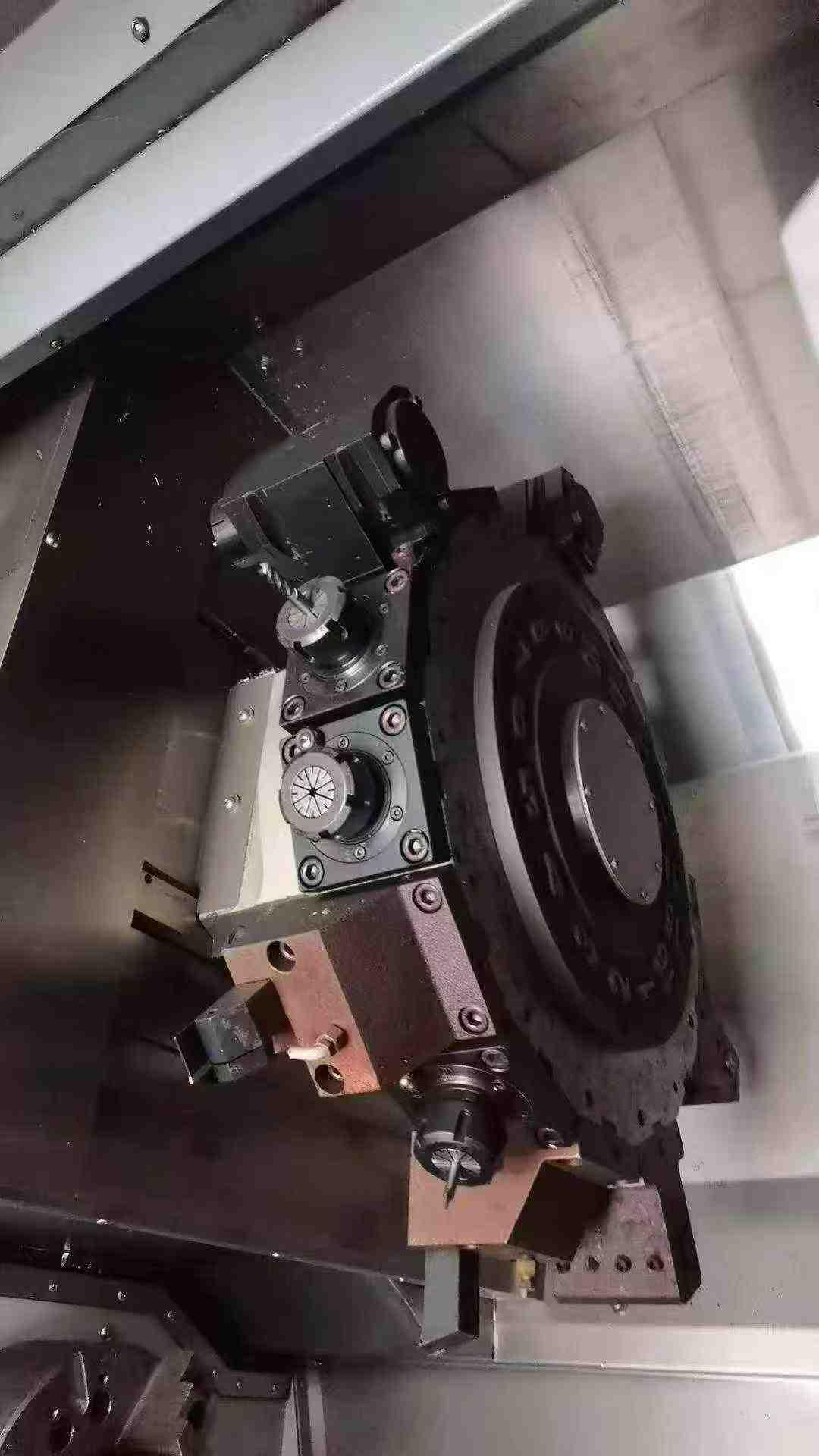

Turret stations: 16T
Turret type: Twin-power turret
Function configuration:
With Y-axis
Chip conveyor included
