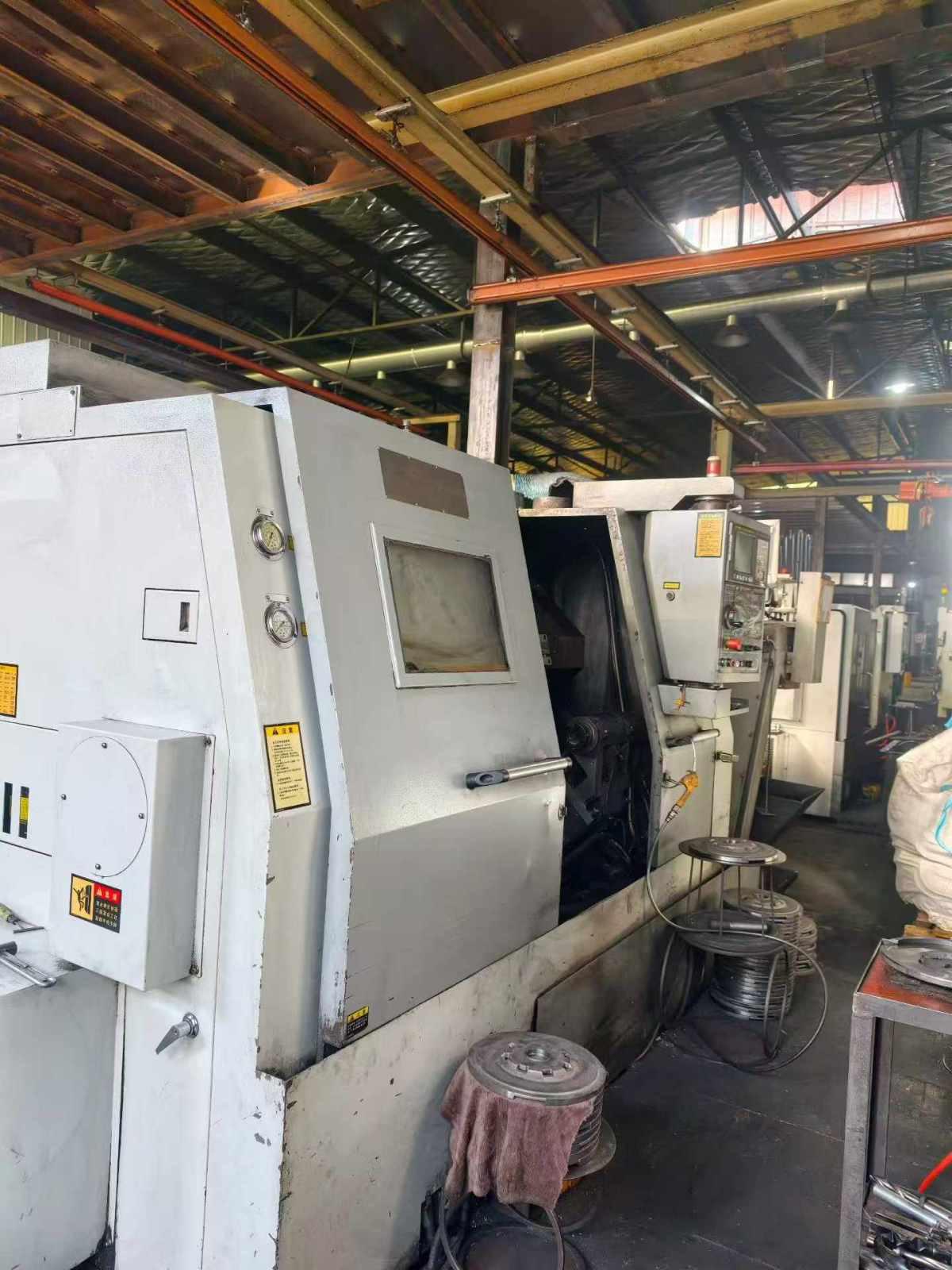

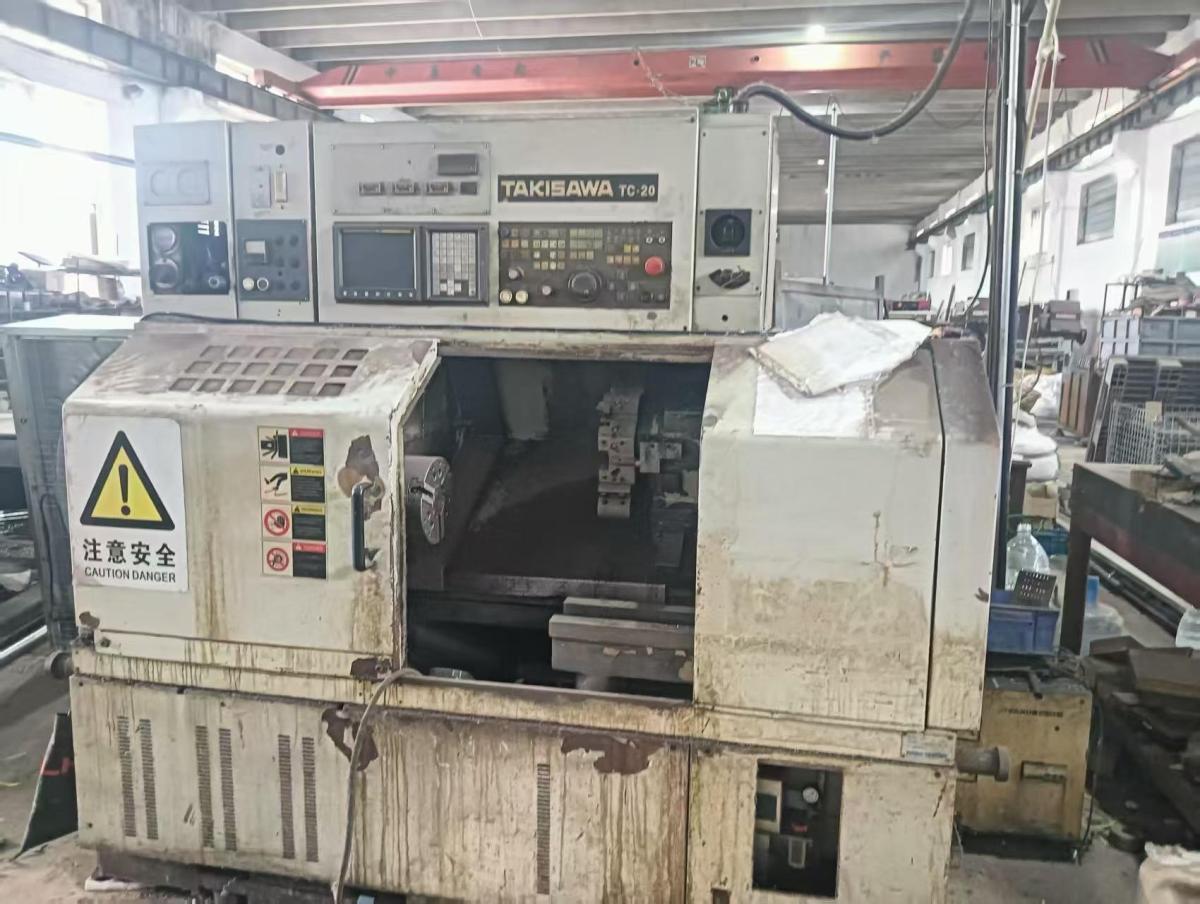

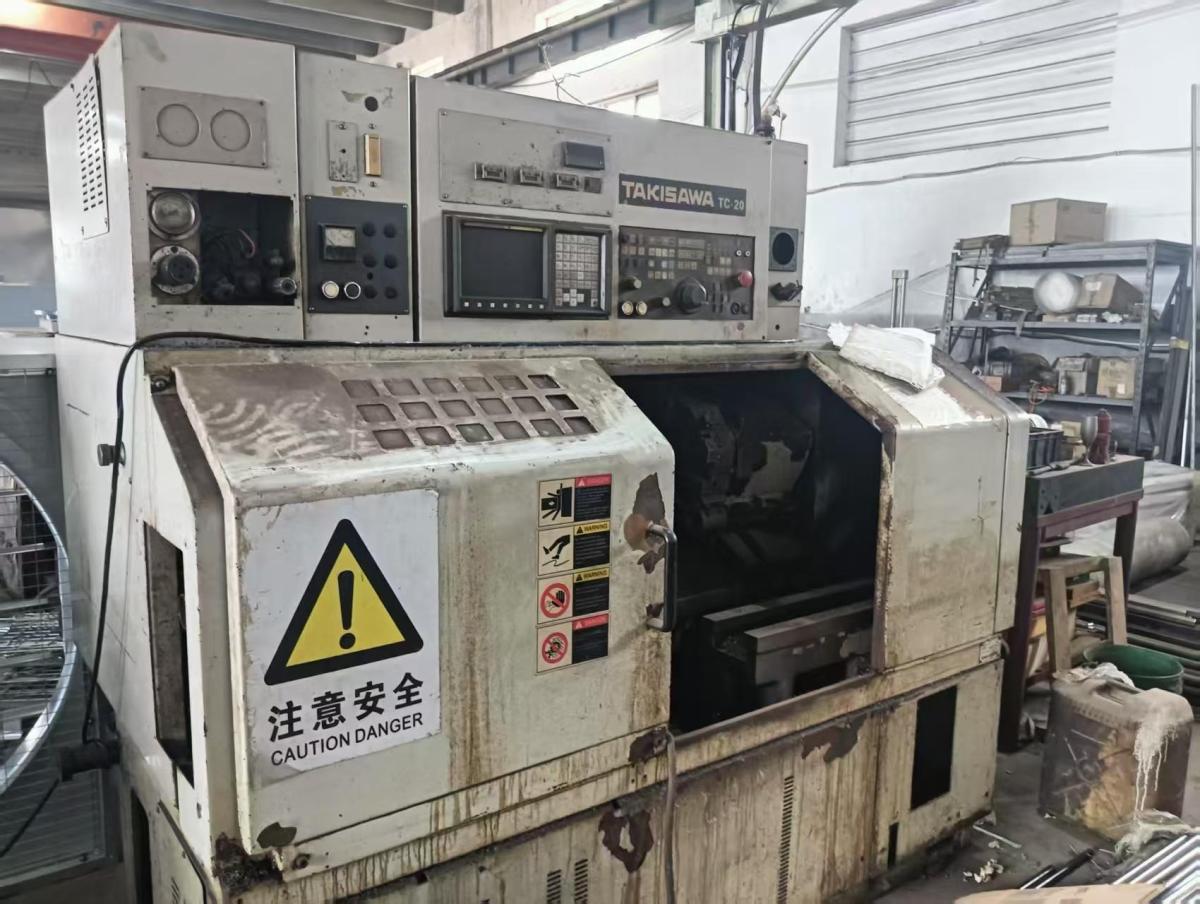

Takisawa TC-20 CNC turning lathe

[Product Information]:

Inventory number：68318
Brand：Takisawa
Model：TC-20
Origin：Taiwan, China
Location：China
Year：1995
Create Time：2026-06-24

Specifications:

The maximum rotation diameter on the bed is 360mm
Maximum cutting diameter: 200mm
Maximum cutting length: 350mm
spindle: A2-6
The diameter of spindle through hole is 56mm
Spindle speed range: 35 to 3500 rpm
spindle motor power: 7.5kW
chuck specification: 8 inches
