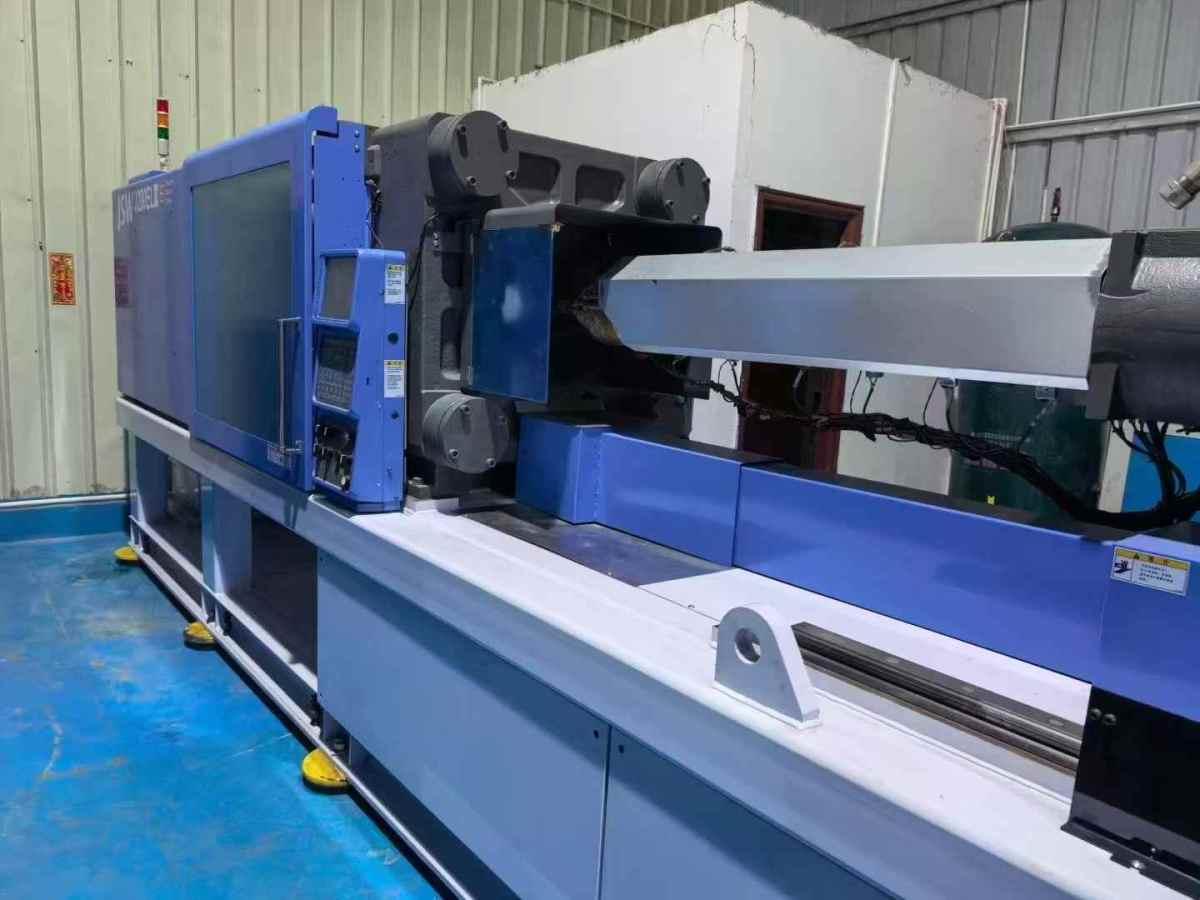

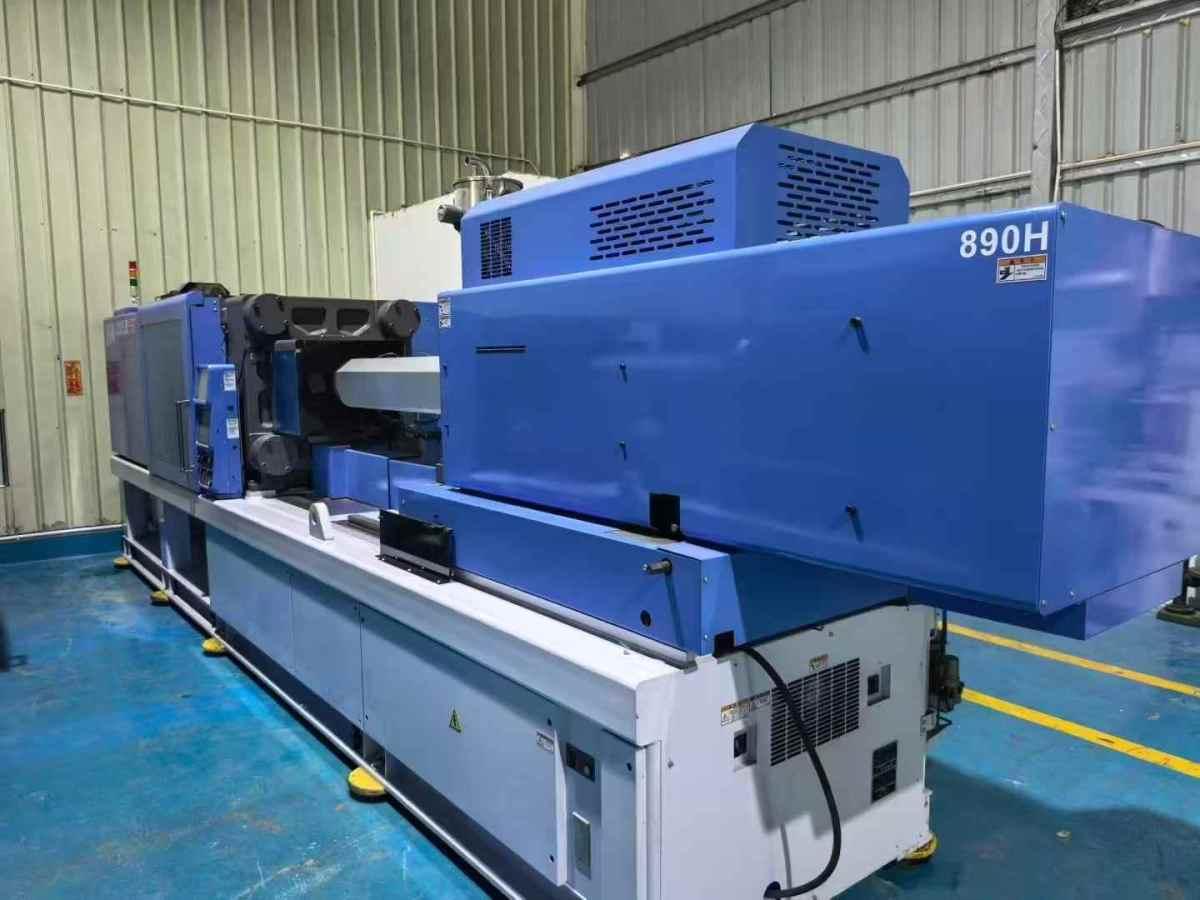

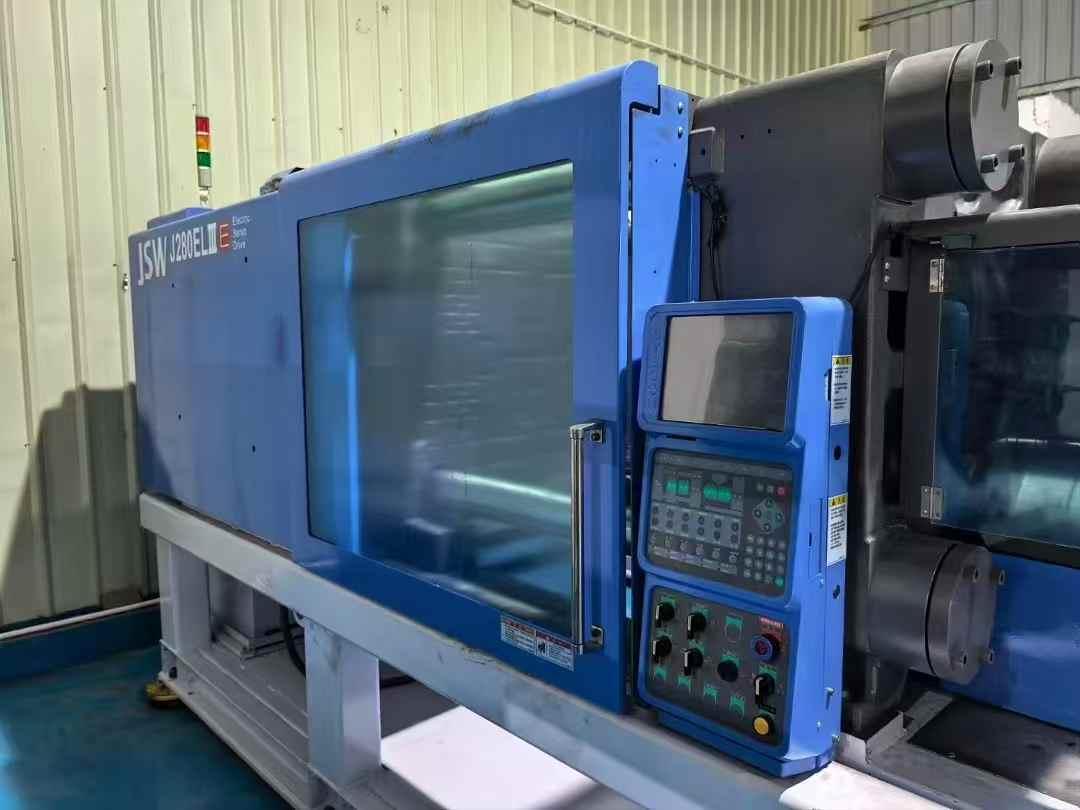

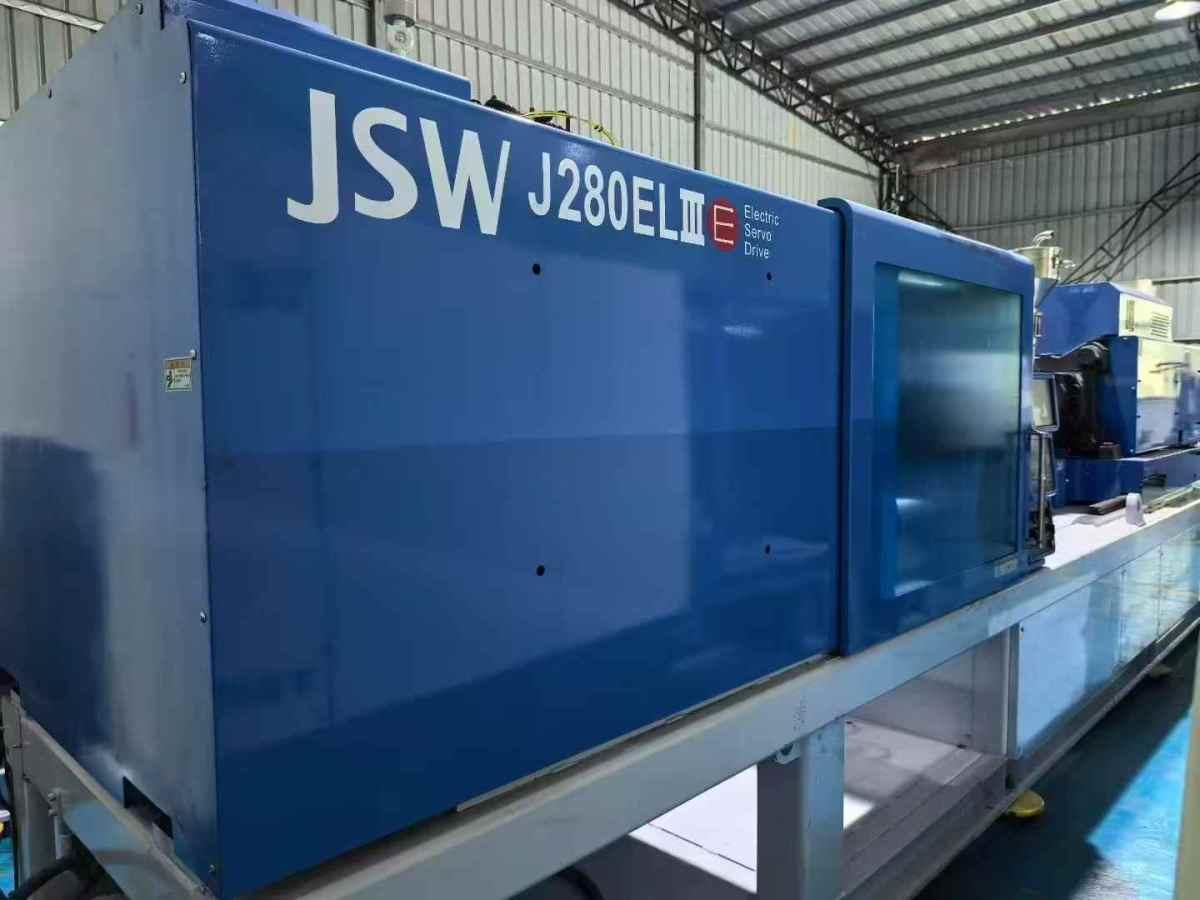

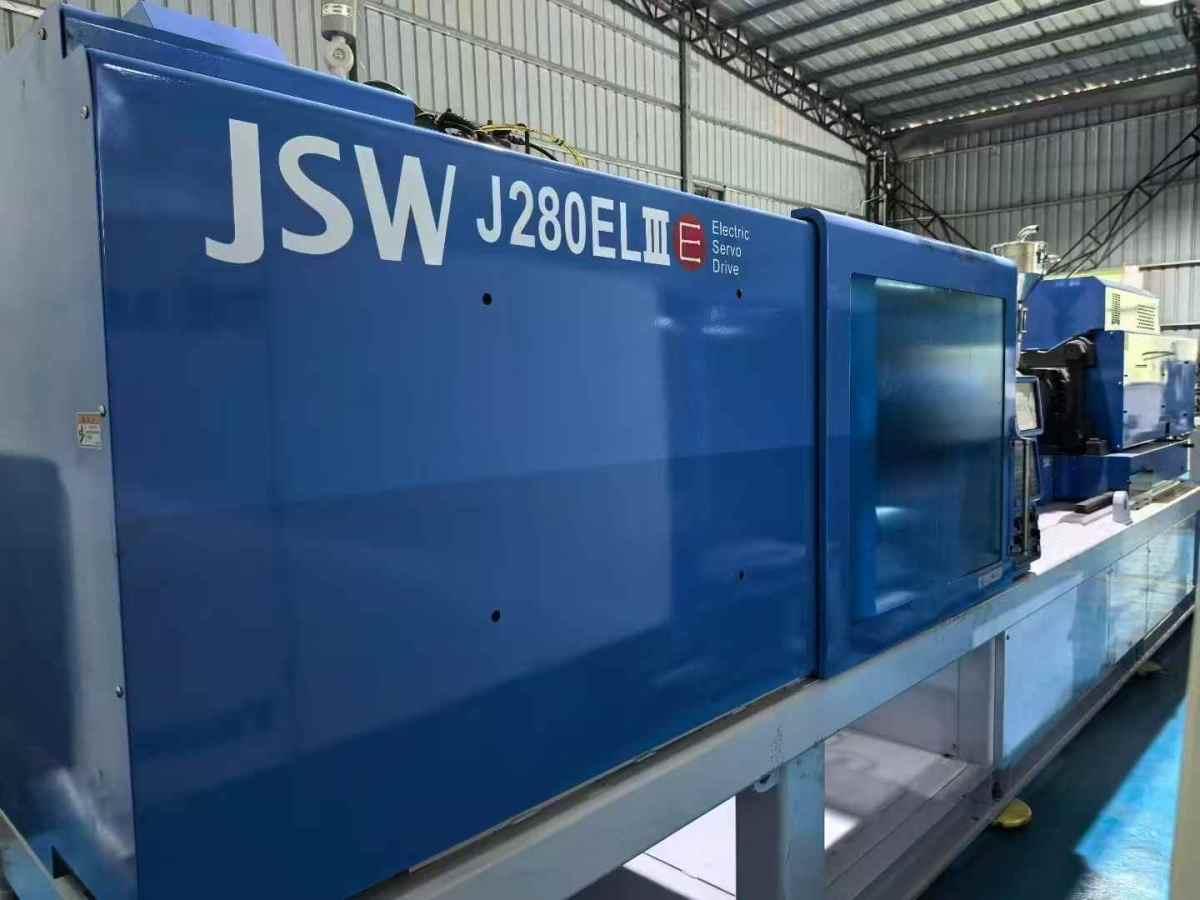

JSW J280ELlll injection molding machine

Nominal clamping force: 280 tons
The inner spacing of the pull rod: 630x630mm
Maximum mold opening travel: 570mm
AppVertical machining centerble mold thickness range: 250-530mm
Maximum ejection travel: 150mm
Maximum top force: approximately 147kN
Standard swing diameter; Phi 72 mm
Maximum travel of the screw: 260mm
Theoretical injection volume: 890 cm³
Injection weight: Approximately 810g
Maximum injection pressure: approximately 150MPa
Maximum injection speed: approximately 200 mm/s
The maximum speed of the screw is 250 rpm
