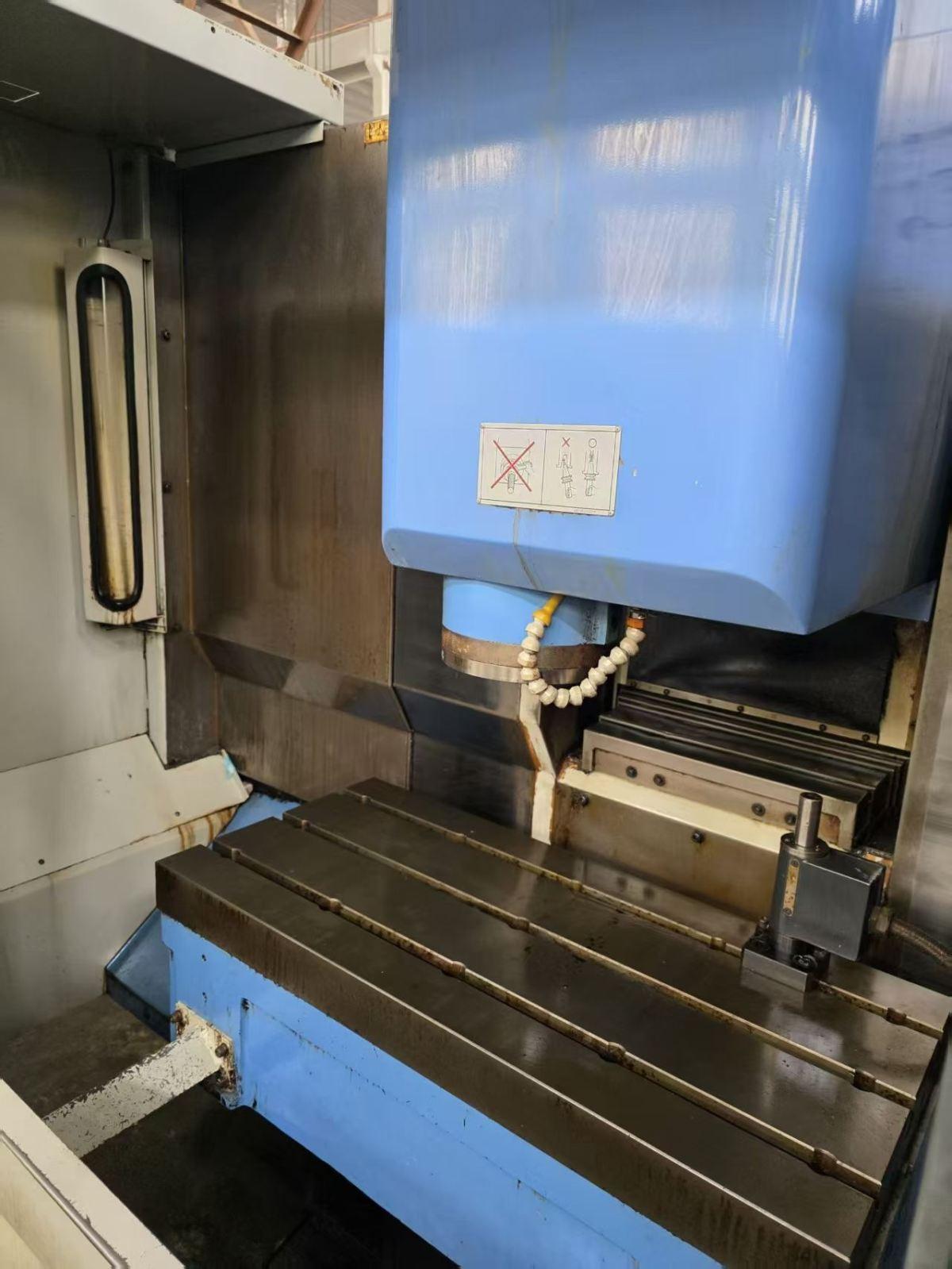

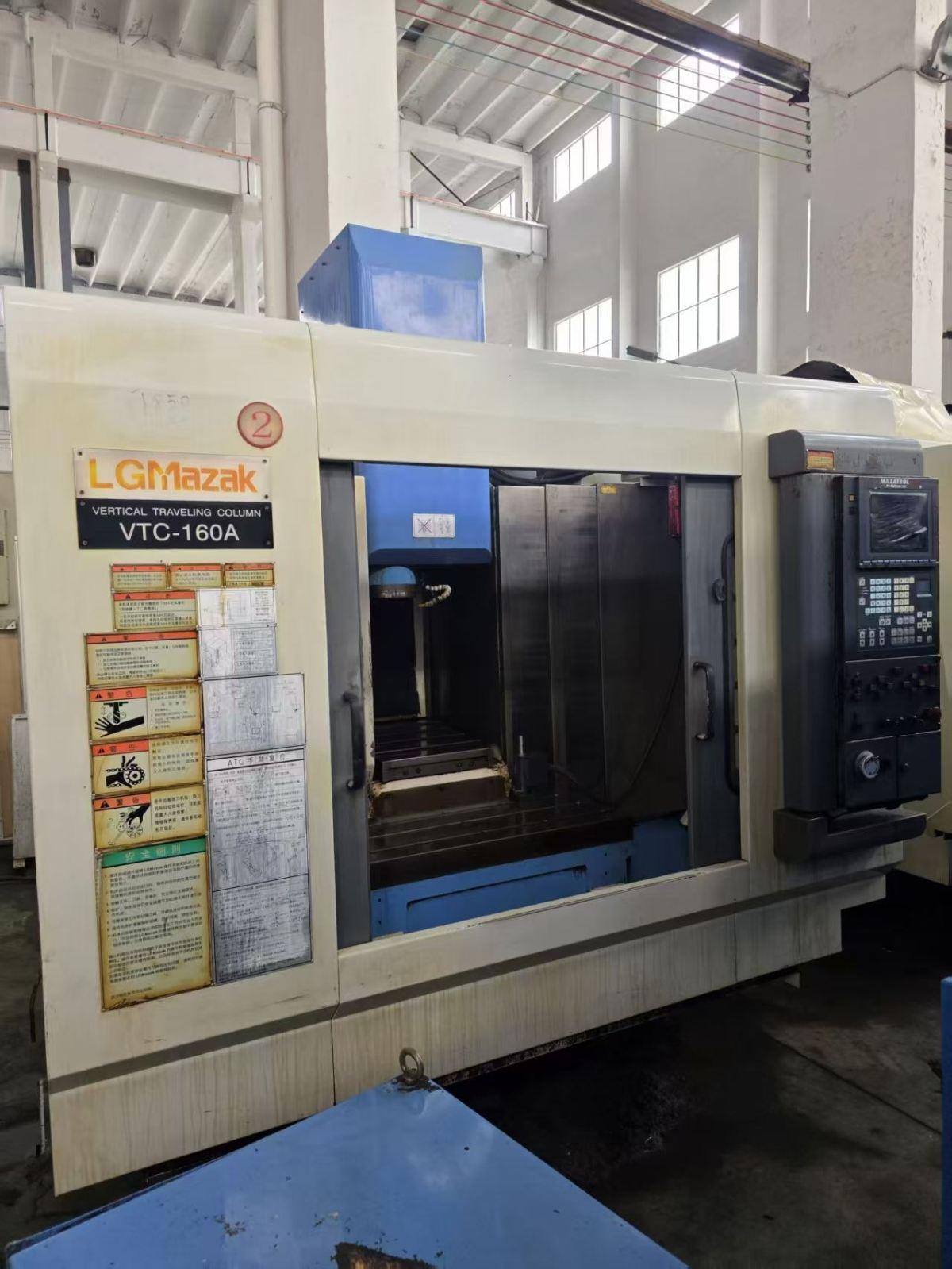

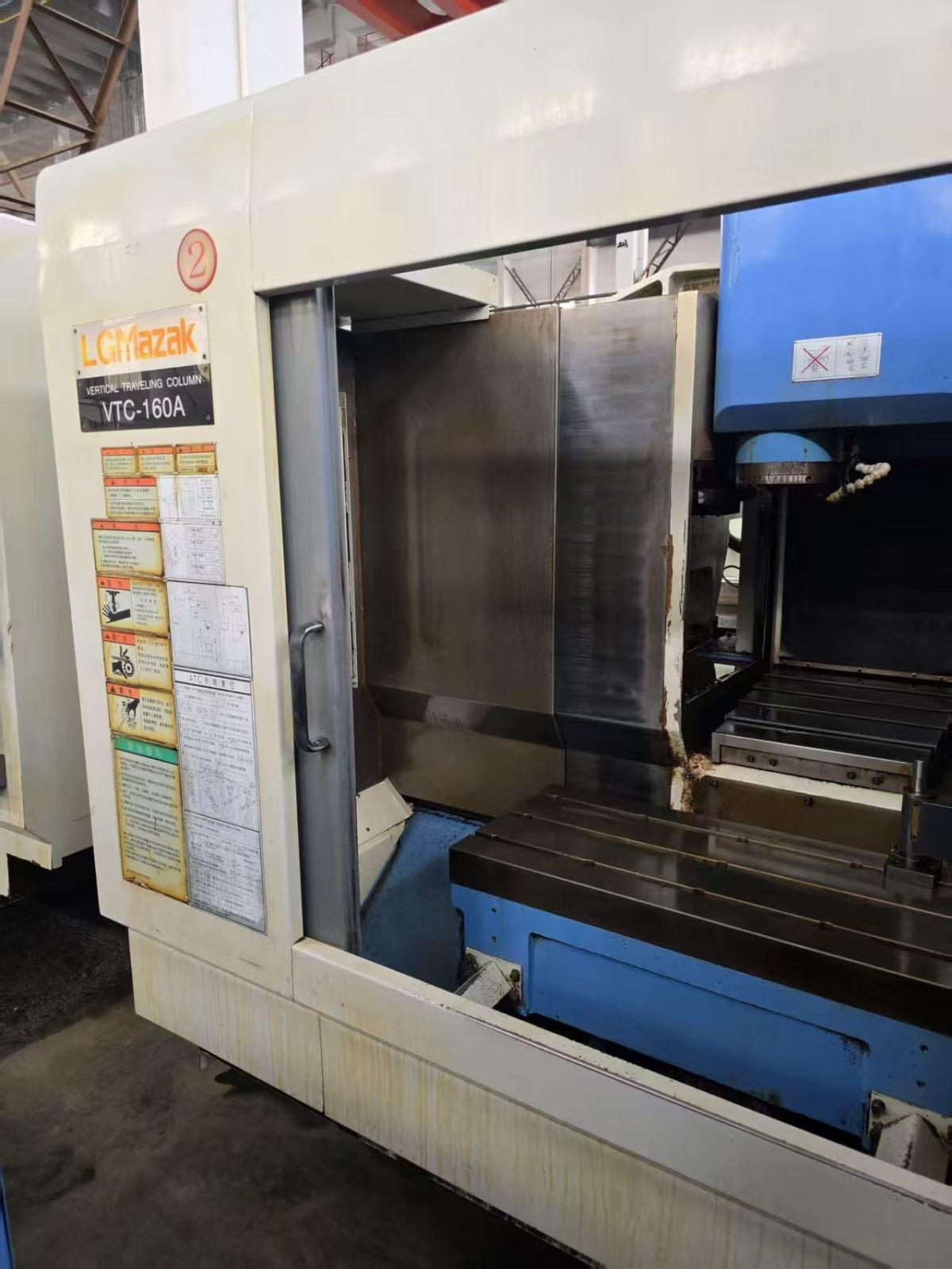

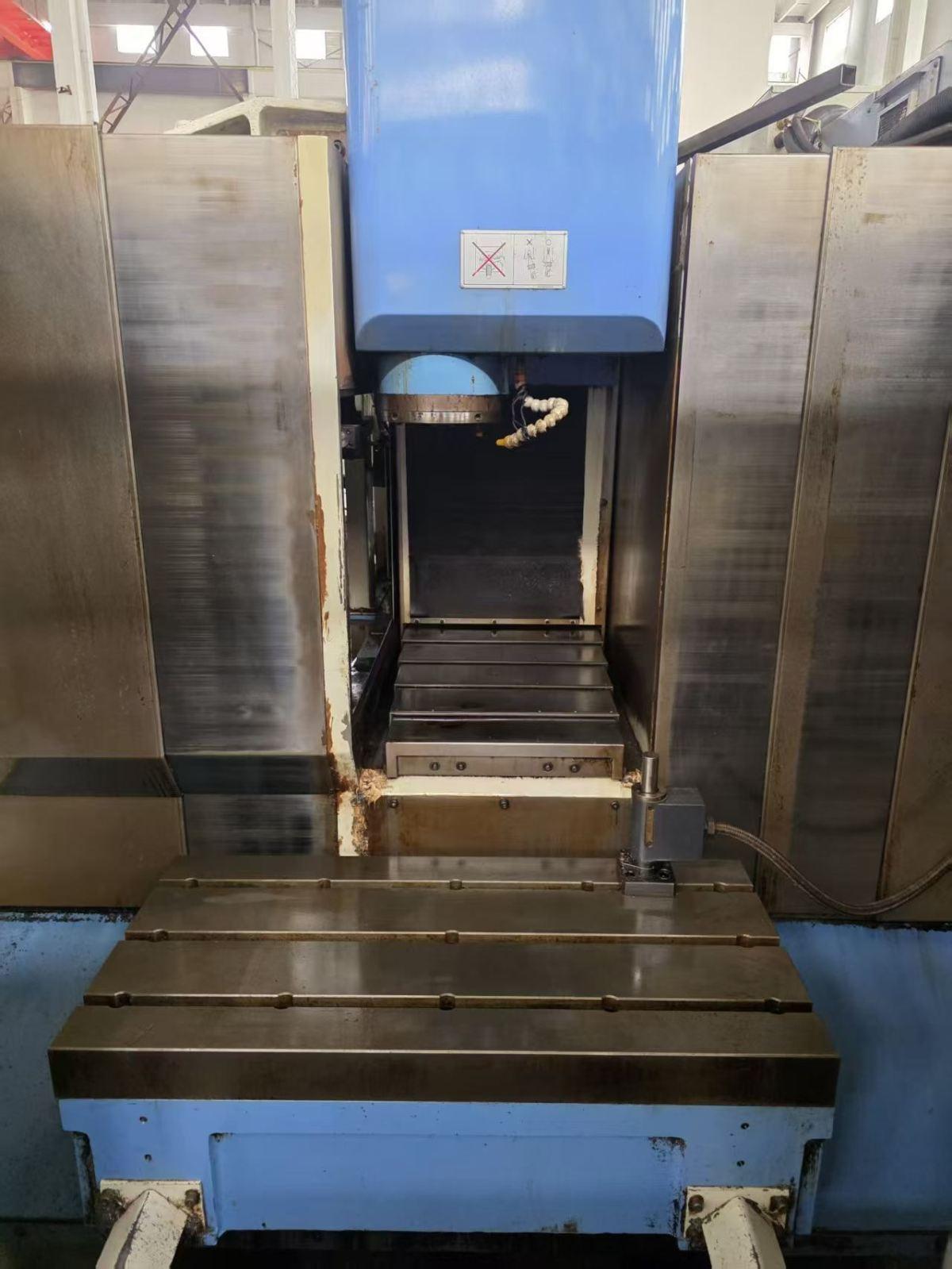

MAZAK VTC-160A Vertical Machining centre

Distance from Worktable surface to spindle nose: 150 to 660 mm
Distance from the front of the column to the center of spindle is 410 mm
Worktable size: 900 × 410 mm
Worktable load: 500 kg
spindle: BT40
Spindle speed: 10,000 rpm
spindle motor power: 15 kW
tools magazine: 32 pieces
three-axis travel: 560x410x510mm
