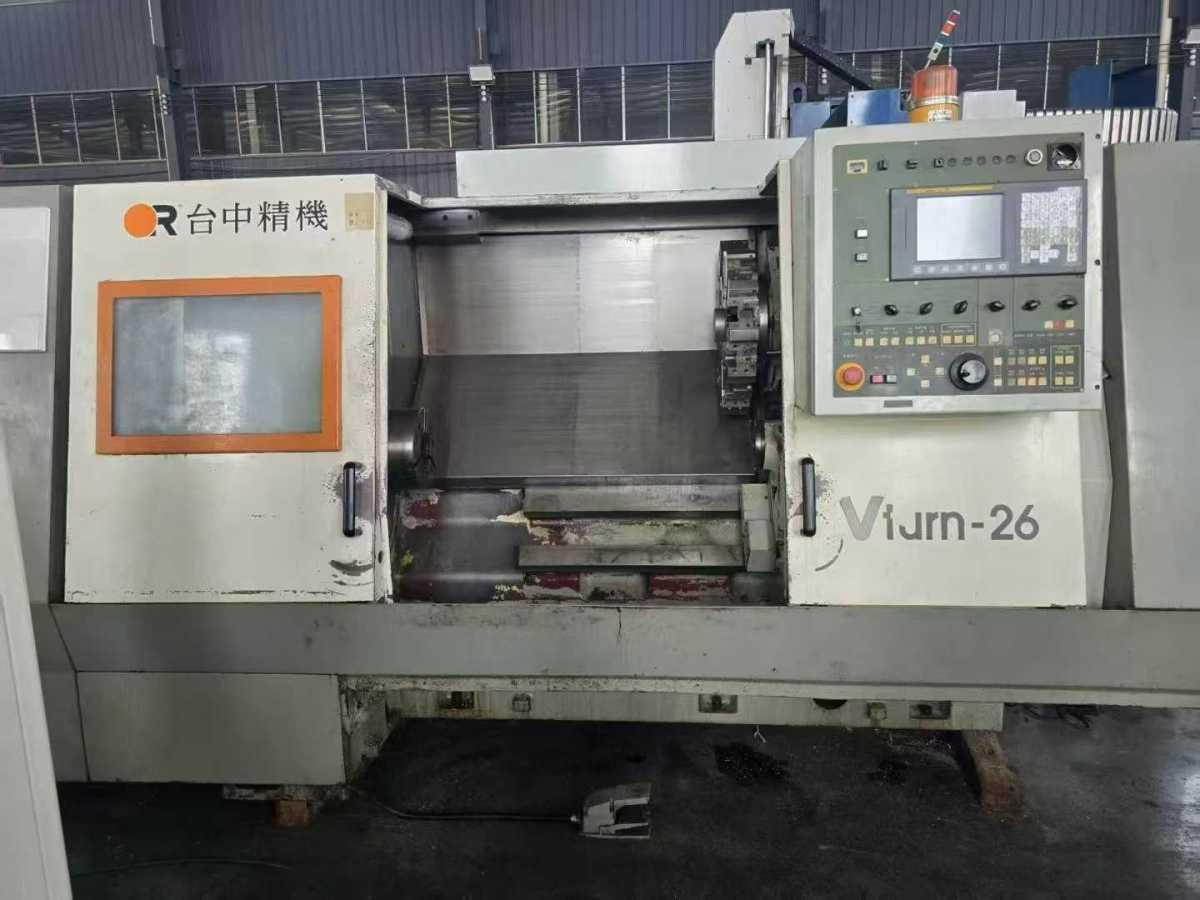

VICTOR Vturn-26/1100 CNC turning lathe

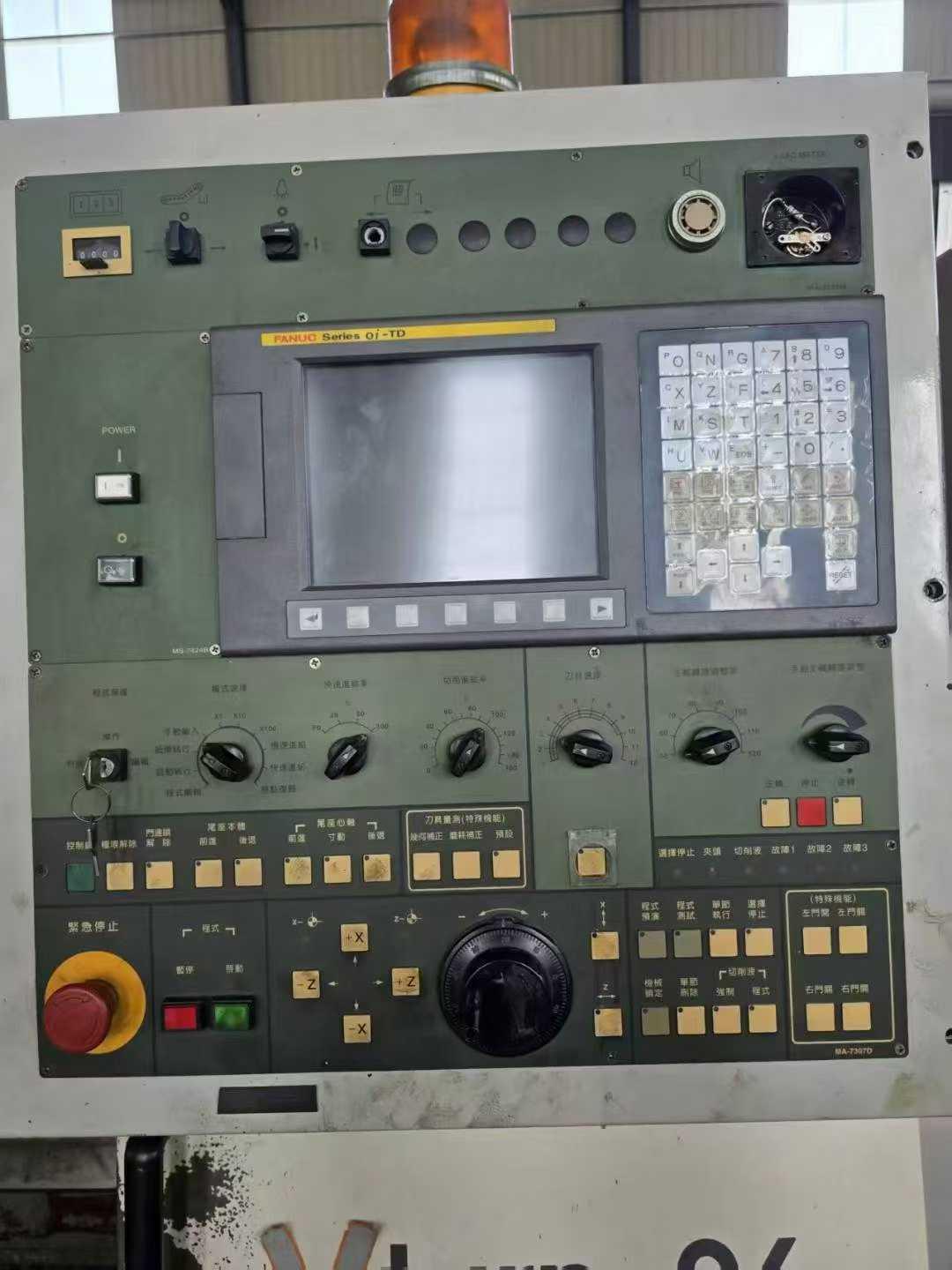

CNC System: FANUC 0i-TD
Maximum machining diameter: φ380–430 mm
Swing diameter over bed: φ600 mm
Maximum machining length: 1130 mm
X-axis travel: 240 mm
Z-axis travel: 1100 mm
Spindle nose: A2-8
Spindle speed: 3500 rpm
Spindle motor power: 18.5 / 22 kW
Spindle through-hole diameter: φ75 mm (optional φ87 mm)
Chuck size: 10-inch hydraulic chuck

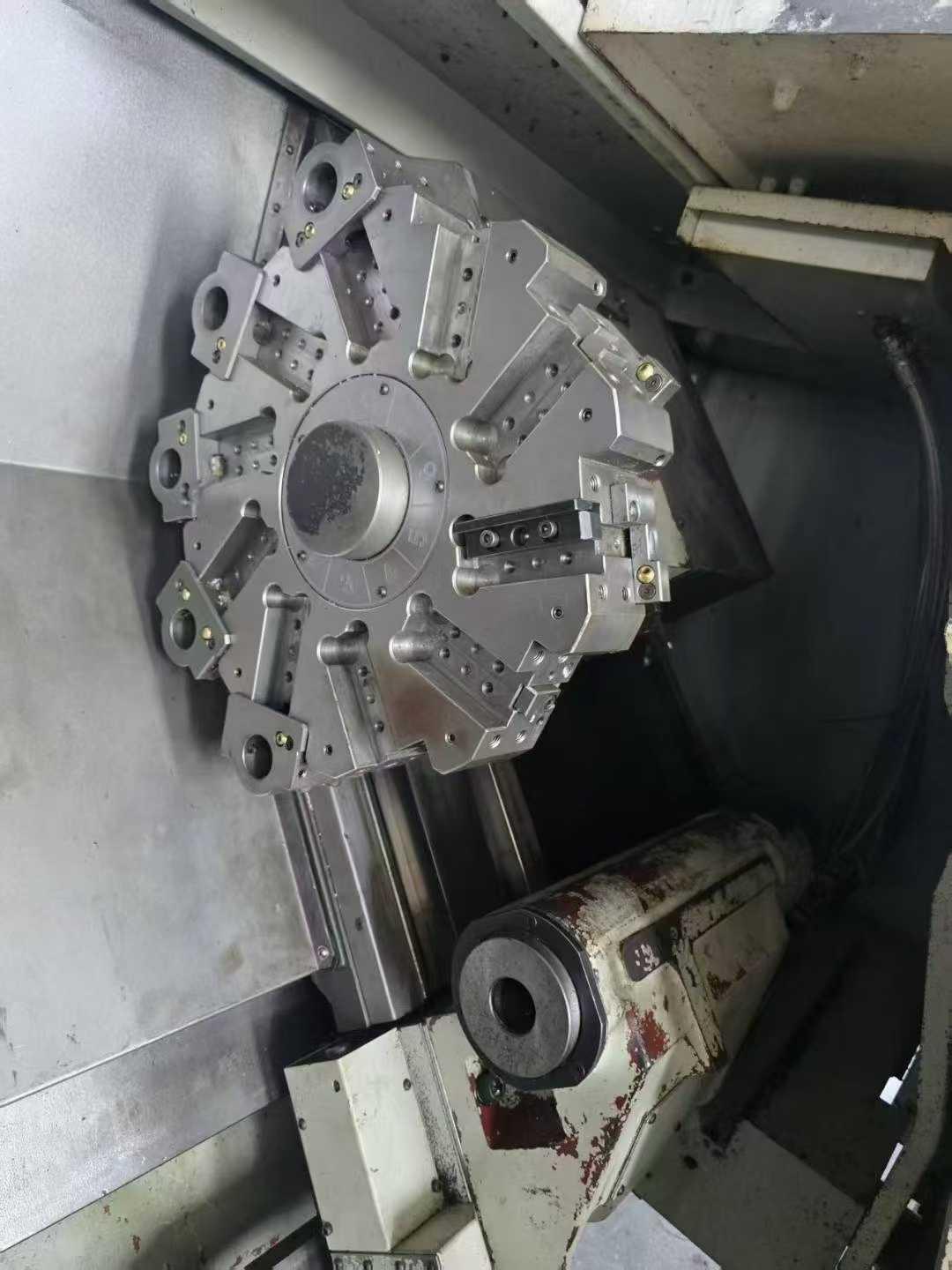

Tool turret: 10-station servo turret
Tool size: 25 mm
Rapid traverse rate:
X-axis: 12 m/min
Z-axis: 15 m/min
Machine weight: Approximately 6000 kg
