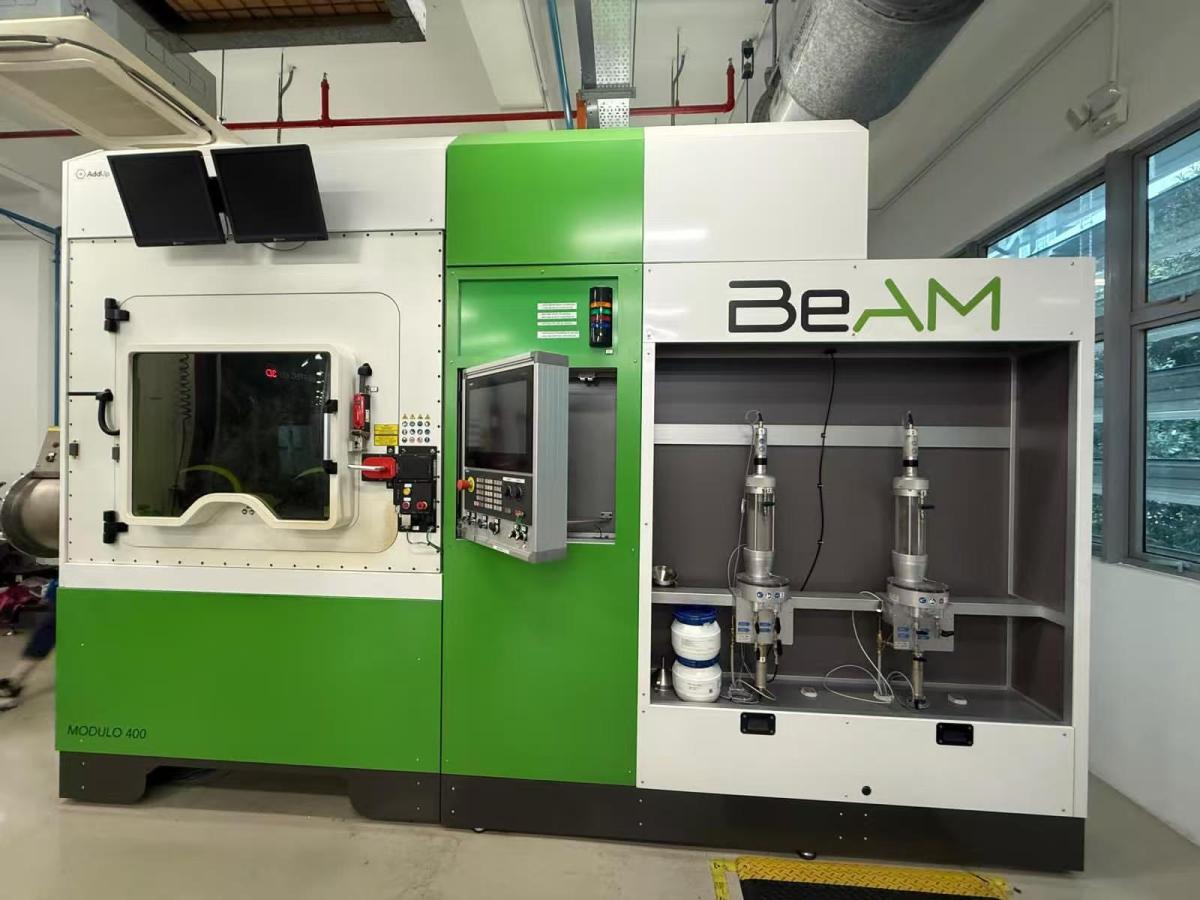

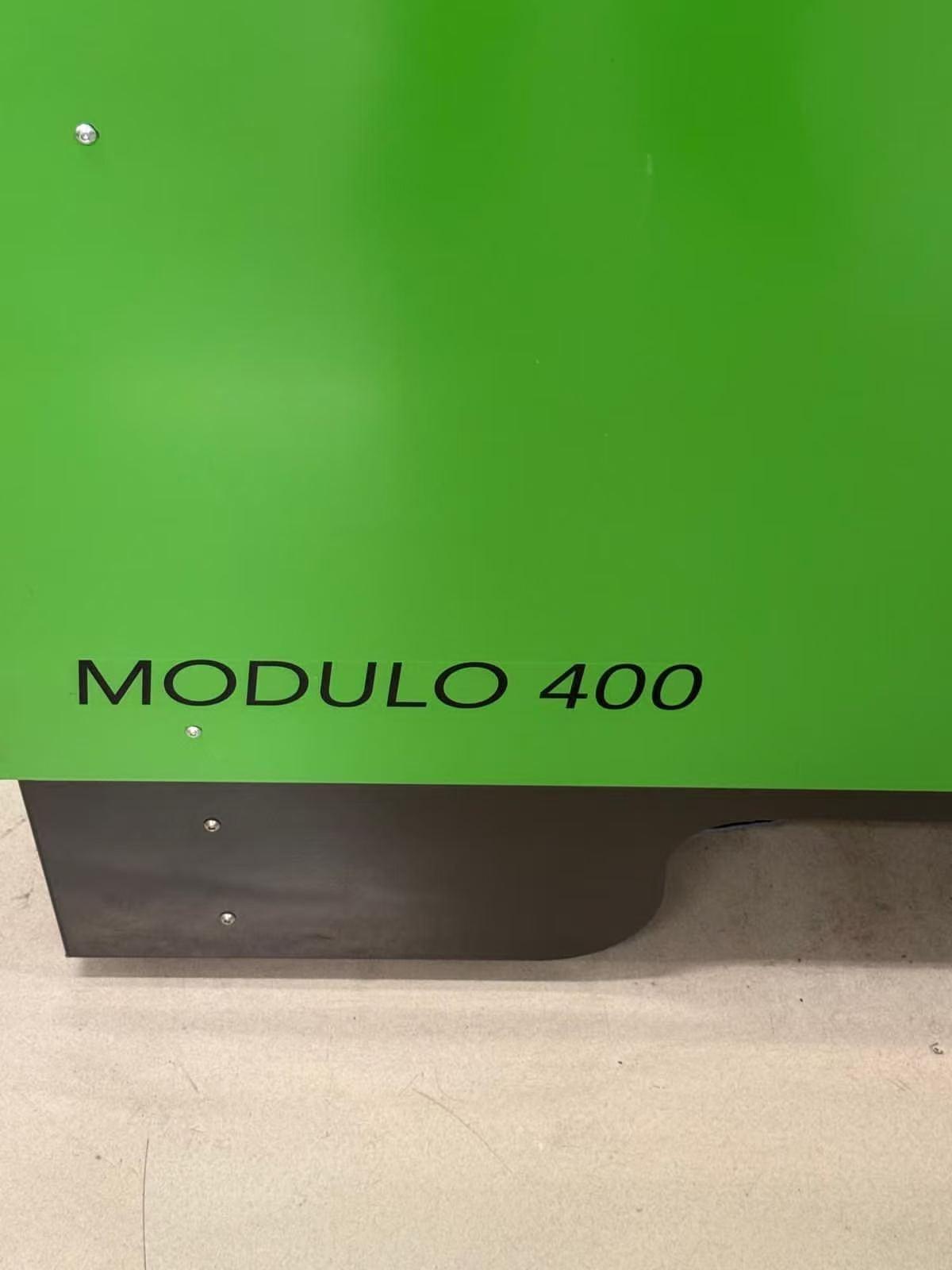

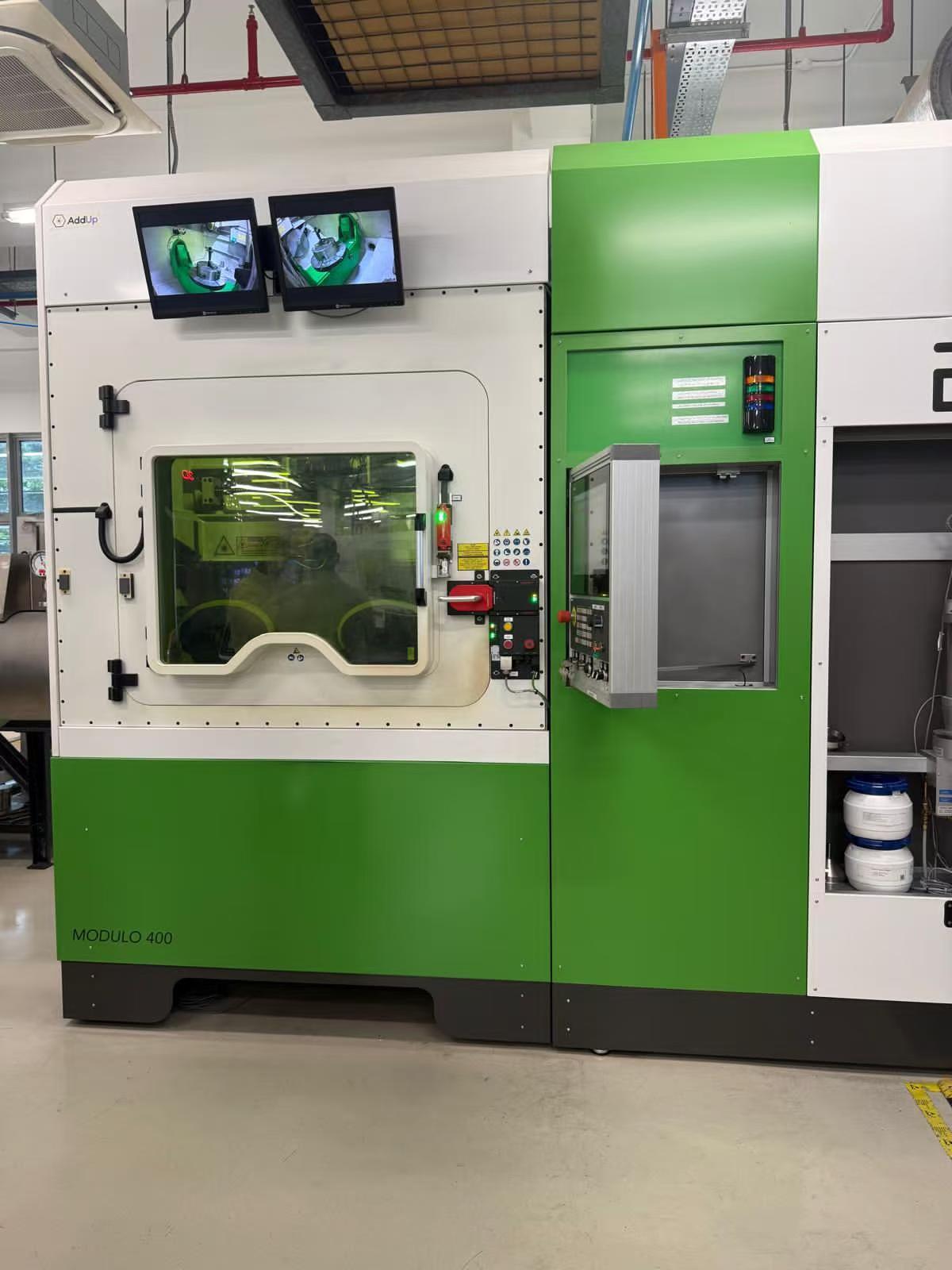

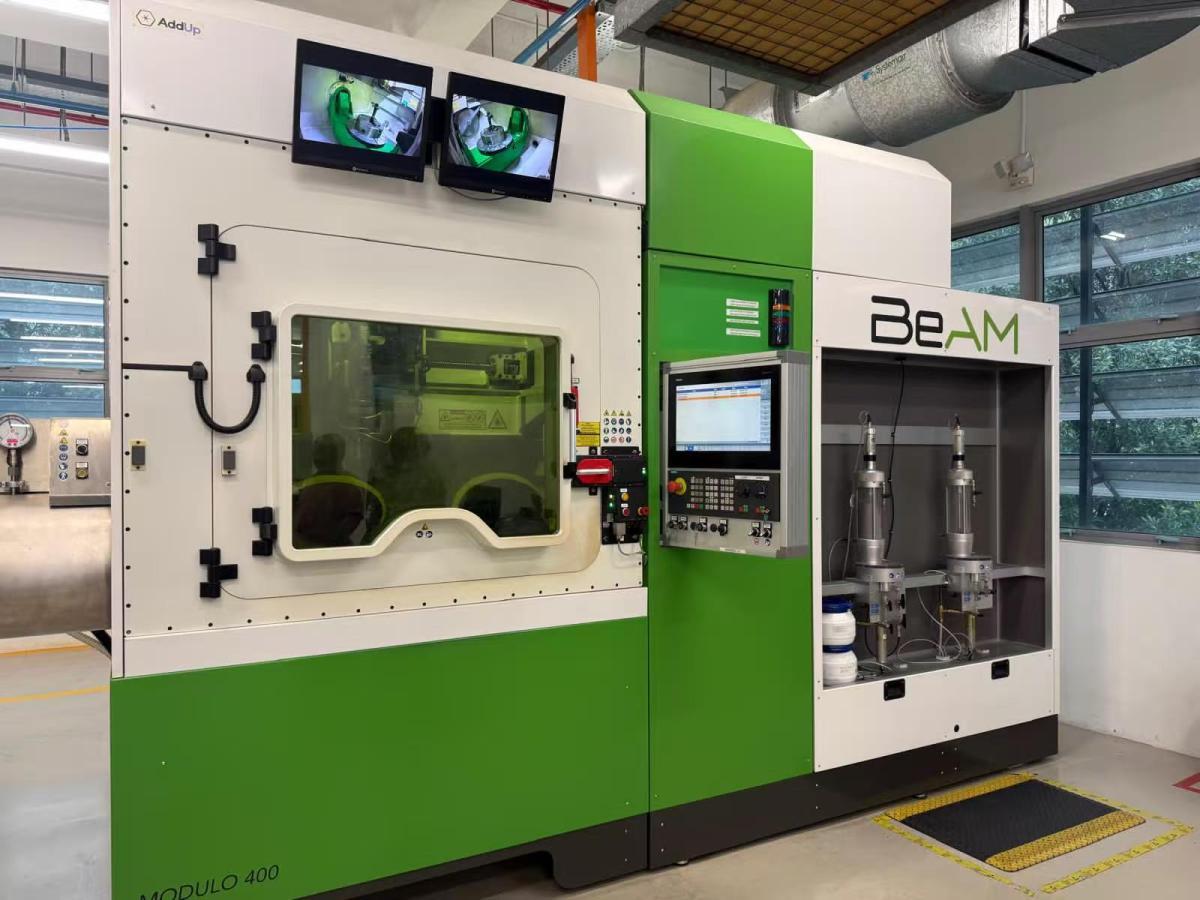

BEAM MODULO 400 other

Scope of Work：
Forming space: 650 × 400 × 400 mm
Worktable: Ø400 mm
Maximum load: 100 kg

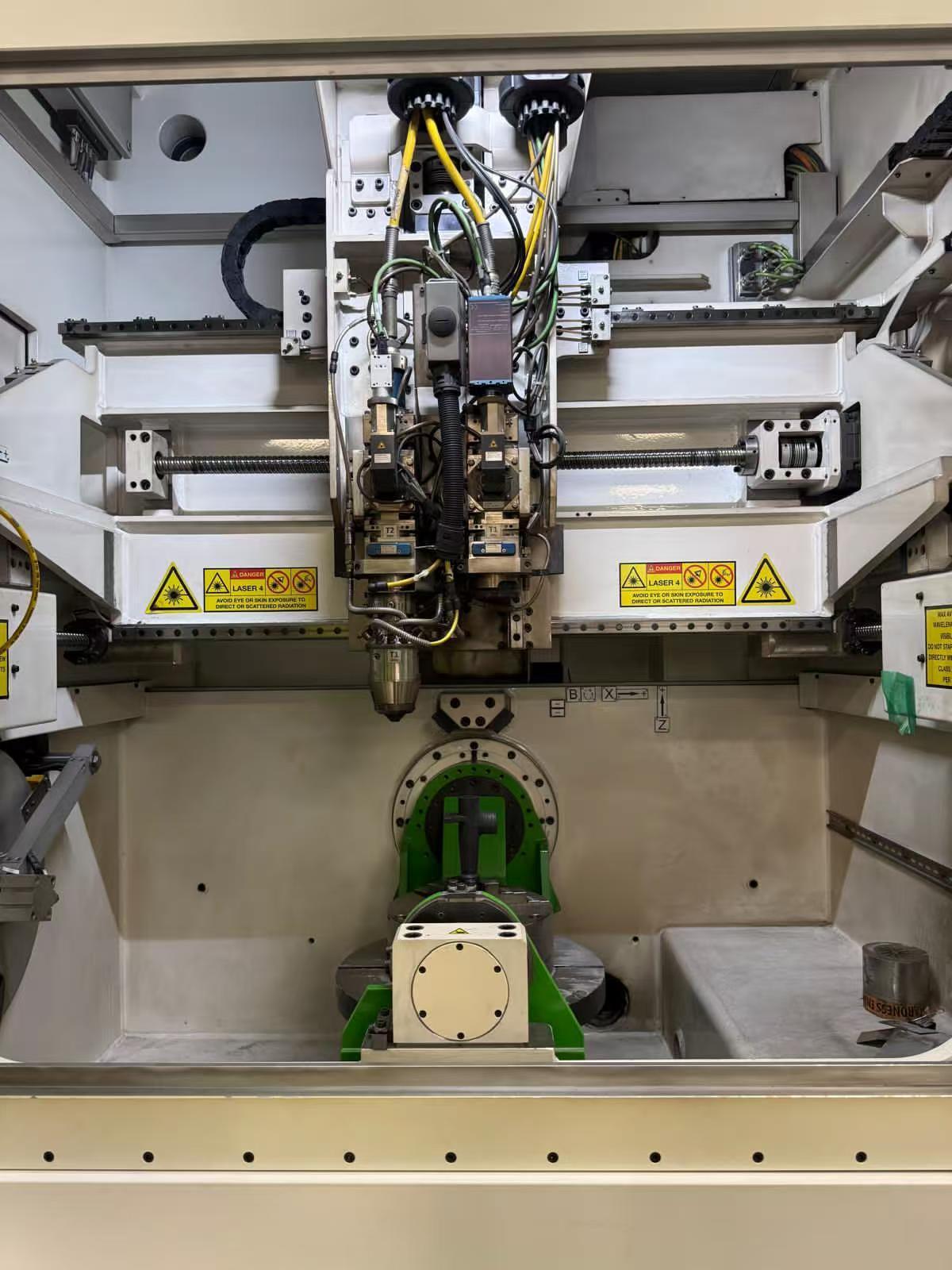

3-Axis Milling Unit：
Travel range: 800 × 400 × 450 mm
B-axis rotation: ±110°
C-axis rotation: 360° (continuous indexing)

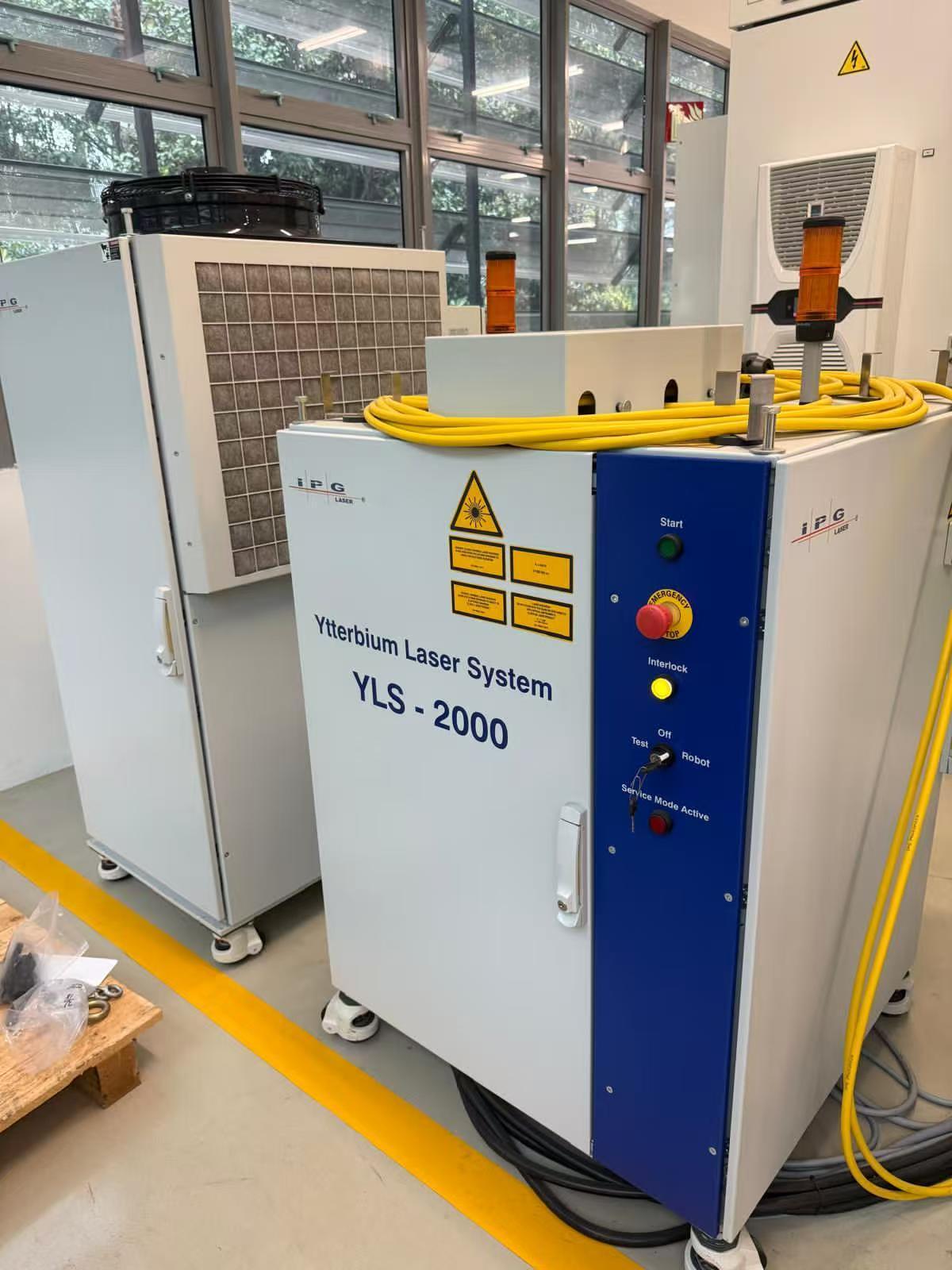

Laser / Cladding System：

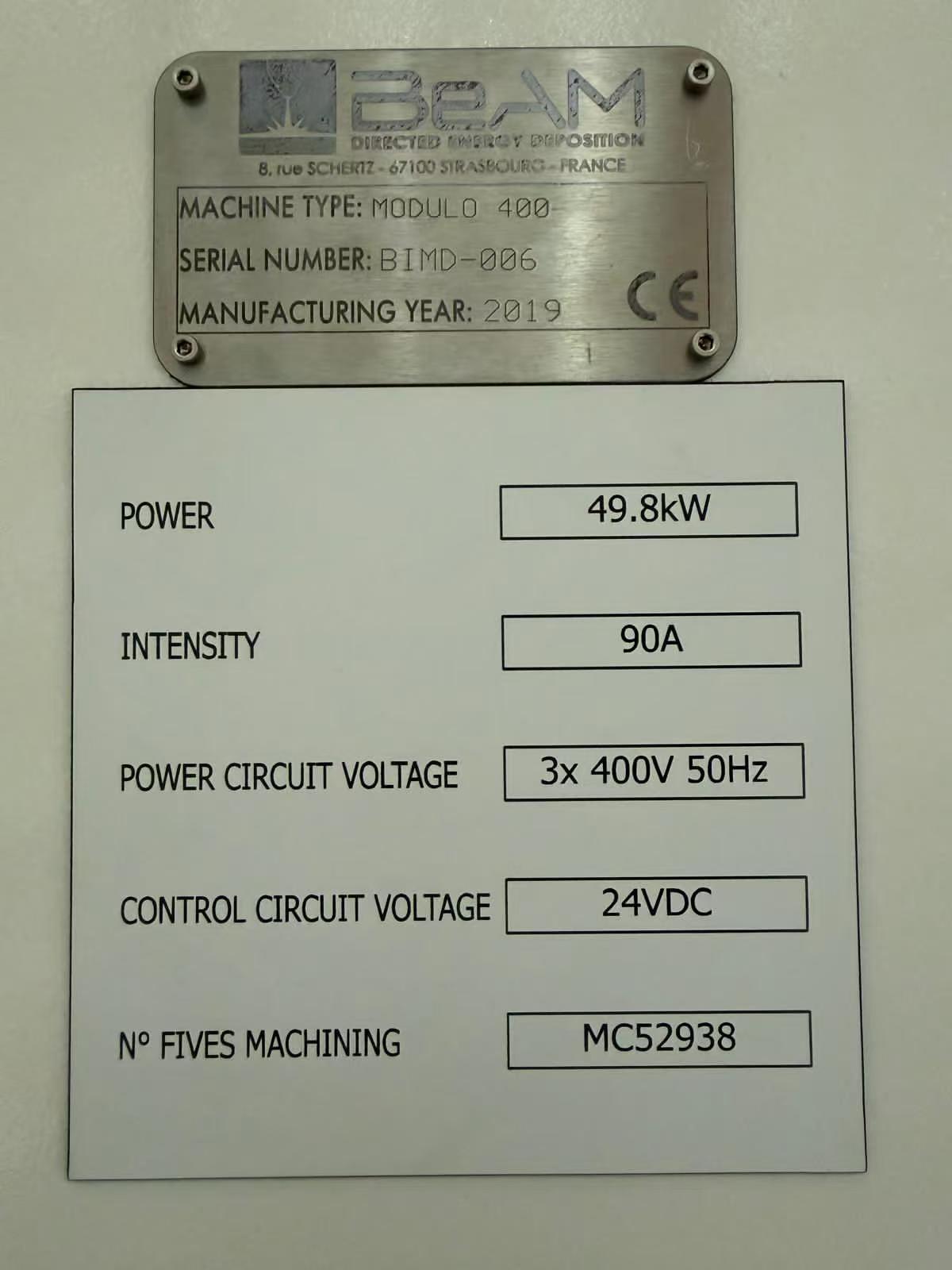

Fiber laser power: 49.8 kW
Cladding width: 0.8–1.2 mm
Deposition rate: 15–20 cm³/h

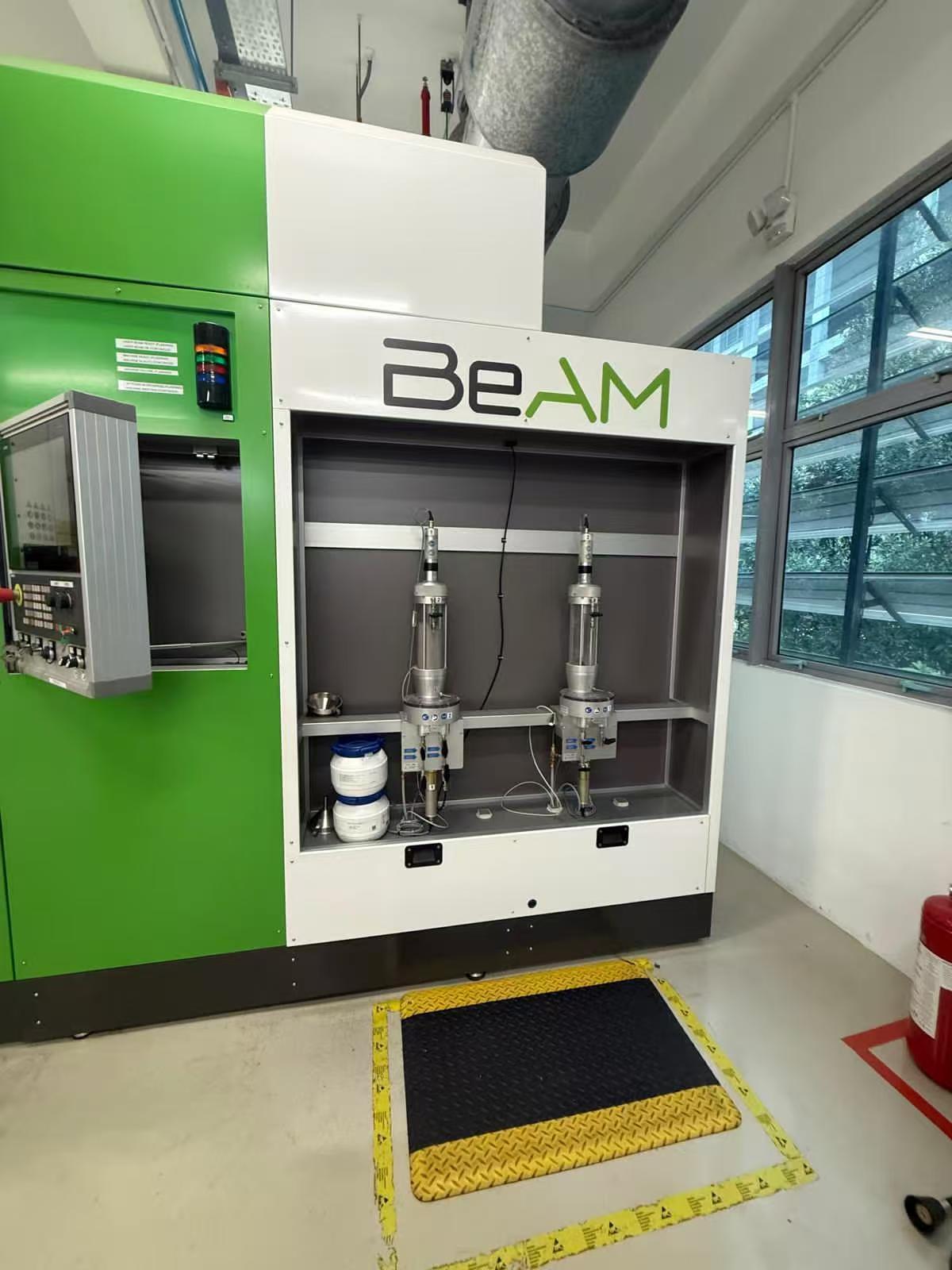

Powder Feeding System：
CNC-controlled powder feeding
Optional dual powder bar feeder (2 units)
Vibrating powder feeder
Powder hopper capacity: 2.5 L (≈13 kg)
Powder flow rate: 1–30 g/min

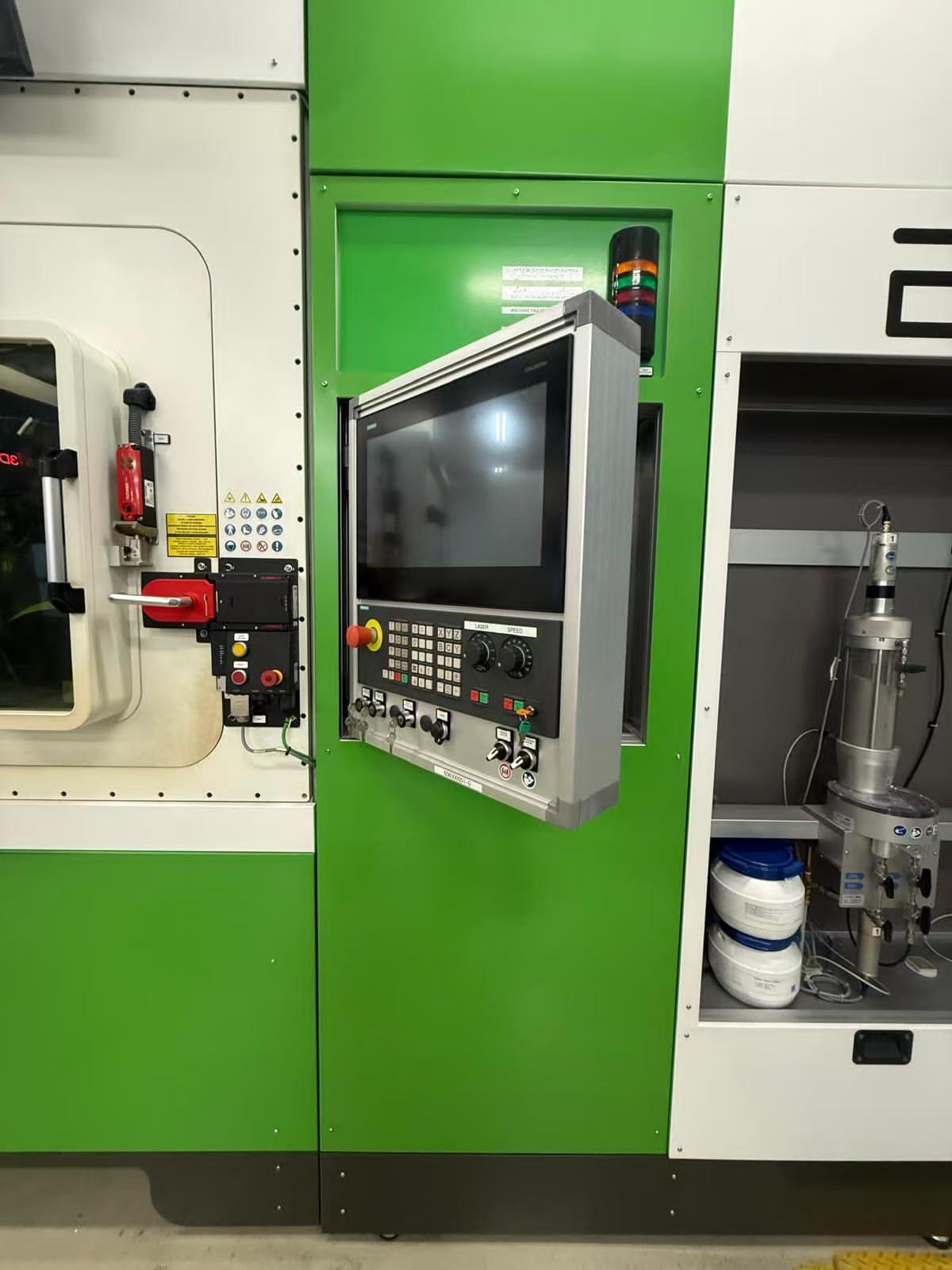

Control System：
Siemens 840D SL
G-code compatible
Safety System：
Laser protection door
Triple-stage filtration system (pre-filter + HEPA + chemical filtration)
Machine Dimensions: 7200 × 1950 × 2800 mm
Machine weight: approx. 7.2 tons (excluding powder system)
