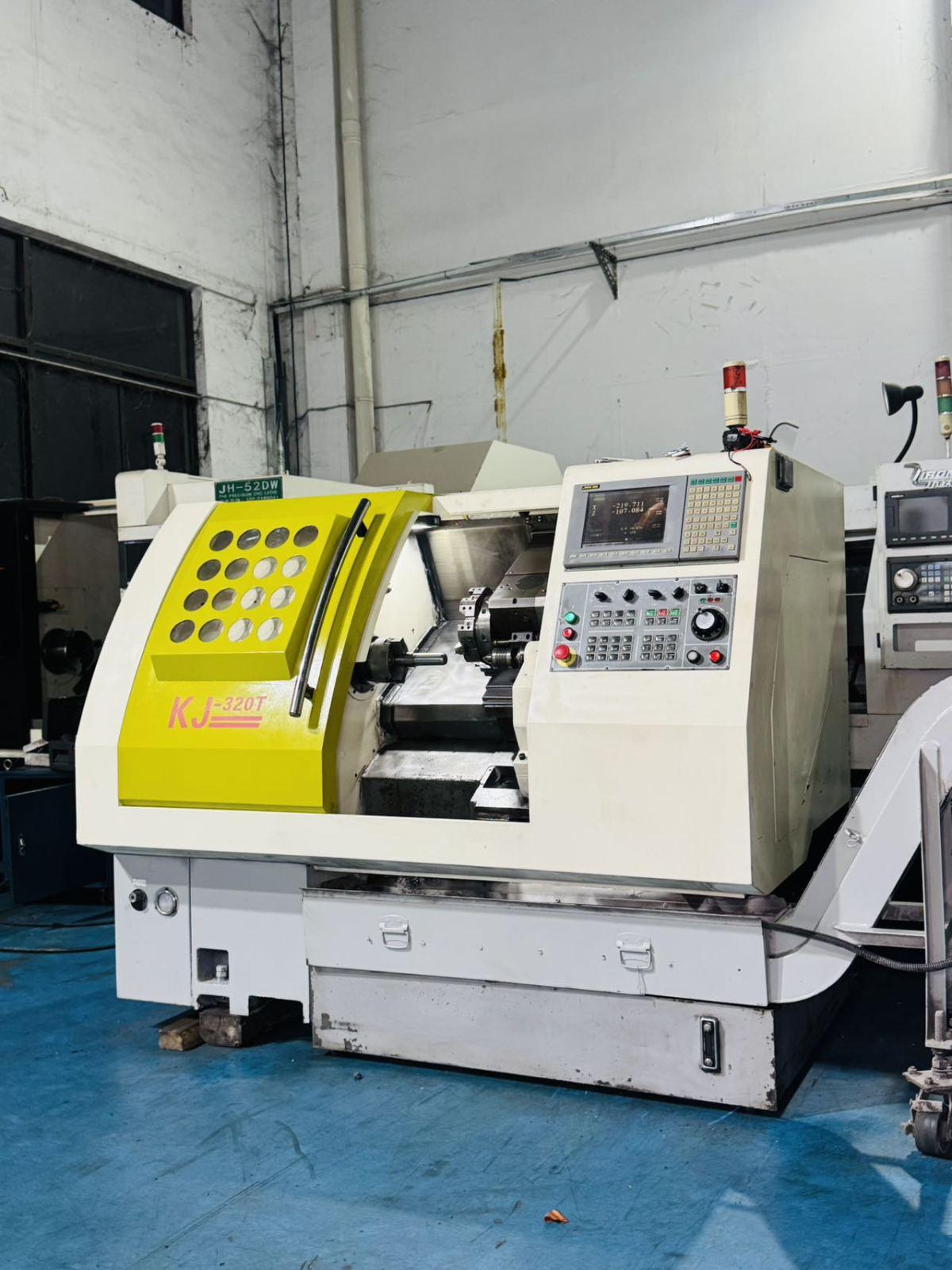

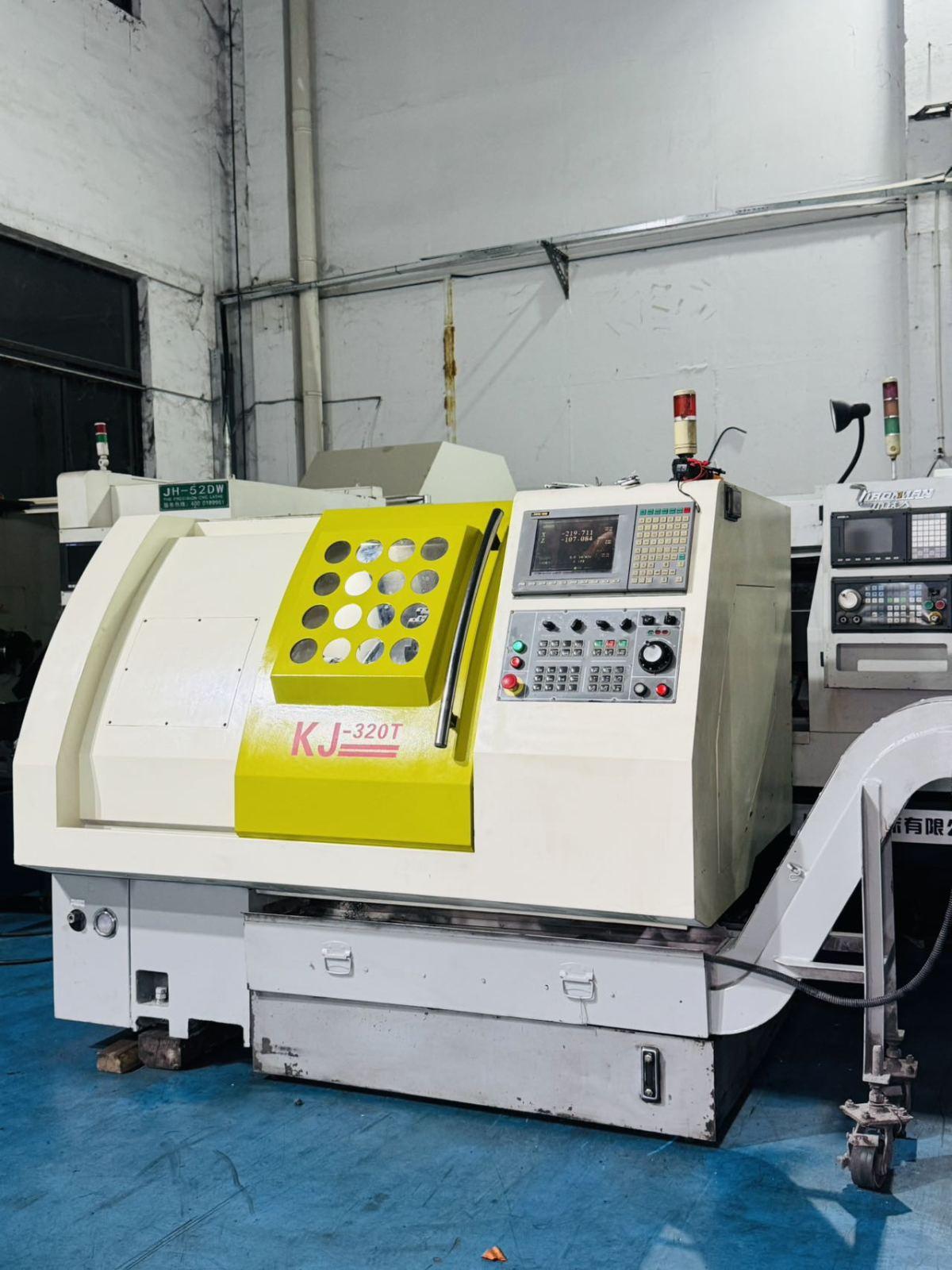

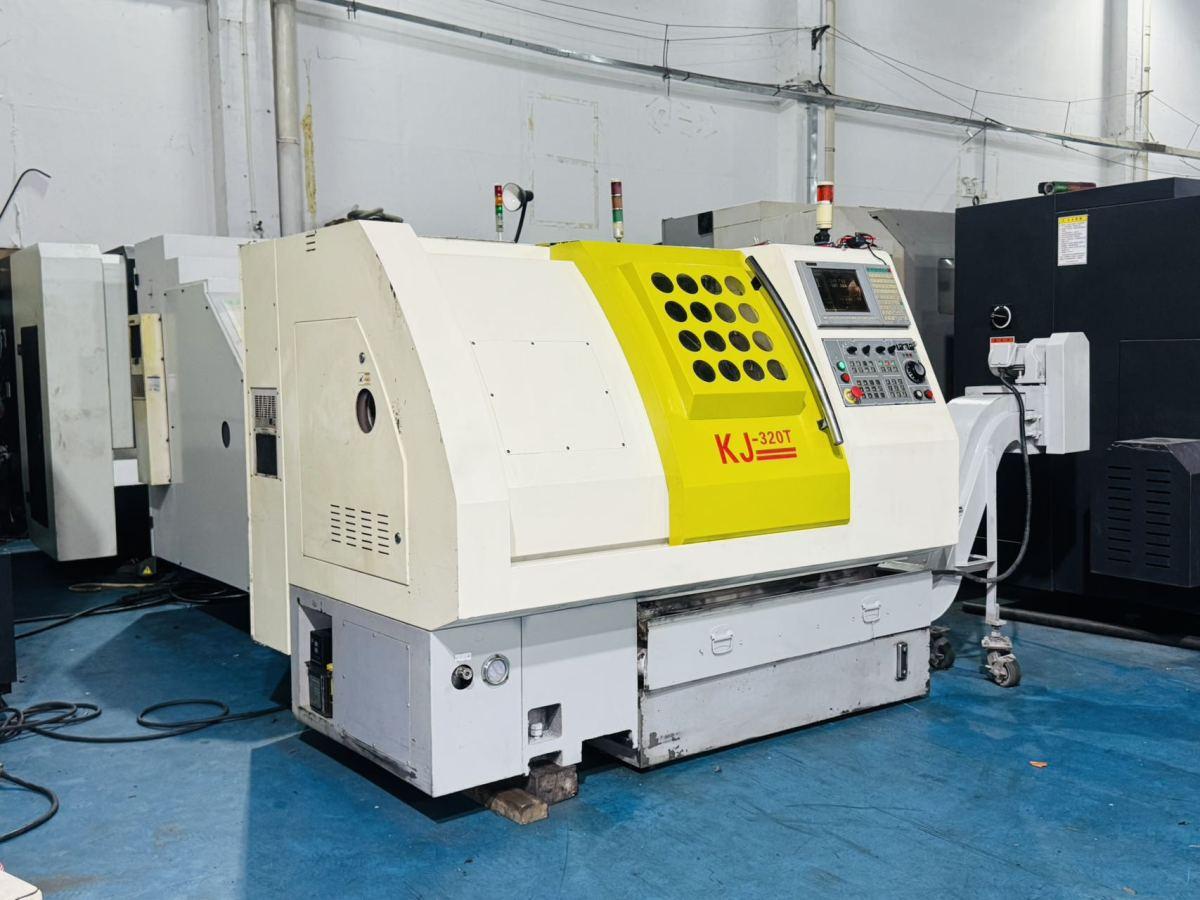

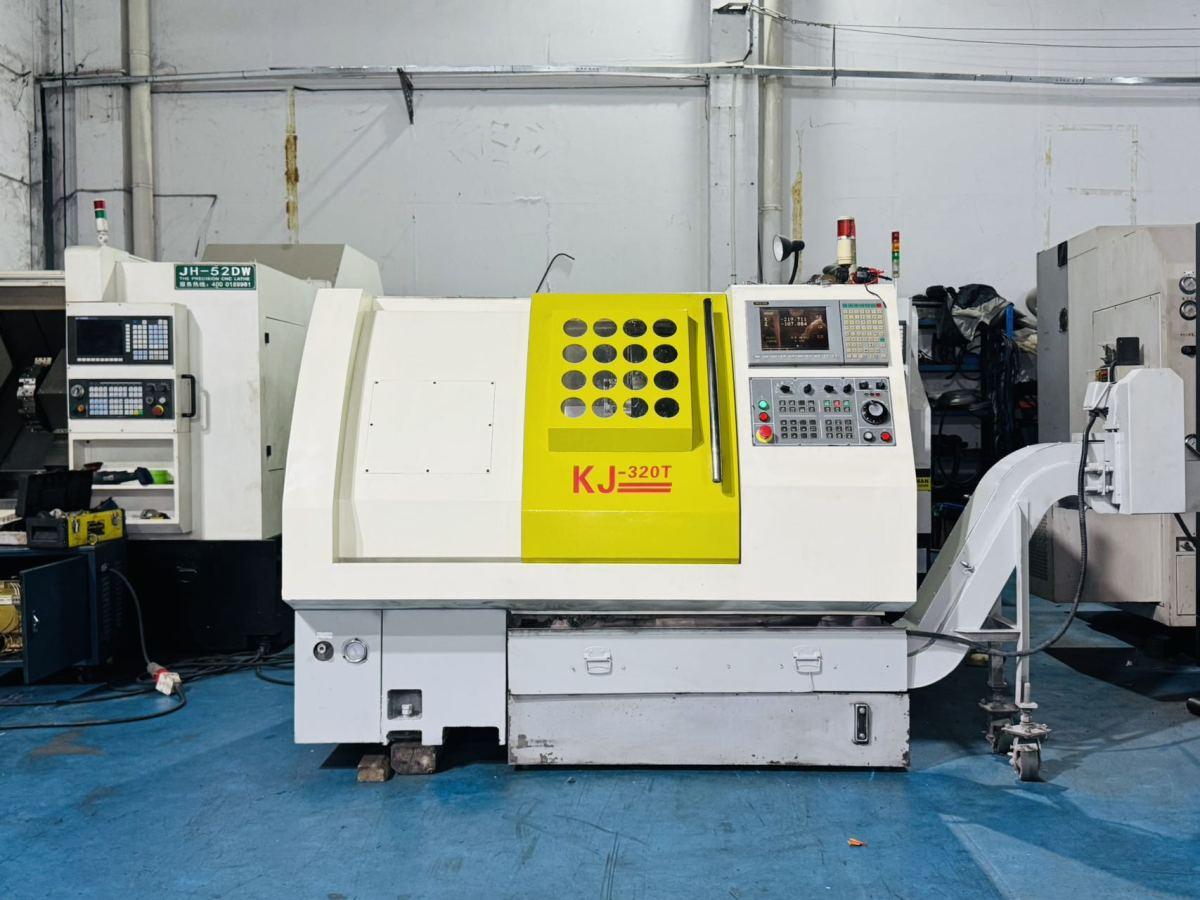

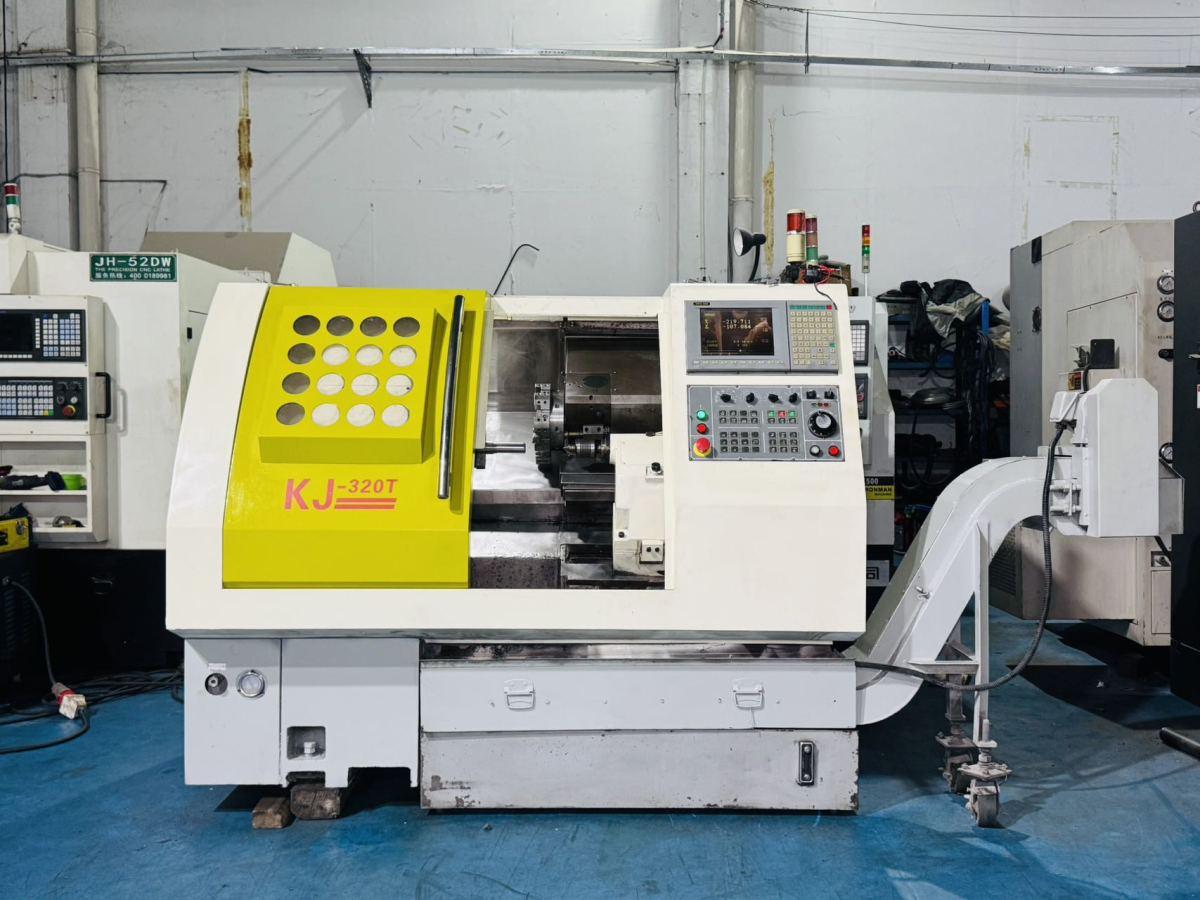

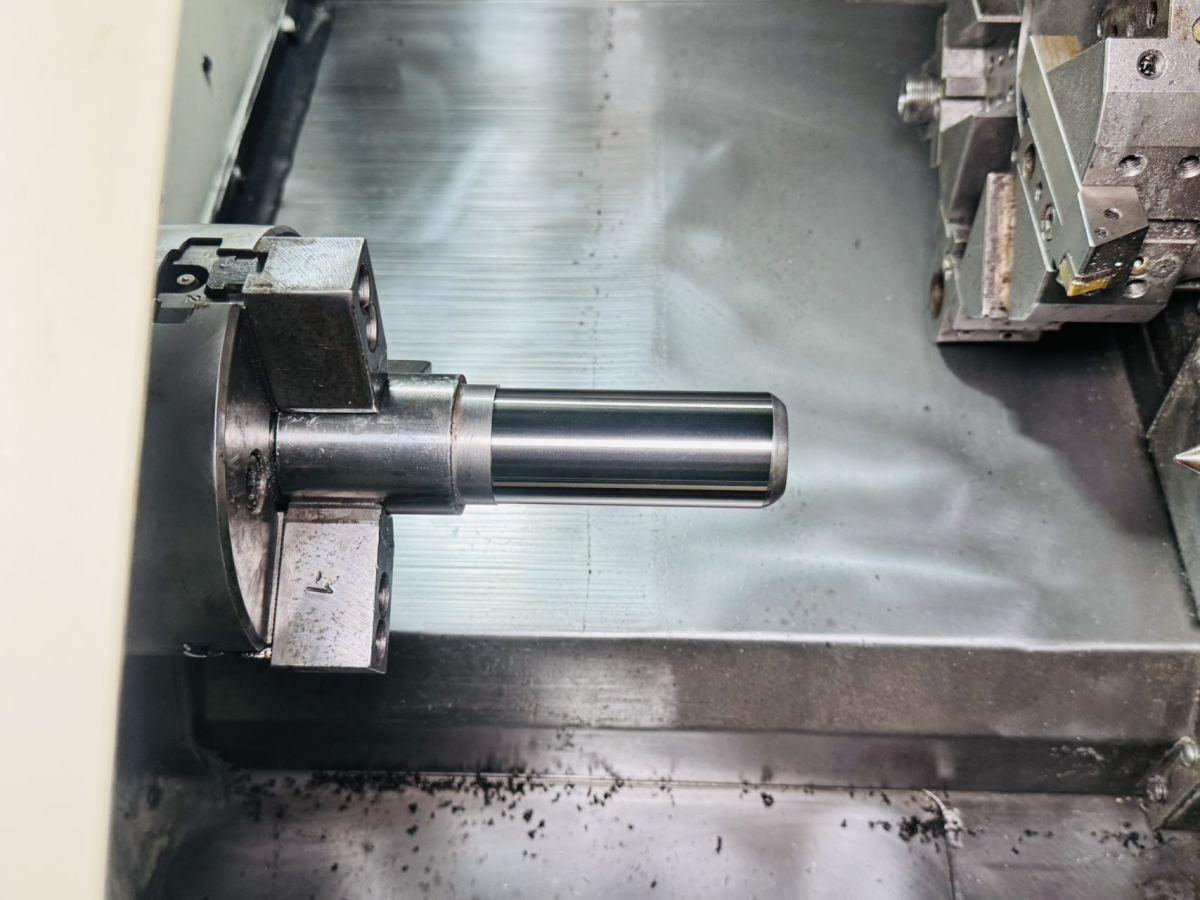

KAIJU KJ-320T CNC inclined lathe

[Product Information]:

Inventory number：812401
Brand：KAIJU
Model：KJ-320T
Origin：Taiwan, China
Location：China
Year：2017
Create Time：2026-06-20

Specifications:

CNC System: SYNTEC
Maximum swing diameter over bed: 360 mm
Max machining diameter: Φ150 mm
Max machining length: 150–300 mm
X-axis travel: 180 mm
Z-axis travel: 300 mm
Spindle speed: 4500 rpm
Spindle unit: Taiwan spindle unit

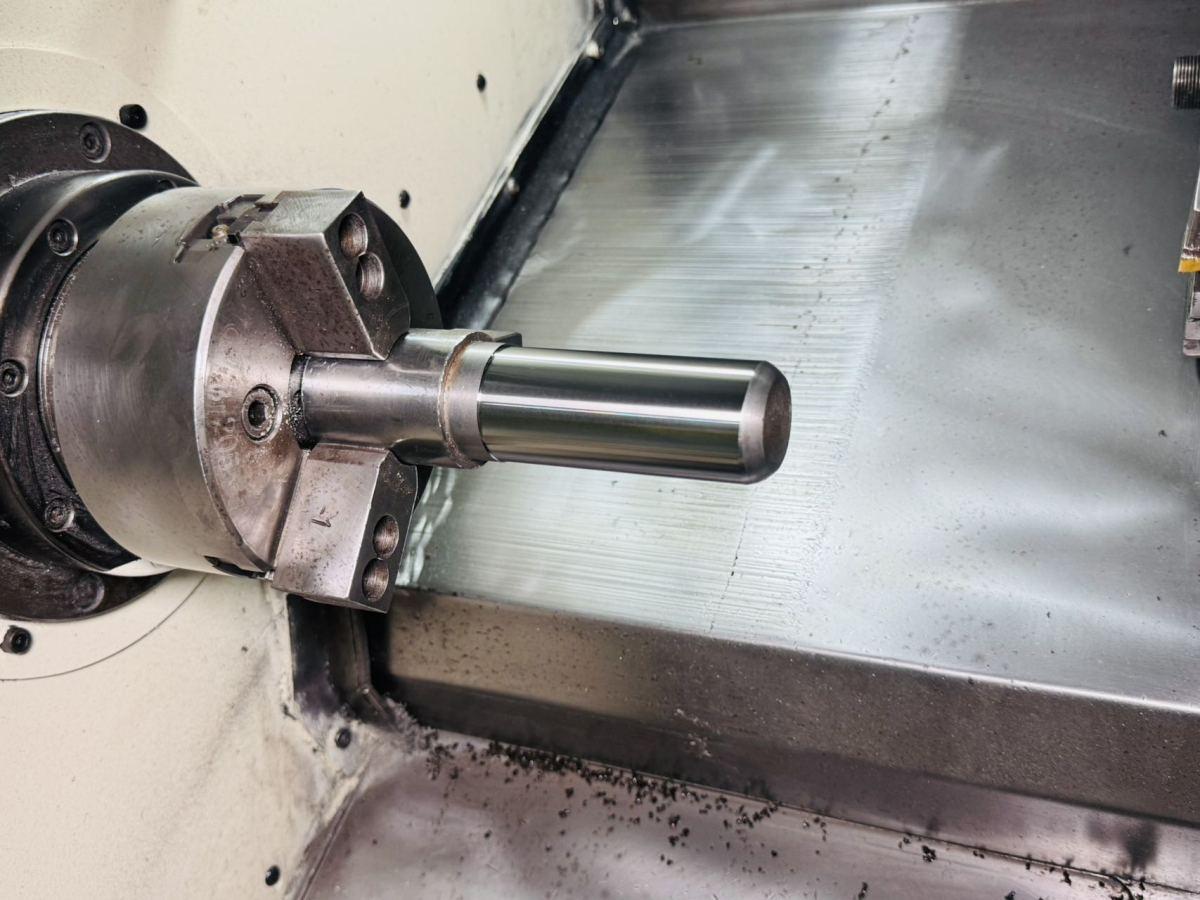

Chuck specification: 5-inch hollow hydraulic chuck
Main motor power: 4 kW
Tool turret: Taiwan Liuxin 8-station hydraulic turret
Tailstock: Hydraulic tailstock
Guideway: German Rexroth precision linear guideways
Ball screw: Japan THK precision ball screw
Bearing: Switzerland SKF bearings
Machining accuracy: within 0.01 mm
