SANSEI SS-501N Grinding machines

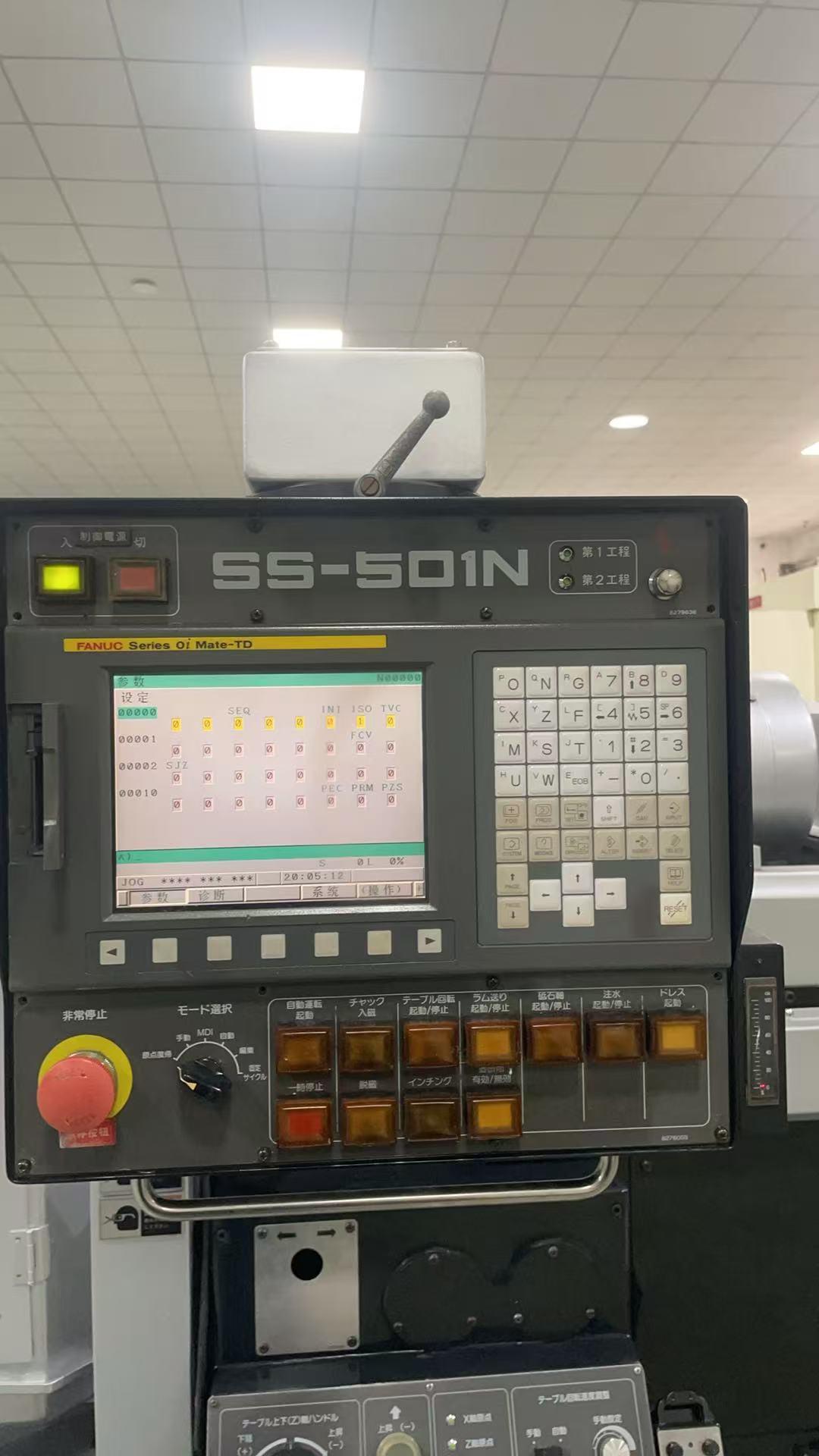

CNC System: FANUC Series 0i Mate-TD

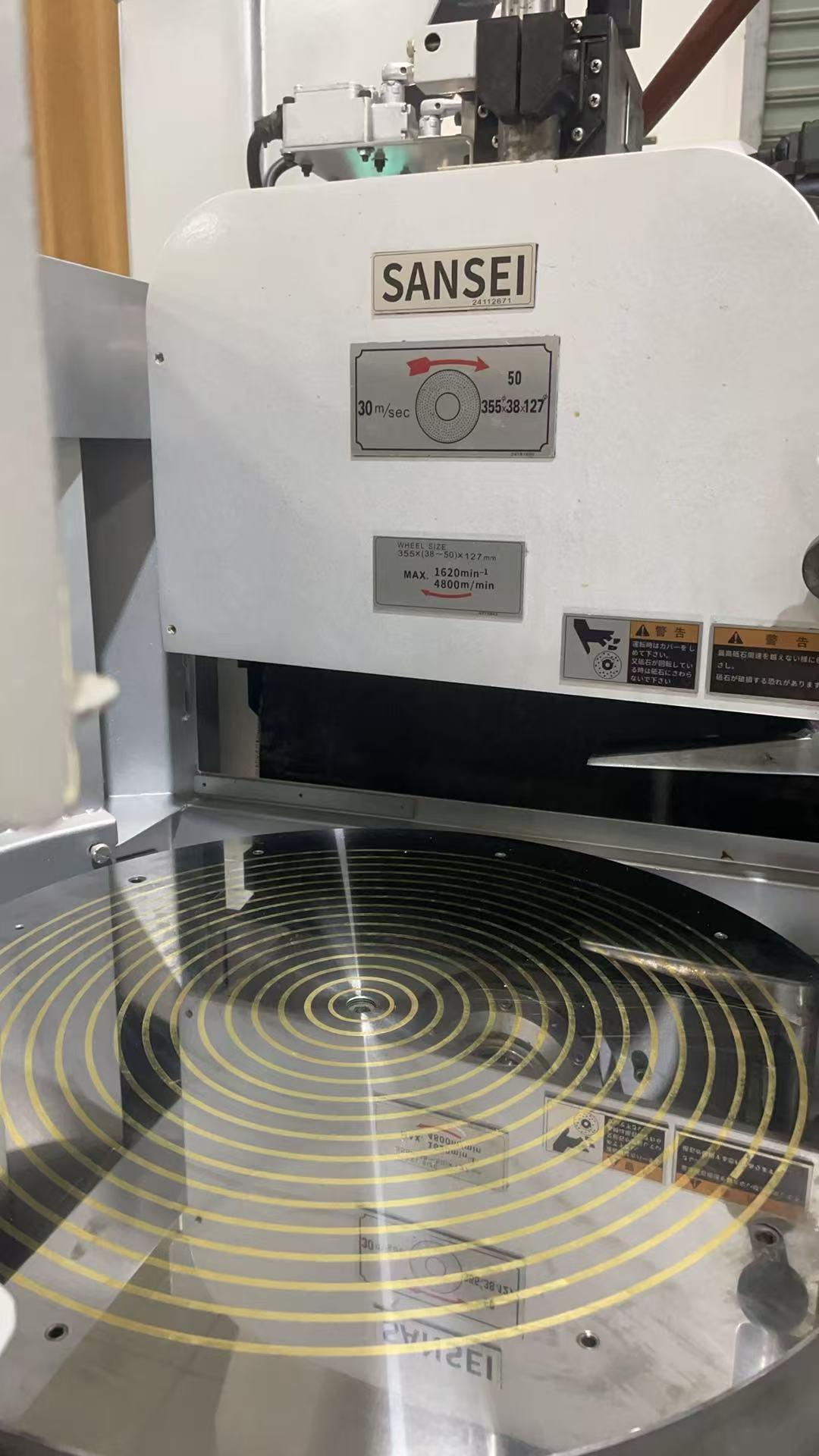

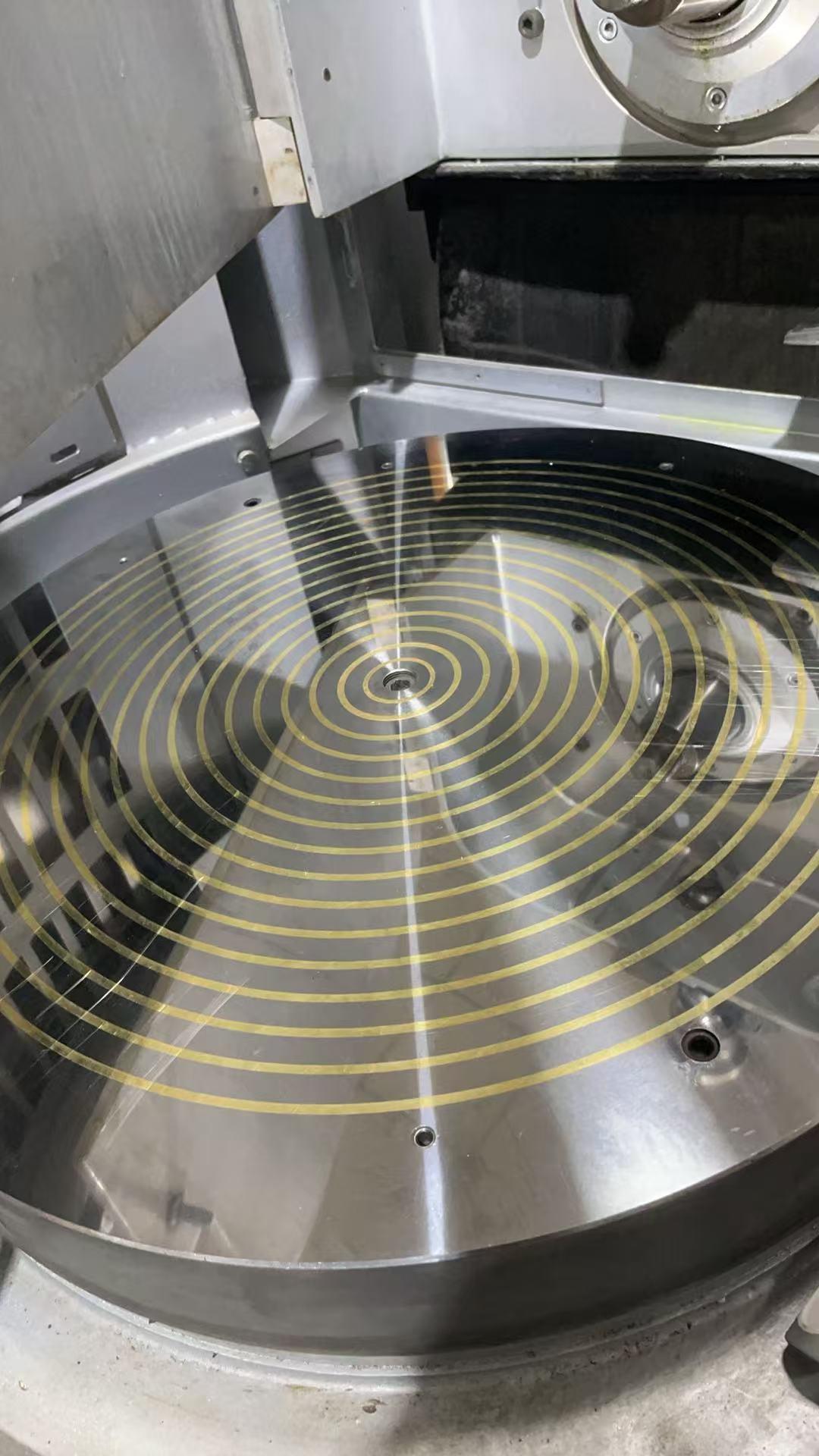

Worktable: Φ500 mm vacuum chuck
Worktable speed: 200 rpm
Max distance from chuck to grinding wheel: 180 mm
Z-axis (vertical) travel: 193 mm
X-axis (ram) travel: 370 mm
Grinding wheel size: Φ355 × (38–50) × Φ127 mm
Max grinding wheel speed: 1620 rpm
Max peripheral speed: 4800 m/min
Grinding wheel spindle motor power: 3–5 kW (three-phase 350V)
Standard automatic wheel dressing function: Yes
X-axis feed resolution: 0.001 mm
Rapid traverse speed (ram): 10 m/min
Machine dimensions: 2200 × 2700 × 1800 mm
Machine weight: 4 tons
