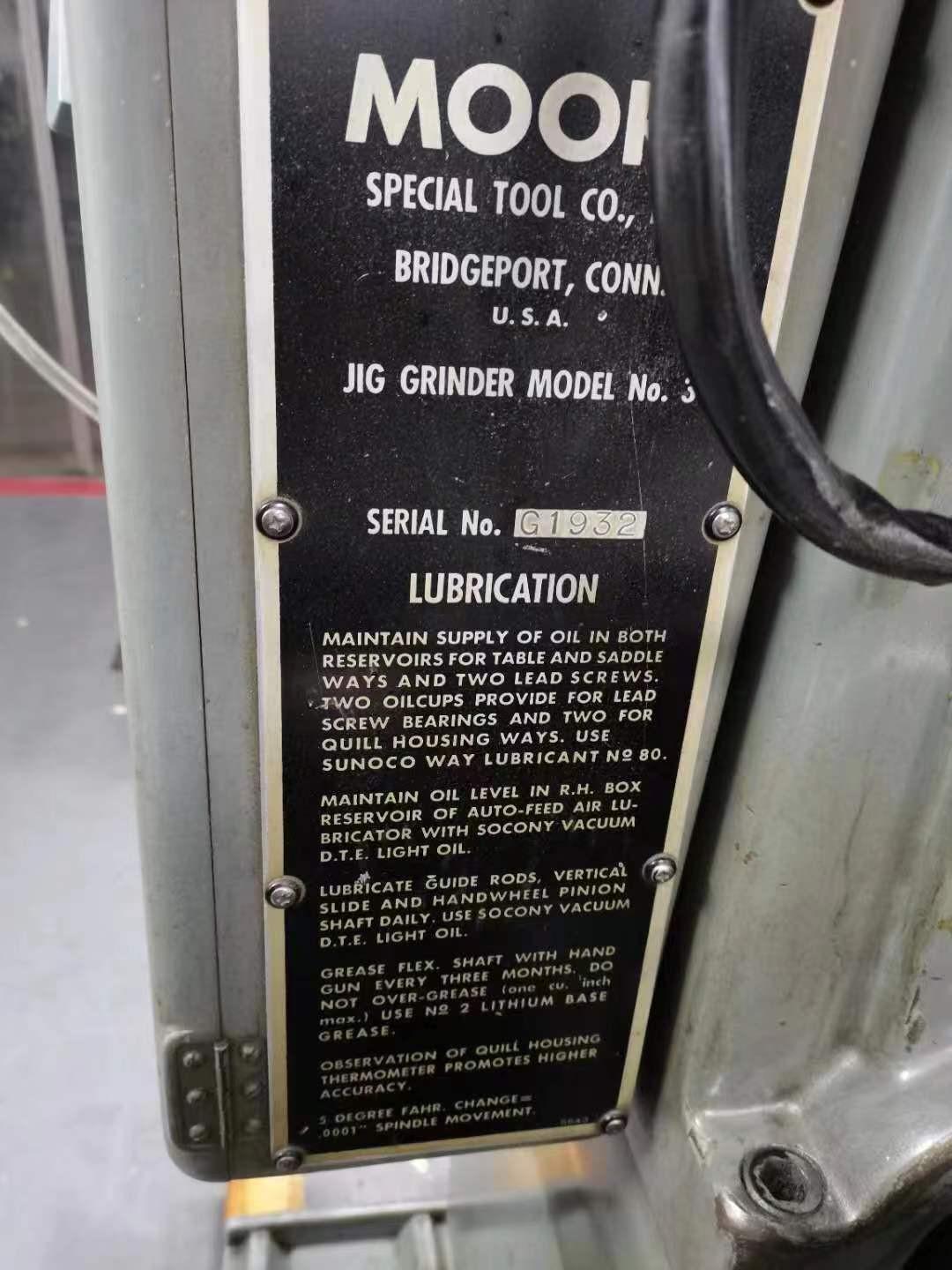

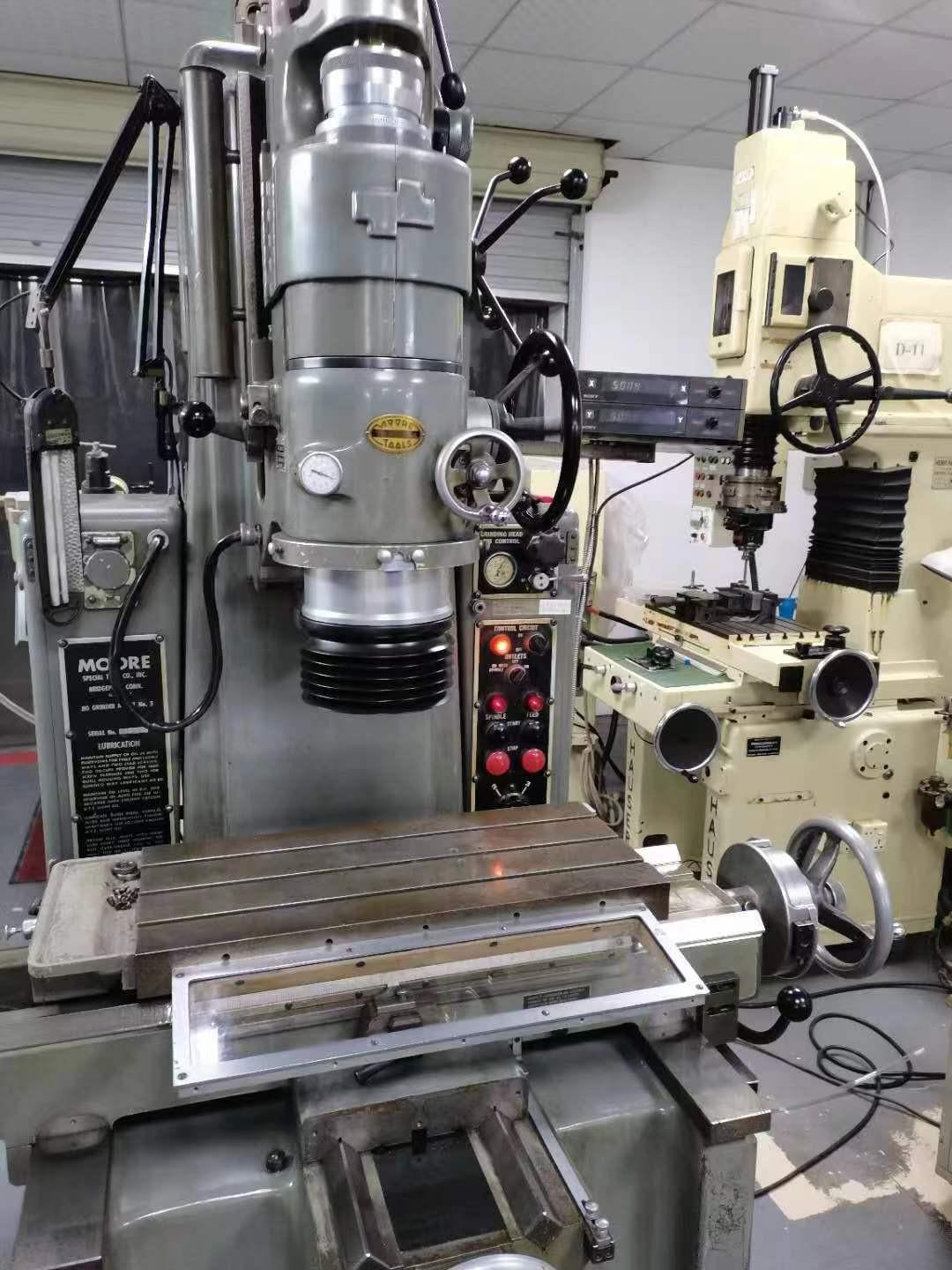

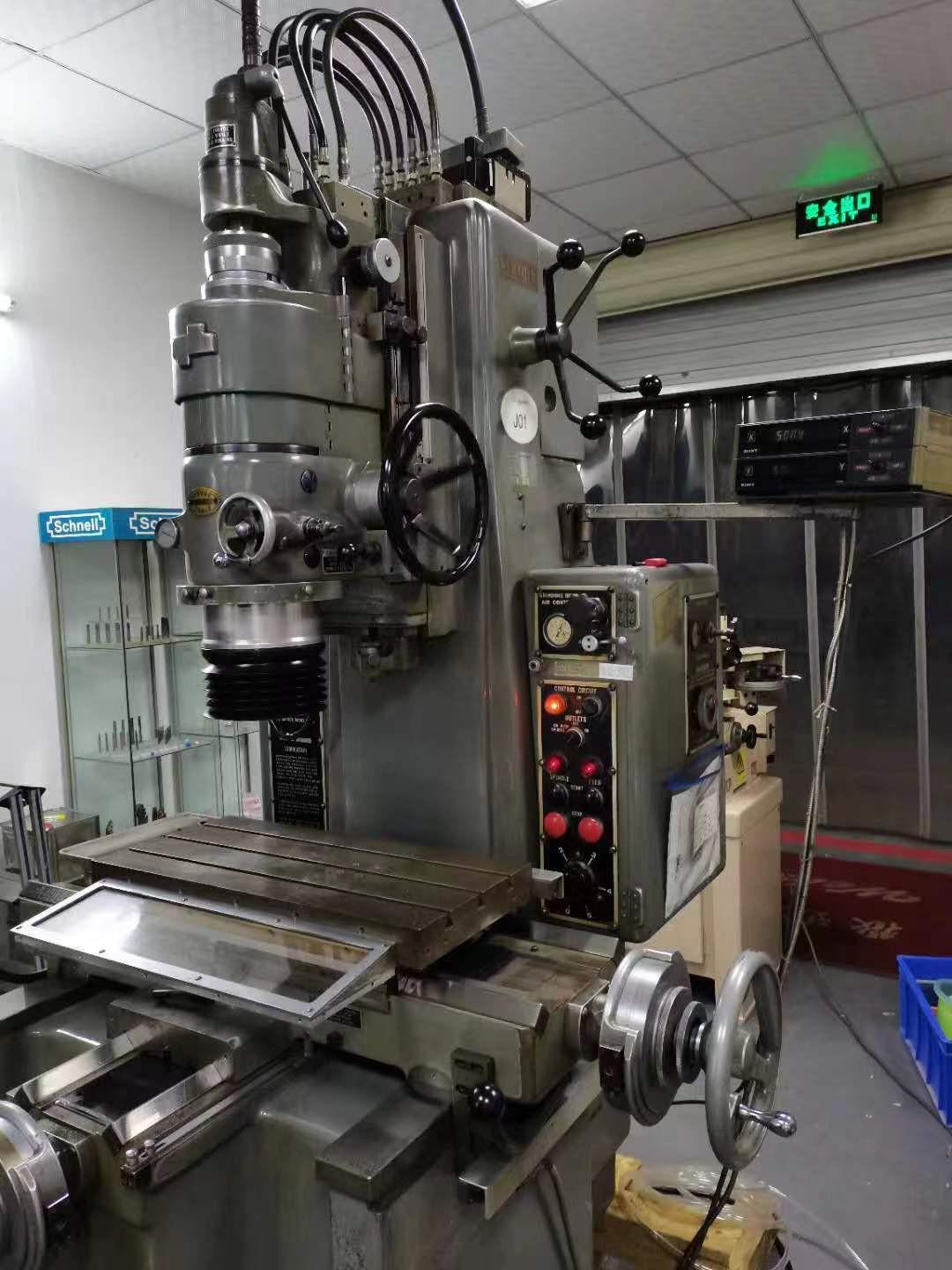

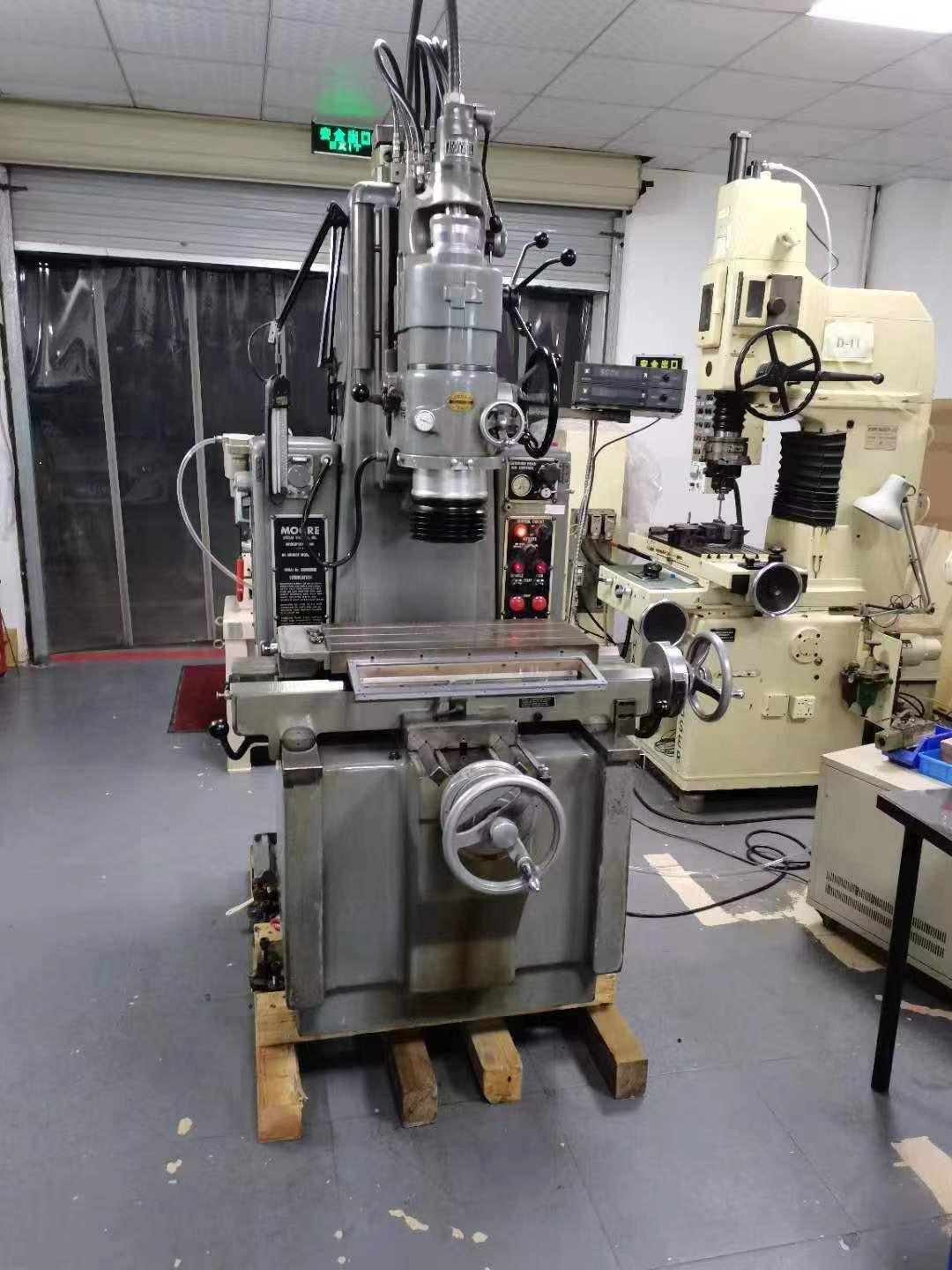

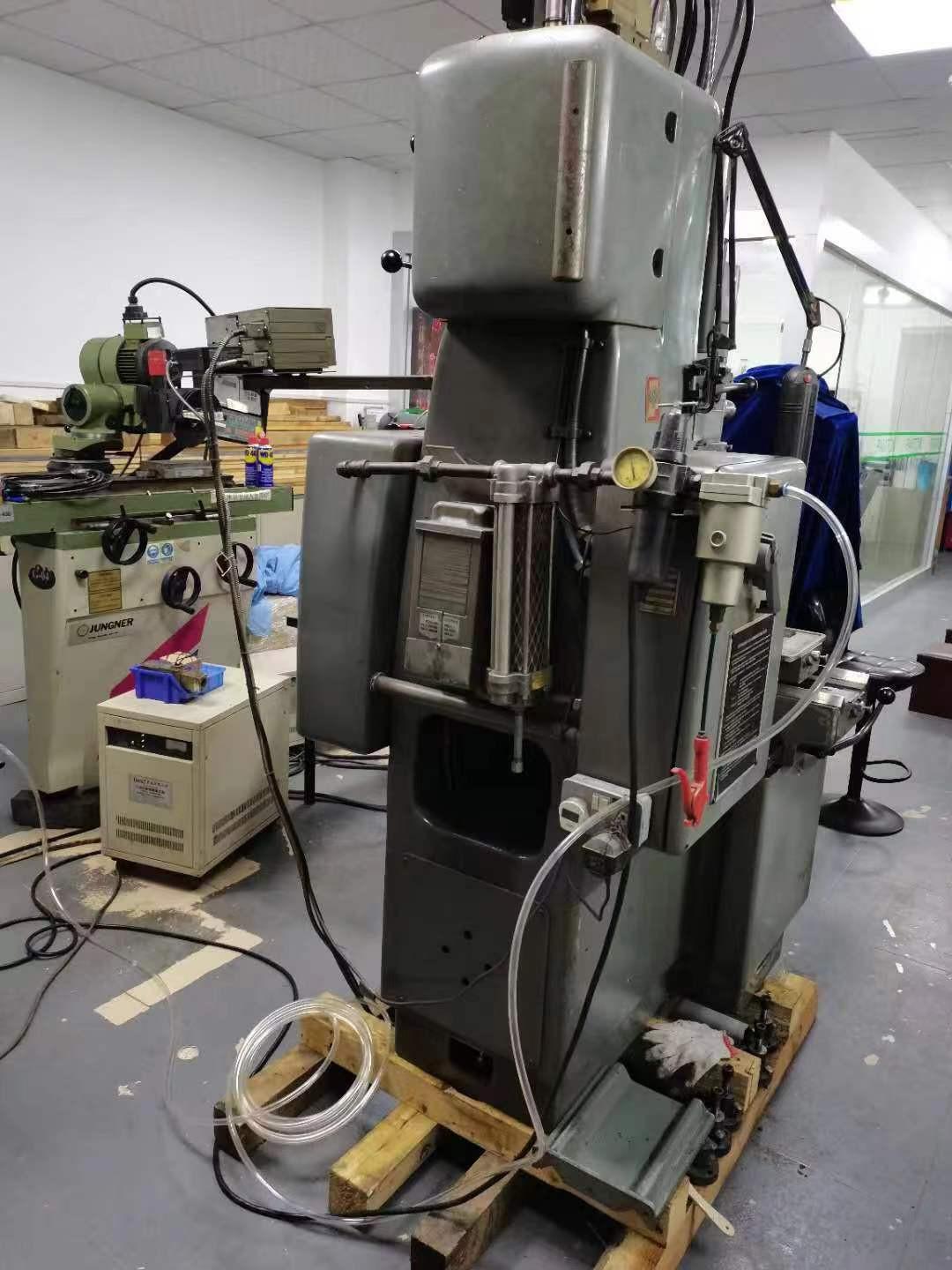

MOORE NO. 3 Jig grinding machine

Worktable size 278mm x 610mm

Worktable movement - X 457mm

Worktable movement -Y 278mm

Spindle frame travel--Z 320mm

Spindle vertical movement 92mm

Quill shaft vertical travel 89mm

Distance from worktable surface to grinding wheel head 51mm x 457mm

Distance from spindle to column guideway 254mm

Distance from the spindle to the lower column guideway 343mm

Spindle speed -stepless variable speed 25~225 rpm

Spindle feed - stepless variable speed 2~120 SPM

Grinding wheel speed 6000~40,000 rpm
