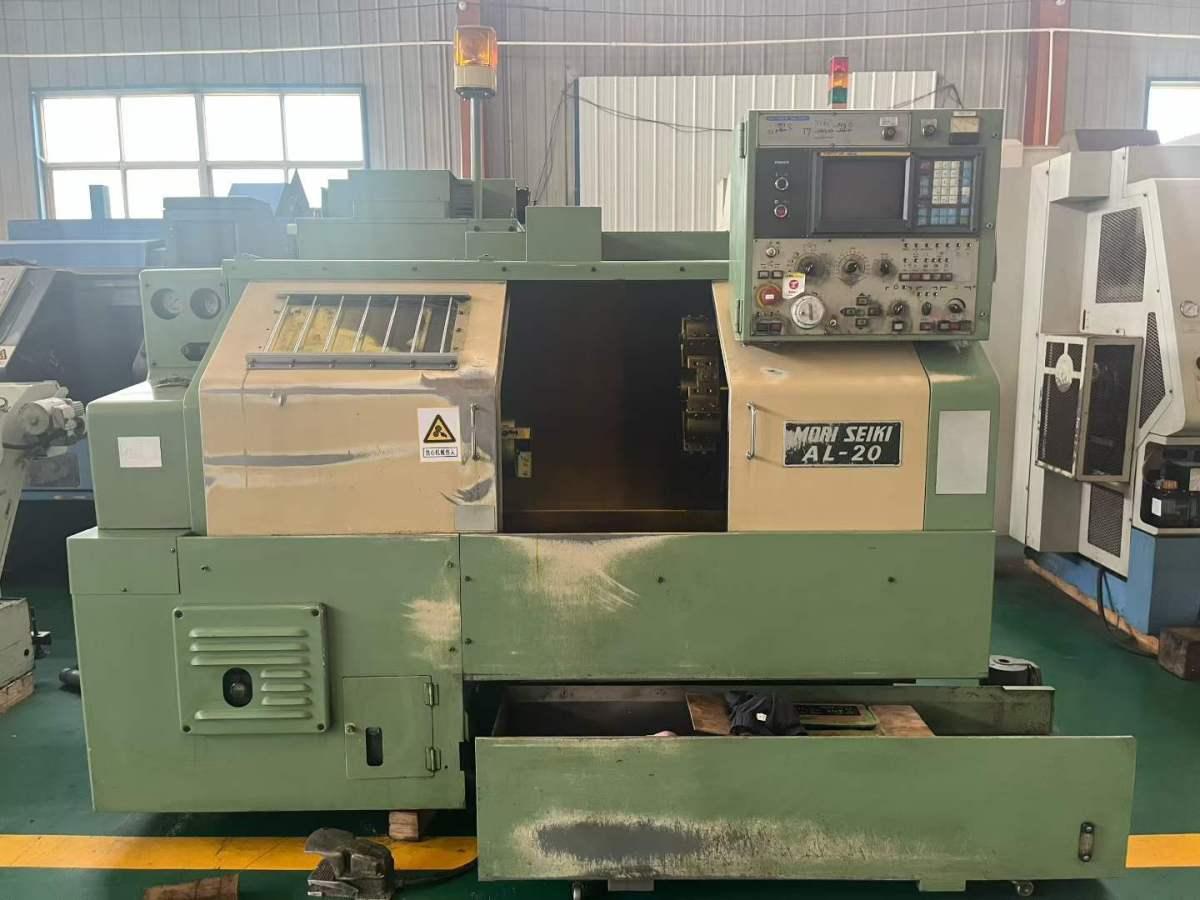

Mori Seiki AL-20 CNC turning lathe

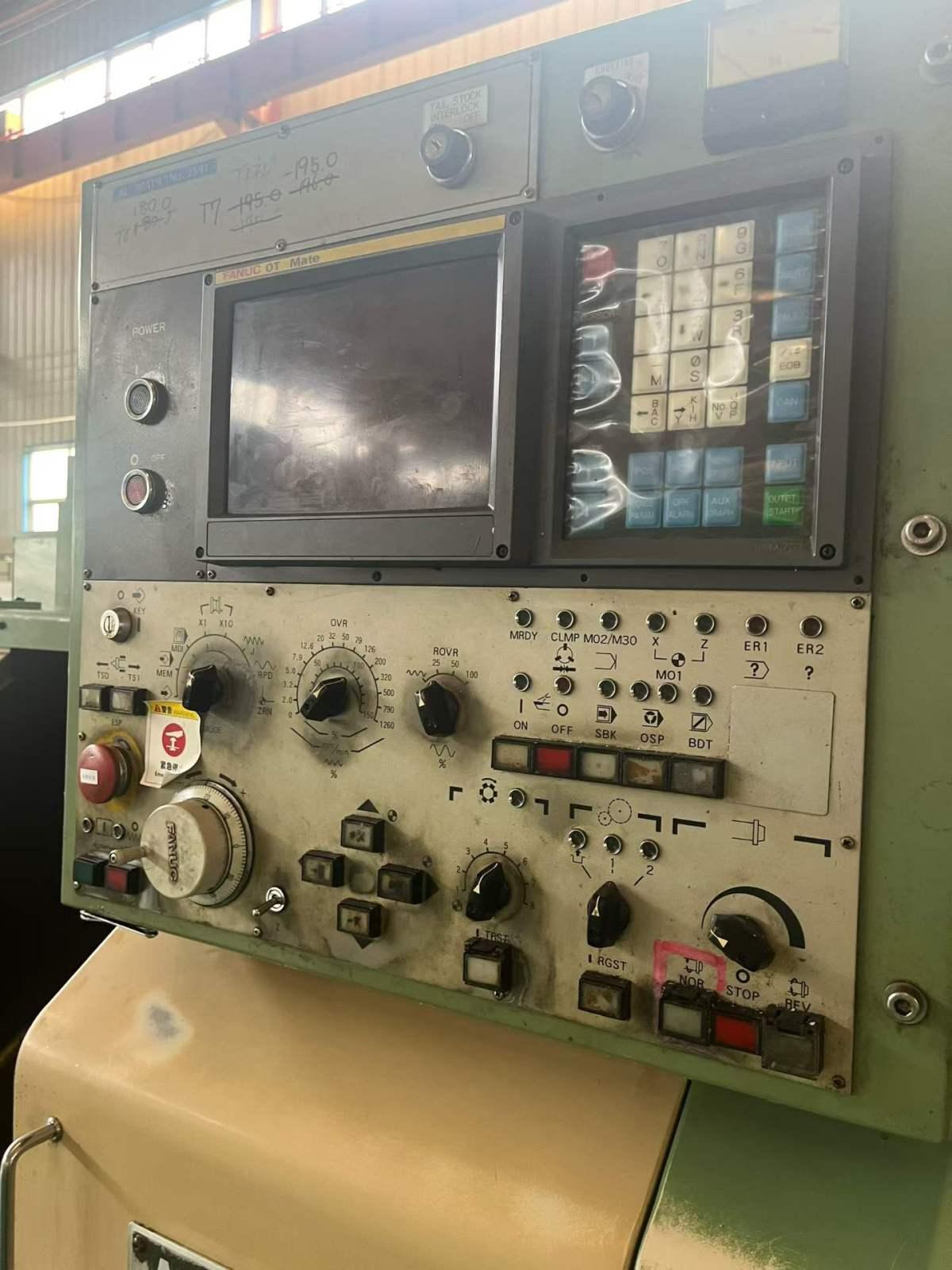

CNC System: FANUC 0T-Mate

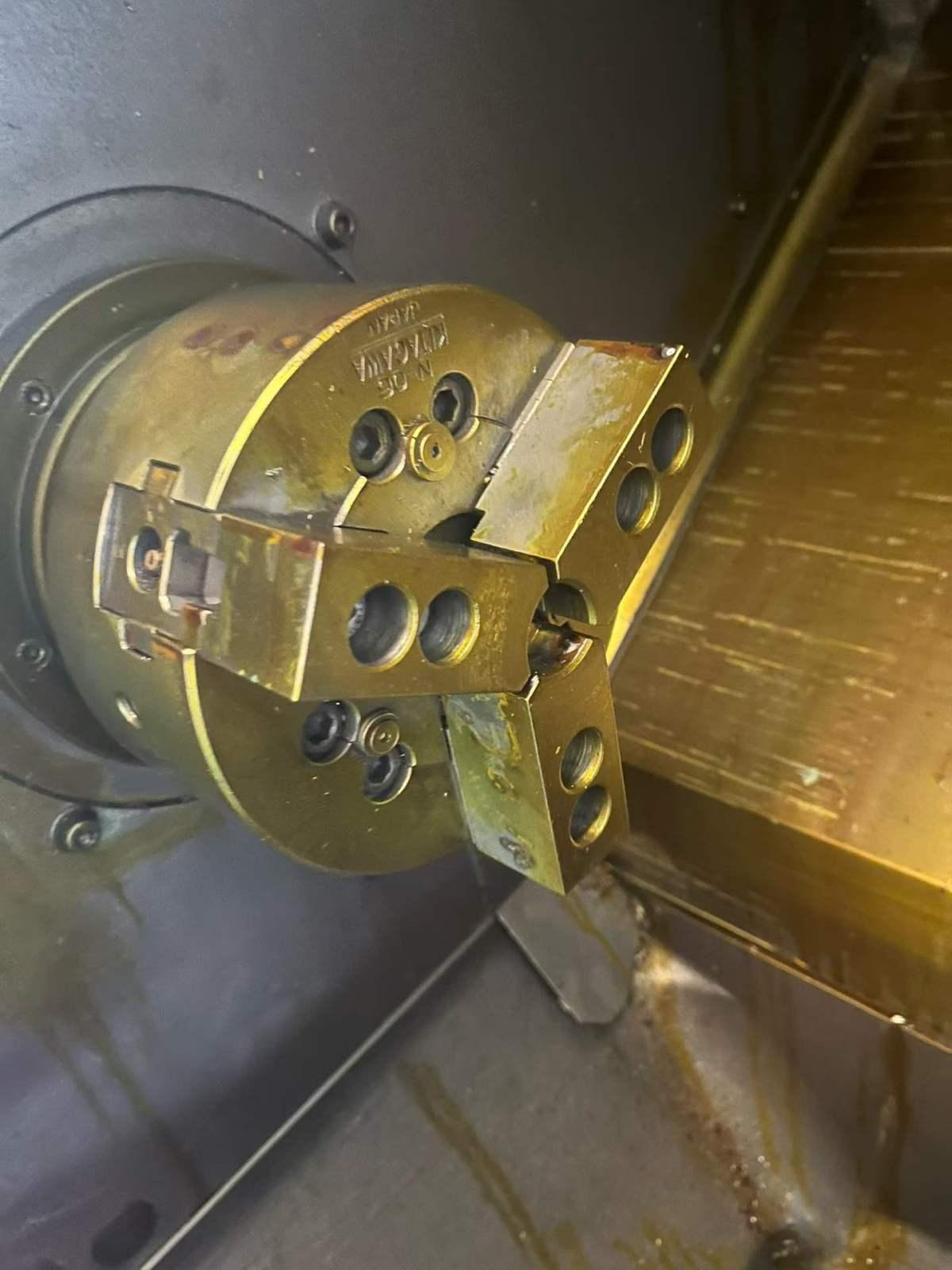

Chuck Size: 203.2 mm
Maximum Bar Capacity (Through Hole): 45.72 mm
Maximum Swing Over Bed / Tool Post: 480.06 mm / 309.88 mm
Maximum Machining Diameter: 248.92 mm
Maximum Machining Length: 500.38 mm
Main Motor Power: 7.5 / 5.6 kW (Approx.)

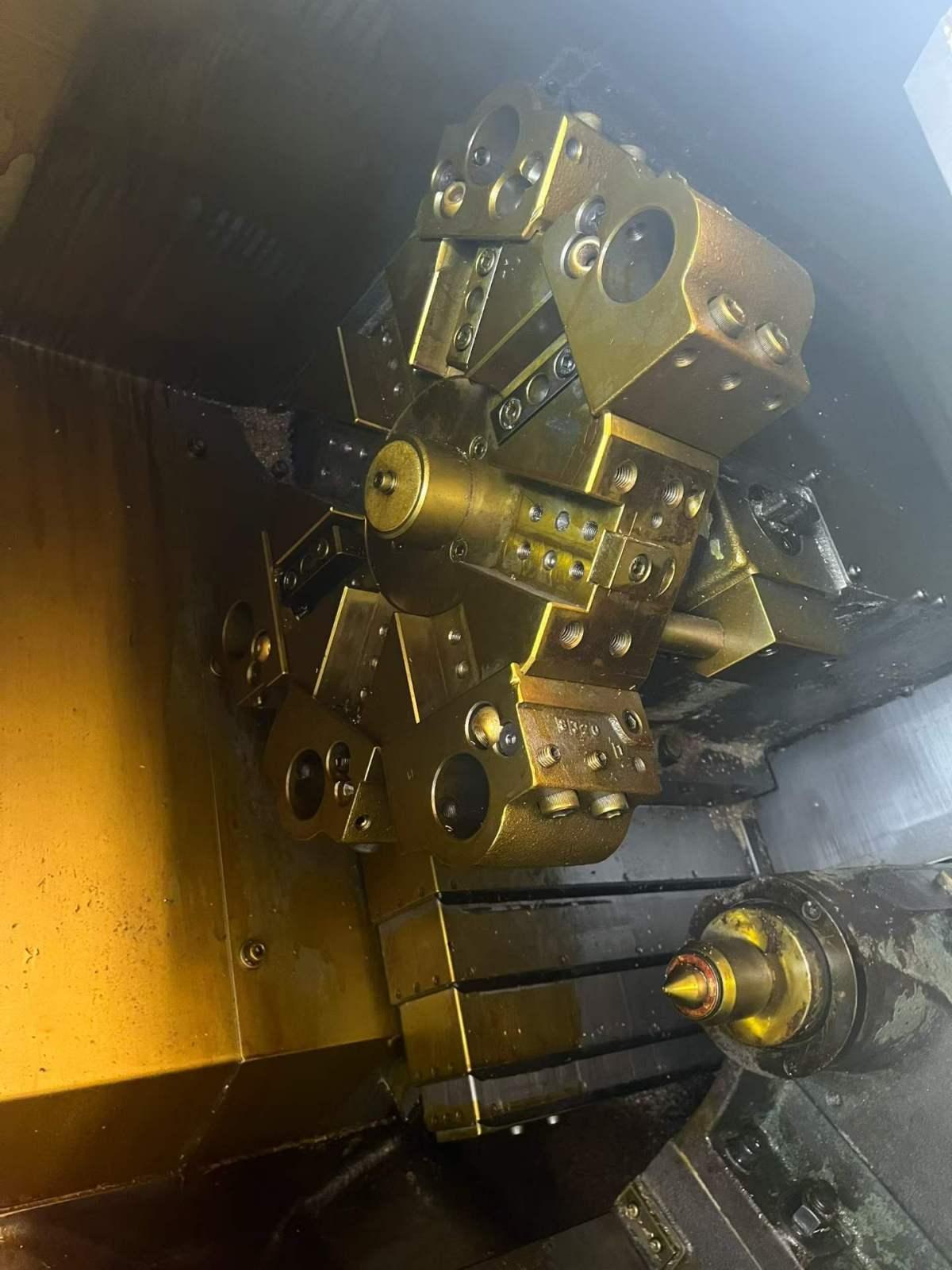

Number of Tool Positions: 8-Station Tool Turret
Spindle Speed: 40–3500 rpm
Spindle Bore Diameter: 55.88 mm
Spindle Nose: A2-6
Rapid Traverse Rate (X / Z Axis): 10 / 15 m/min (Approx.)
X-axis Travel: 149.86 mm
Z-axis Travel: 500.38 mm
Turret Index Time: 0.6 s
Tailstock Taper: MT4
Machine Dimensions (L × W): 2360 × 1259 mm
Machine Weight: 2801 kg
