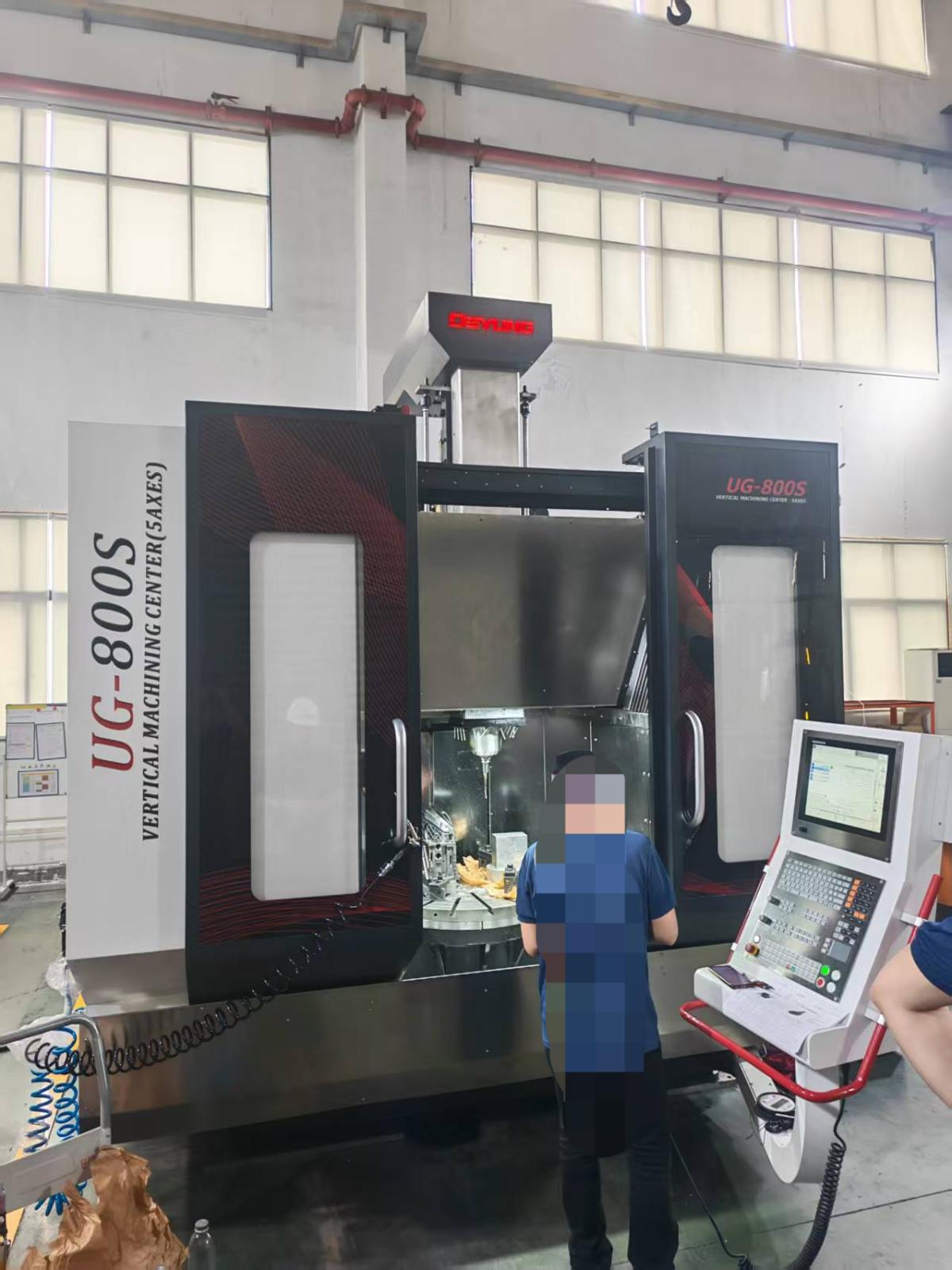

Deyung UG-800S 5 axis machining centre

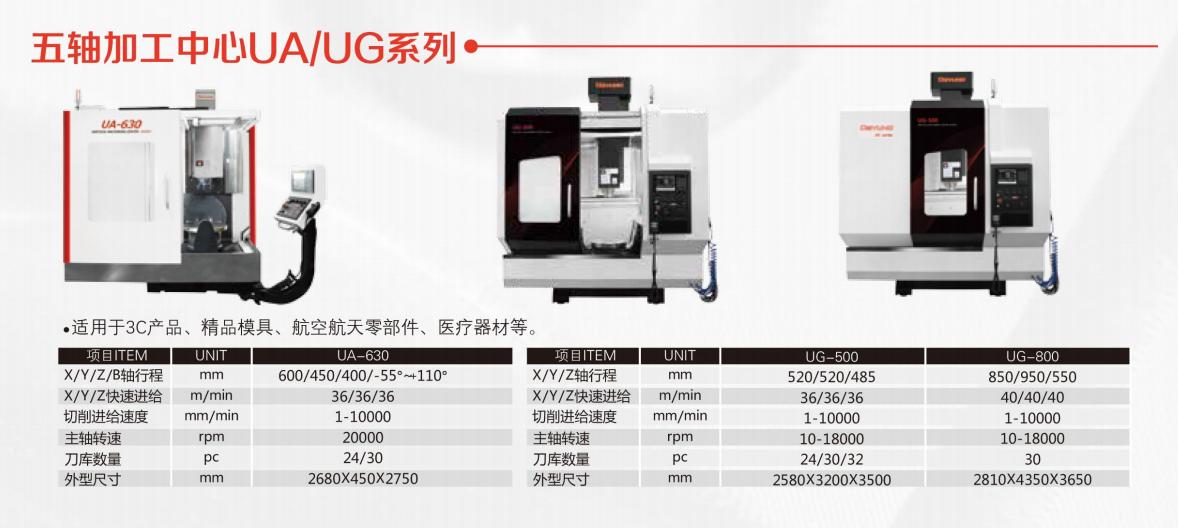

Three-axis travel: 850 × 950 × 550 mm
Rotation Angle of A-axis: ±130°
Rotation Angle of C-axis: ±360°
Three-axis rapid feed: 40 × 40 × 40 m/min
Cutting feed rate: 1–10,000 mm/min
Spindle speed: 10–18,000 rpm
Tool magazine capacity: 30 pcs
Machine dimensions: 2810 × 4350 × 3650 mm
Standard Configuration:
Direct-drive spindle speed: 12000 rpm
Three-axis roller linear guideways
Spindle chiller
Work light
Spindle air curtain dust protection system
Programmable spindle air-blowing cooling system
Spindle annular coolant spray system
Cutting fluid cooling system
Electrical cabinet heat exchanger
Chip collection bin
Clean water gun
Air gun
Three-color warning light
Fully enclosed sheet metal enclosure
M30 automatic power-off function
Safety door interlock system
Three-axis lubrication system
Base oil-water separation design
24-tool automatic tool changer (ATC)
Optional Configuration:
Electric spindle speed: 15000 / 20000 rpm
Linear scales for X/Y/Z axis / A/C axis linear scales
Front-mounted conveyor chip removal system
Upgraded 30-tool magazine
Through-spindle coolant (TSC)
Base flushing chip removal system
Fully sealed top cover
Rotary disc-type oil-water separator
Electrical cabinet air conditioning unit
Oil mist collector unit
