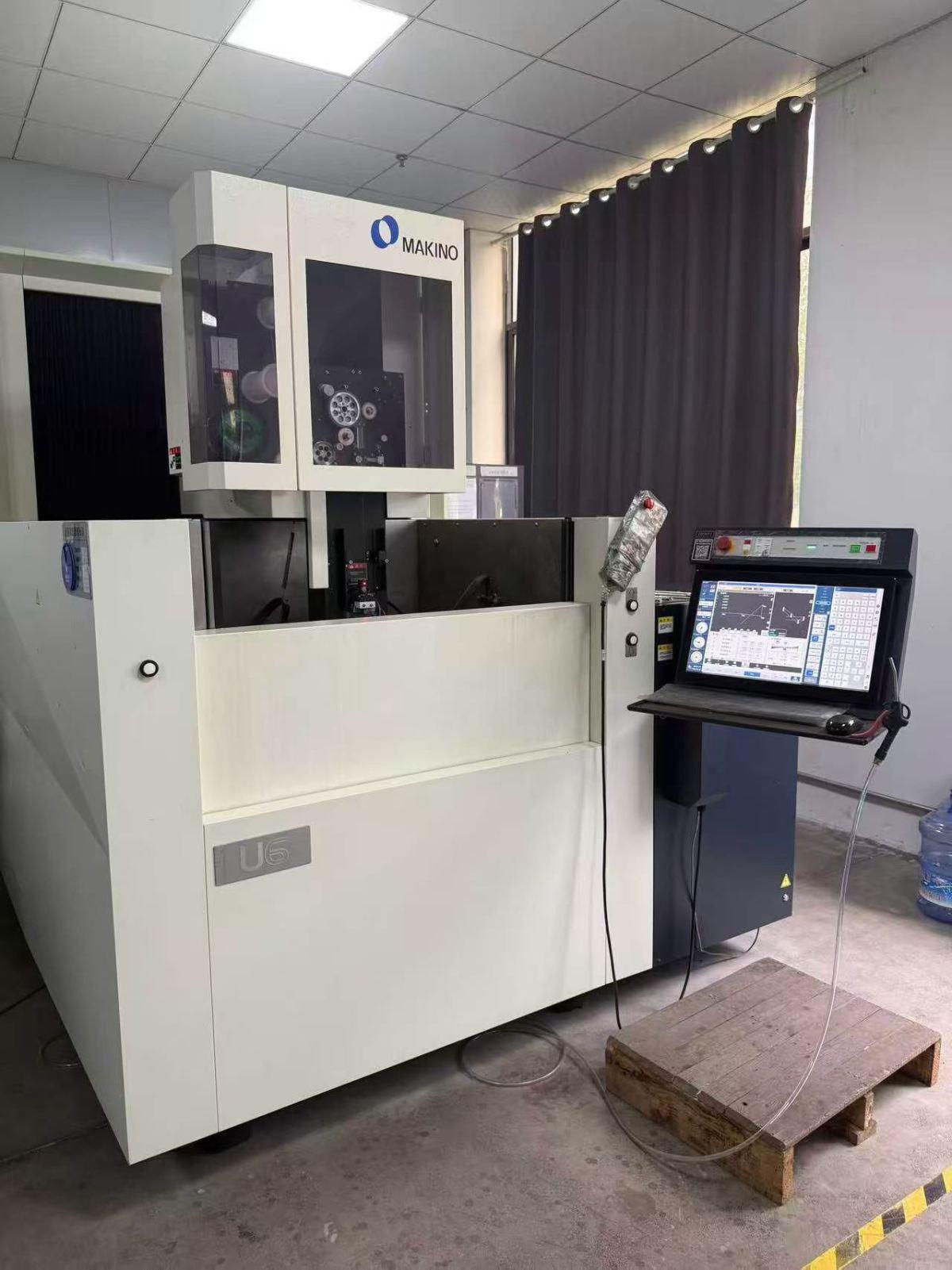

Makino U6 Wire cutting machine

Three-axis travel (X/Y/Z): 650 × 450 × 420 mm
U/V axis travel: ±75 × ±75 mm
Worktable size (square): 910 × 710 mm
Worktable size (U-type): 910 × 710 mm
Maximum workpiece size: 1000 × 800 × 400 mm
Maximum workpiece height: 455 mm
Maximum workpiece weight: 1500 kg
Table height: 1000 mm
Wire diameter: 0.1 / 0.15 / 0.2 / 0.25 / 0.3 mm
Maximum taper: ±15° / 100 mm
Dielectric system:
Dielectric fluid capacity: 920 L
Ion exchange resin: 20 L
Dielectric filtration system: 2 / 4
Machine dimensions: 2273 × 2908 × 2350 mm
Floor space requirement: 2700 × 4310 mm
Machine weight: 5300 kg
