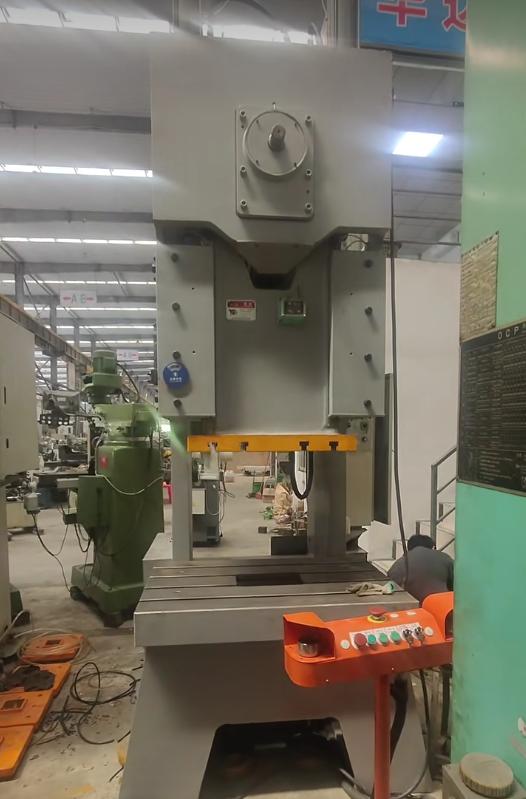

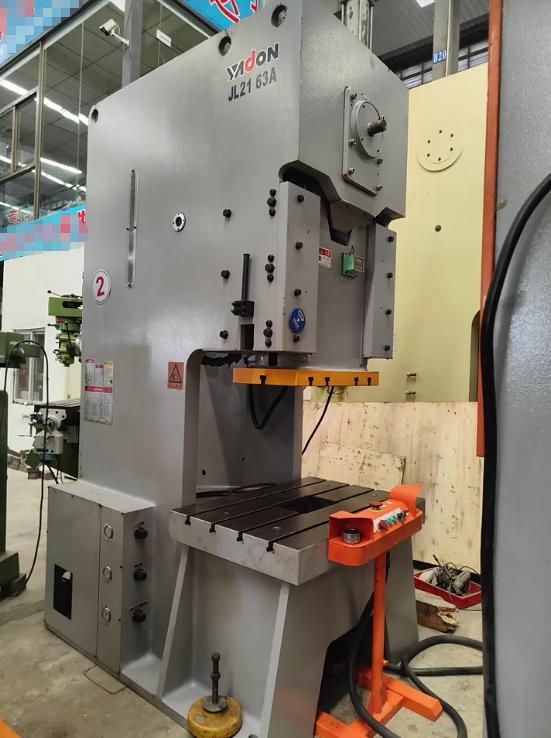

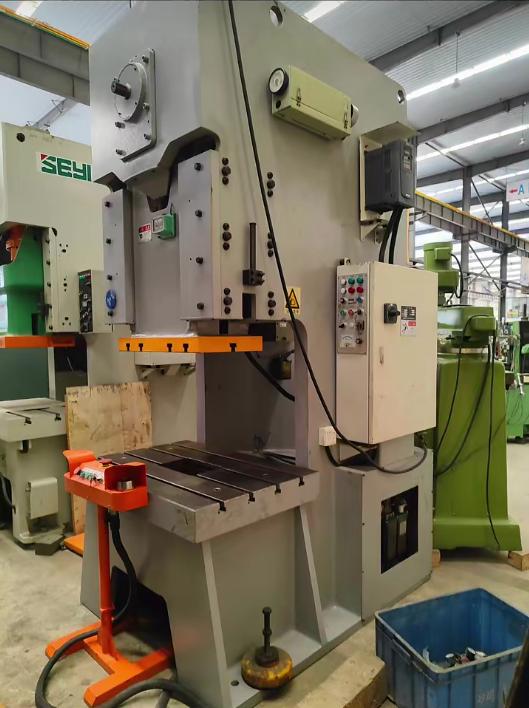

YADON JL21-63A Punch / press

Nominal force: 630kN
Slider travel: 200mm
travel frequency: 40 to 80 SPM
Maximum number of consecutive times in a single operation: 30 SPM
Maximum mold installation height: 420mm
Mold height adjustment allowance: 80mm
Throat depth: 390mm
Worktable board size: 1100×750mm
The bottom surface size of the slider is 700×380mm
Total stop response time: 0.096 seconds
Main motor power: 7.5kW
