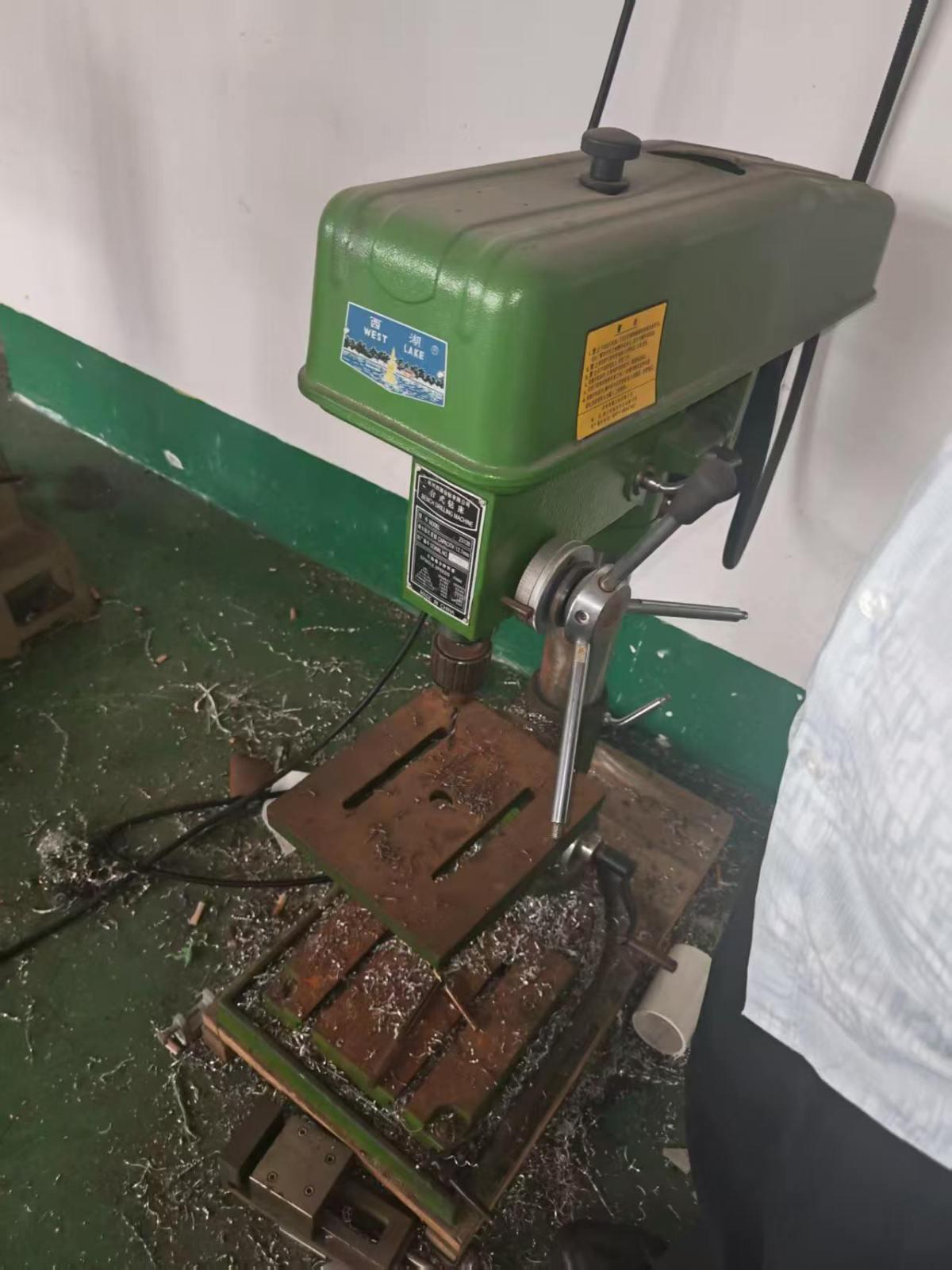

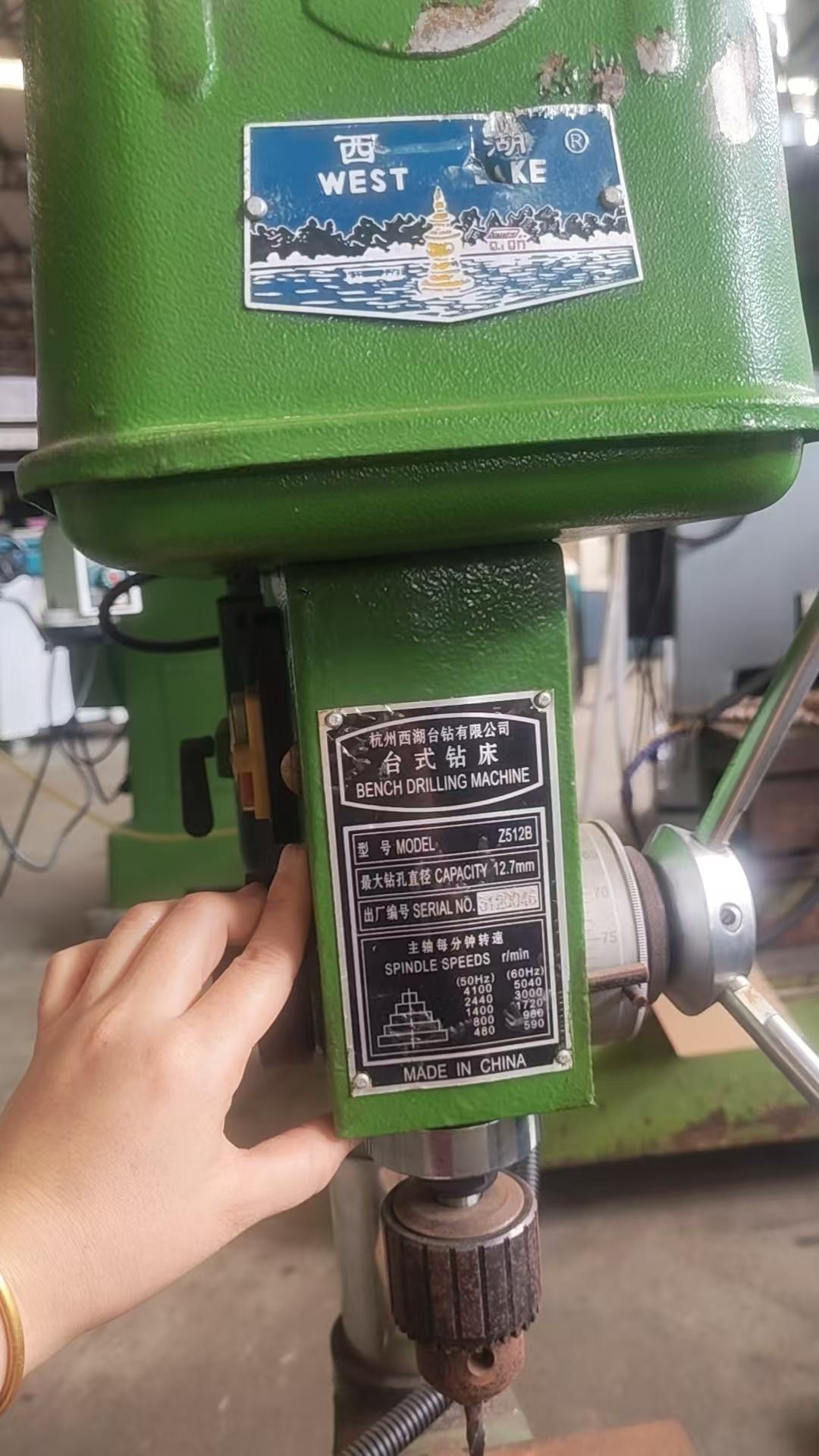

WEST LAKE Z512B Drilling machines

Maximum drilling diameter: 12.7 mm
Column diameter: 70 mm
Maximum travel of spindle: 100 mm
Distance from centerline of spindle to column surface: 193 mm
Maximum distance from spindle nose to worktable: 315 mm
Maximum distance from spindle nose to base: 556 mm
Spindle taper: B16
Spindle speed range: 480 - 4100 rpm
Spindle speed stages: 5
Worktable surface size: 200 × 230 mm
Base worktable surface size: 280 × 260 mm
Electromotor: 370 W
Machine Net weight: 115 / 92 kg
Machine dimensions: 800 × 460 × 950 mm
