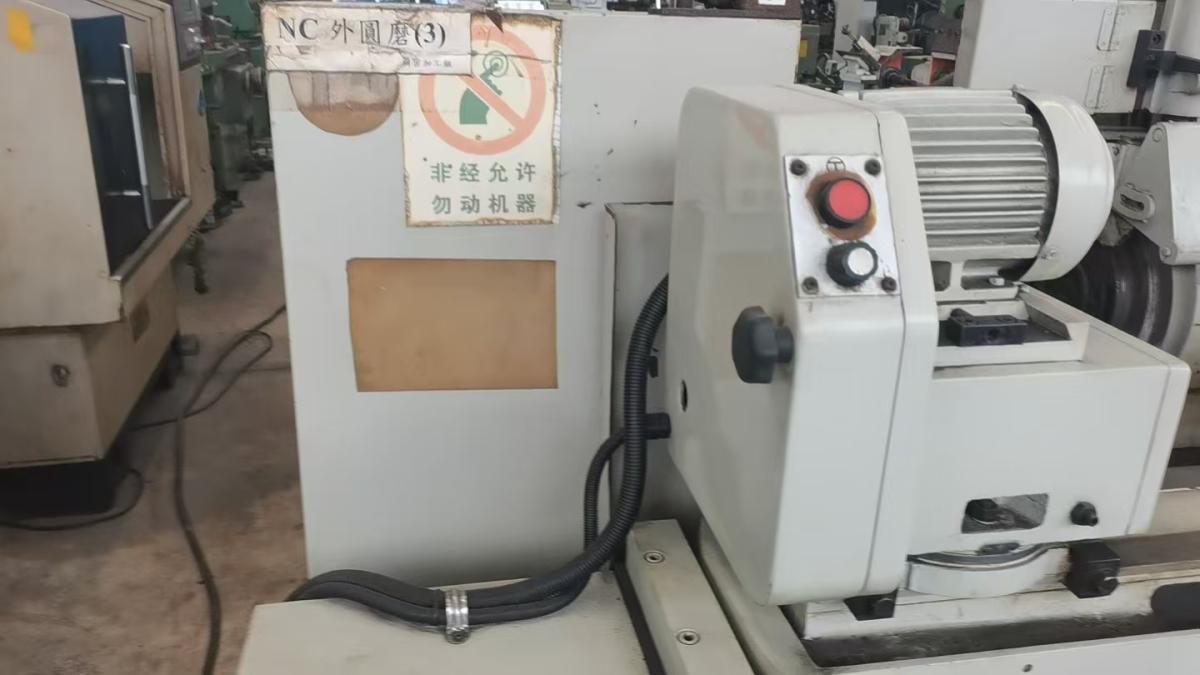

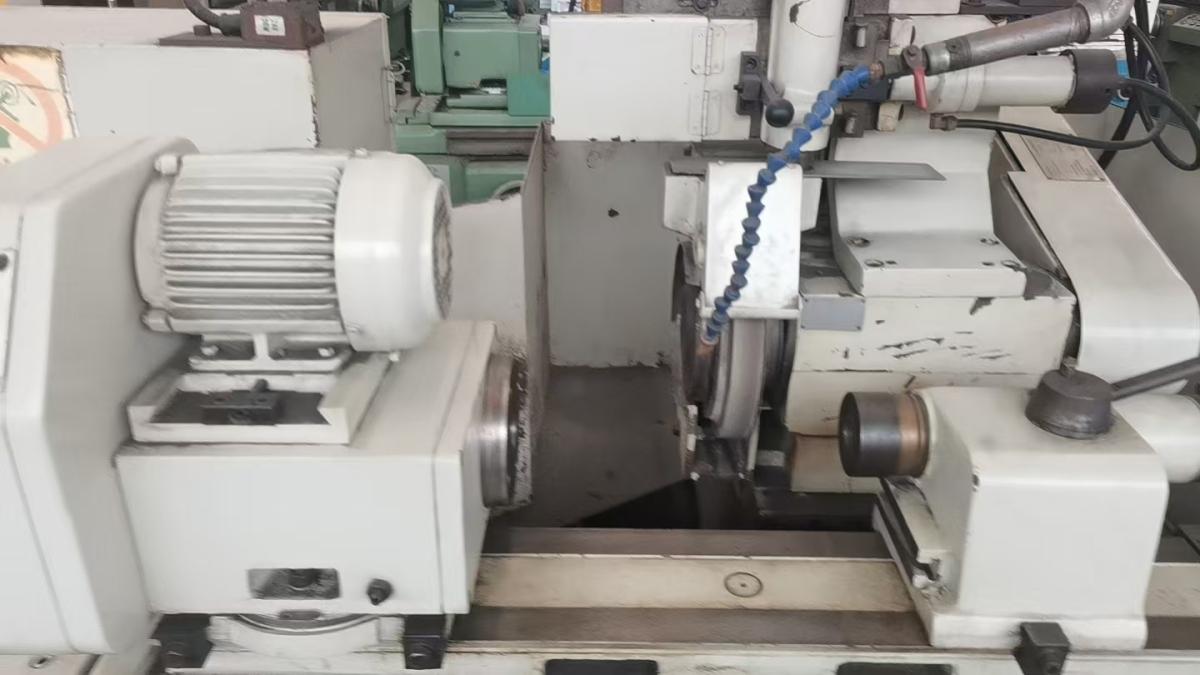

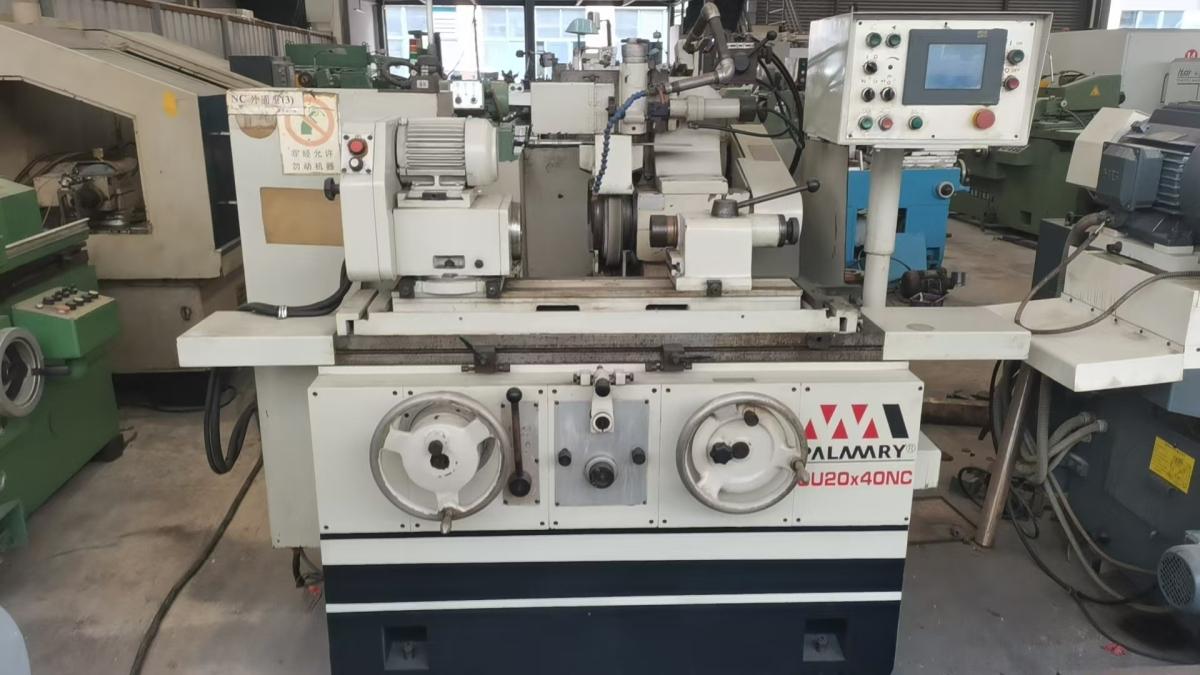

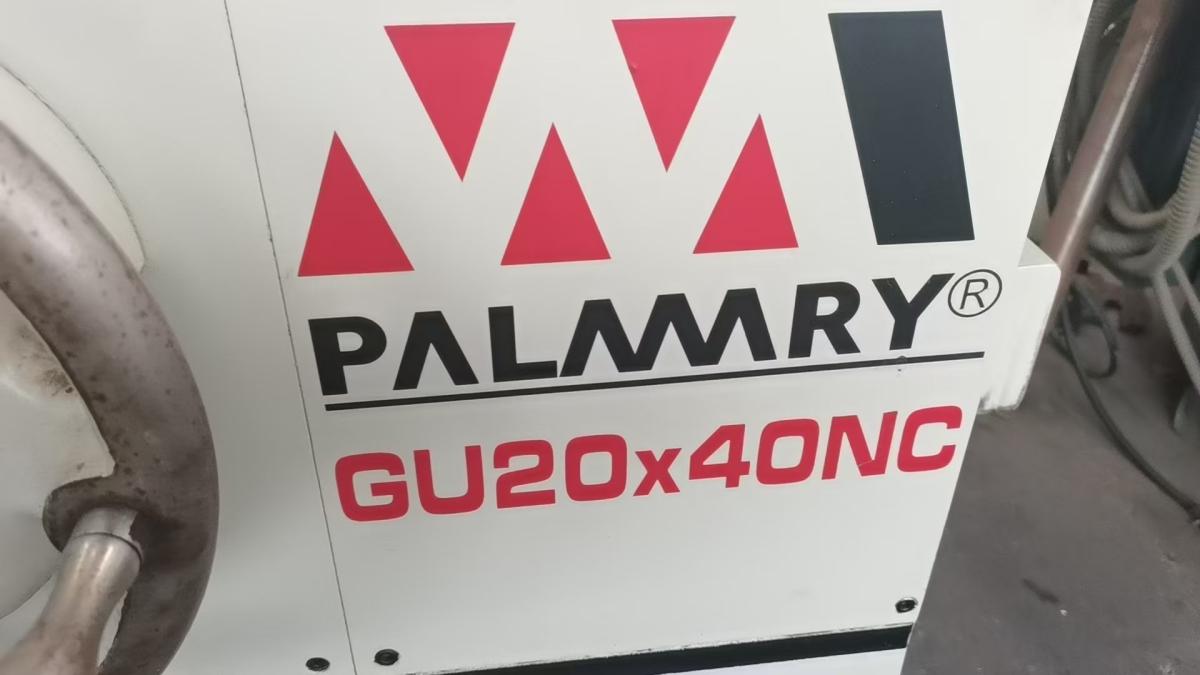

PALMARY GU20×40NC Cylindrical grinder

Maximum distance between centers: 400 mm
Maximum swing diameter over table: 200 mm
Maximum load between centers: 60 kg
Maximum grinding diameter: 160 mm
Maximum rotation angle: ±30°
Manual feed distance: 135 mm
Automatic rapid traverse distance: 25 mm
Additional slide travel: 95 mm (total travel 255 mm)
Minimum setting value: 0.001 mm
Handwheel feed per revolution: 2 mm (0.005 mm)
NC grinding feed range: 0–99 mm
Grinding wheel size (OD × width × ID): 305 × 38 × 127 mm
Grinding wheel speed: 2085 / 2495 r/min
Work spindle head swivel angle: 120° (+90° / −30°)
Spindle speed: 16–450 r/min
Work spindle load capacity: 15 kg
Maximum workpiece length: 100 mm
