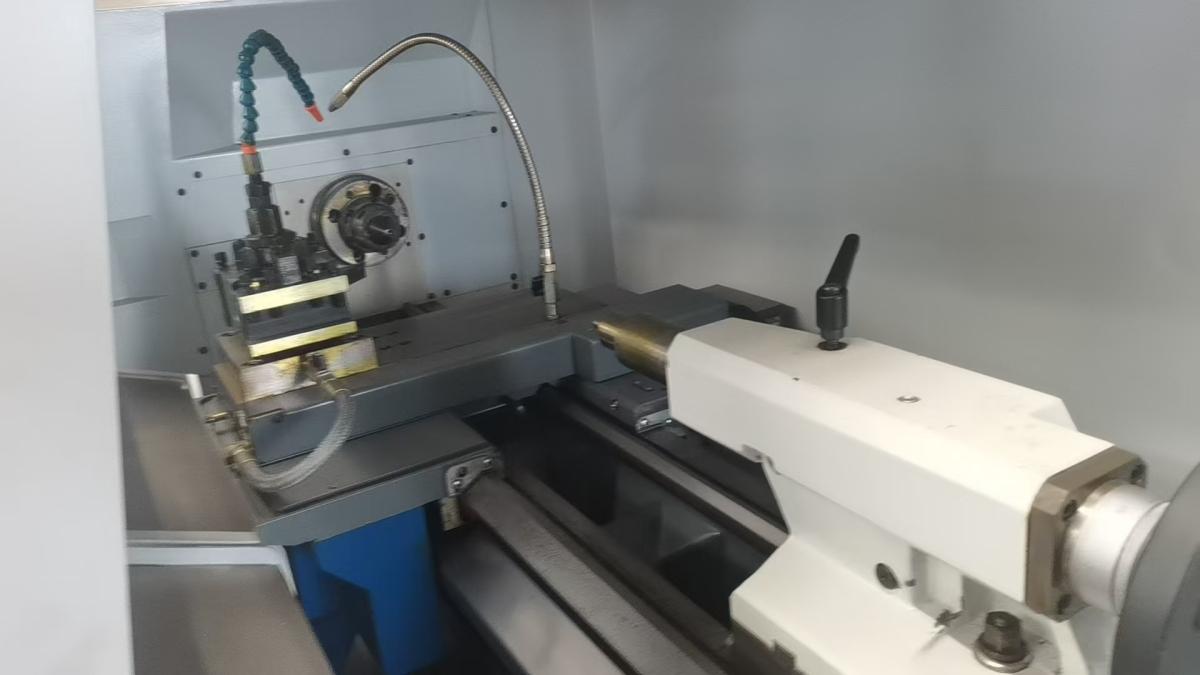

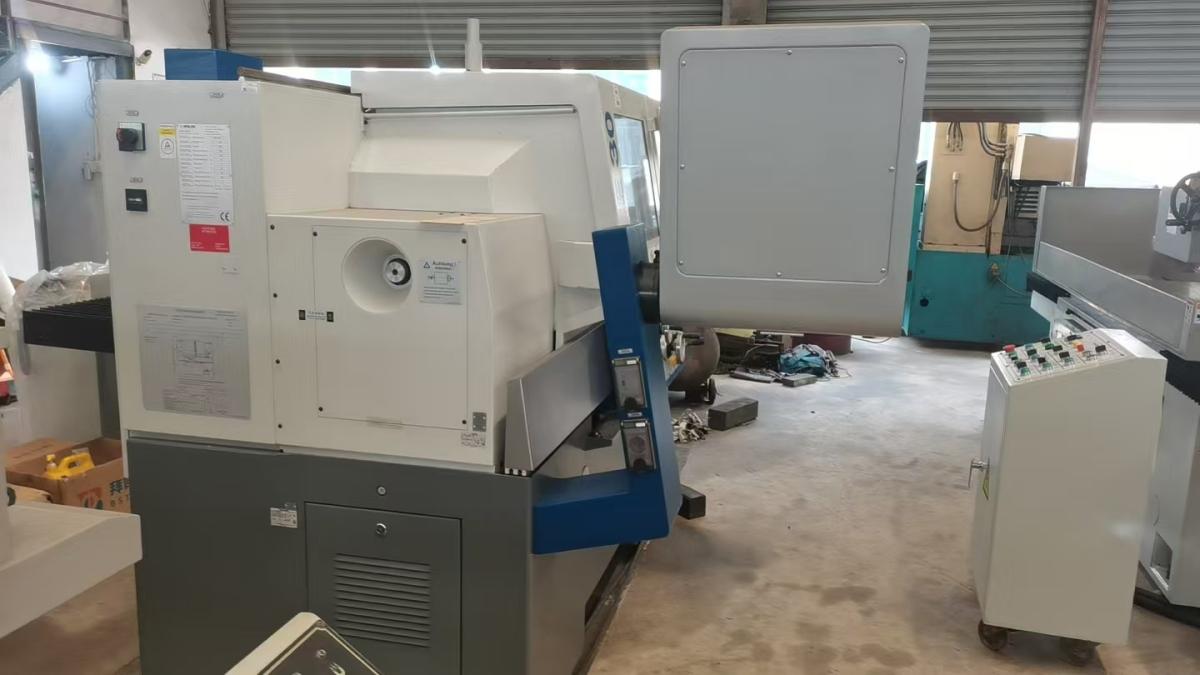

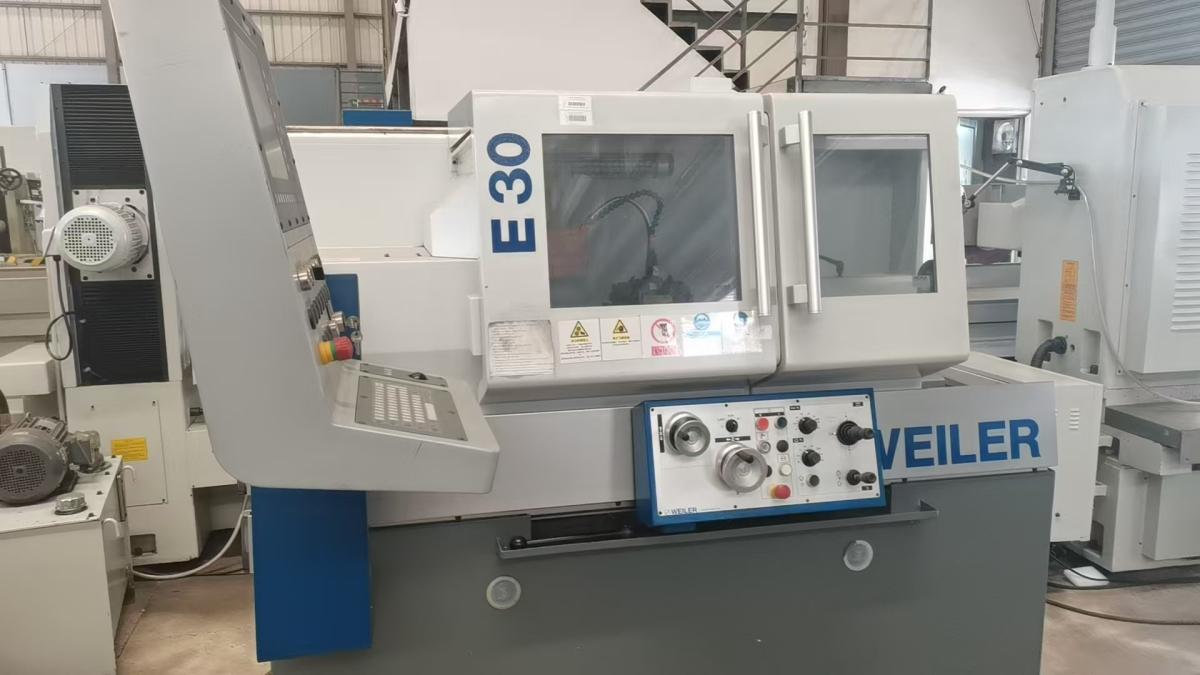

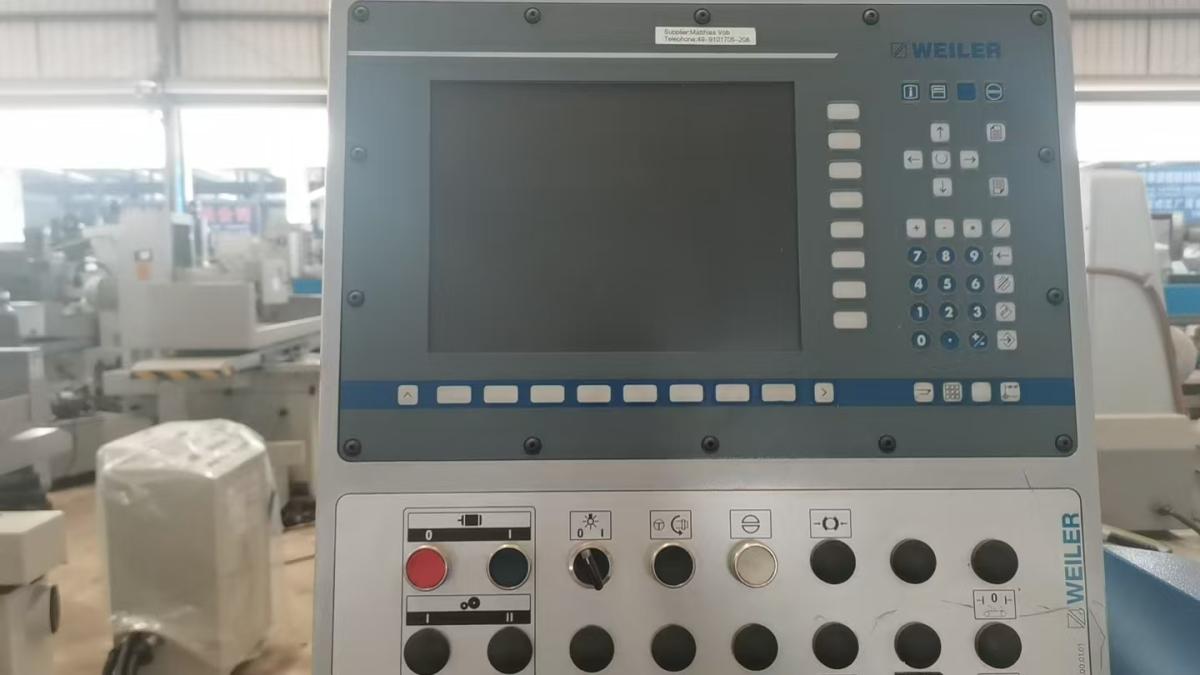

WEILER E30X750 CNC turning lathe

Machining Range：
Maximum machining length: 750 mm
Maximum Machining diameter: 330 mm
Center height: 165 mm
Maximum swing over bed: 330 mm
Maximum swing over cross slide: 160 mm
Spindle Parameters：
Spindle bore diameter: 43 mm
Front spindle bearing diameter: 70 mm
Main Drive System：
Spindle motor power (60% / 100% duty cycle): 11 / 9 kW
Spindle speed range: 1 – 4500 rpm
Speed change mode: Stepless speed variation
Feed System：
Feed mode: Stepless feed
Longitudinal feed range: 0.001 – 50 mm/rev
Cross feed range: 0.001 – 50 mm/rev
Longitudinal feed force: 6000 N
Cross feed force: 3000 N
Maximum rapid traverse rate (longitudinal / cross): 8 / 4 m/min
