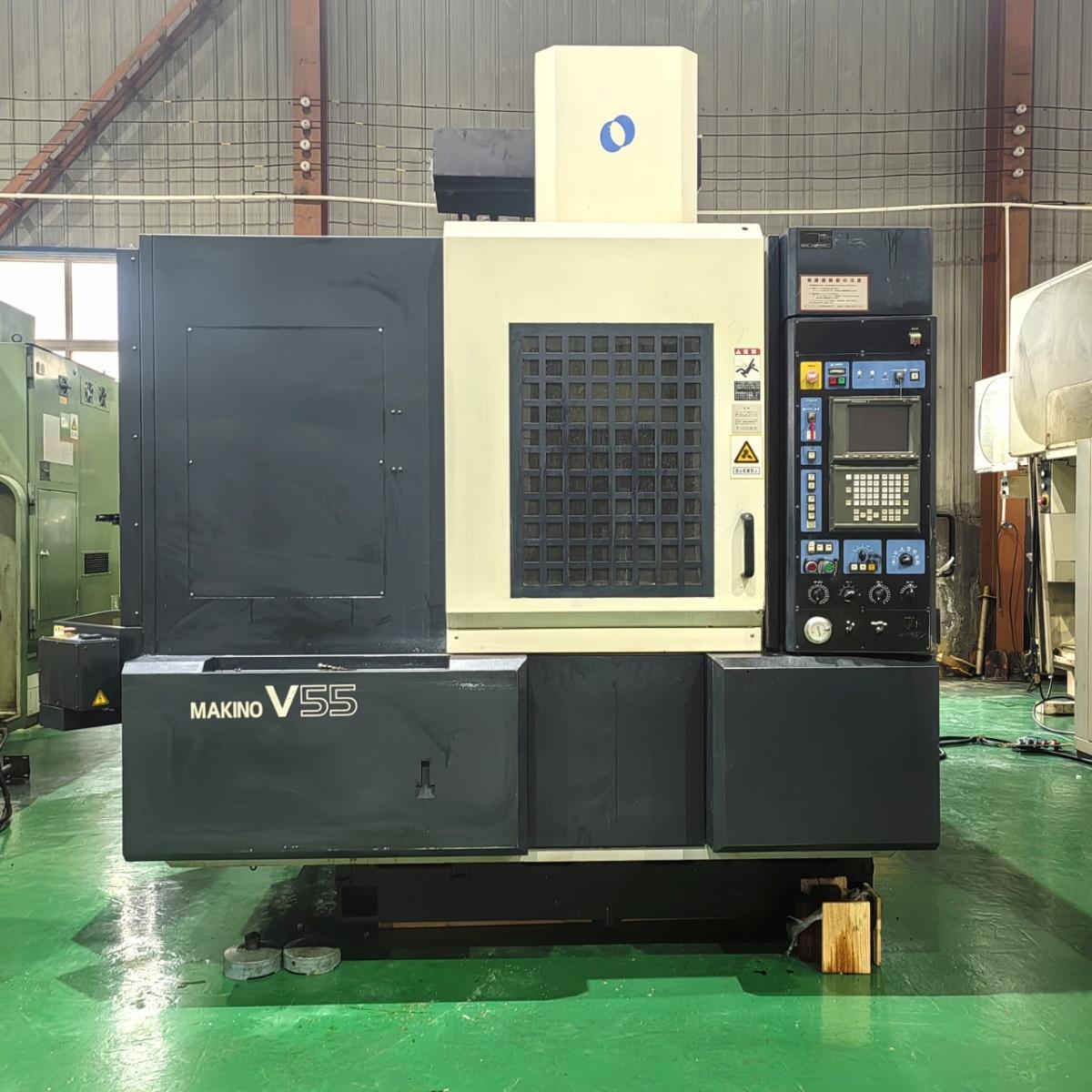

Makino V55 Vertical Machining centre

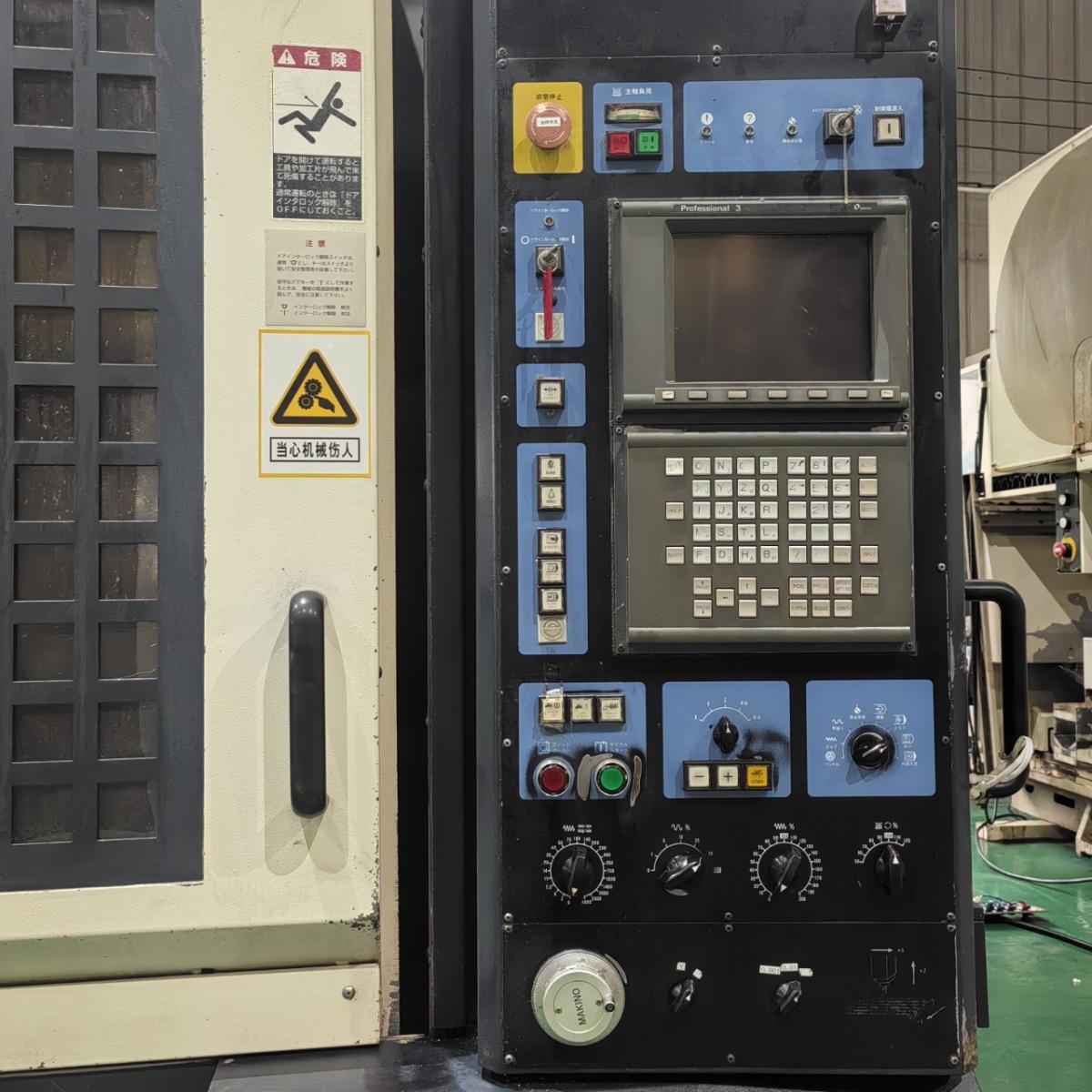

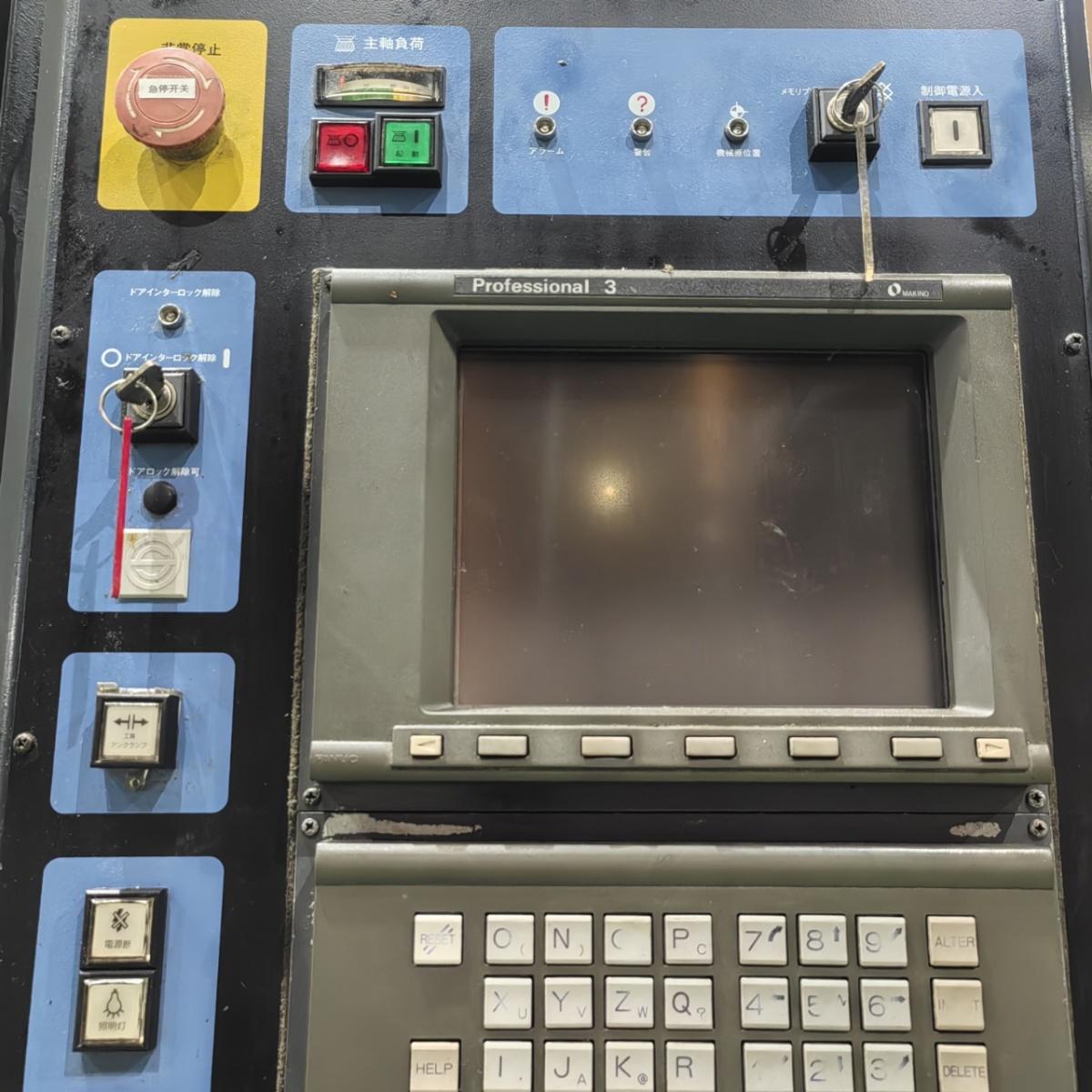

CNC System: Professional 3
Worktable Size: 1000 × 500 mm
Max. Table Load: 700 kg
Three-Axis Travel: 900 × 500 × 450 mm
Distance from Table Surface to Spindle Nose: 150–600 mm
Spindle Speed: 15–14,000 rpm
Spindle Motor Power: 22 / 18.5 kW

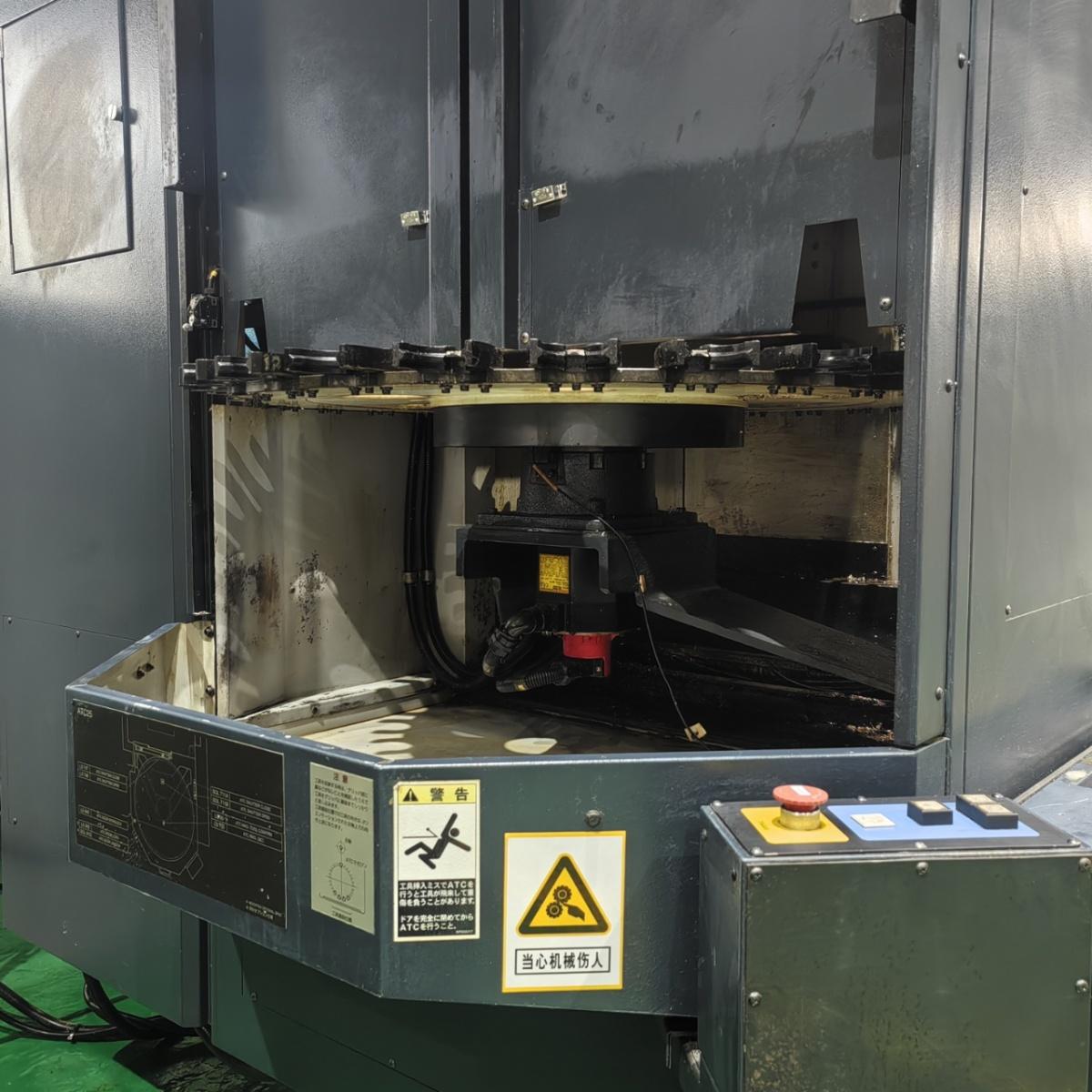

Tool Magazine Capacity: 25 tools (ATC)
Tool Taper: BT40
Power Supply Capacity: 63.66 kVA
Machine Dimensions (L × W × H): 2400 × 3140 × 2995 mm
Machine Weight: 9300 kg
