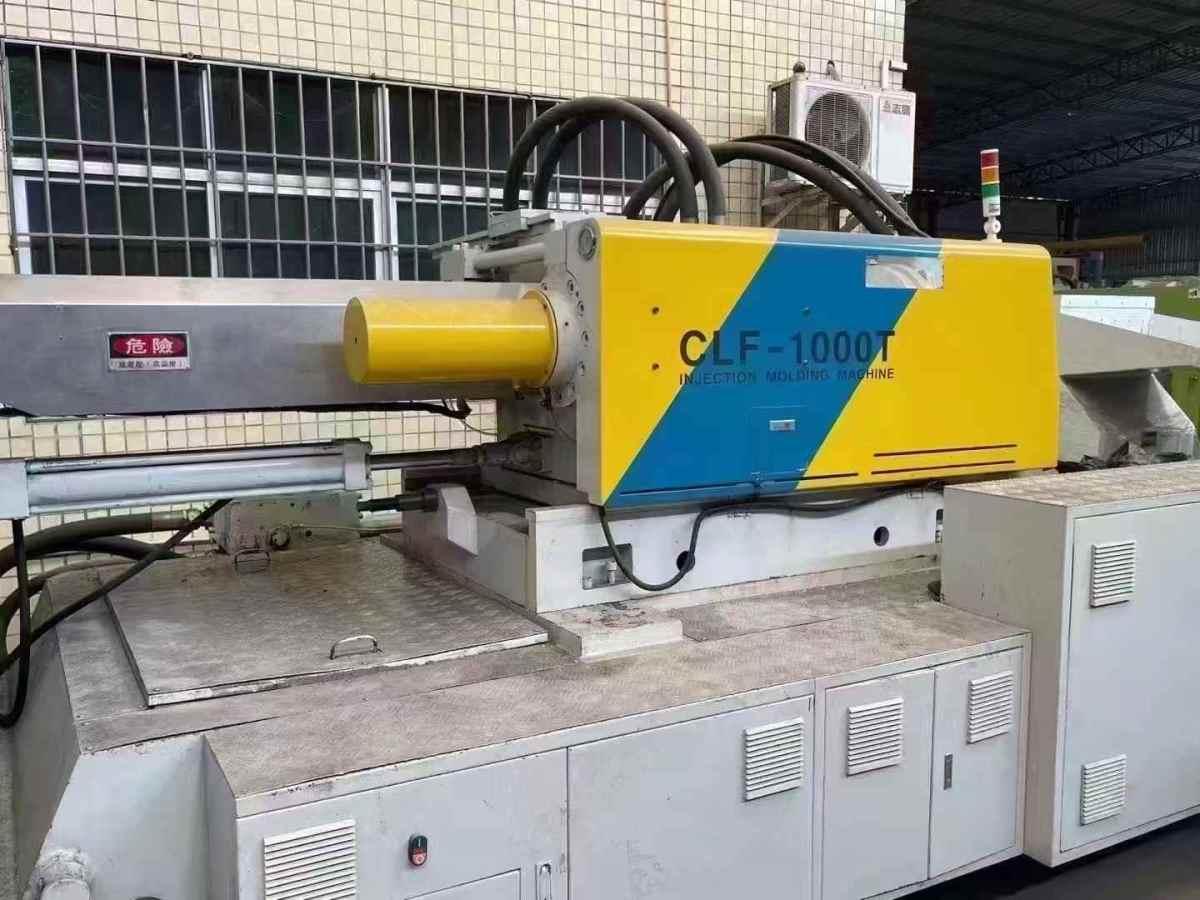

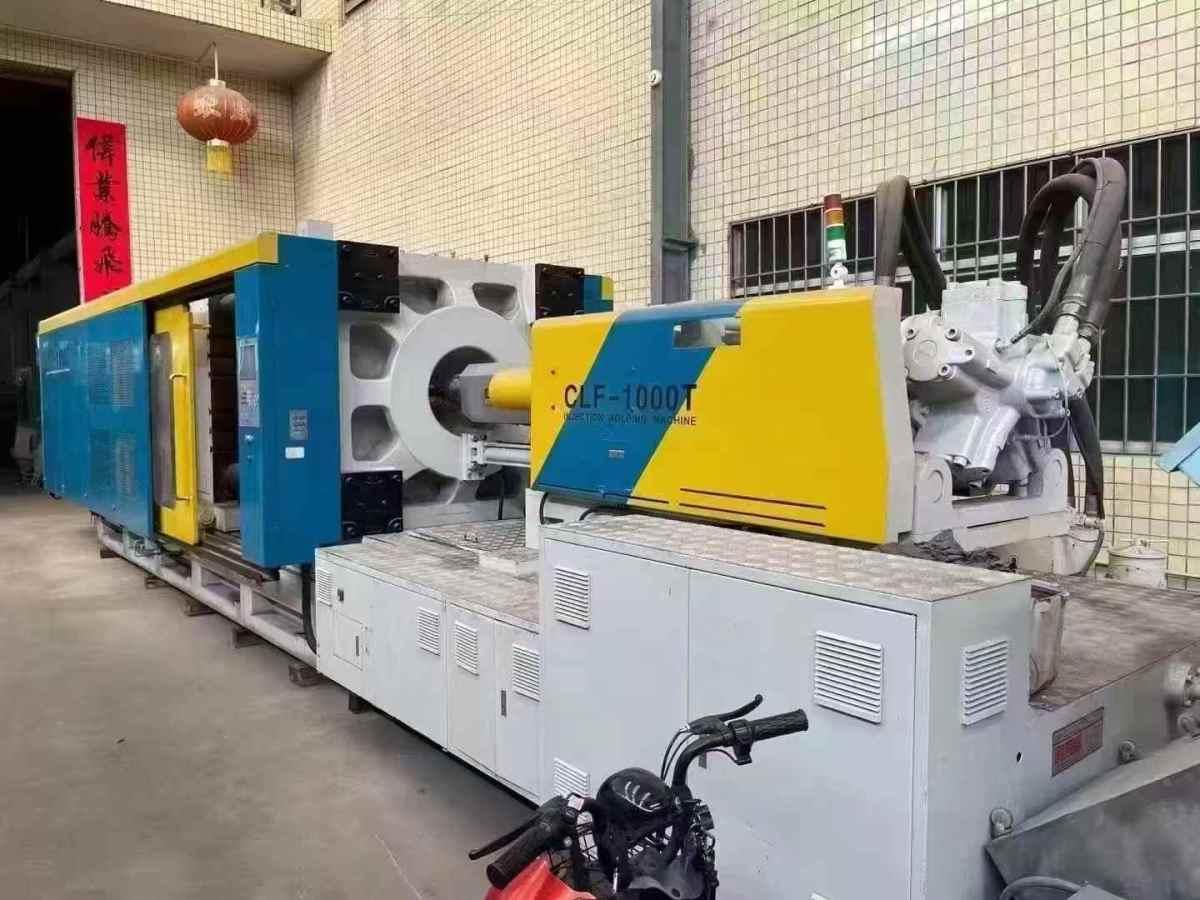

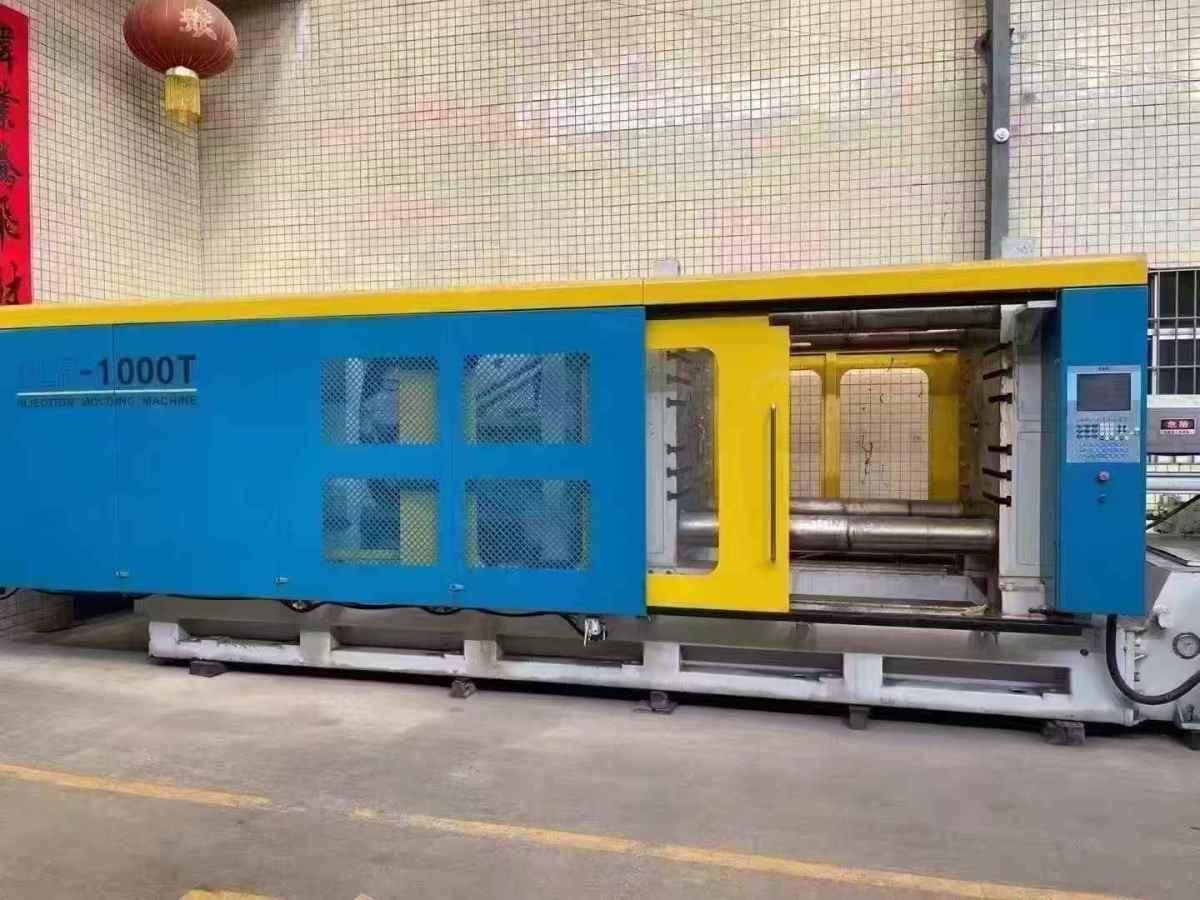

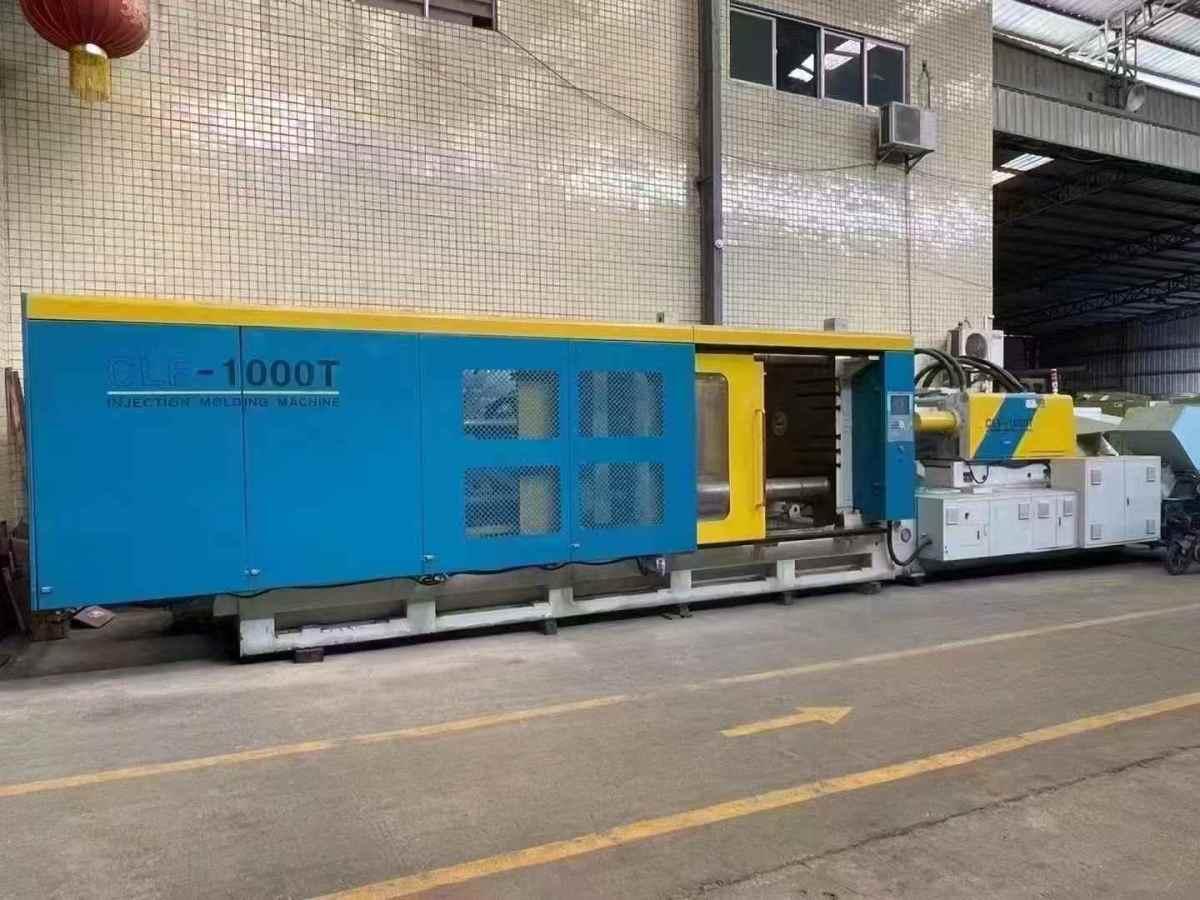

CLF CLF-1000T injection molding machine

Rated clamping force: 10,000 kN
Main motor power: 45kW
Theoretical injection volume: approximately 5000cm³
Injection weight: Approximately 4500g
swing diameter: 110mm
Screw length-to-diameter ratio: 22:1
Maximum injection pressure: 160MPa

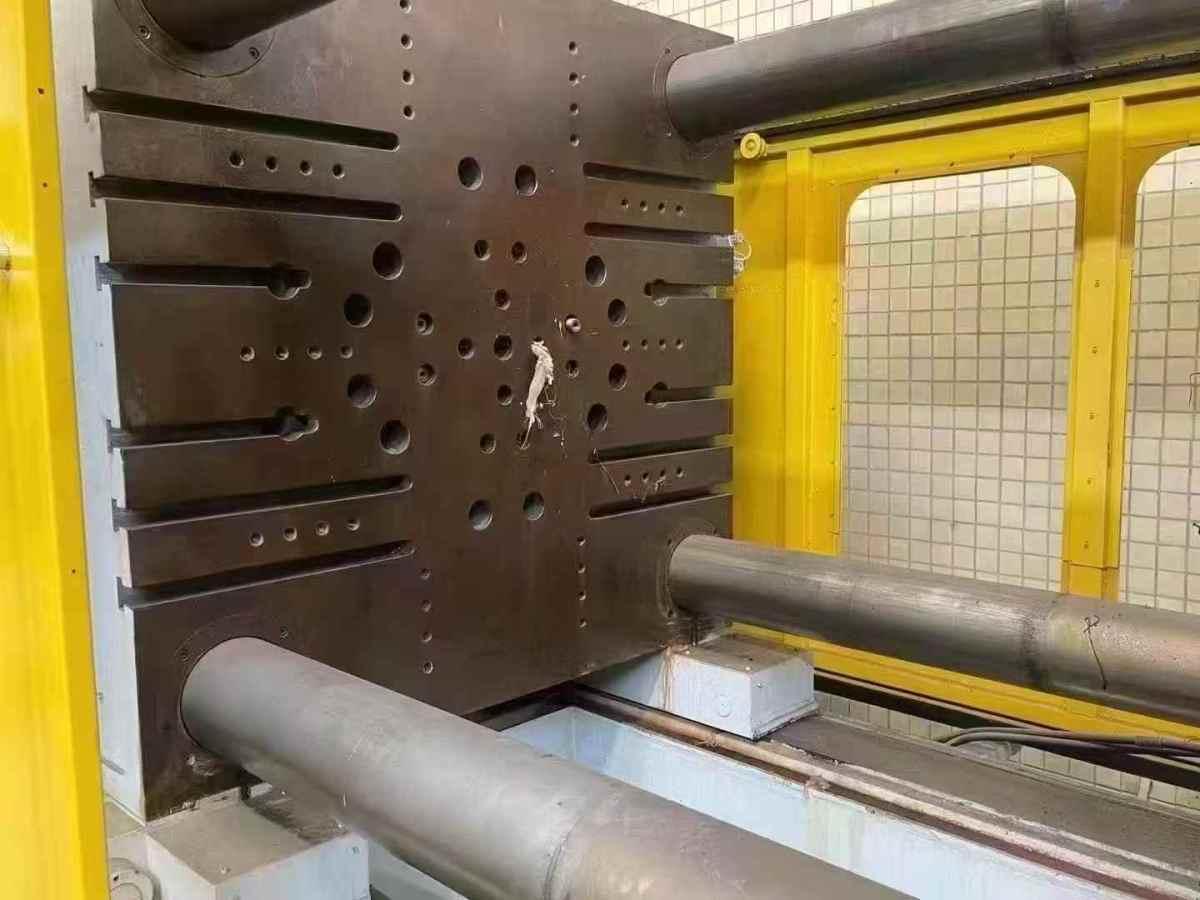

Template size: 1400×1400mm
The inner spacing of the pull rod: 950×950mm
Maximum mold opening travel: 1200mm
Minimum mold thickness: 350mm
Maximum mold thickness: 1000mm
Ejection travel: 250mm
Top force: 120kN
Number of thimbles: 15
Machine weight: approximately 42 tons
