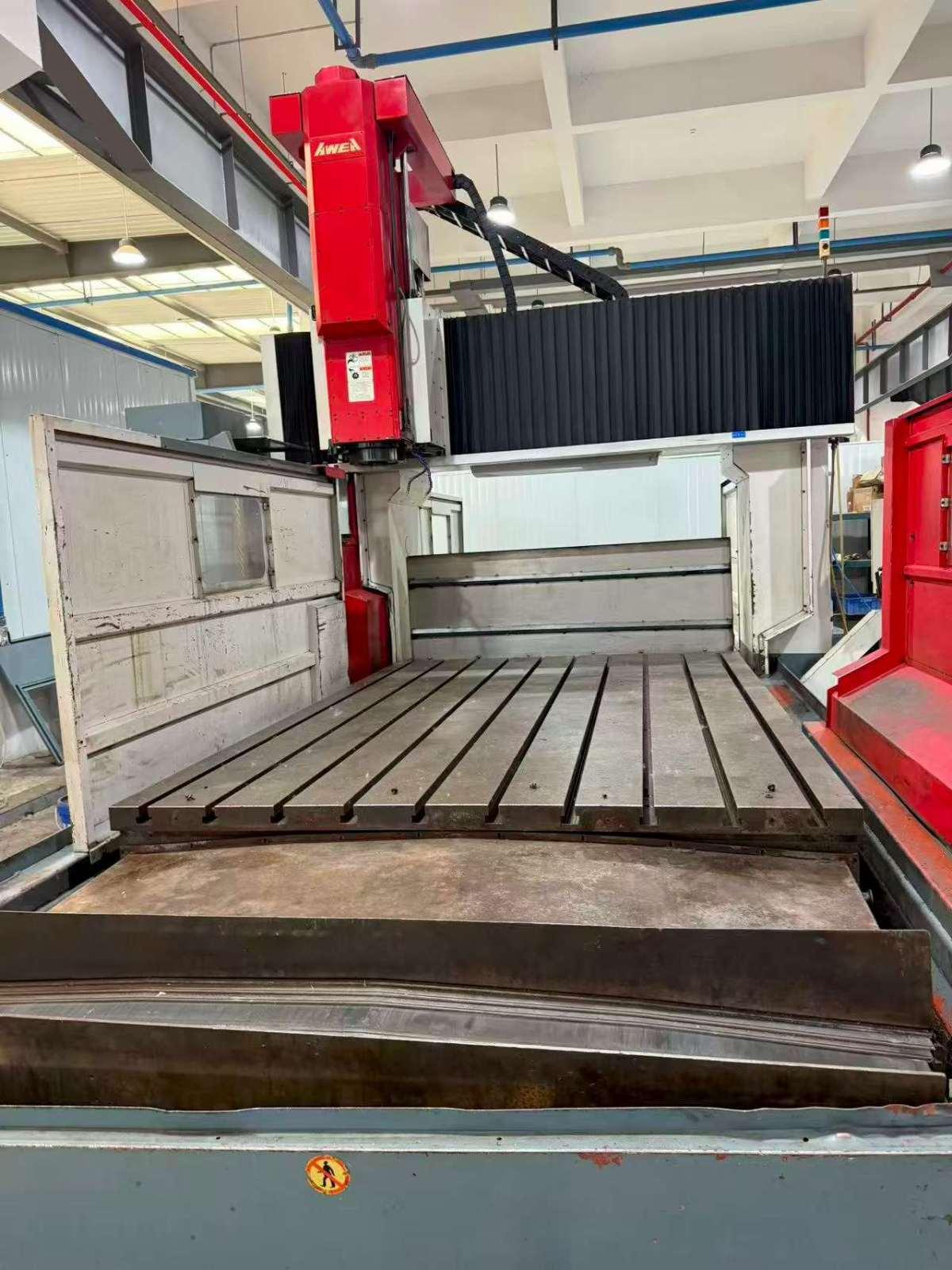

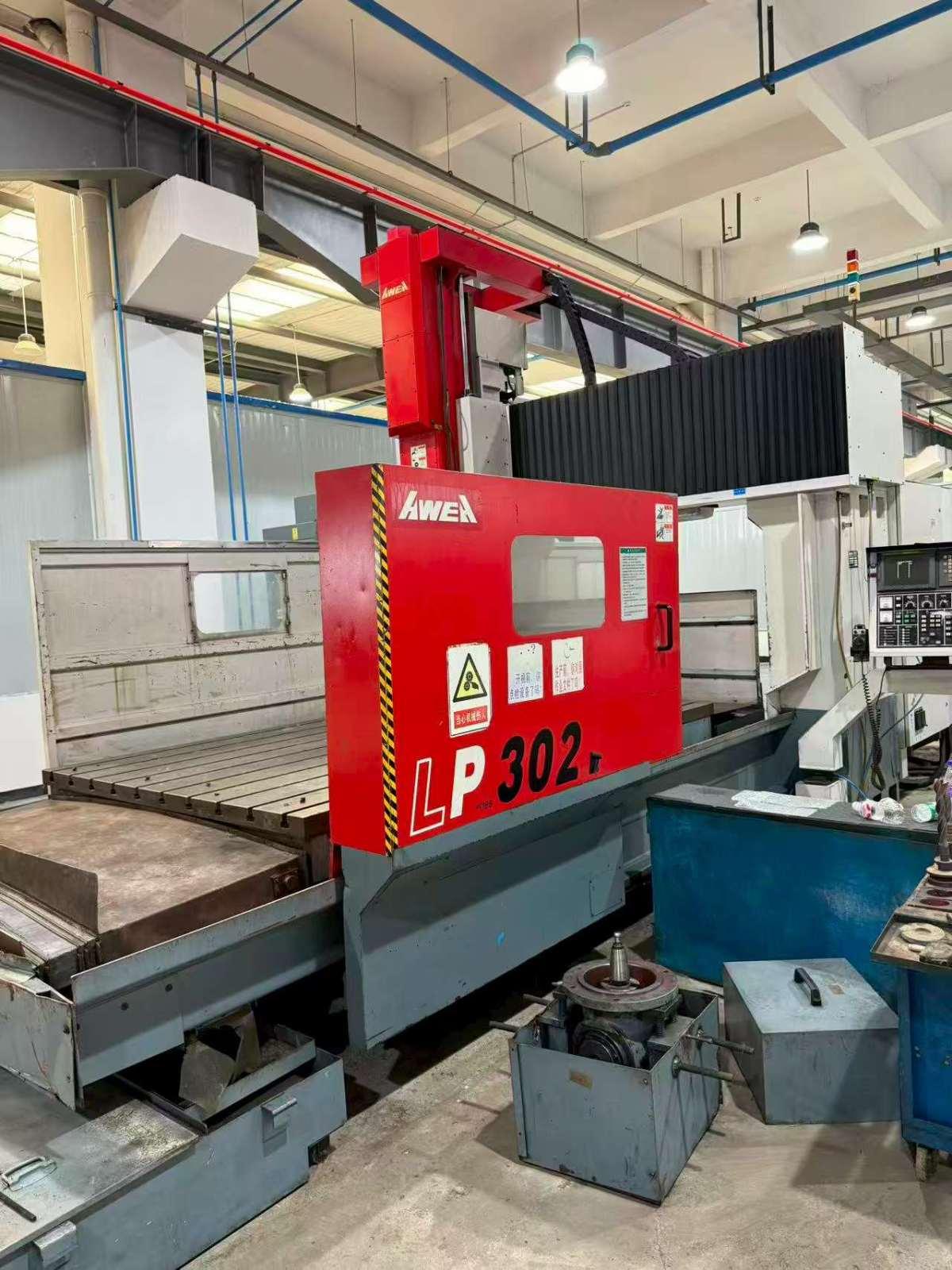

AWEA LP3021 Gantry machining centre

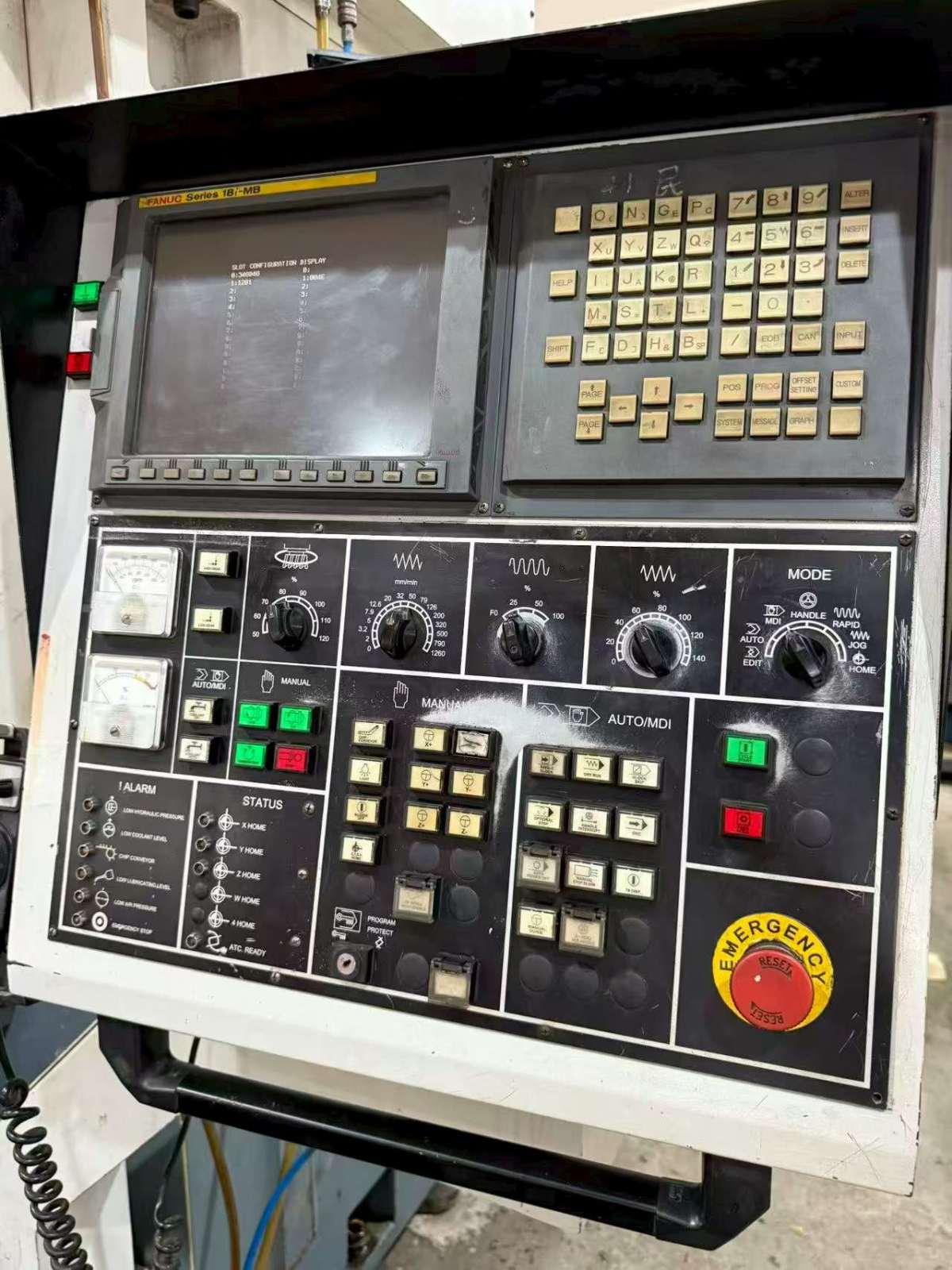

CNC System: FANUC
Three-axis travel (X/Y/Z): 3000 × 2100 × 760 mm
Distance between columns: 2300 mm
Distance from spindle nose to worktable surface: 240–1000 mm
Worktable size: 3000 × 2000 mm
Worktable T-slot size (width × pitch): 28 × 200 mm
Maximum worktable load: 10,000 kg
Spindle motor power: 22/26 kW (30/35 HP)
Spindle speed: 10–6000 rpm
Spindle taper: BT50
Spindle drawbar force: 1800 kg
X/Y/Z-axis rapid feed rate: 15000 / 15000 / 10000 mm/min
Cutting feed rate: 10,000 mm/min
Machine dimensions (L × W × H): 8600 × 5900 × 4000 mm
Machine weight: 33,000 kg
