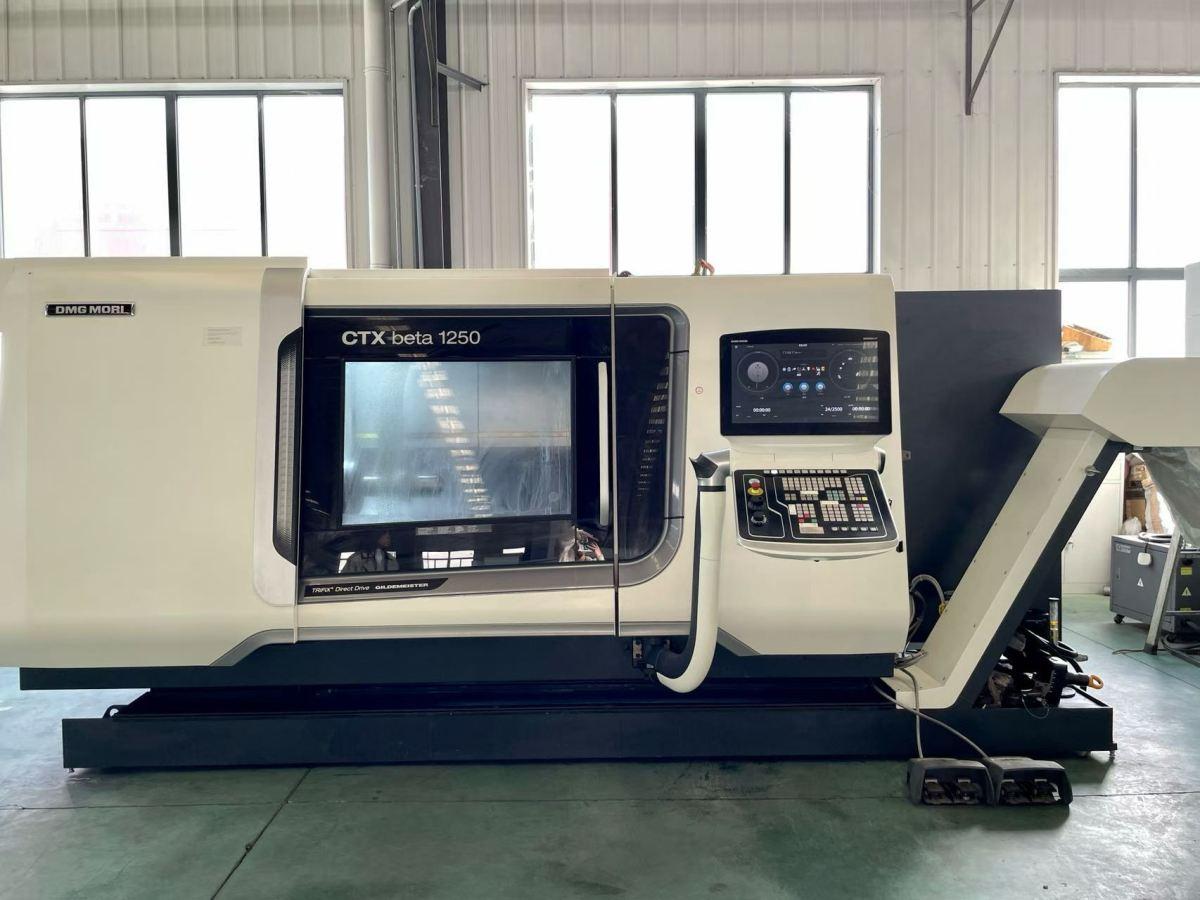

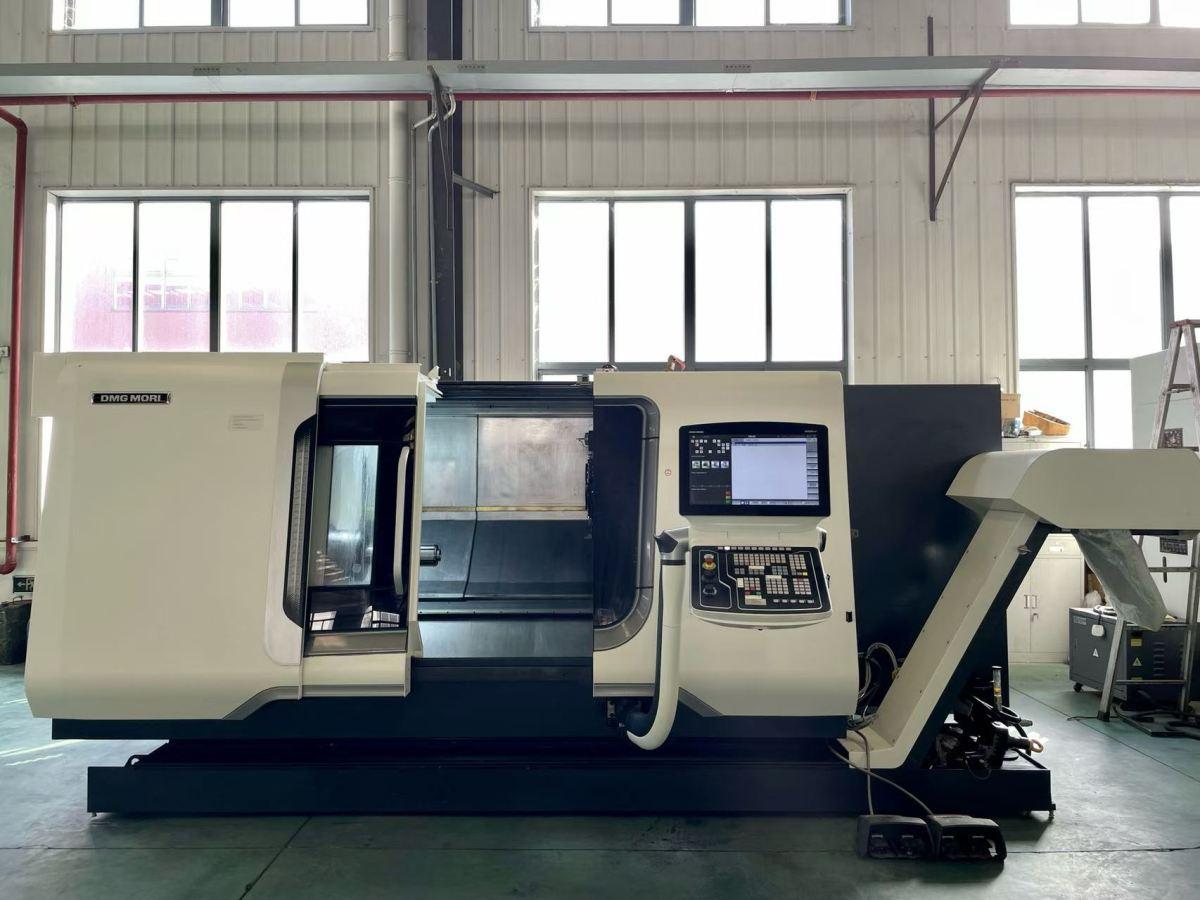

DMG CTX beta 1250 Turn Mill Machining Centre

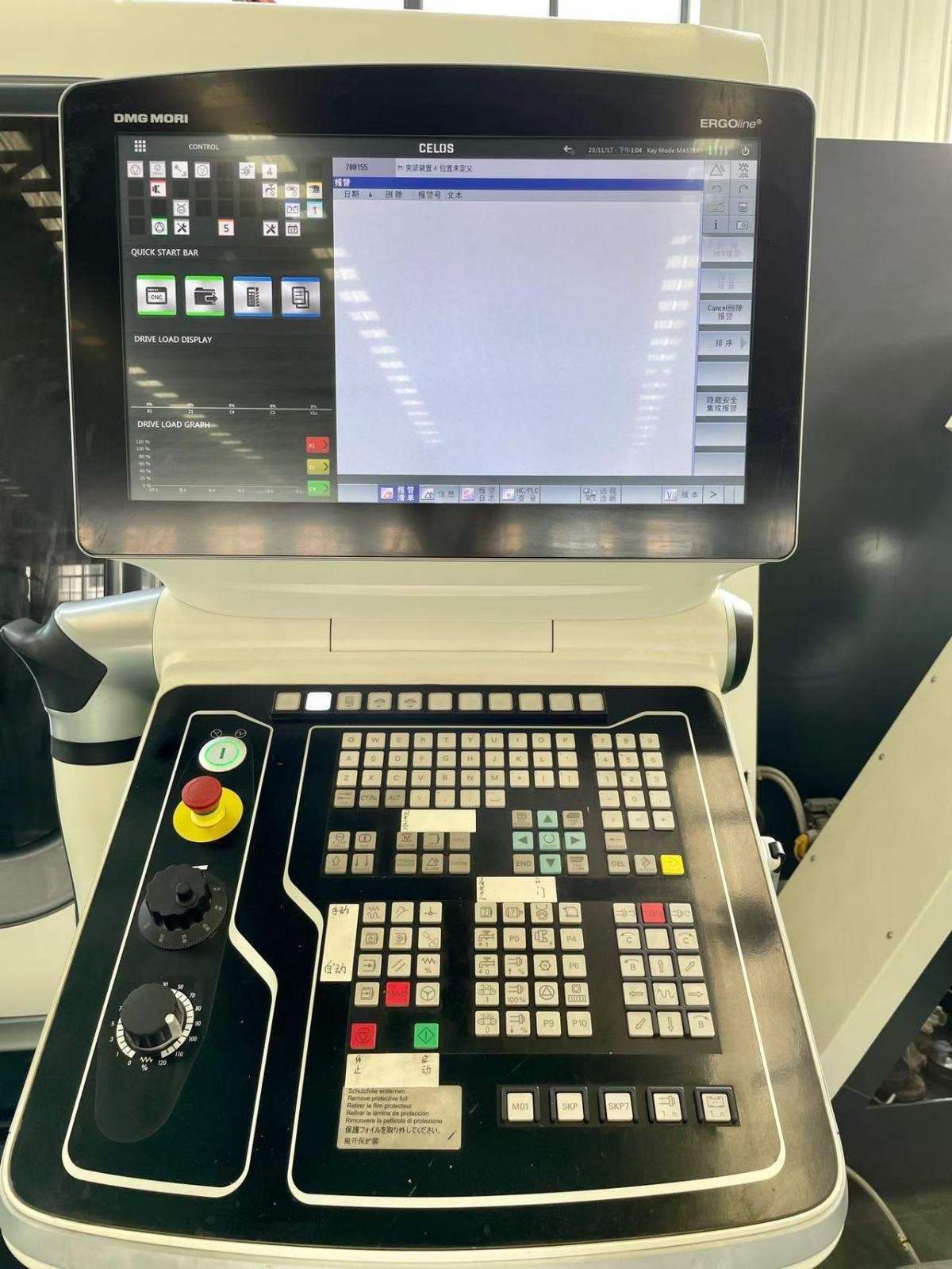

CNC System: Siemens
C-axis indexing: 0.001°
Maximum swing diameter: Ø700 mm
Maximum machining diameter: Ø410 mm
Maximum machining length (with tailstock): 1300 mm
Three-axis travel: 300 × ±60 × 1300 mm

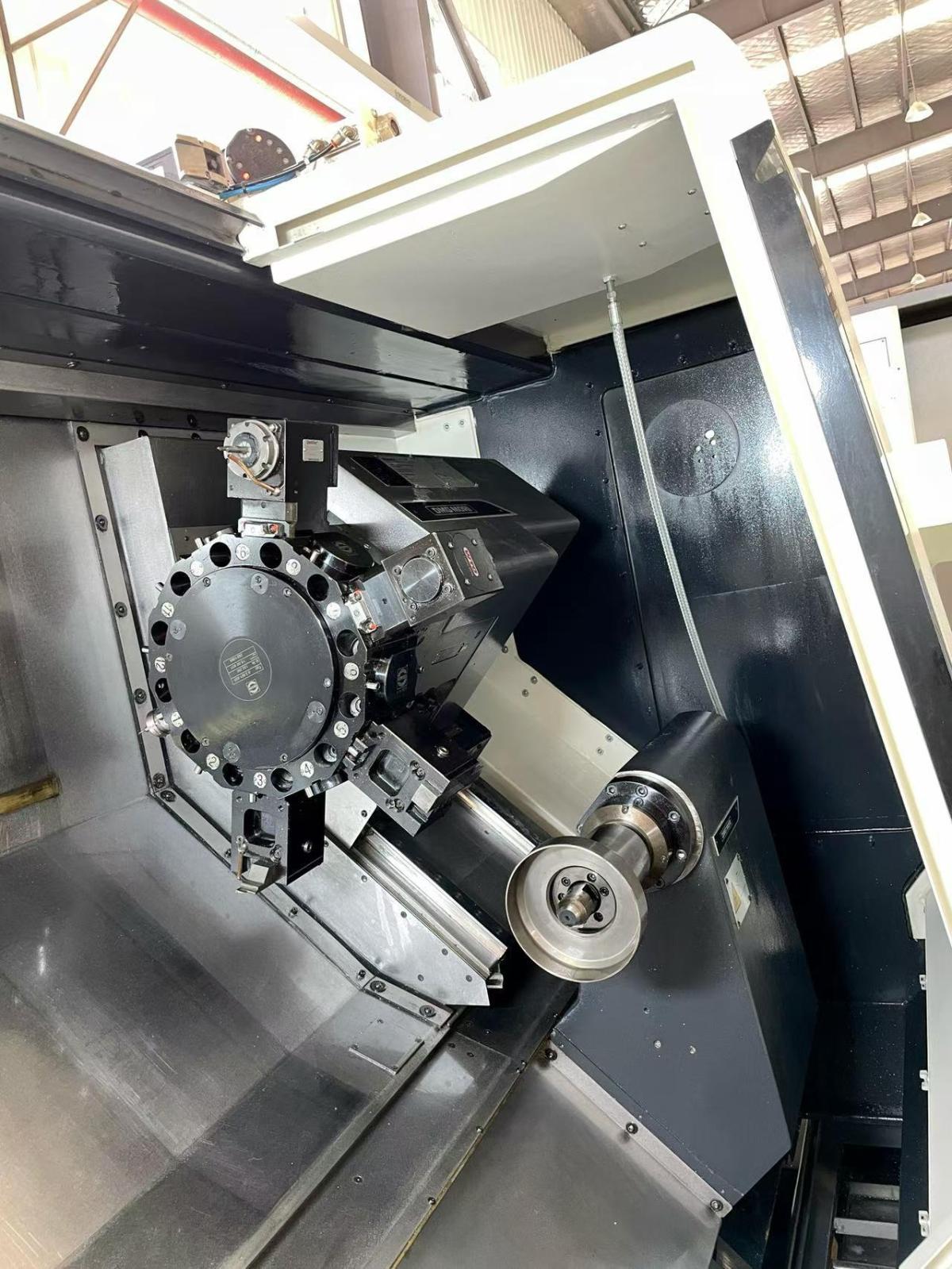

Turret standard: VDI/DIN 69880
Tool position configuration: 12×VDI 40 + 6 Block tool
Number of power tools: 12
Maximum speed of power tools: 4000 rpm
Machine weight: 7650 kg
Configuration:

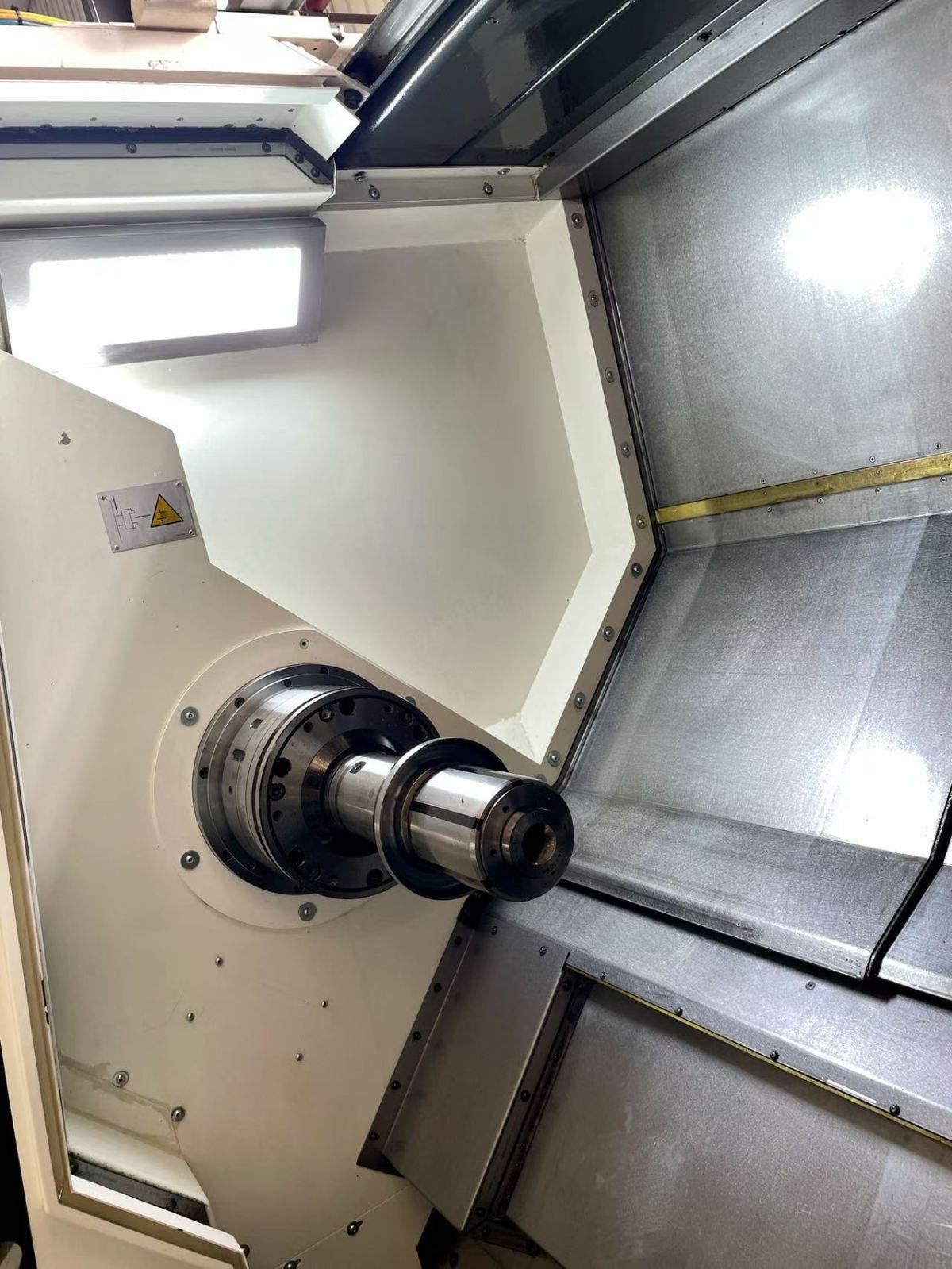

Spindle: ISM 102 built-in spindle motor
Y-axis
C-axis
Twin live tool
Probe system
Tailstock
Chip conveyor
