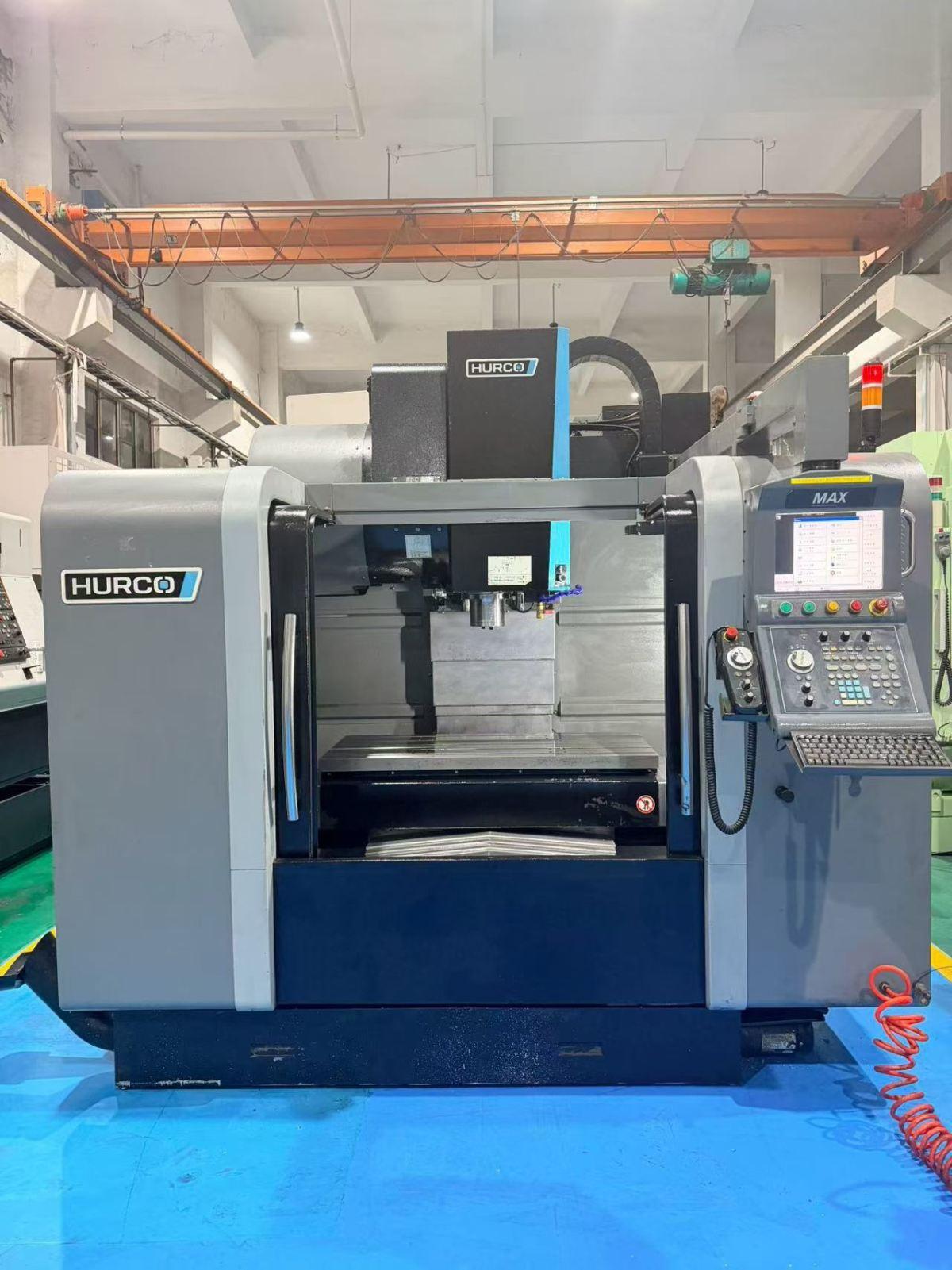

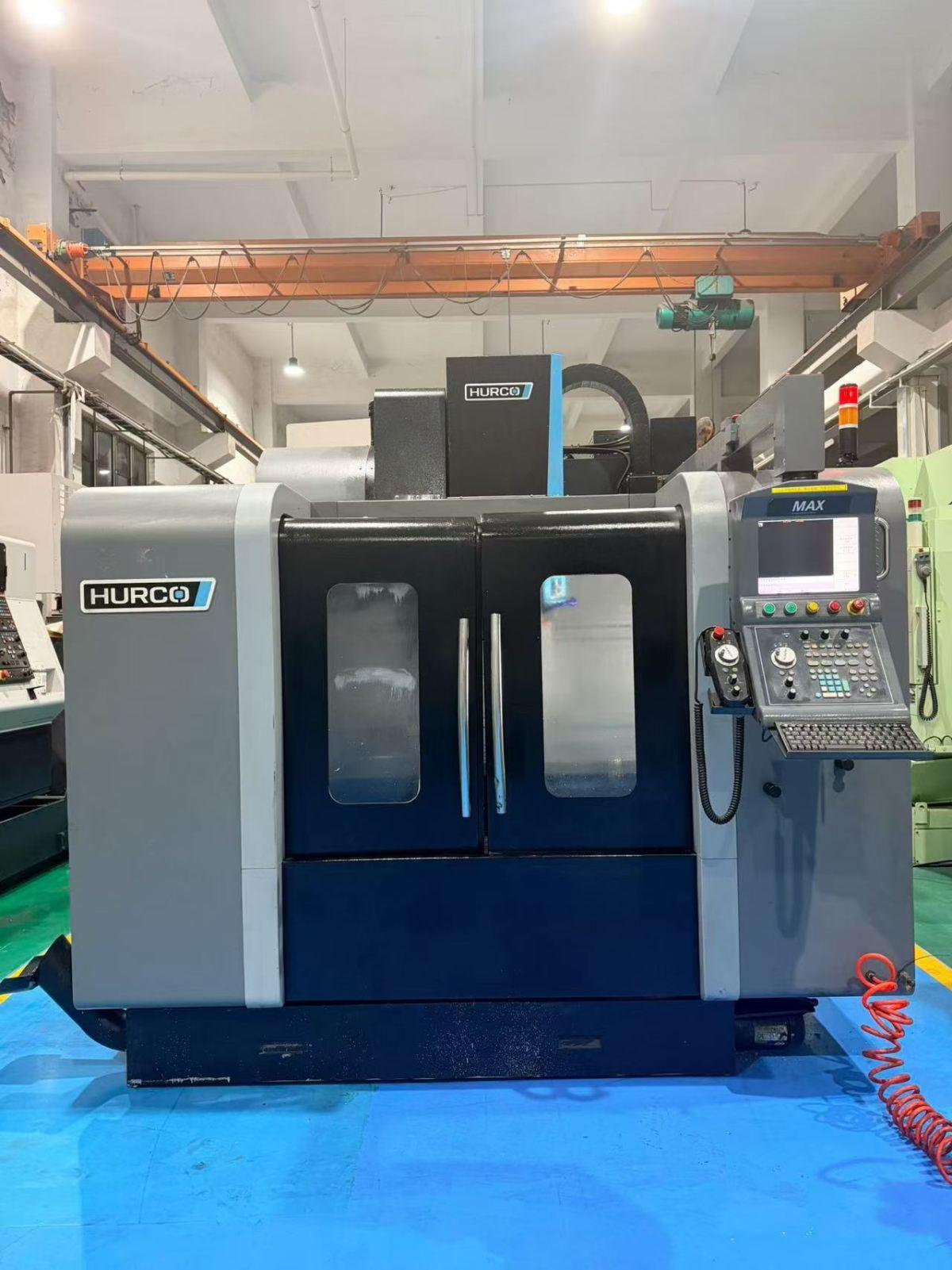

HURCO VM20i Machining centre

[Product Information]:

Inventory number：67890
Brand：HURCO
Model：VM20i
Origin：The United States
Location：China
Year：2014
Create Time：2026-05-20

Specifications:

X-axis travel:1016mm
Y-axis travel:508mm
Z-axis travel:508mm
Distance from spindle nose to Worktable:102-610mm

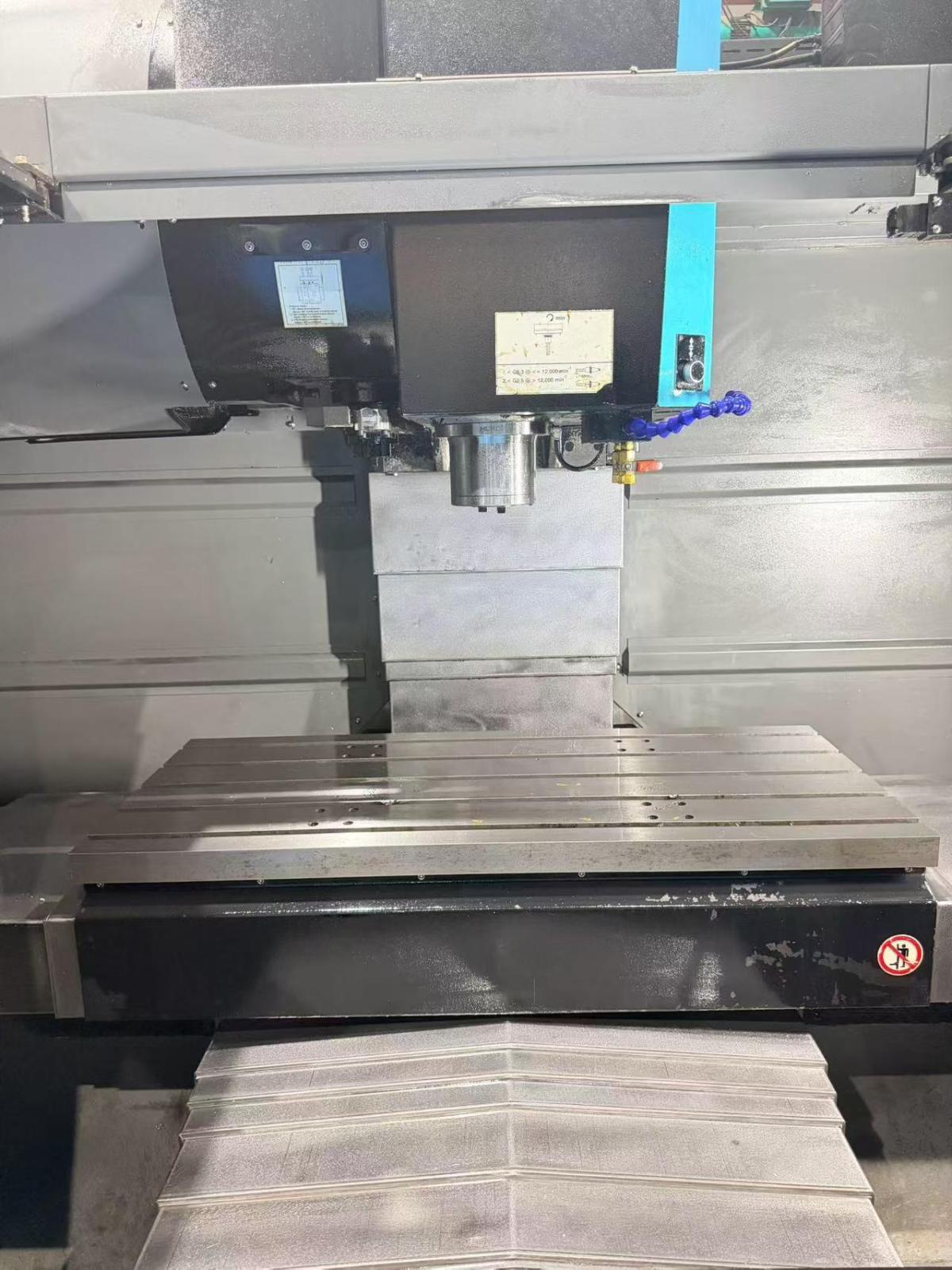

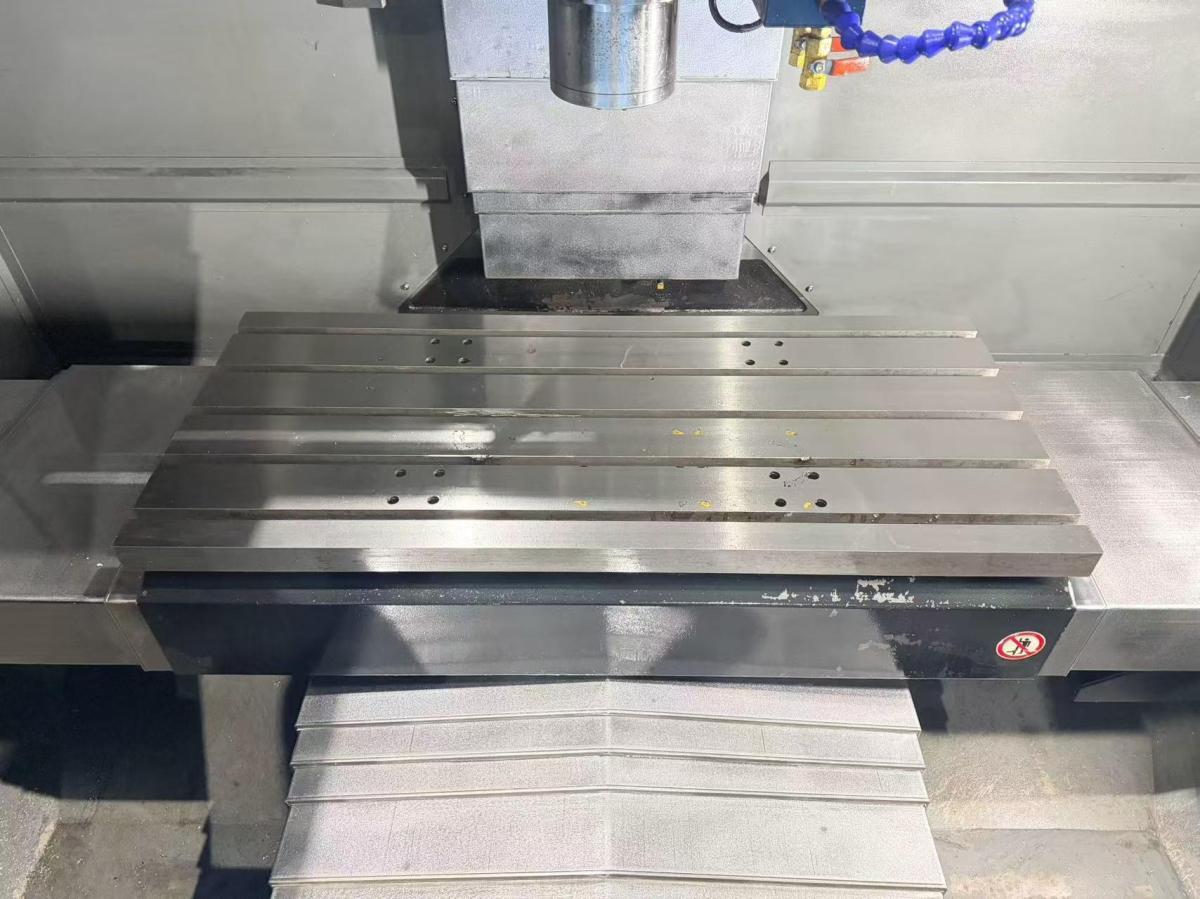

Worktable size:1168*508mm
Maximum load of Worktable: 909kg
Maximum spindle speed:10000rpm
spindle power:15/11kw
spindle torque:102/74N.m
Tools magazine capacity:20
spindle taper:BBT40
Maximum Tool diameter:89/127mm
Maximum Tool length:250mm
Maximum Tool weight:7kg
Tool changing time:2.5s
Fast feed rate:24m/min
Positioning accuracy:0.01mm
Repositioning accuracy:0.005mm
Dimension: 2722*2859*2542mm
Machine weight: 4108kg
