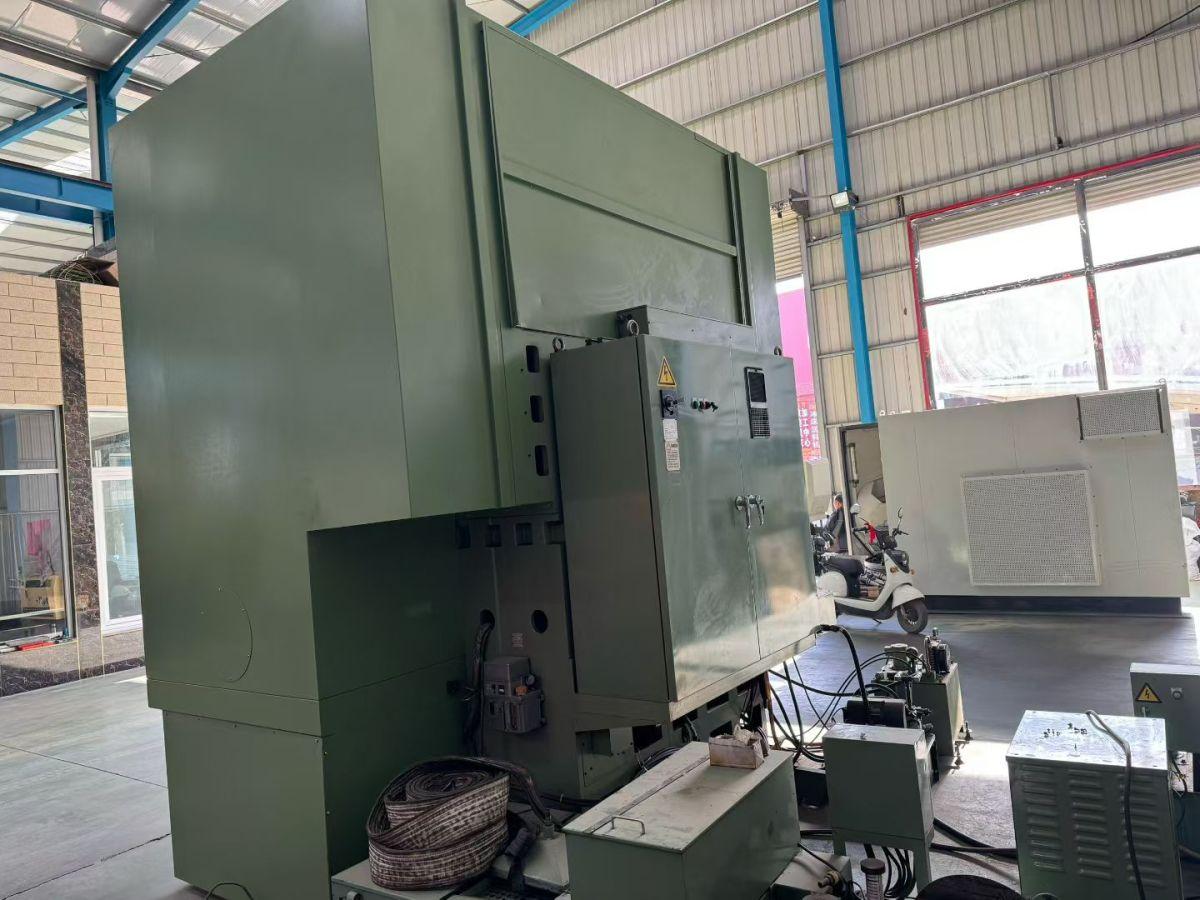

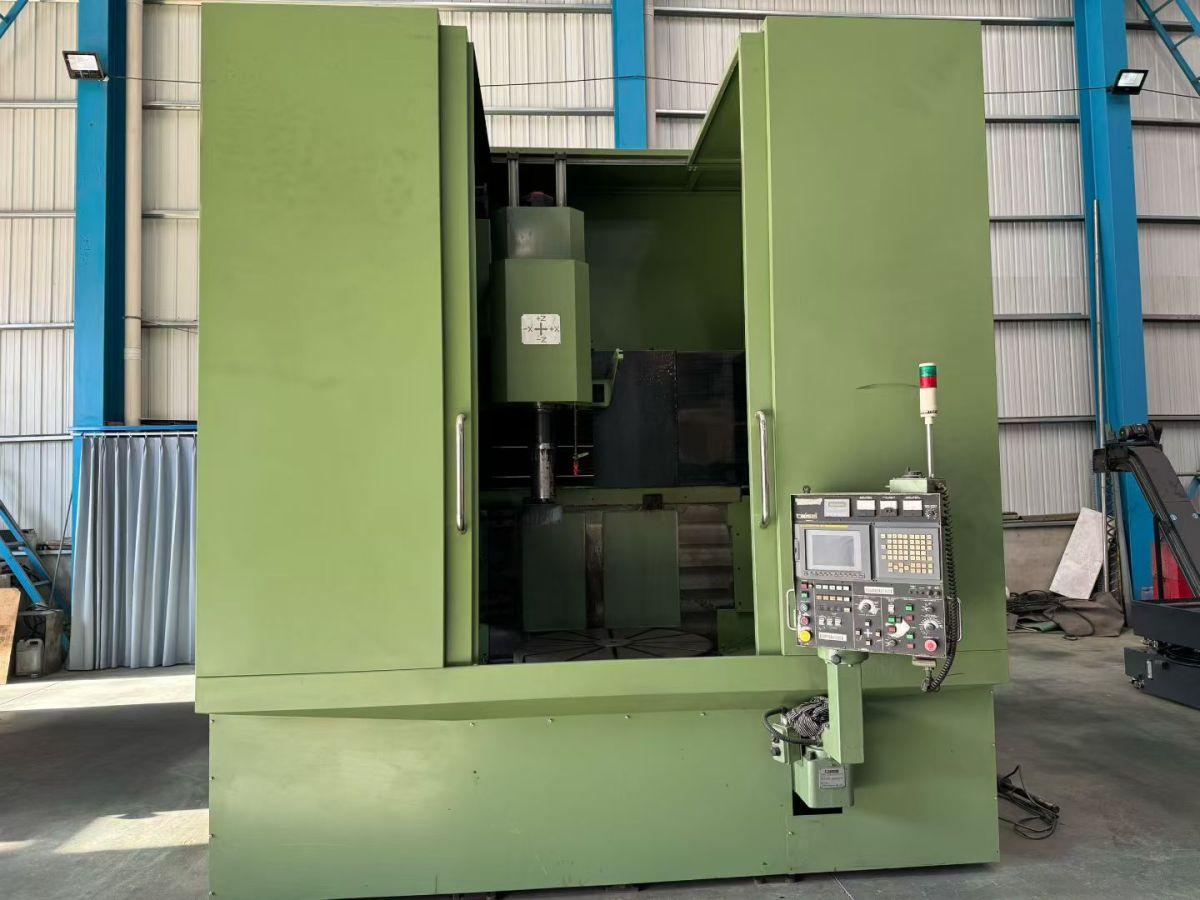

TAISEI VRG-60M1K Grinding machines

Maximum machining diameter: Ø50–Ø900 mm
Maximum grinding length: 500 mm
Worktable swing diameter: Ø1300 mm
Grinding wheel spindle speed: 4000–12,000 rpm
Spindle speed: 10–150 rpm
X-axis travel: 1300 mm
Z-axis travel: 500 mm
X/Z feed rate: 0.01–4000 mm/min
Rapid traverse rate: 12,000 mm/min
Minimum control unit: 0.001 mm
Spindle motor: 3.7 kW
Grinding wheel motor: 5.5 kW
X/Z drive motors: 3.0 kW ×2
Hydraulic pump: 1.5 kW
Machine weight: approximately 9,000 kg
Total power: 27 kVA
Installation footprint: 1980 × 3819 × 3545 mm
