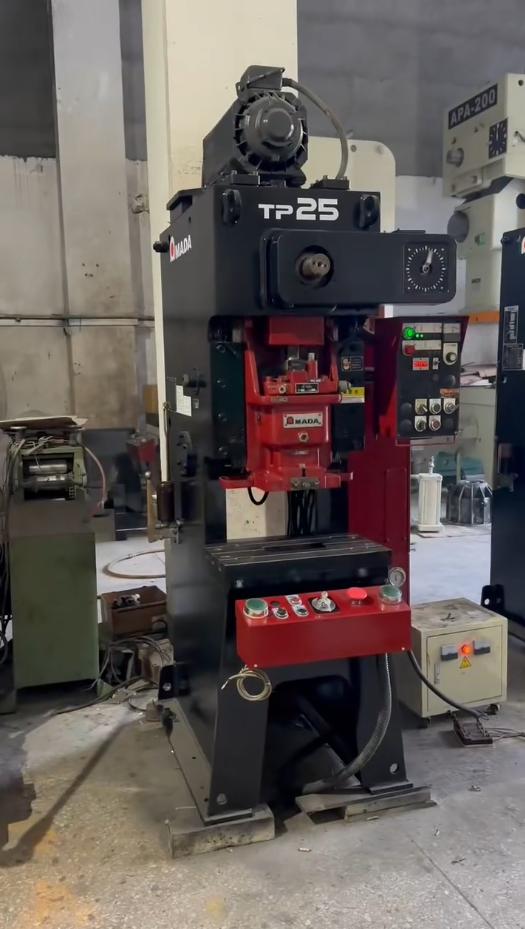

AMADA TP-25 Punch / press

Nominal pressure: 25 tons
travel frequency: 80-200spm
Slider travel: 50mm
Closing height: 195mm
Slider adjustment range: 50mm
The bottom surface size of the slider is 250×200mm
Worktable board size: 550×300mm
Emergency stop time: 145ms
Maximum stop time: 185ms
The setting position of the travel monitoring device is 15 degree
Main motor power: 3.7 kilowatts
