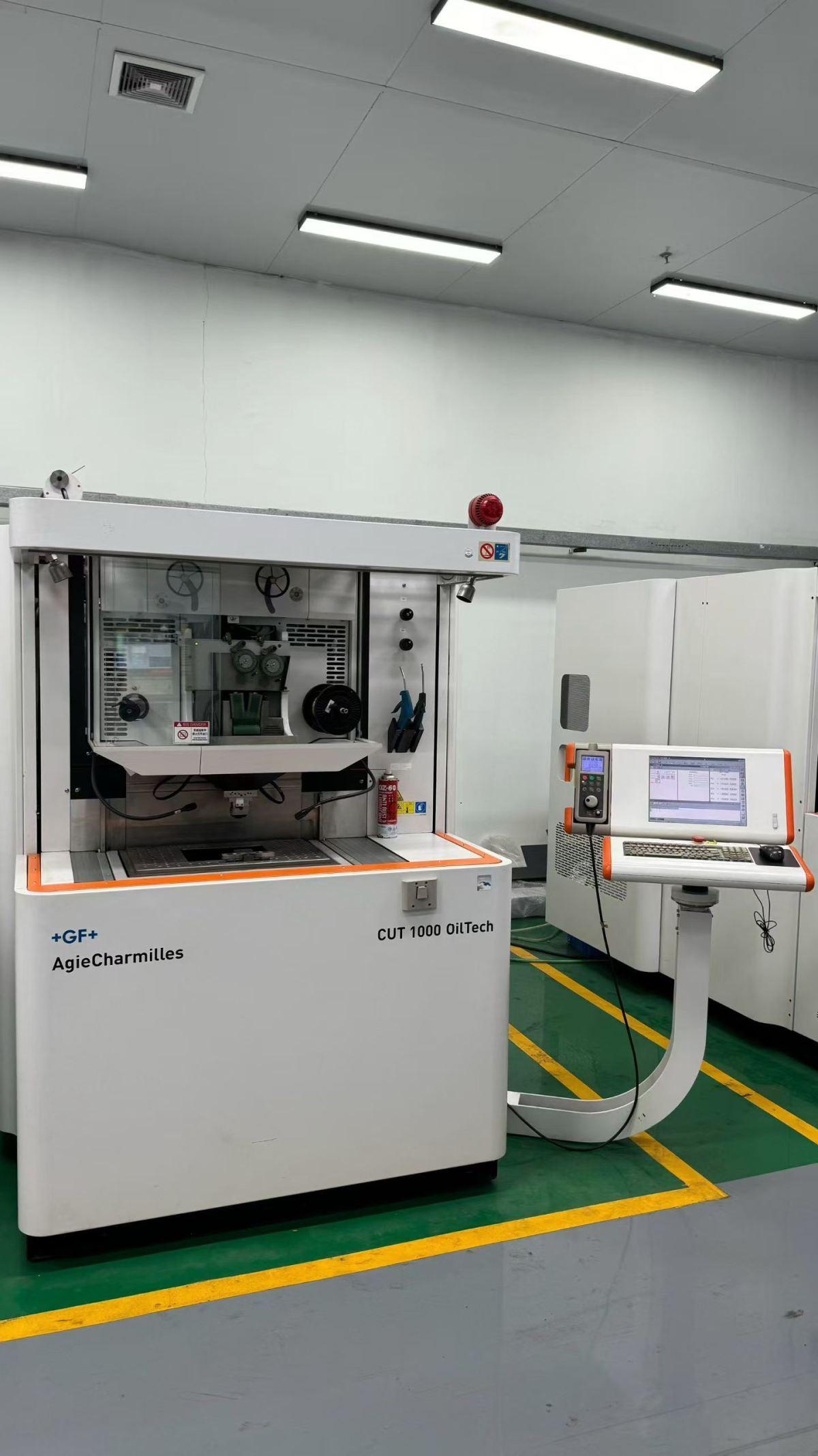

Charmilles CUT 1000 OIL TECH Wire cutting machine

X/Y/Z-axis travel: 220 × 160 × 100 mm
U/V-axis travel: ±40 mm
Maximum taper: 3° / 80 mm
Maximum workpiece size: 300 × 200 × 80 mm
Worktable size: 550 × 340 mm
Wire diameter range: 0.07–0.20 mm
Optional wire diameter: 0.02–0.05 mm
Minimum threading hole diameter: wire diameter + 0.05 mm
Rapid movement speed: 1–3000 mm/min
Wire feeding speed: 60–300 mm/s
Total dielectric fluid capacity: 420 L
Resin capacity: 10 L
​
