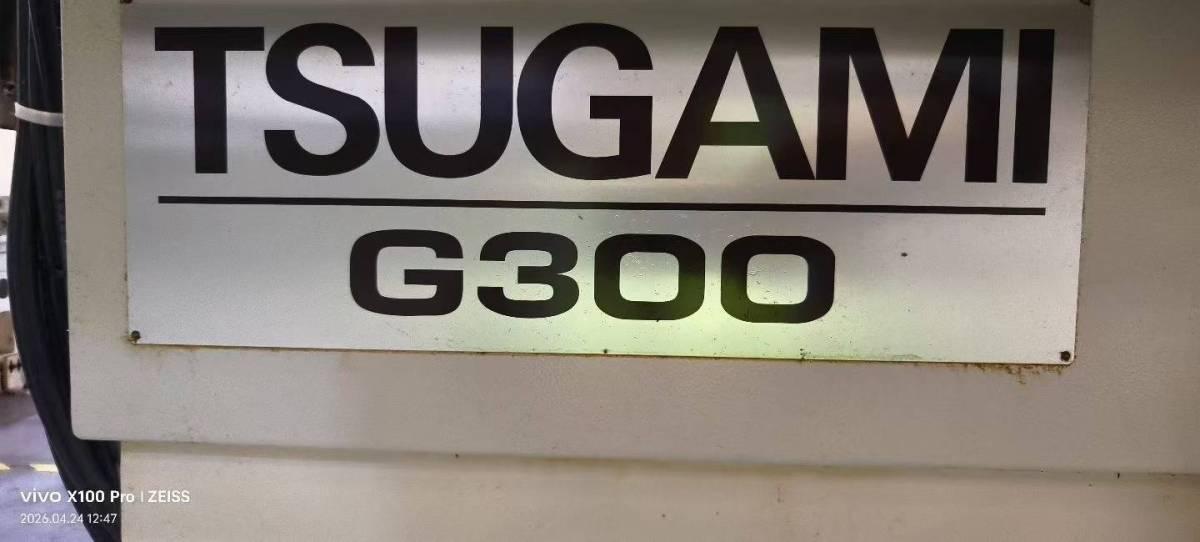

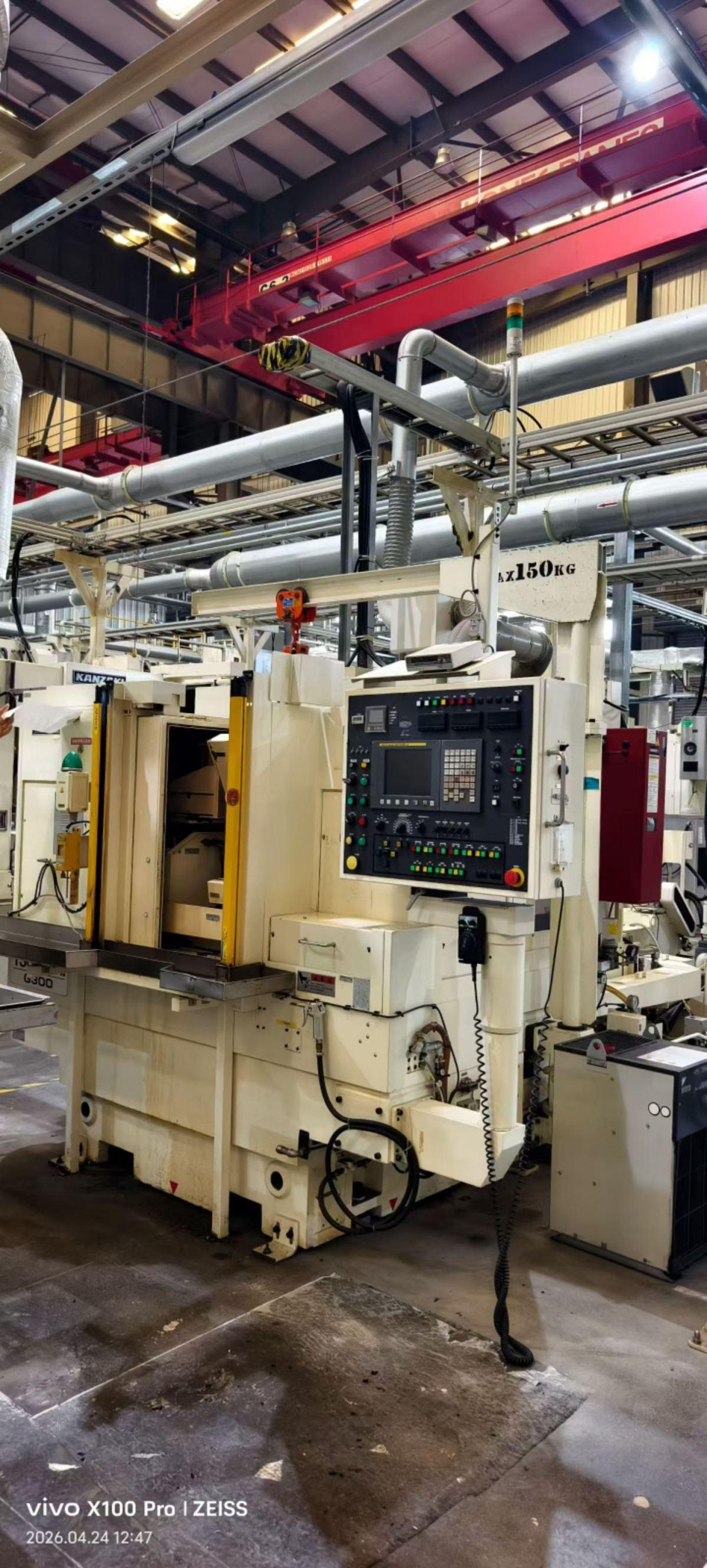

Tsugami G300S-300 Grinding machines

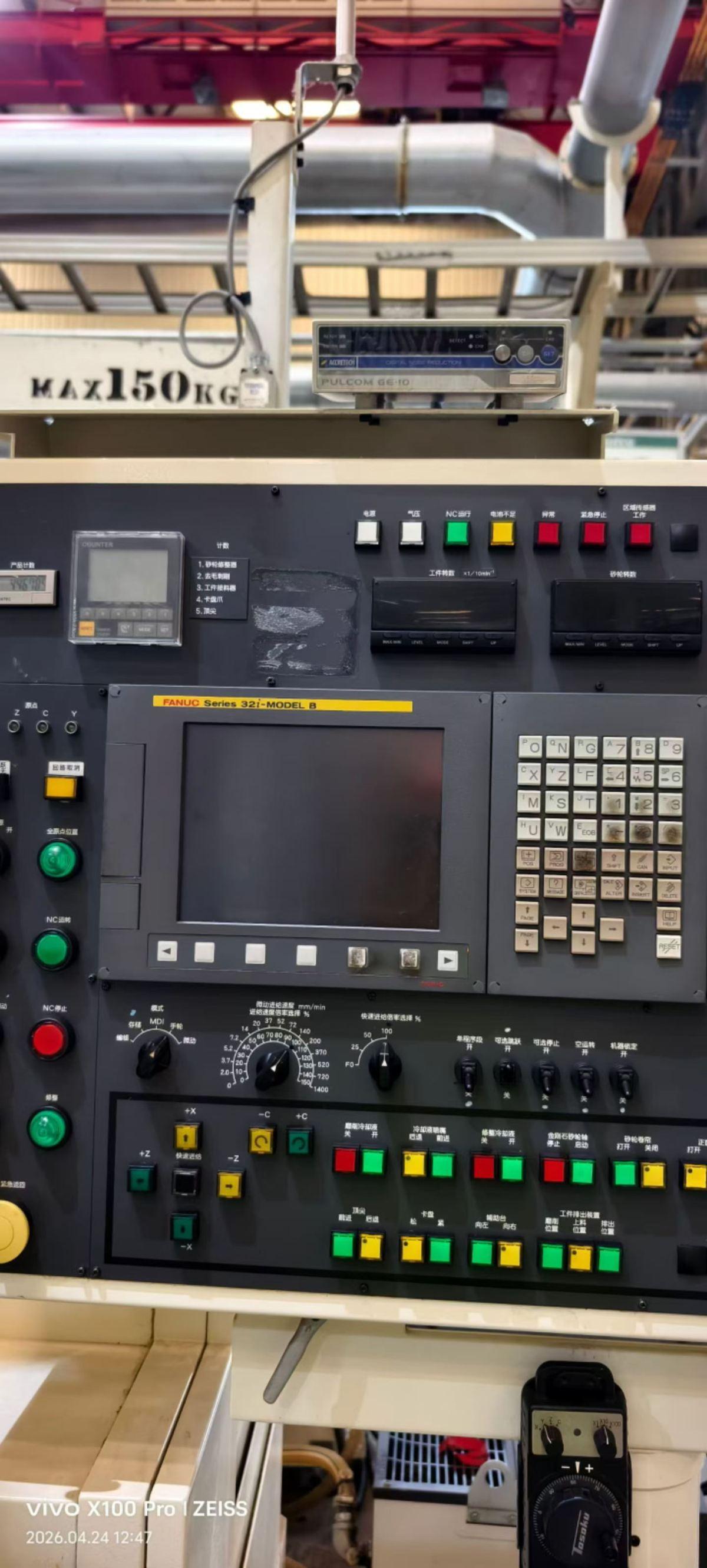

CNC System: FANUC 32i
Number of control axes: 4-axis simultaneous control (X / Z / C / A)
Maximum swing diameter: φ300 mm
Distance between centers: 300 mm
Maximum workpiece length (between centers): 300 mm
Maximum workpiece weight (between centers): 50 kg
Axis travel:
X-axis: Grinding wheel radial feed, travel 220 mm
Z-axis: Worktable longitudinal feed, travel 350 mm
C-axis: Workpiece spindle rotation (thread indexing/synchronization)
A-axis: Grinding wheel head rotation (helix angle adjustment ±15°)
