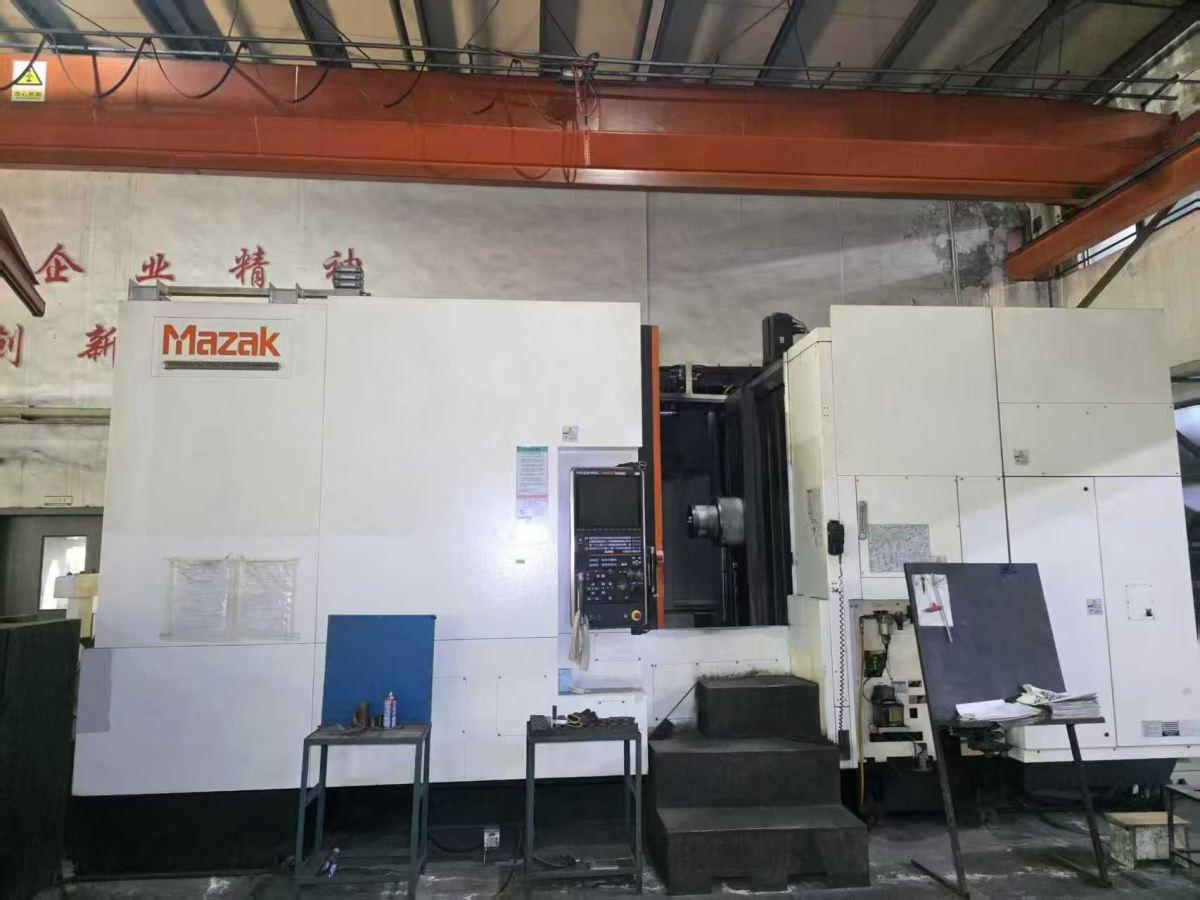

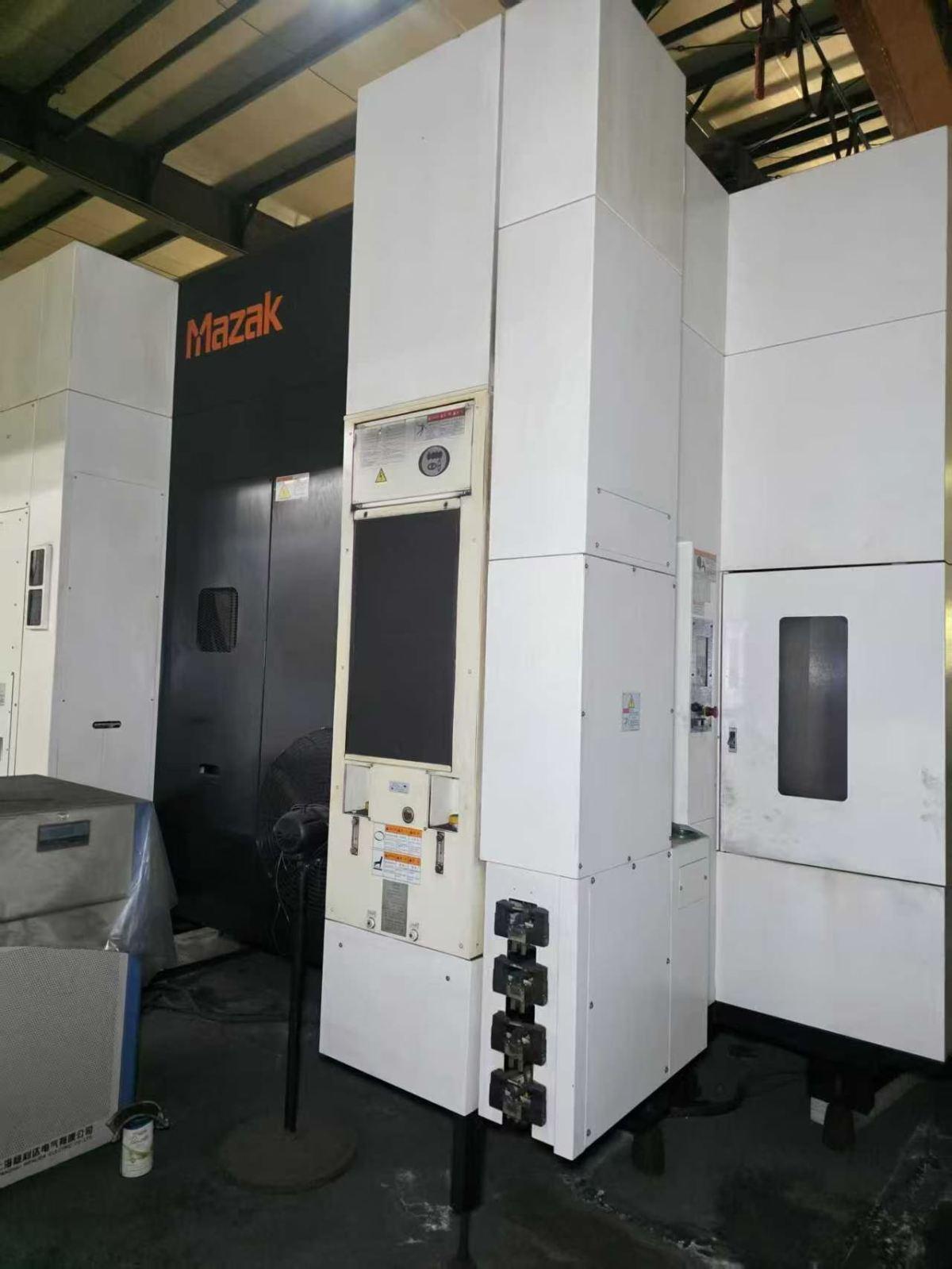

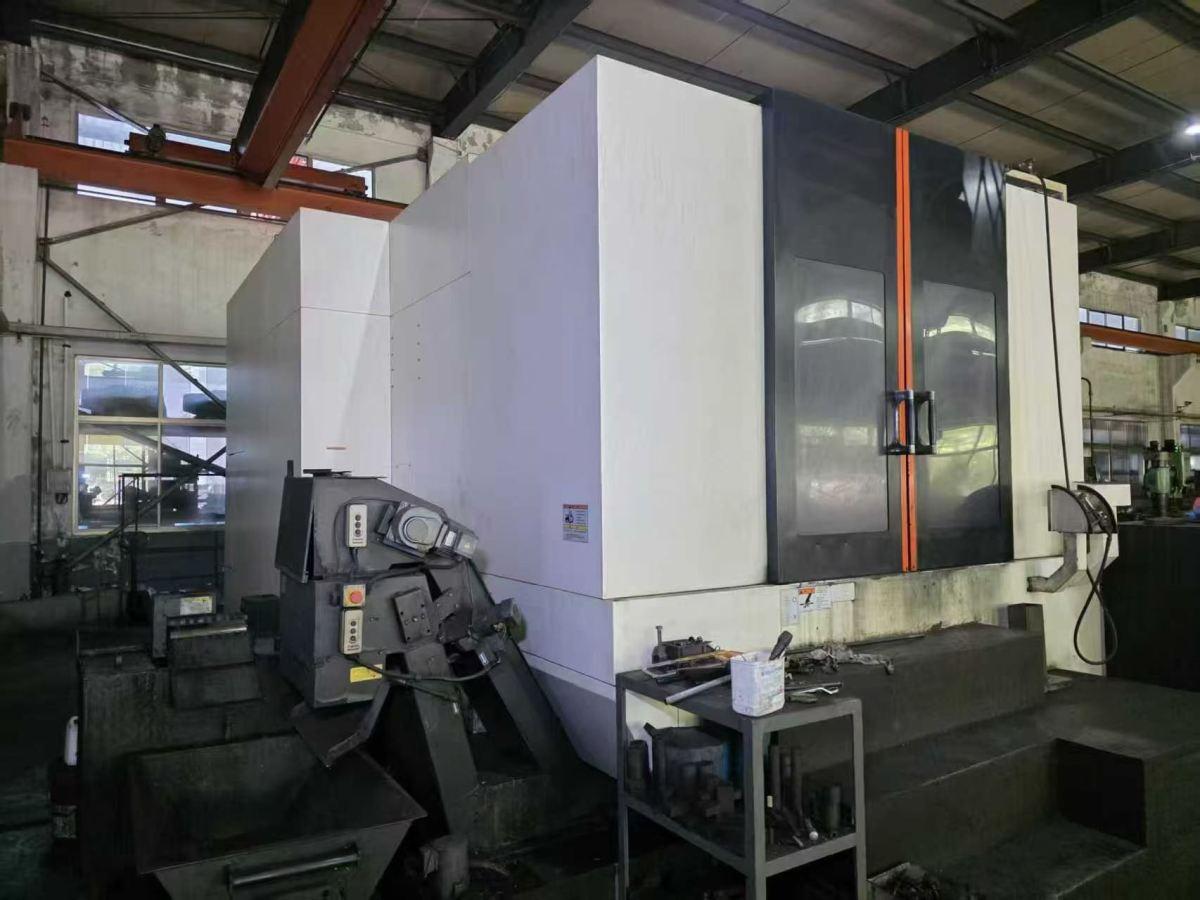

MAZAK HORIZONTAL CENTER NEXUS 8800-II Horizontal Machining centre

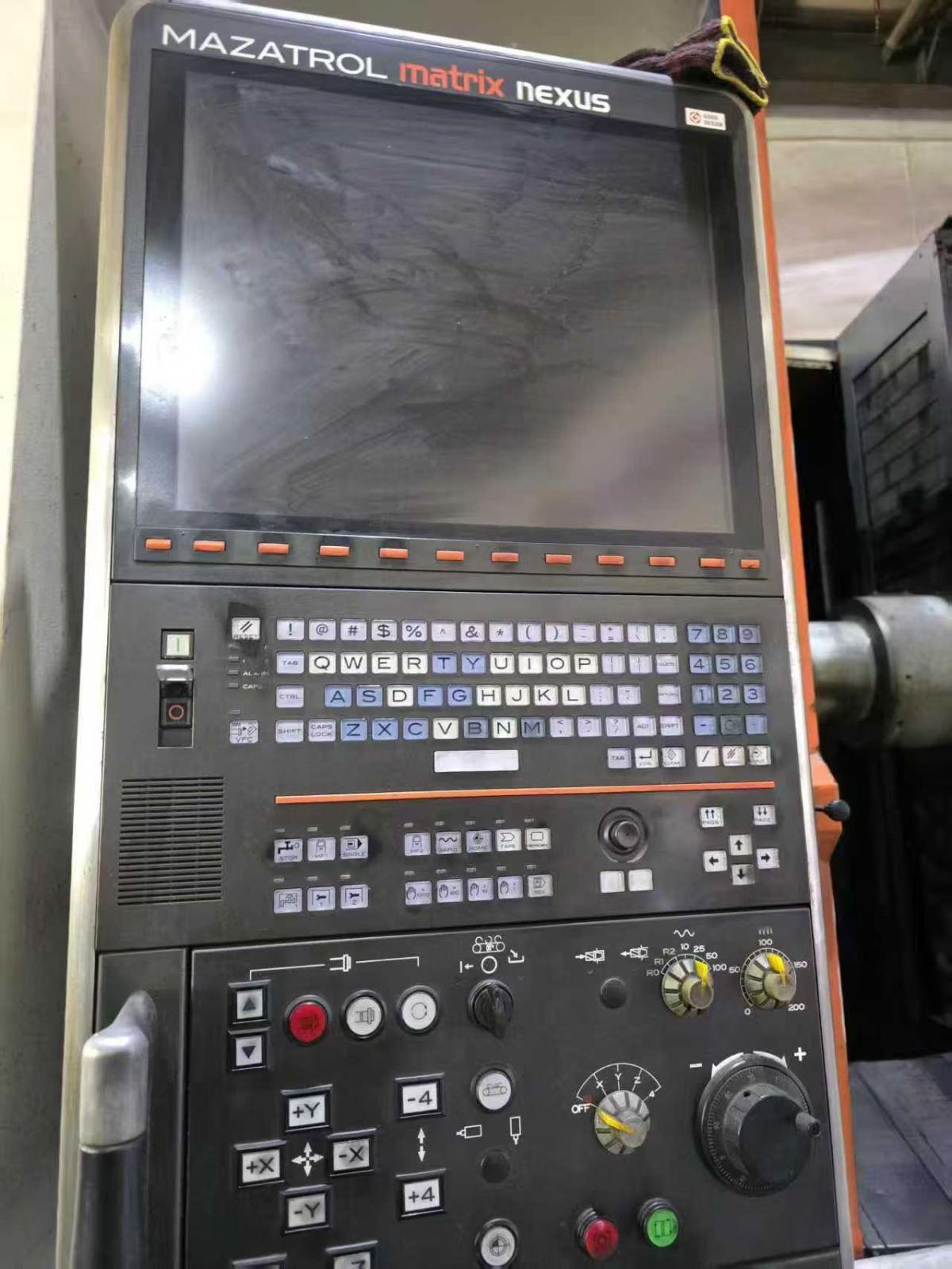

CNC System: MAZATROL MATRIX NEXUS
Three-axis travel (X/Y/Z): 1400 × 1200 × 1325 mm

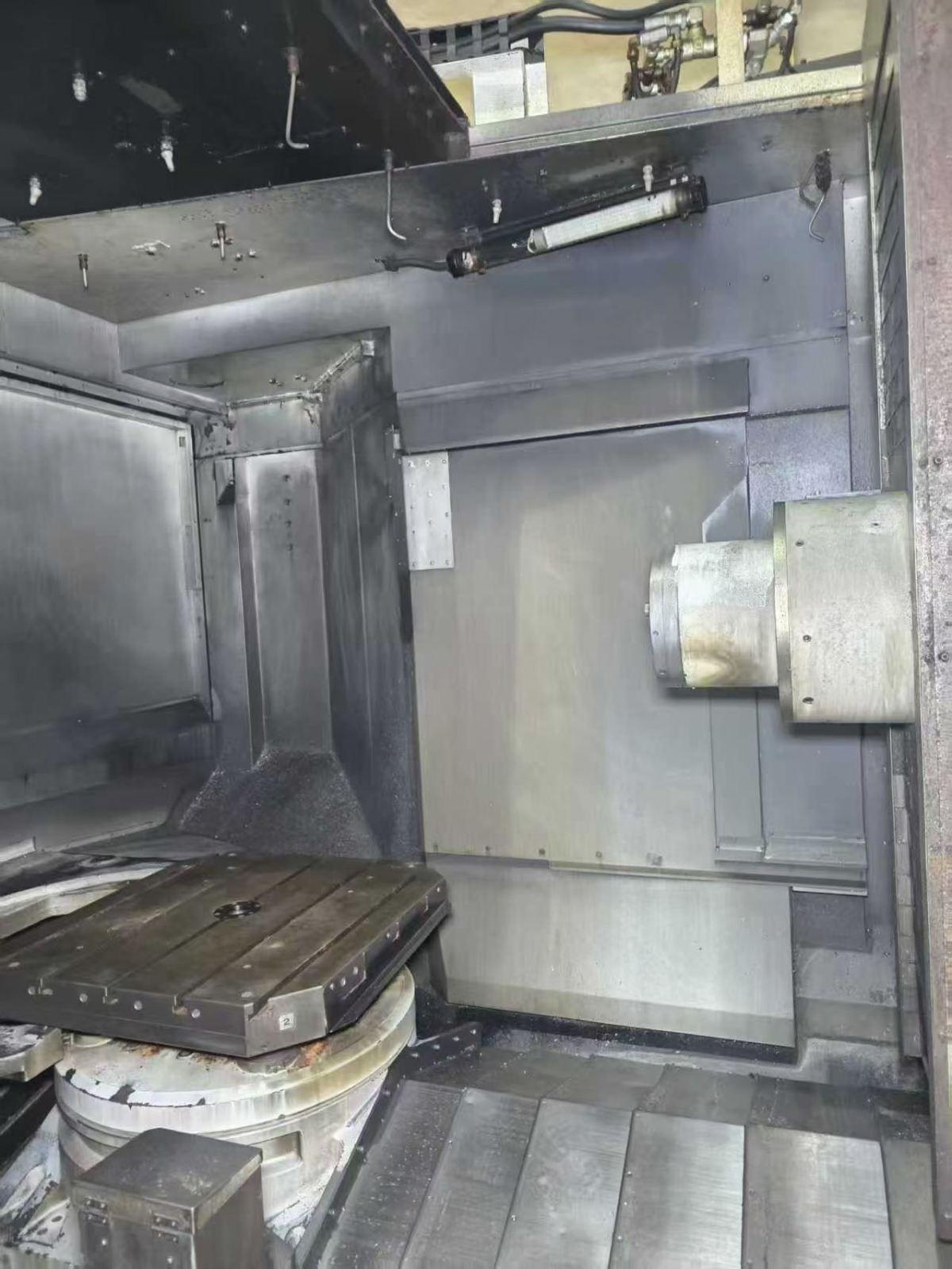

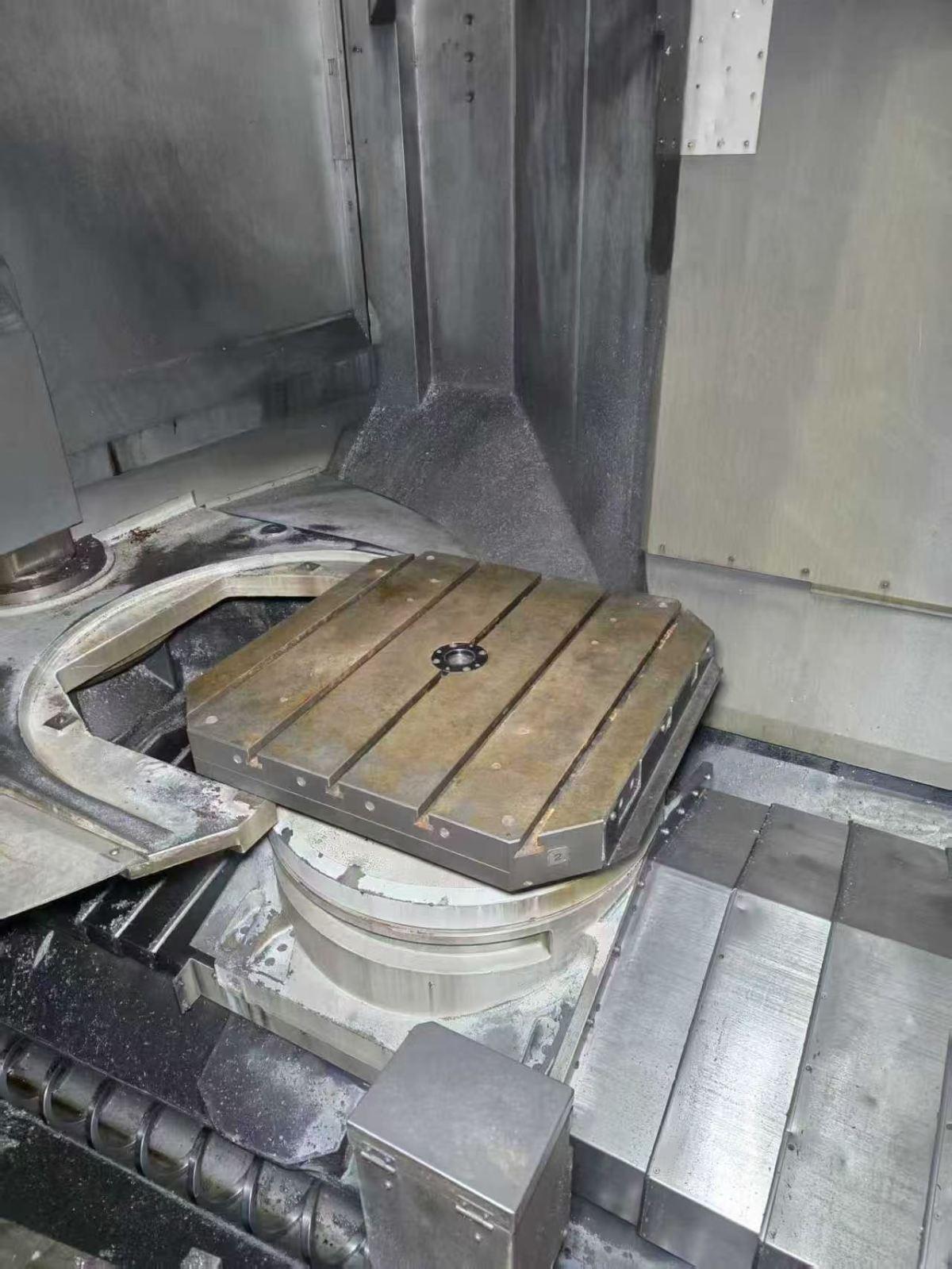

Worktable size: 800 × 800 mm, Twin-workstations
Worktable load capacity: 2200 kg
Distance from spindle nose to worktable: 100–1275 mm
Maximum swing diameter: 1450 mm
Maximum machining height: 1450 mm
Table indexing accuracy: 0.001°
Spindle speed: 10,000 rpm
Spindle taper: BT50
Tool magazine capacity: 60
Maximum tool length: 800 mm
Maximum tool weight: 30 kg
Rapid traverse rate (X/Y/Z): 60,000 × 60,000 × 60,000 mm/min
Machine dimension（L × W × H): 4072 × 6918 × 3678 mm
Machine weight: 30,000 kg
