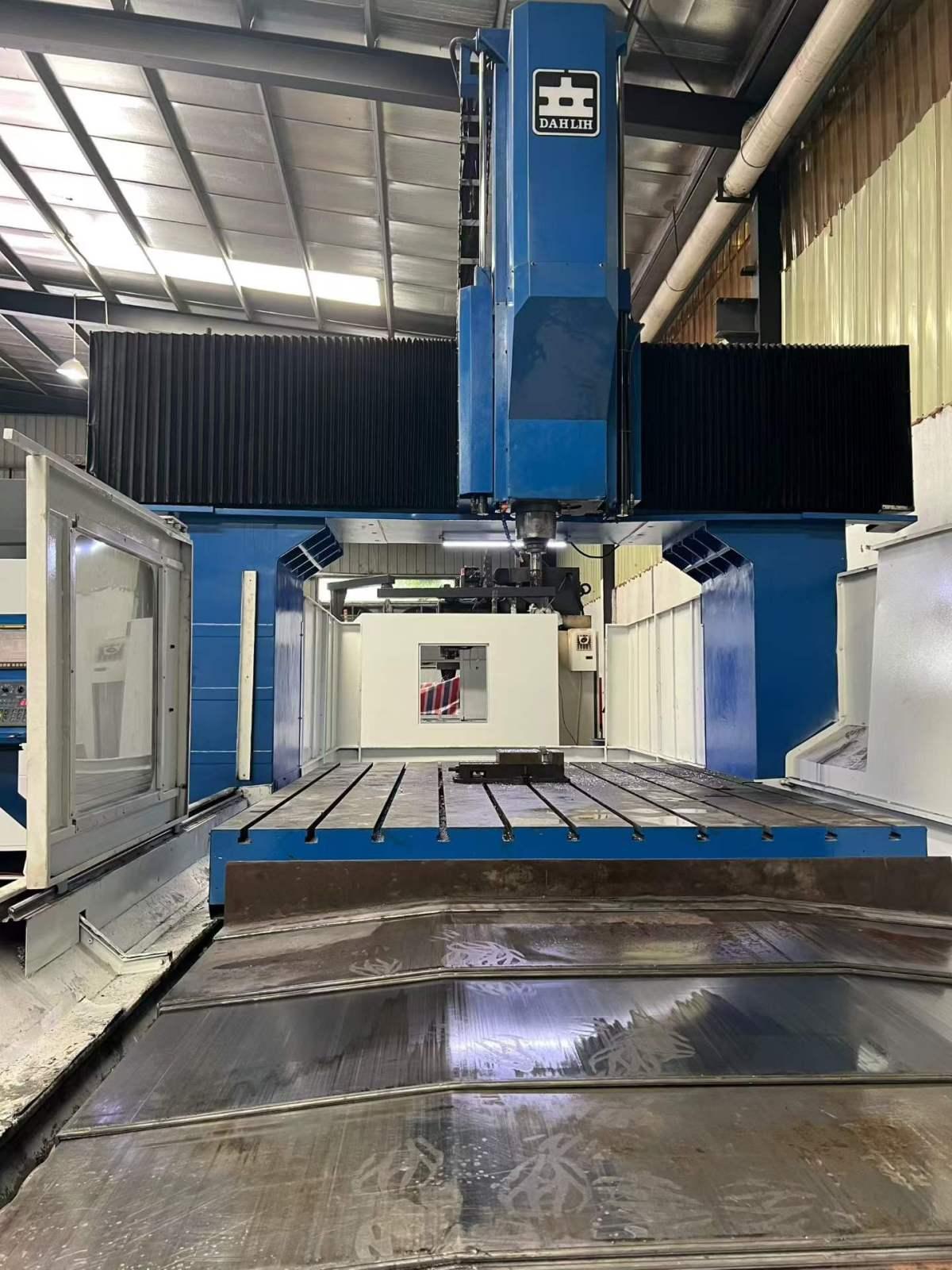

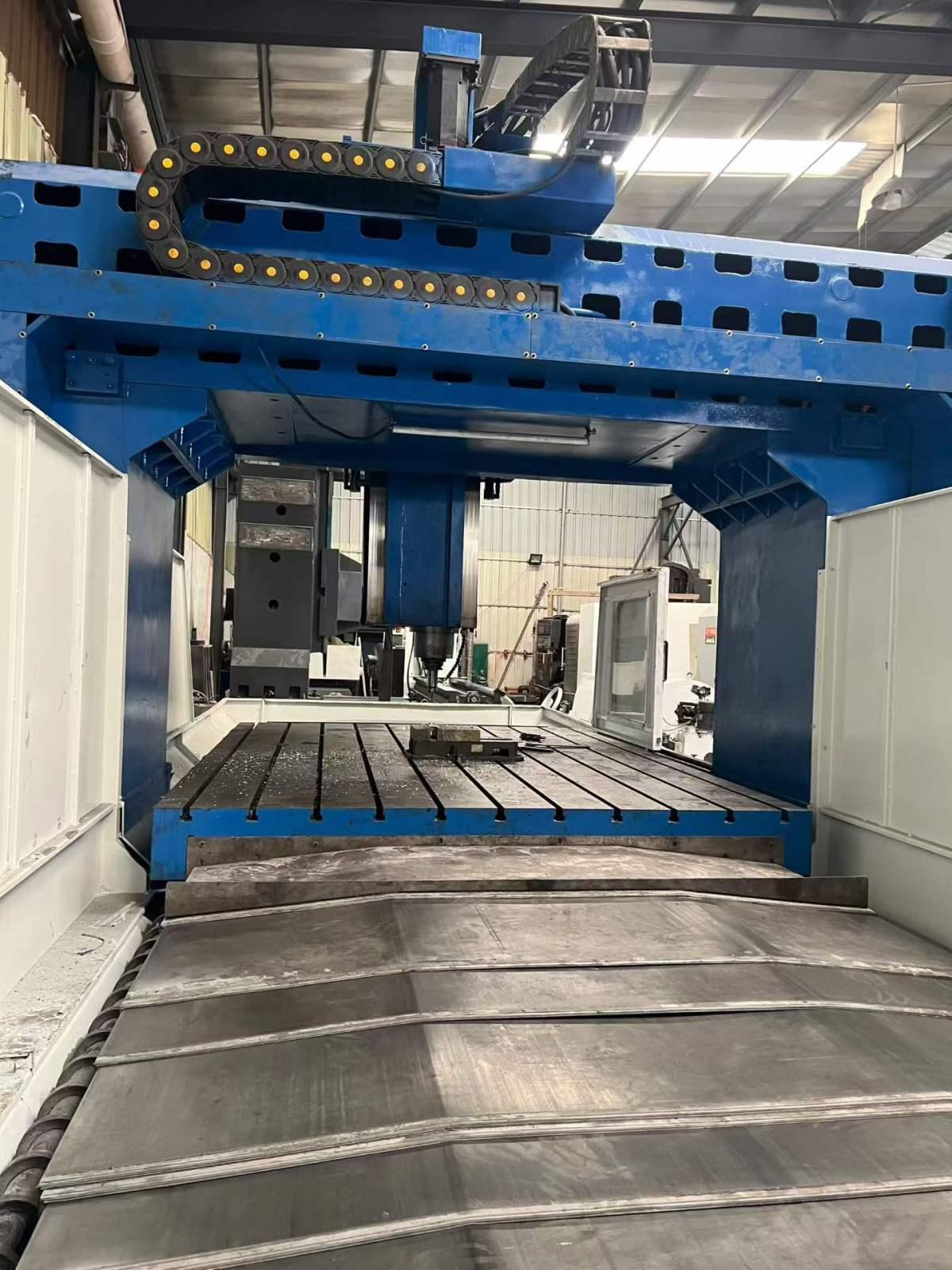

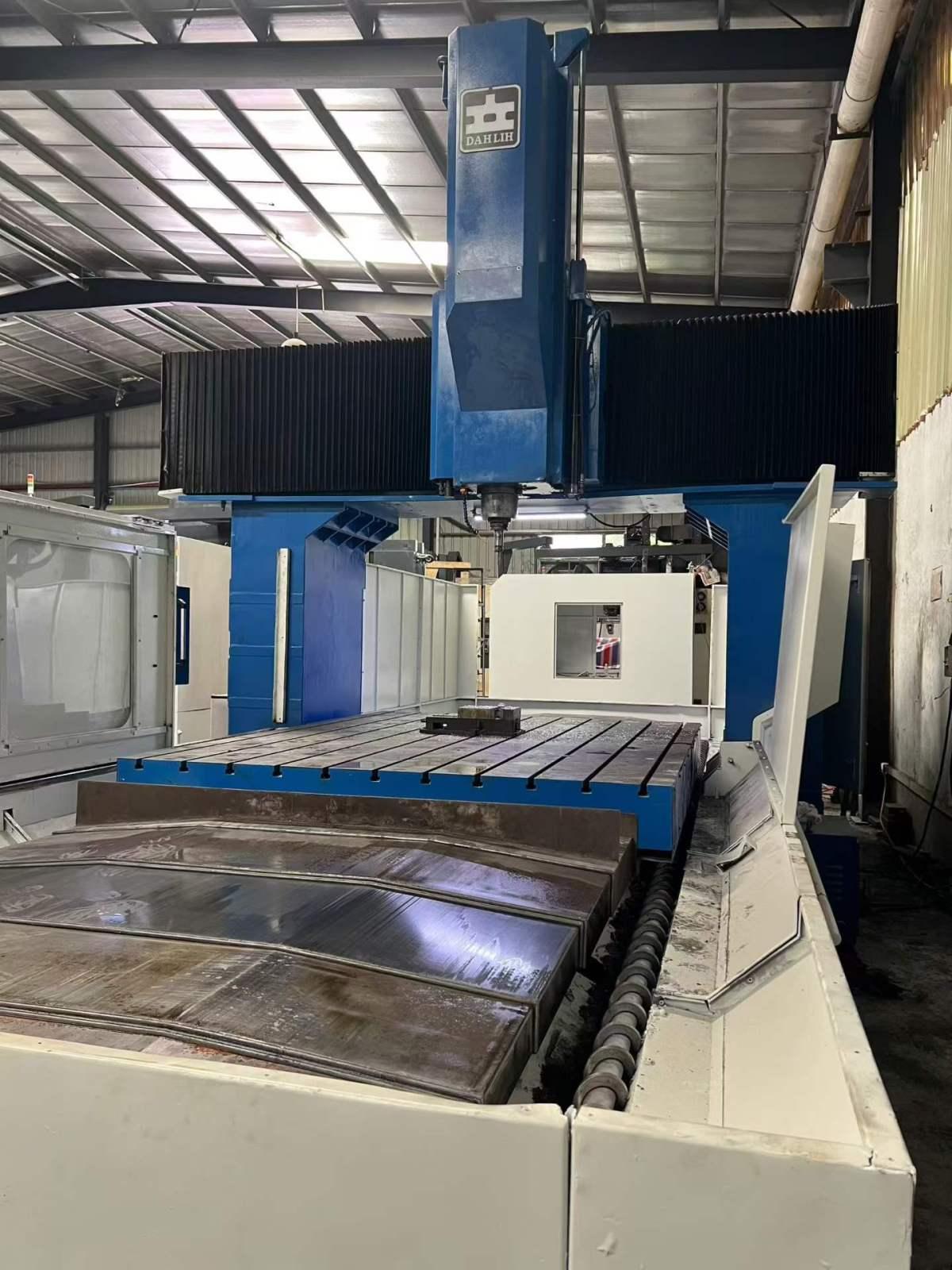

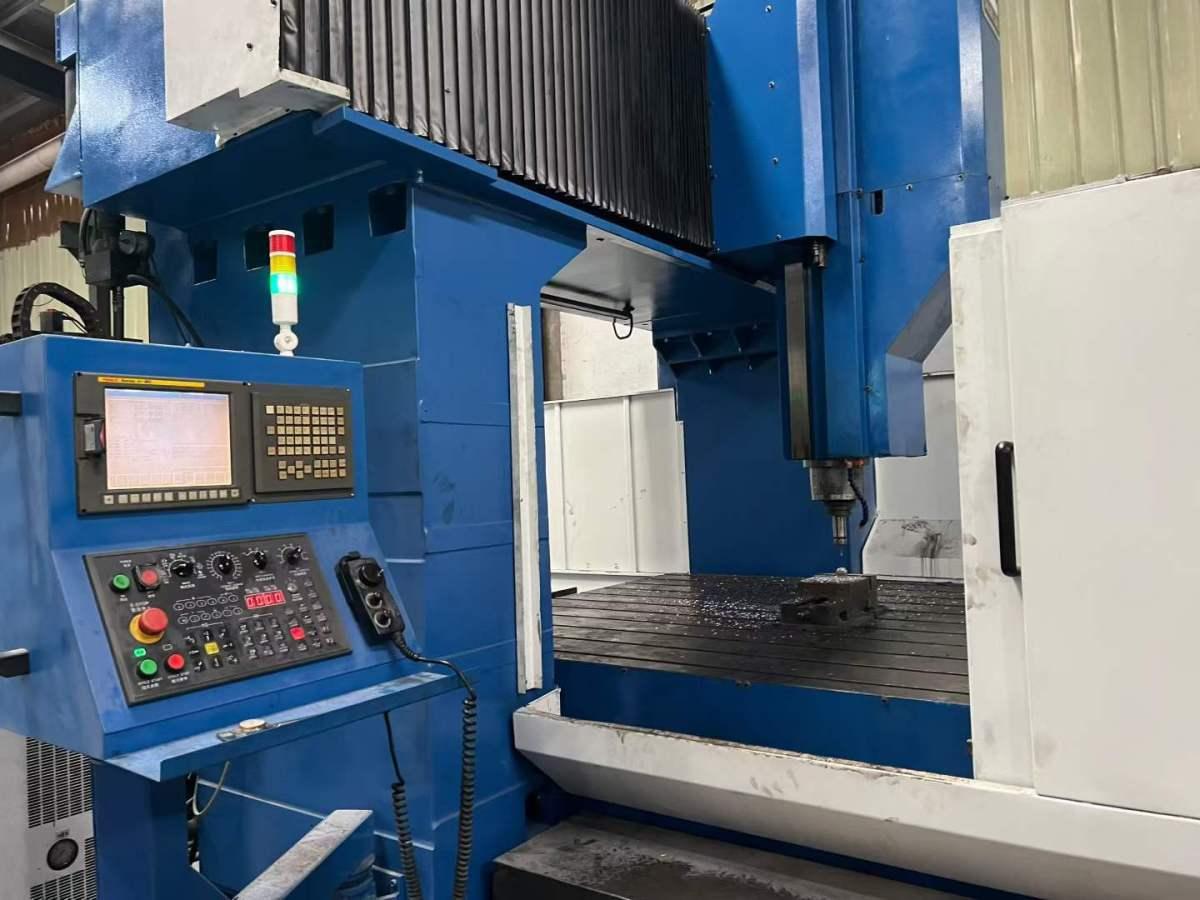

DAHLIH 3225 Gantry machining centre

[Product Information]:

Inventory number：811947
Brand：DAHLIH
Model：3225
Origin：Taiwan, China
Location：China
Year：2015
Create Time：2026-05-13

Specifications:

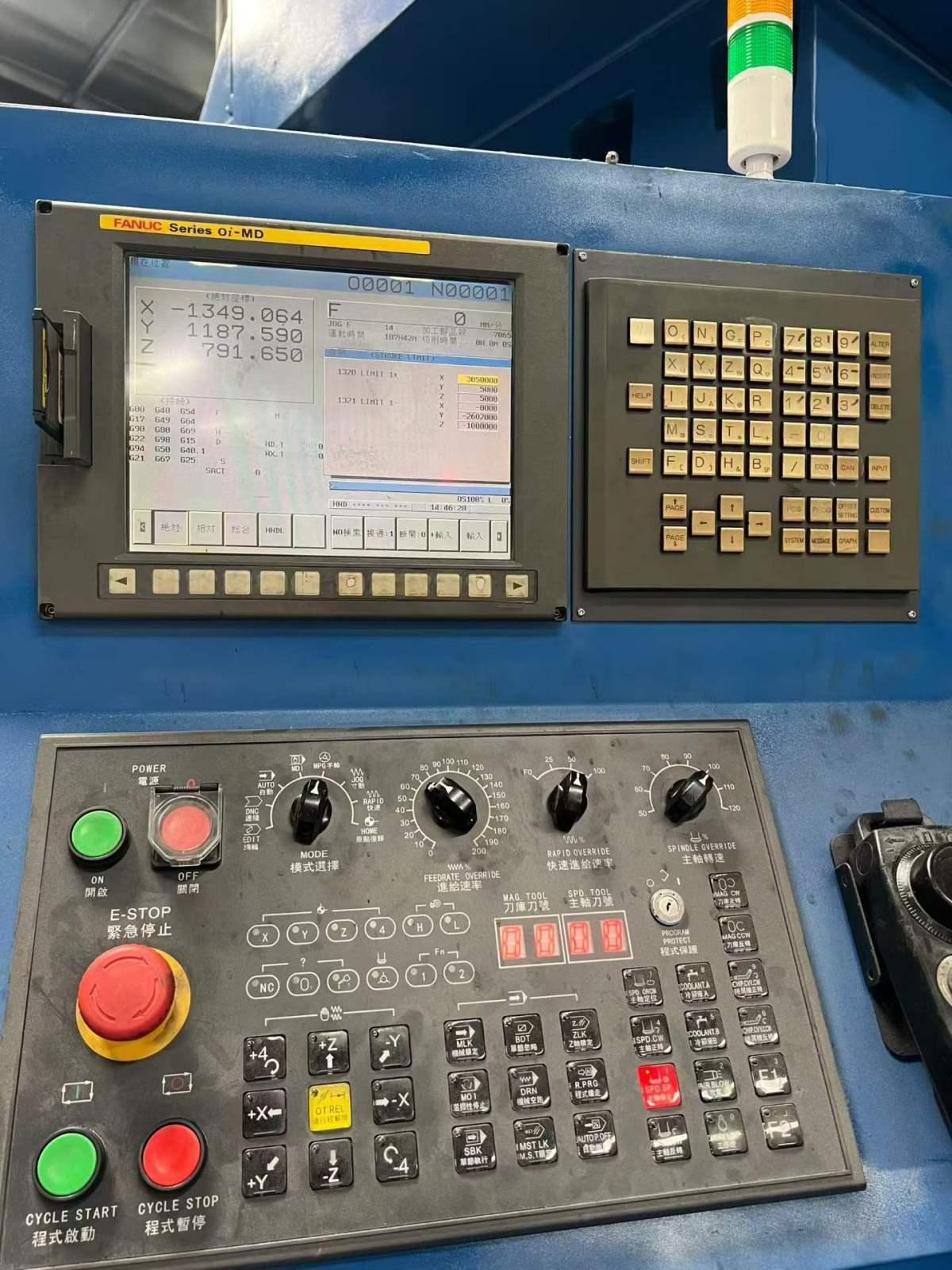

CNC System: FANUC 0i-MD

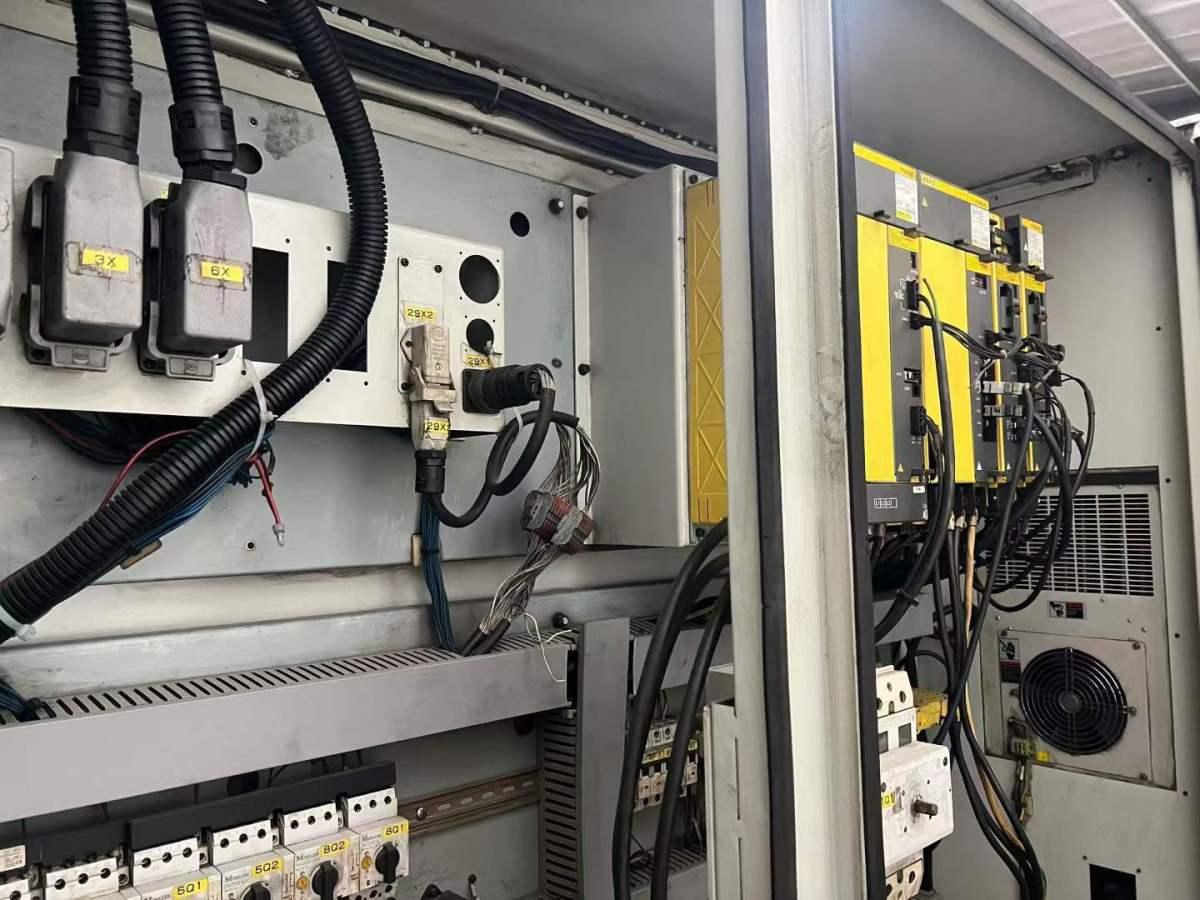

Drive system: FANUC α (Alpha) drives
Guideway structure: Two linear guideways + one rigid guideway
Three-axis travel (X/Y/Z): 3000 × 2600 × 1000 mm
Spindle taper: BT50
Spindle speed: 6000 rpm
Gantry width: 2500 mm
Gantry height: 1300 mm
Worktable size: 3000 × 2200 mm
Chip conveyor system: Twin-screw chip conveyor + external chip conveyor
