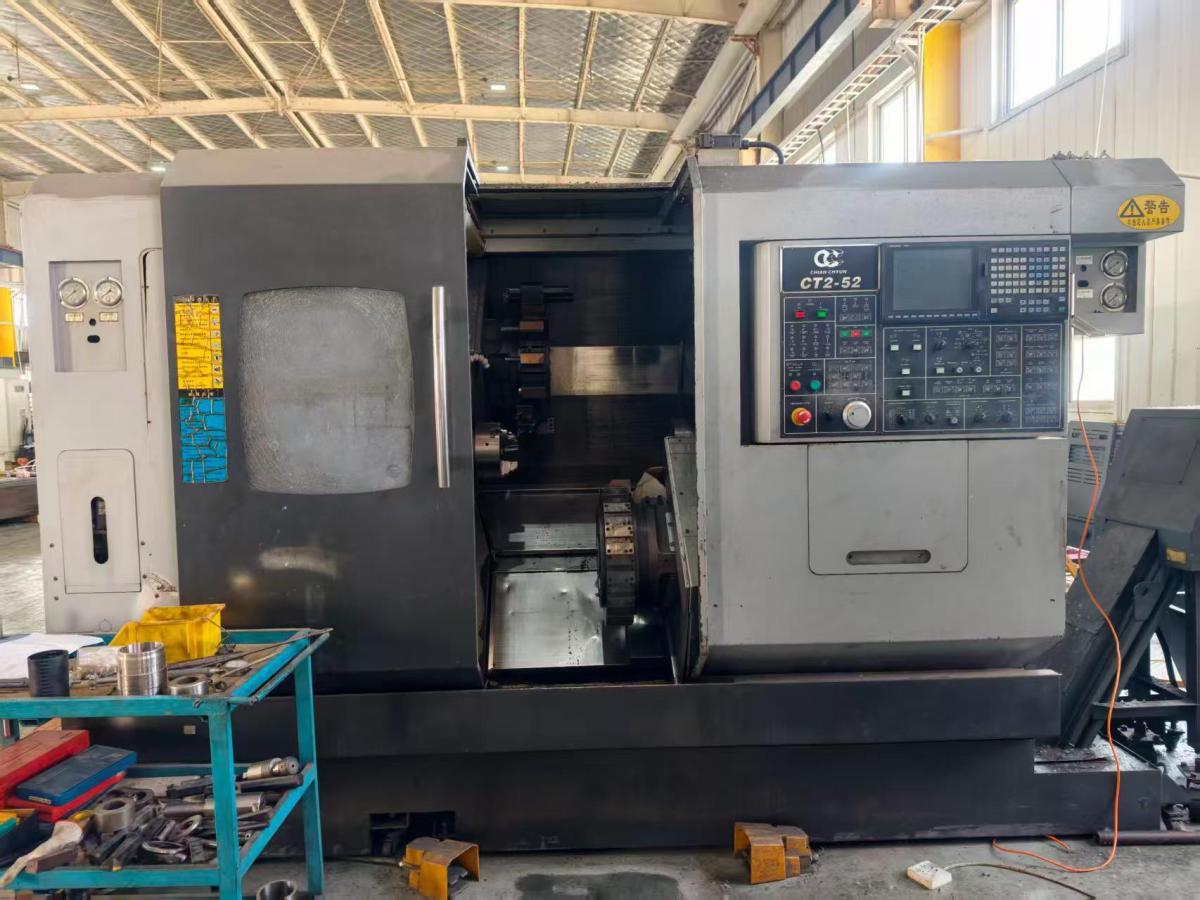

Chiah Chyun CT2-52 CNC turning lathe

Maximum rotation diameter of the bed surface: 830 mm
Maximum machining external diameter: 210-360 mm
Maximum machining length: 400mm
Bar machining capacity: ∅ 51mm
Distance between centers between the two spindle: 920 mm
Z-axis travel: 440 mm
B-axis travel: 650 mm
Spindle speed: 0-6000 rpm
spindle motor power: 7.5/11/15 kW

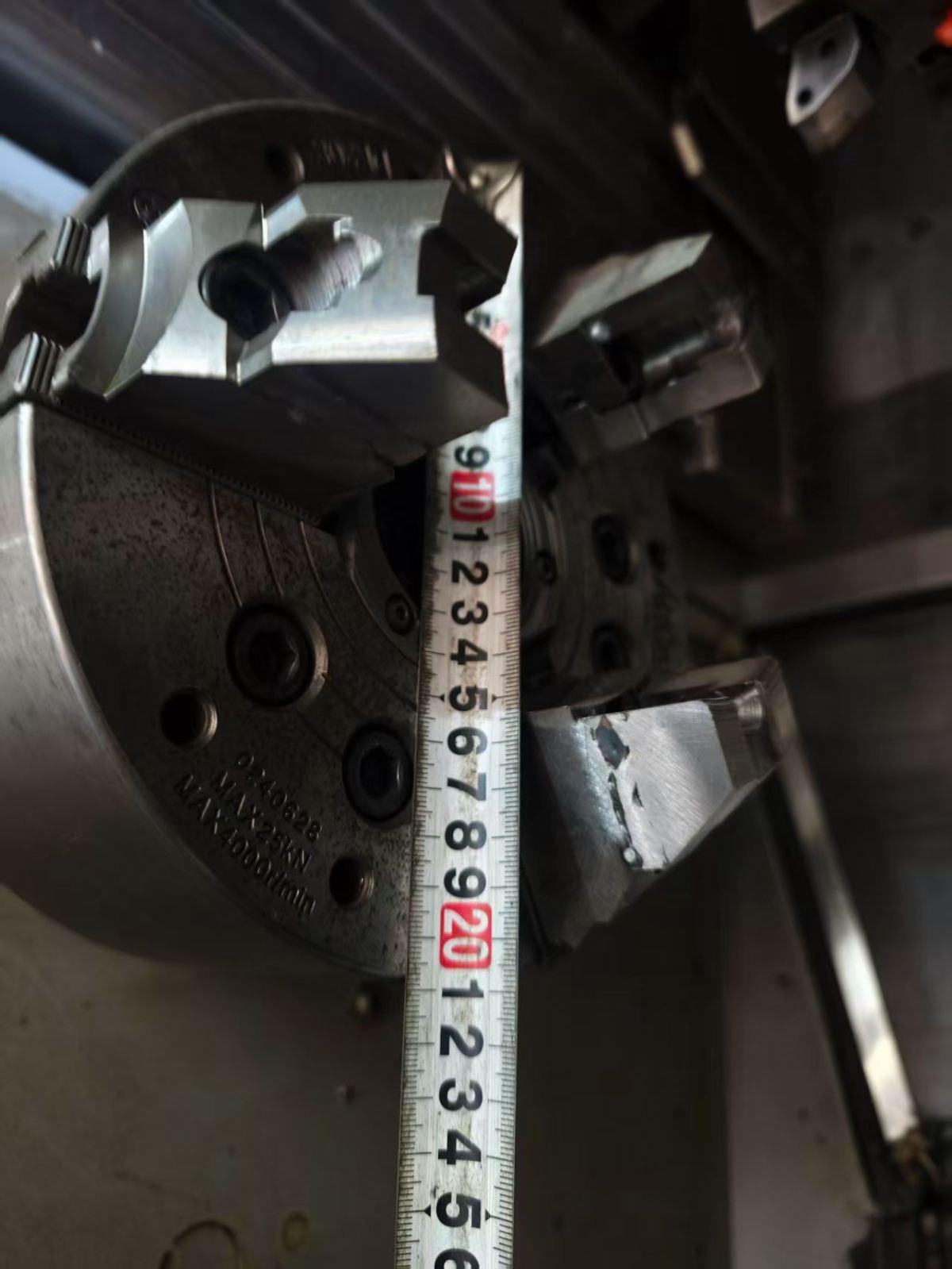

chuck specification: 8-inch hydraulic chuck
Tool turret Accessories: Dual 16-station servo tool turrets
Repeated Positioning precision: ± 0.002mm
