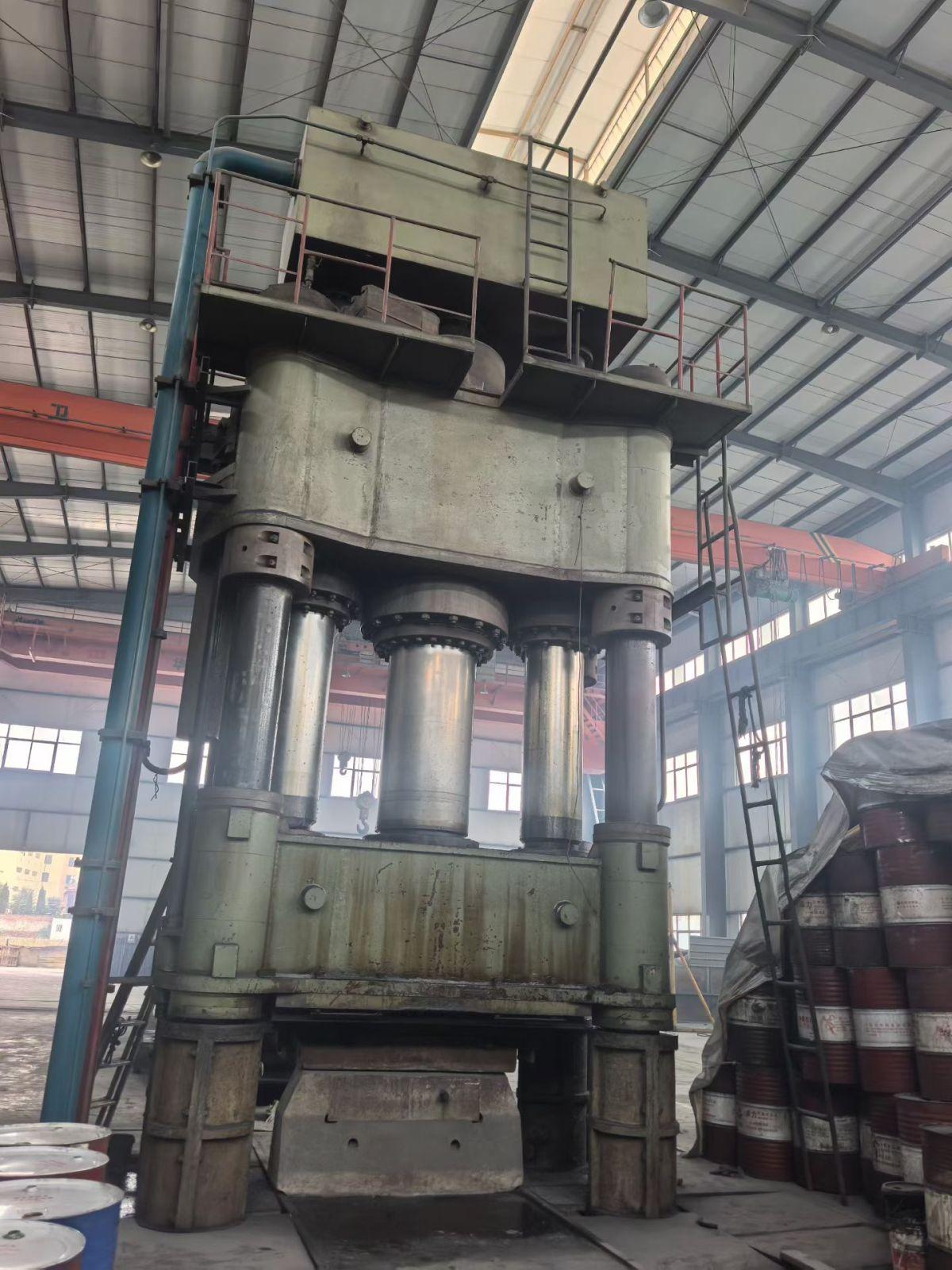

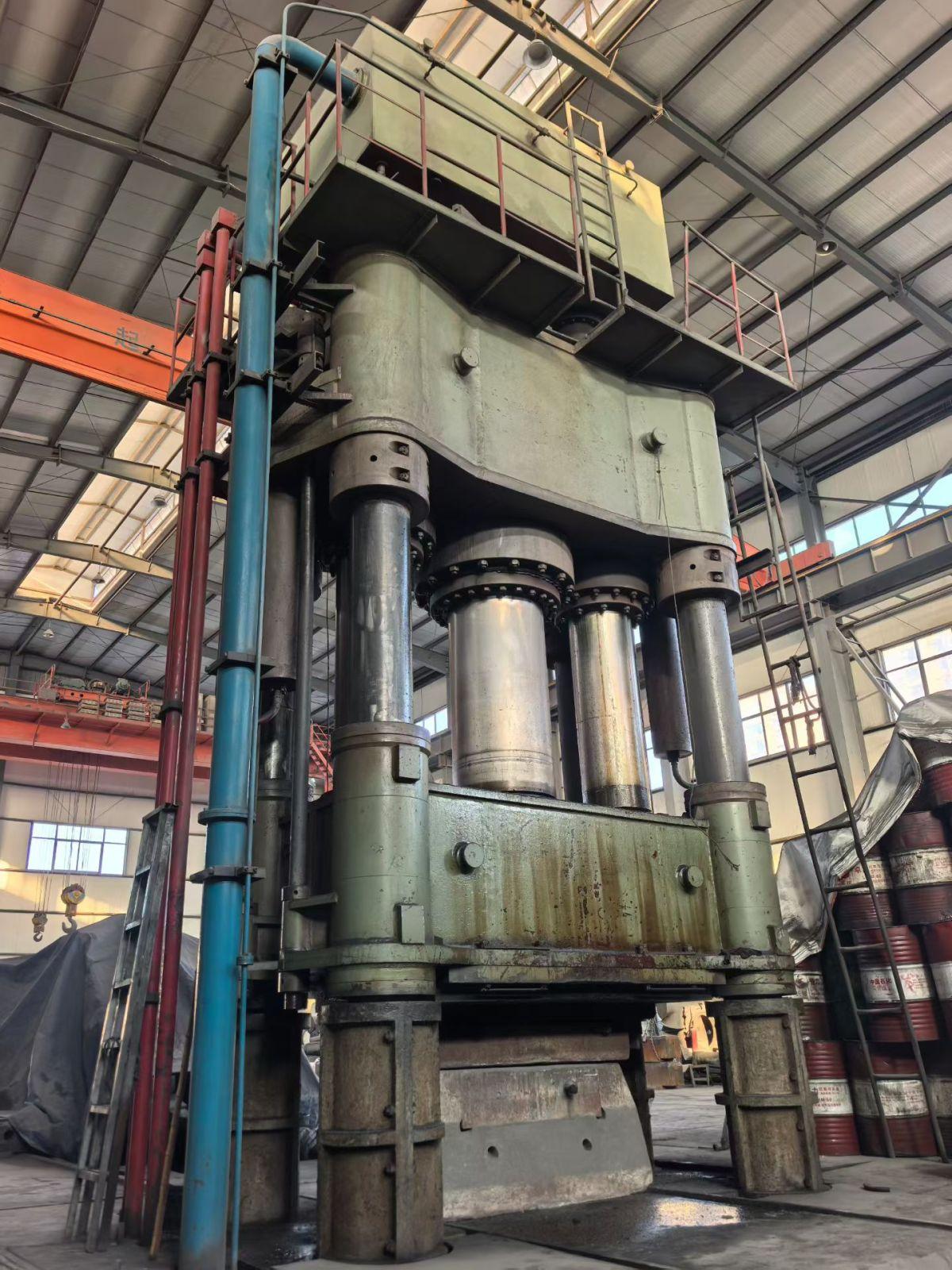

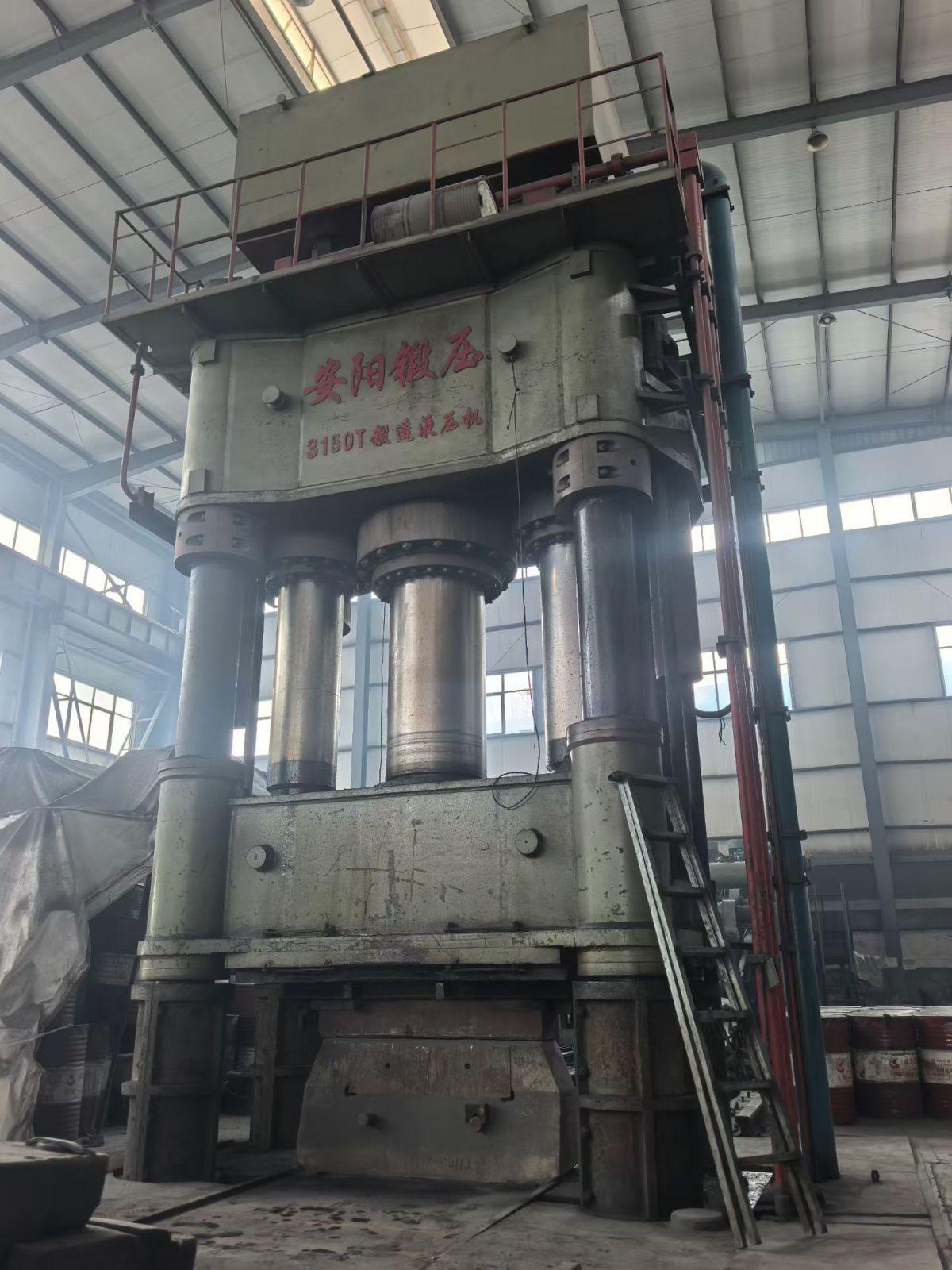

ANYANG T31DYH-8 Punch / press

Clamping weight: 8,000 kg
Clamping torque: 150 kN·m
Minimum clamping bar size: 180 mm
Maximum clamping bar size: 1,000 mm

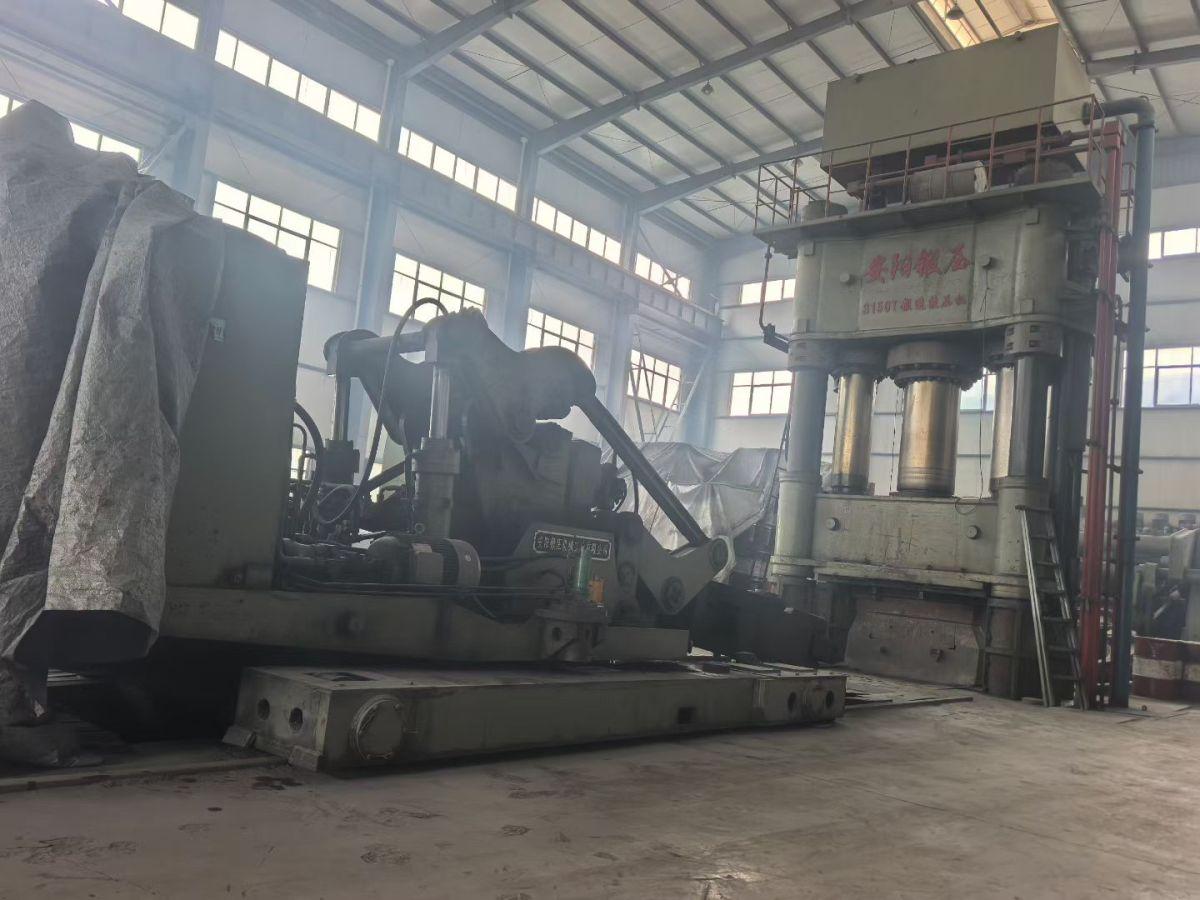

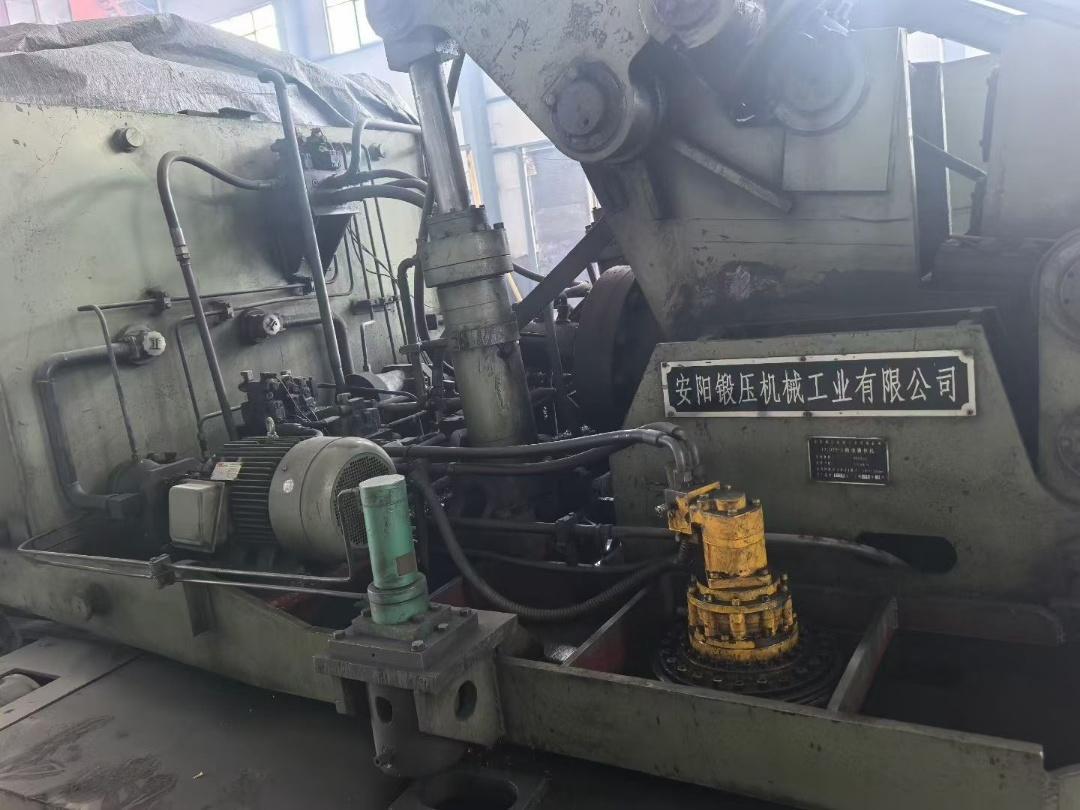

Configuration: 8-ton rotary manipulator
Main Press Parameters
Nominal force: 31.5 MN (Stepped pressure: 20 MN / 31.5 MN)
Working pressure: 25 MPa
Maximum stroke: 1,600 mm
Maximum daylight: 3,000 mm
Worktable Specifications
Table size: 4,800 × 2,000 mm
Maximum table sliding stroke: 2,000 mm
Table moving speed: 200 mm/s
Structural Dimensions
Column center distance: 3,200 × 1,600 mm
Maximum allowable eccentricity: 80 mm
Ram (Moving Beam) Performance
Rapid downward speed: 250 mm/s
Working downward speed: 50 mm/s
Return speed: 250 mm/s
Working strokes: 6–8 strokes/min
Fast forging strokes: 25–40 strokes/min
Cylinder Specifications
Main cylinder plunger diameter: 3 × Φ800 mm / Φ560 mm
Return cylinder plunger diameter: 2 × Φ250 mm
Forging Capacity
Maximum forging ingot:
Drawing-out: 45 t
Upsetting: 25 t
Motor Power
Main motor power: 1,320 kW
Configuration:
8-ton rotary manipulator
Dimensions & Weight:
Upper Crossbeam:
Weight: 34.544 tons
Dimensions: 4000 × 2400 × 1610 mm
Moving Crossbeam:
Weight: 25.345 tons
Dimensions: 4000 × 2400 × 1550 mm
Lower Crossbeam:
Weight: 40.42 tons
Dimensions: 4000 × 3200 × 1610 mm
Main Hydraulic Cylinder:
Weight: 22.3 tons
Dimensions: 3520 × 1360 × 1080 mm
Auxiliary Hydraulic Cylinders:
Quantity: 2
Unit Weight: 8.687 tons
Total Weight: 17.374 tons
Dimensions: 2100 × 900 × 850 mm
Return Section:
Quantity: 2
Unit Weight: 2.125 tons
Total Weight: 4.251 tons
Dimensions: 3600 × 400 × 400 mm
Column Section:
Quantity: 4
Unit Weight: 14.487 tons
Total Weight: 57.95 tons
Dimensions: 10000 × 350 × 350 mm
Moving Section:
Quantity: 4
Unit Weight: 10.59 tons
Total Weight: 42.37 tons
Dimensions: 50000 × 500 × 1000 mm
Quick Die Change Unit:
Dimensions: 1800 × 500 × 1500 mm
Liquid Replenishment Section:
Weight: 5.742 tons
Dimensions: 2000 × 1500 × 1000 mm
Foundation Section:
Quantity: 10
Total Weight: 6 tons
Guide Sleeve:
Weight: 1.12 tons
Guide Sleeve Cover:
Weight: 0.92 tons
Safety Platform:
Weight: 0.5 tons
Tooling:
Weight: 2 tons
Hydraulic Station (Detachable):
Weight: 45 tons
Dimensions: 14800 × 4500 × 2000 mm
Piping:
Weight: 5 tons

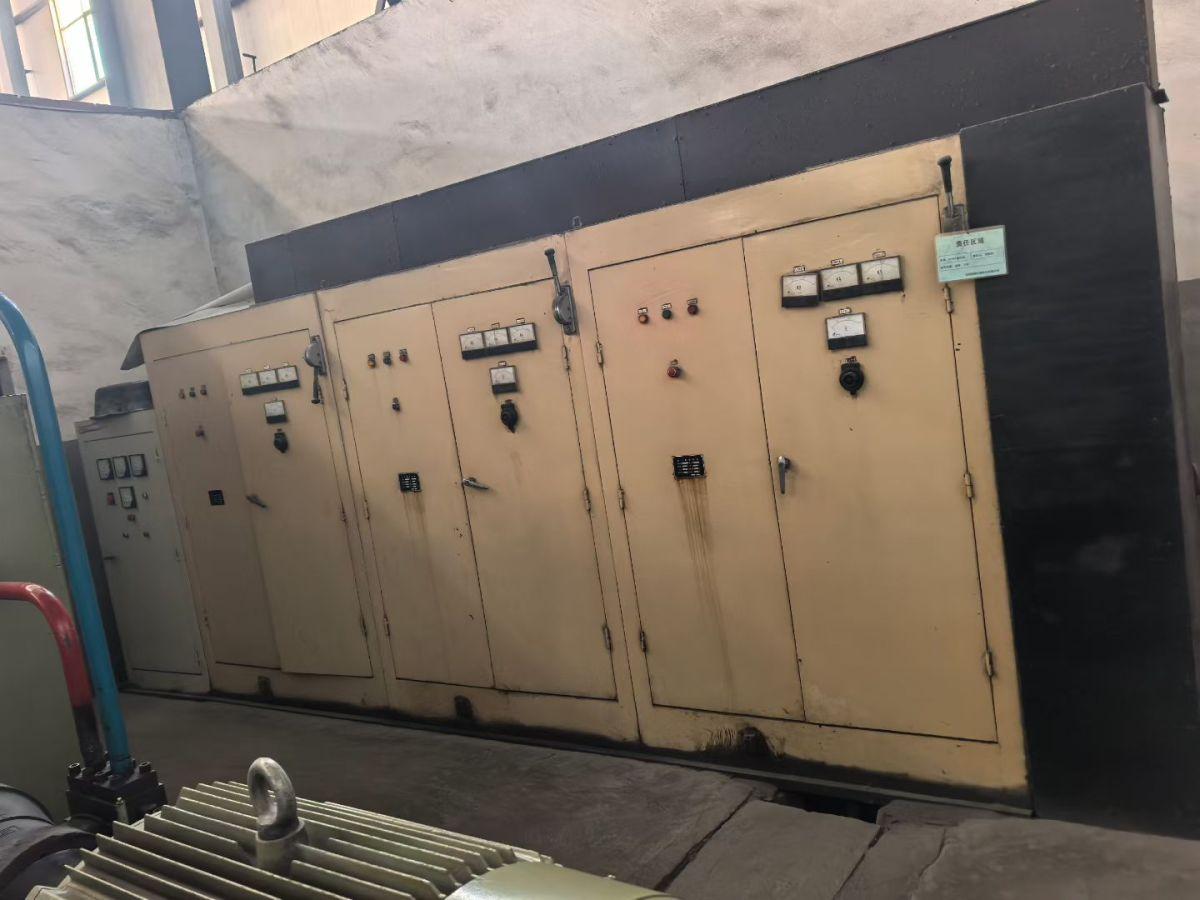

Electrical Section:
Weight: 2.5 tons
Main Body Weight: 276.639 tons
Total Weight: 329.139 tons

​
