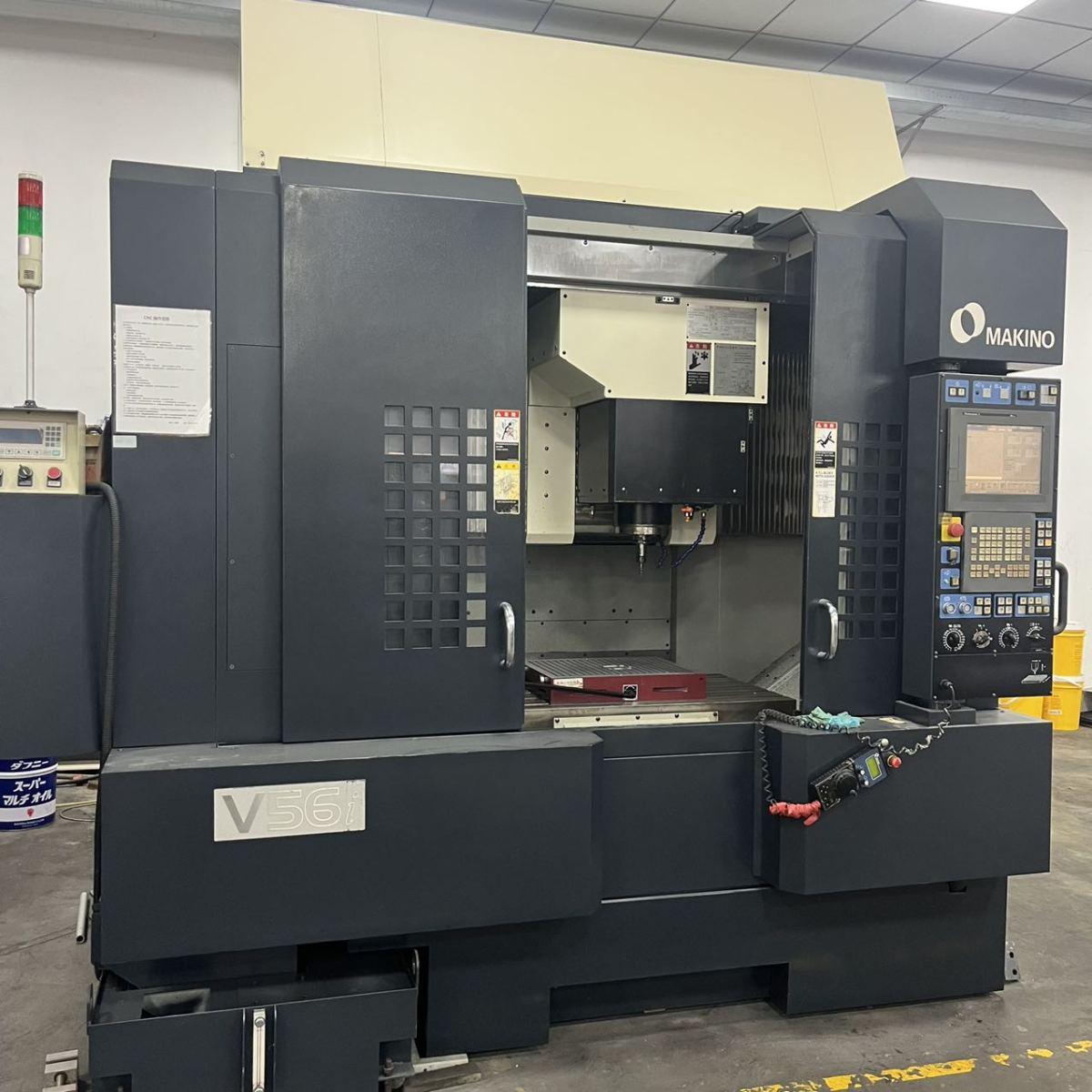

Makino V56i Vertical Machining centre

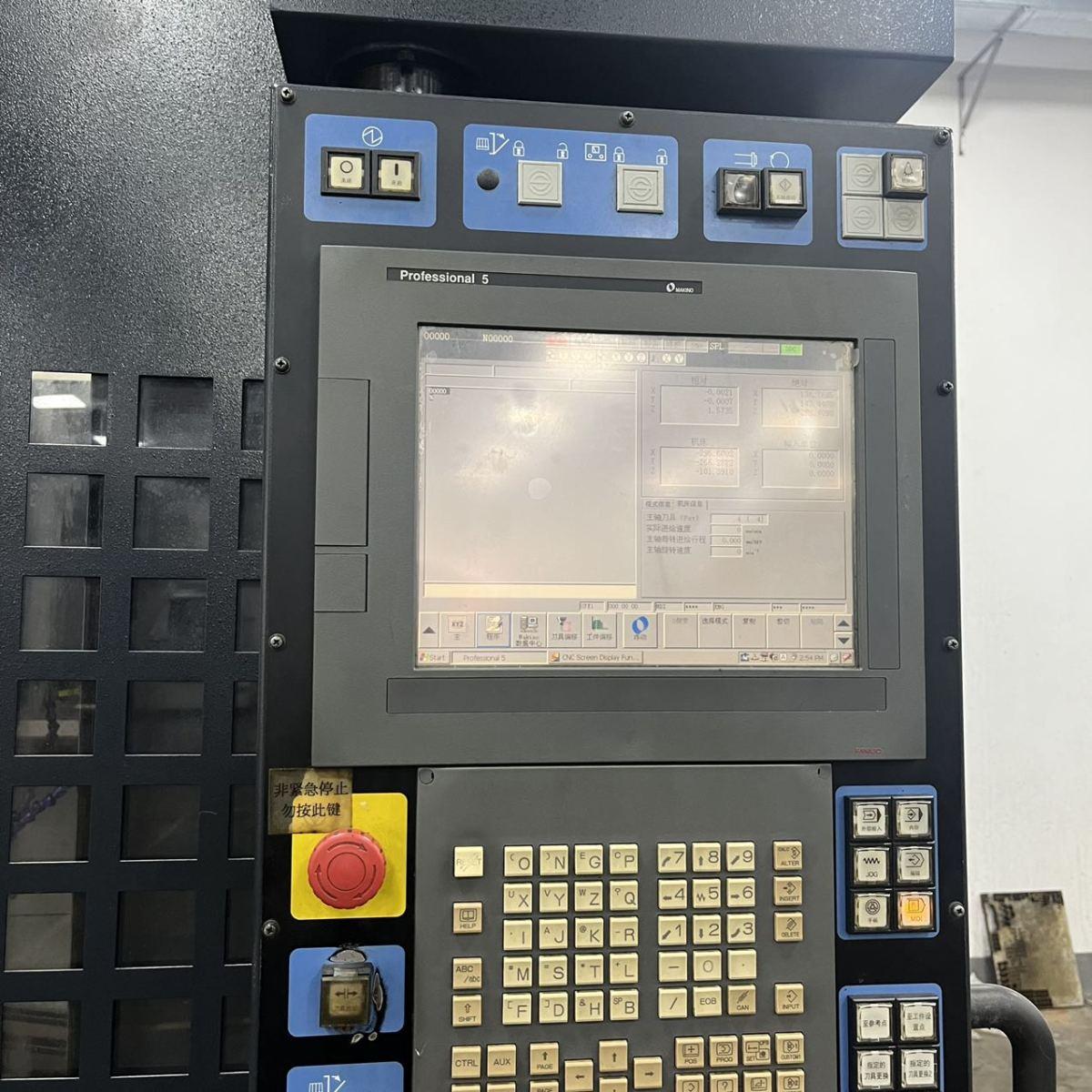

CNC system: Professioanl 5
Three-axis travel: 900 × 550 × 450 mm
Distance from table surface to spindle nose: 150–600 mm

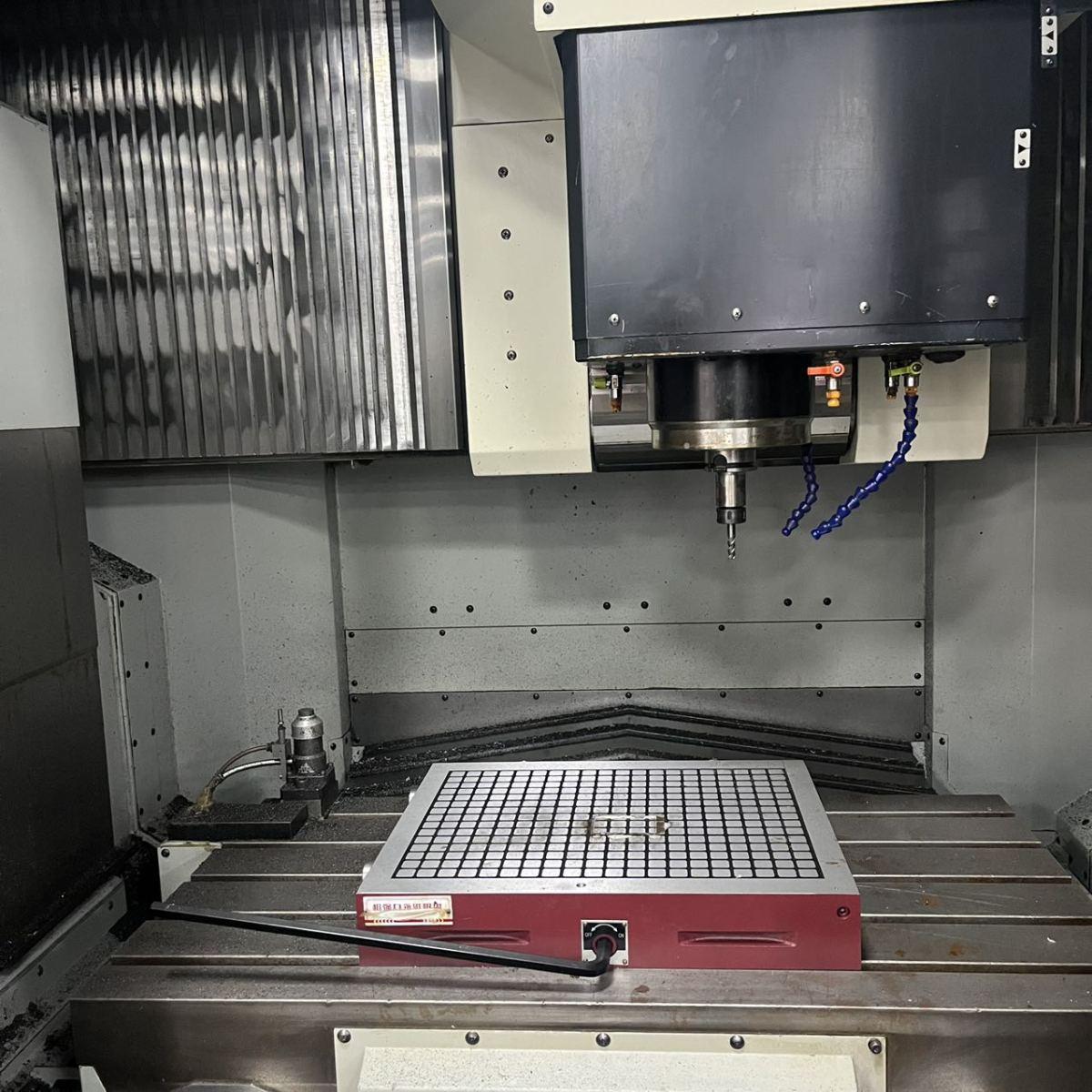

Worktable size: 1050 × 550 mm
Maximum workpiece size: 1050 × 720 × 450 mm
Maximum load capacity: 800 kg
Spindle speed: 20000 rpm
Power: 18.5/15 kW
Torque: 95.5/63.7 N·m
Tool shank type: BT40
Bearing inner diameter: 80 mm
Rapid traverse speed: 20000 mm/min
Cutting feed rate: 1–20000 mm/min

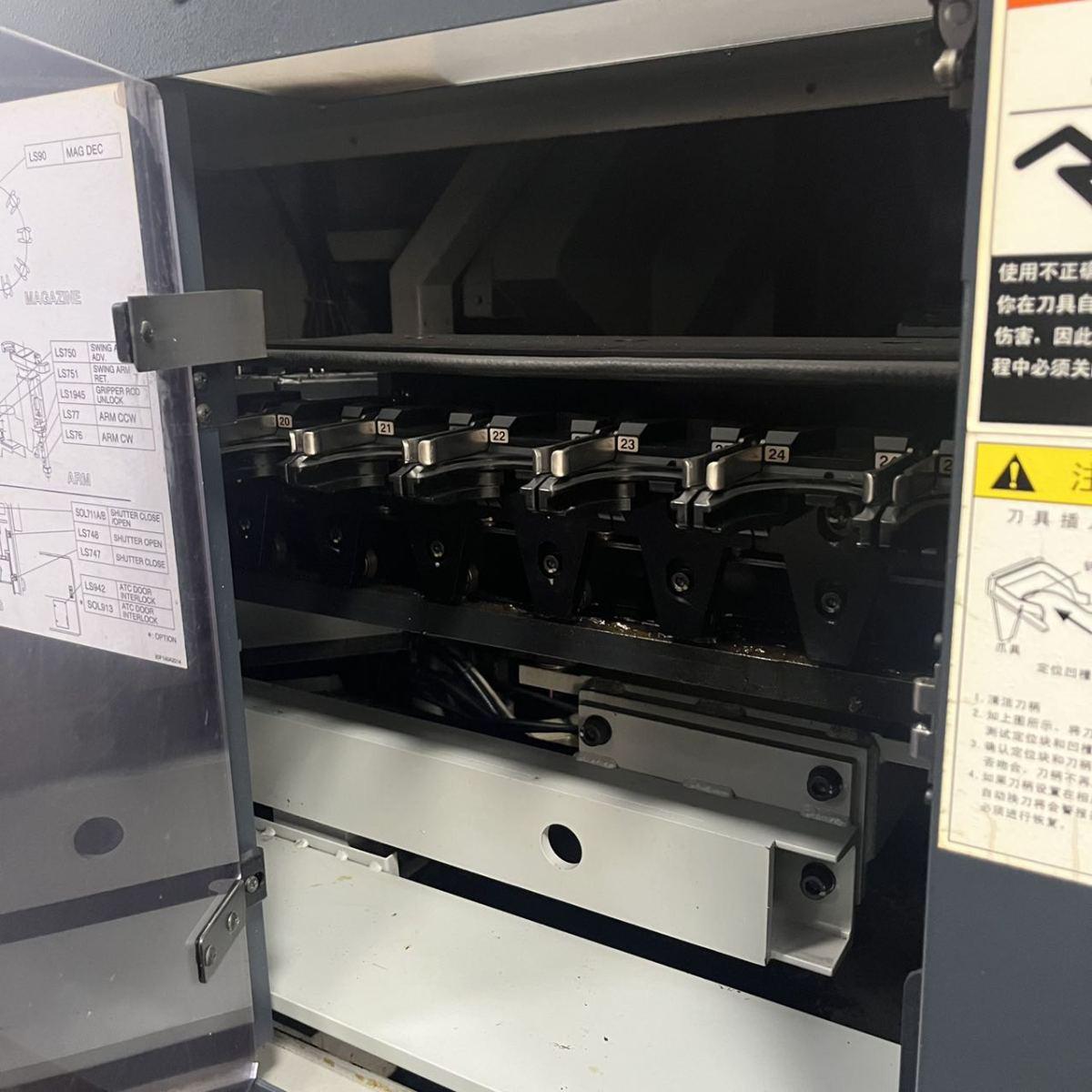

Tool magazine capacity: 15
Maximum tool diameter: 80 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Overall dimensions: 3470 × 3110 × 2925 mm
