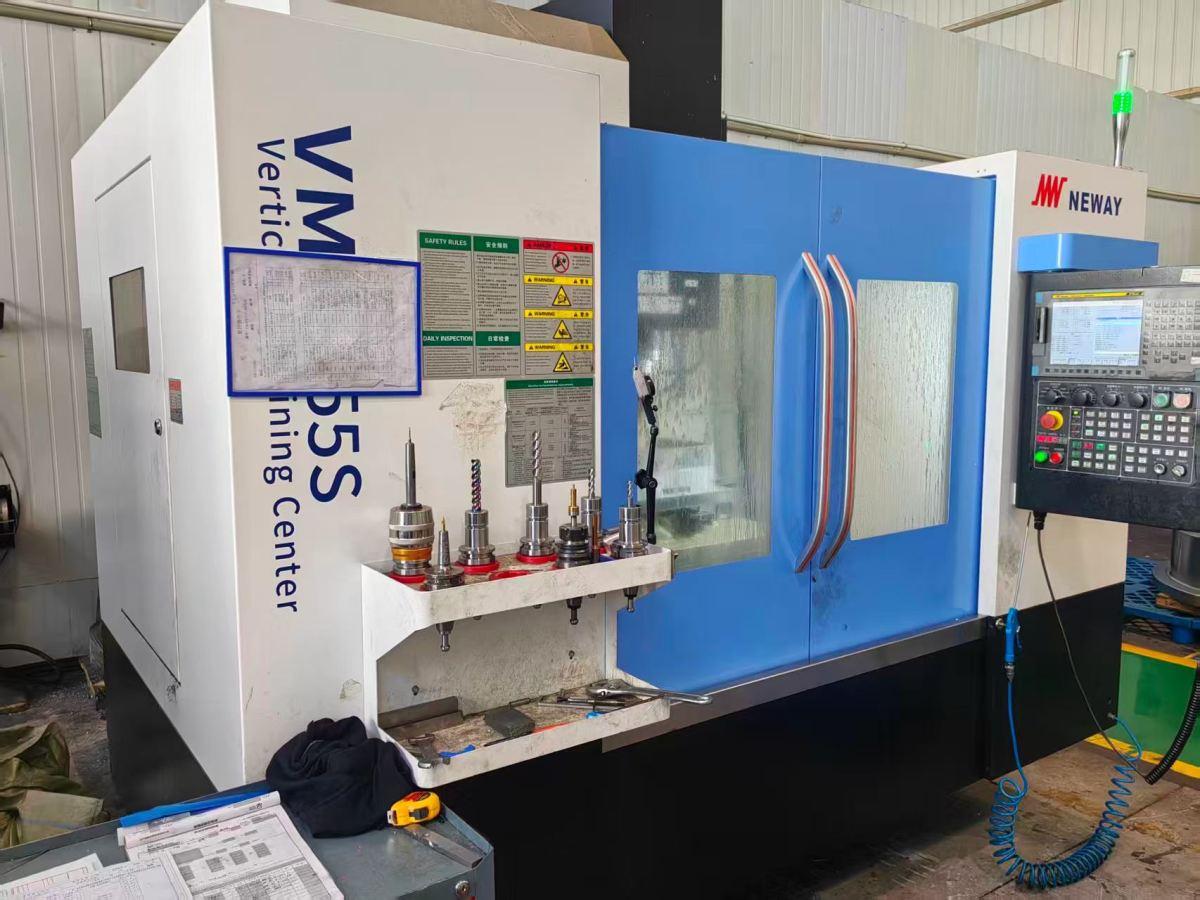

NEWAY VM1155S Vertical Machining centre

Workbench dimensions: 1100x550mm
Workbench load capacity: 700kg
Three-axis travel range: 1000x550x560mm
Distance from the main shaft’s end face to the worktable surface: 120 to 680 mm.
Distance from the main shaft center to the column guide rail surface: 580mm
Three-axis rapid movement speed: 36/36/36 m/min.
Main motor power: 7.5/11kW
Spindle speed: 8,000 rpm
Spindle: BT40
Knife storage capacity: 24 knives.
Positioning accuracy: 0.008 mm
Repeat positioning accuracy: 0.005 mm
