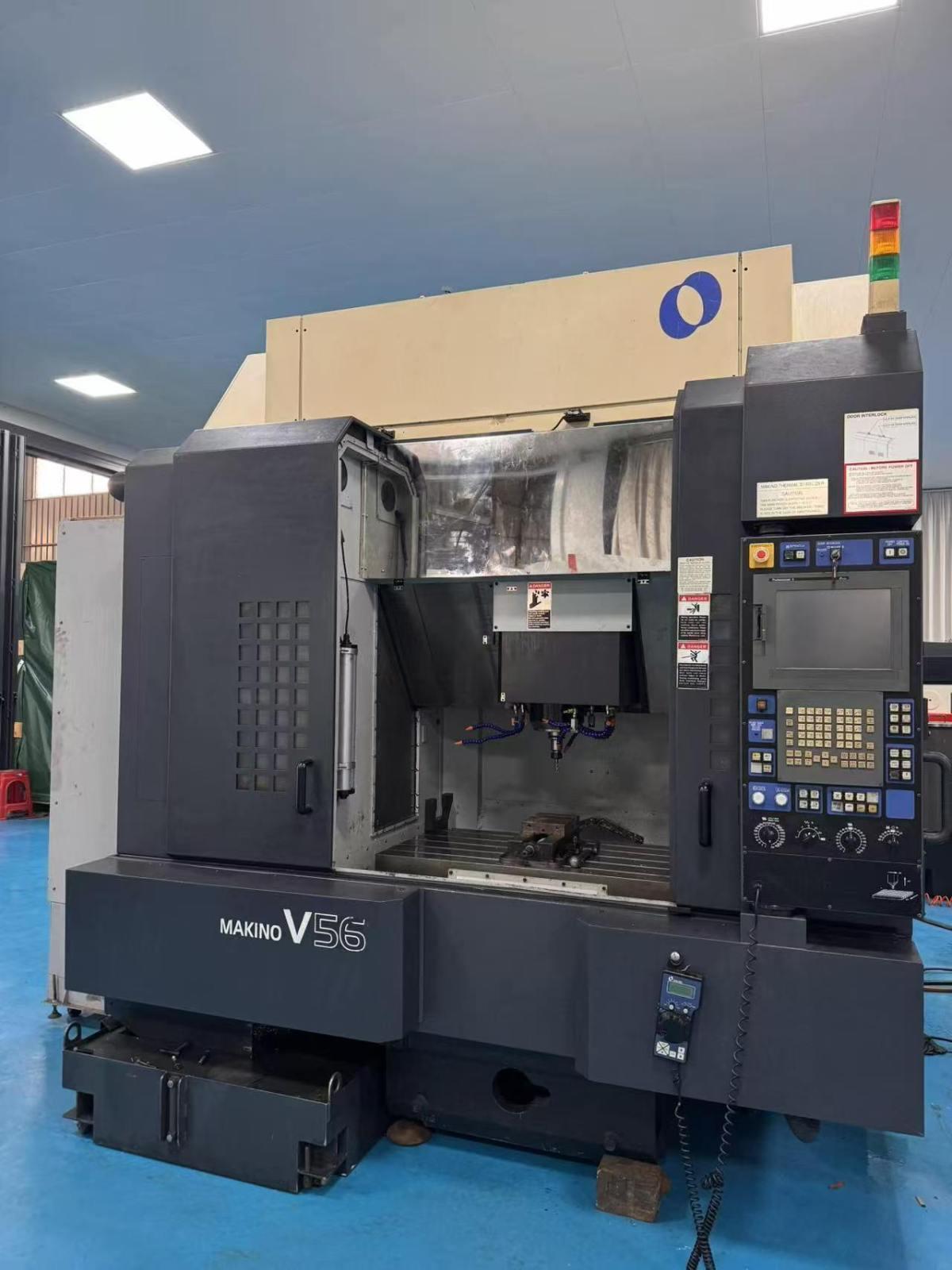

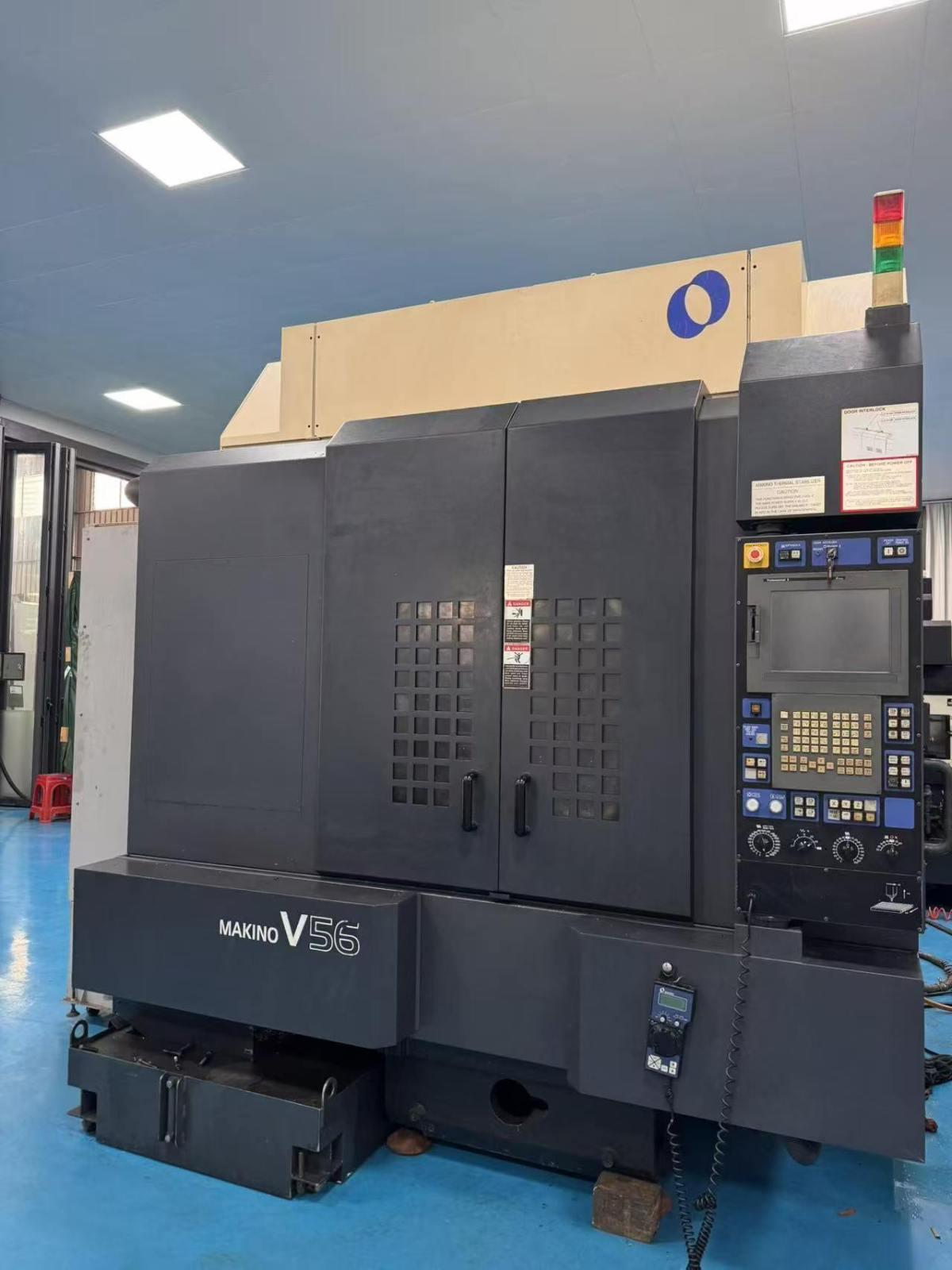

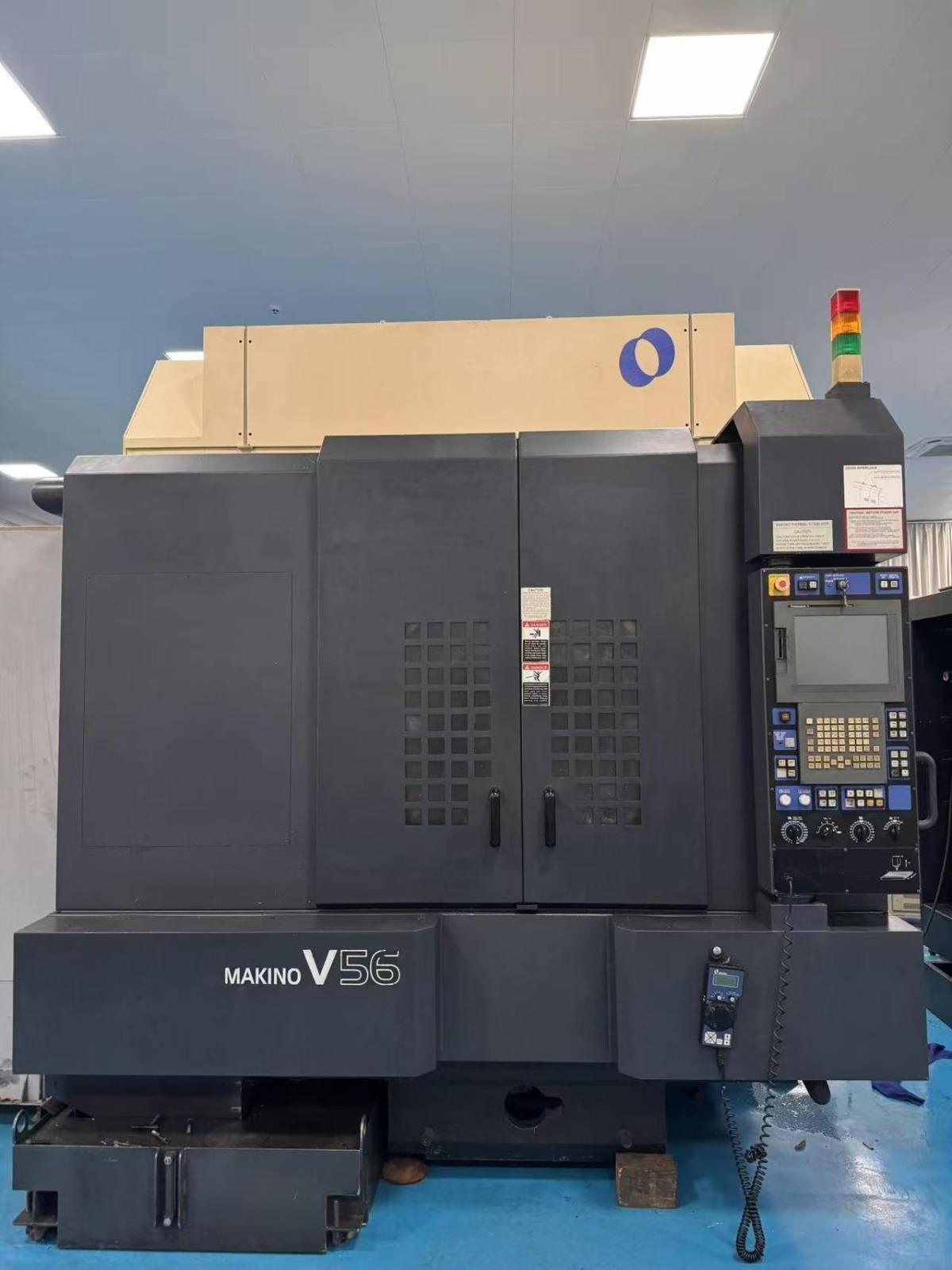

Makino V56 Vertical Machining centre

CNC System: Professional 5
Three-axis travel: 900 × 500 × 450 mm
Worktable size: 1050 × 550 mm
Spindle: HSK-F63
Spindle speed: 30,000 rpm
Tool aligner: BLUM Laser Tool Aligner
Glass scale: Full-axis glass scale
Drive mode per axis: Lead screw
Chip removal method: Chain chip removal
Distance from spindle to worktable surface: 590 mm
Spindle drive method: Electric spindle
Tool magazine form: Disc-type tool magazine
Tool holder model: BBT40
Magazine capacity: 15 pieces
Machine tool structure: Gantry type
Probe: Marposs probe
Overall dimensions: 2500 × 3300 × 2900 mm
Guideway method: Two rigid guideways and one linear guideway
Accessories: Oil-cooled system, Marposs probe, chip conveyor
