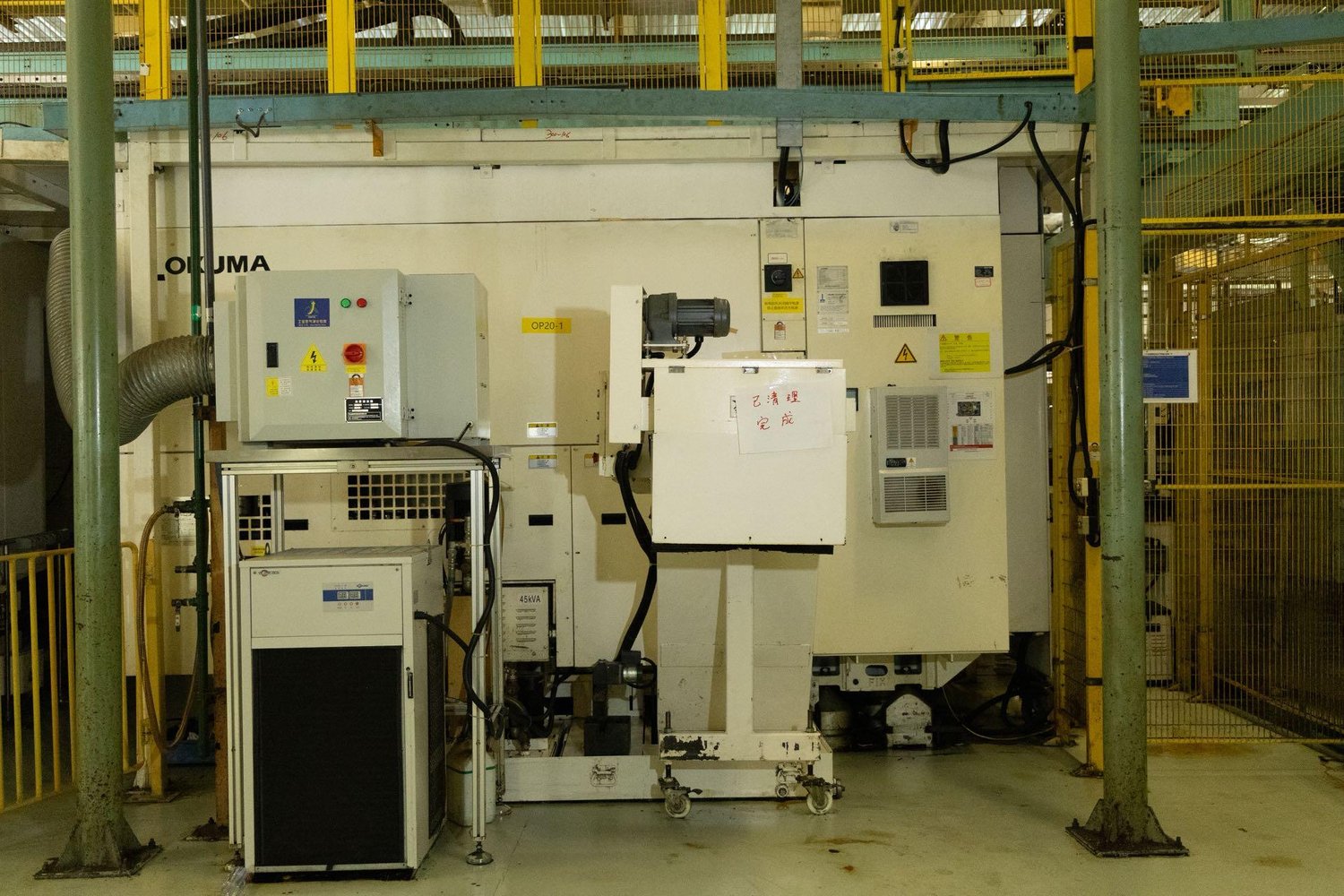

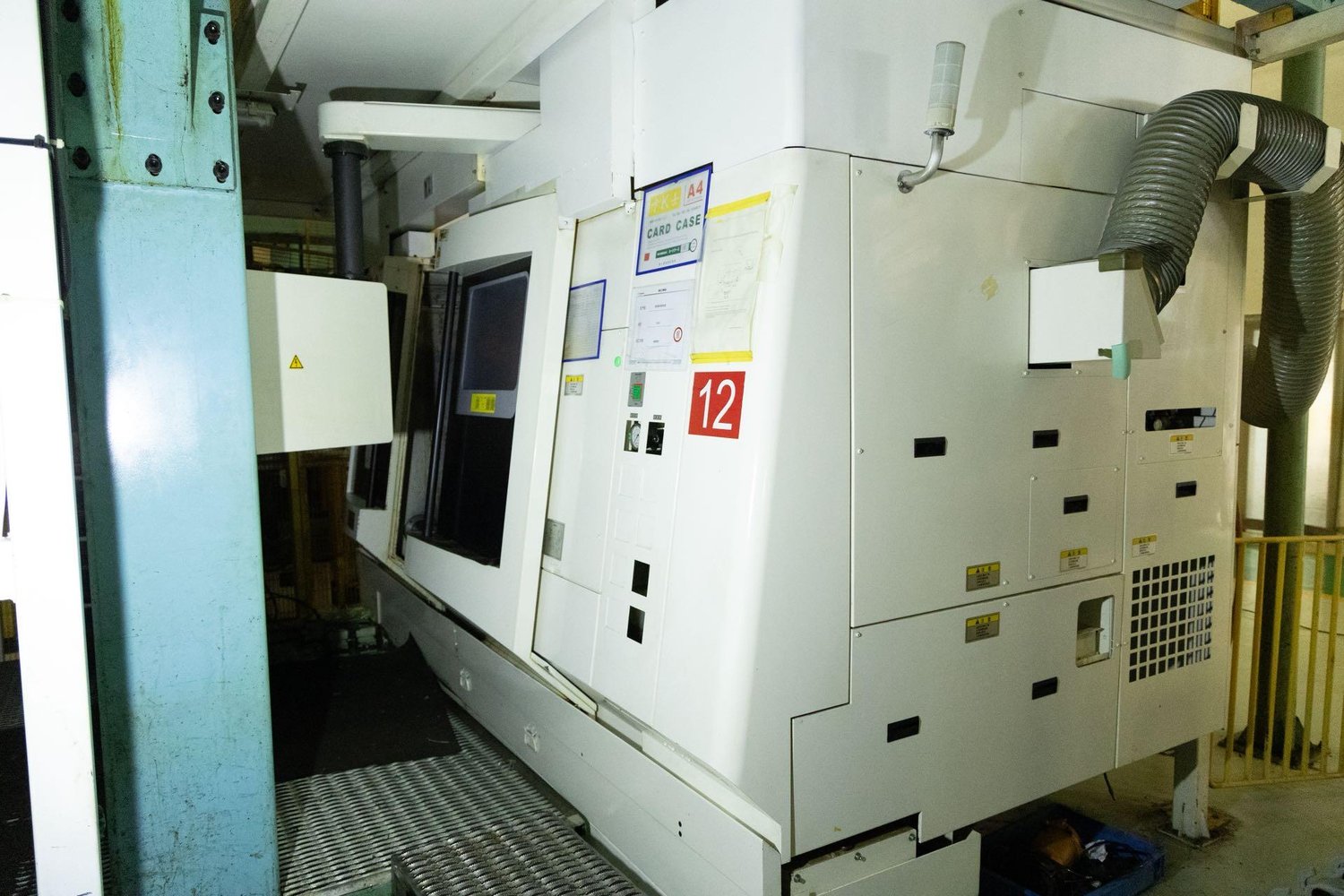

OKUMA LU3000EX CNC turning lathe

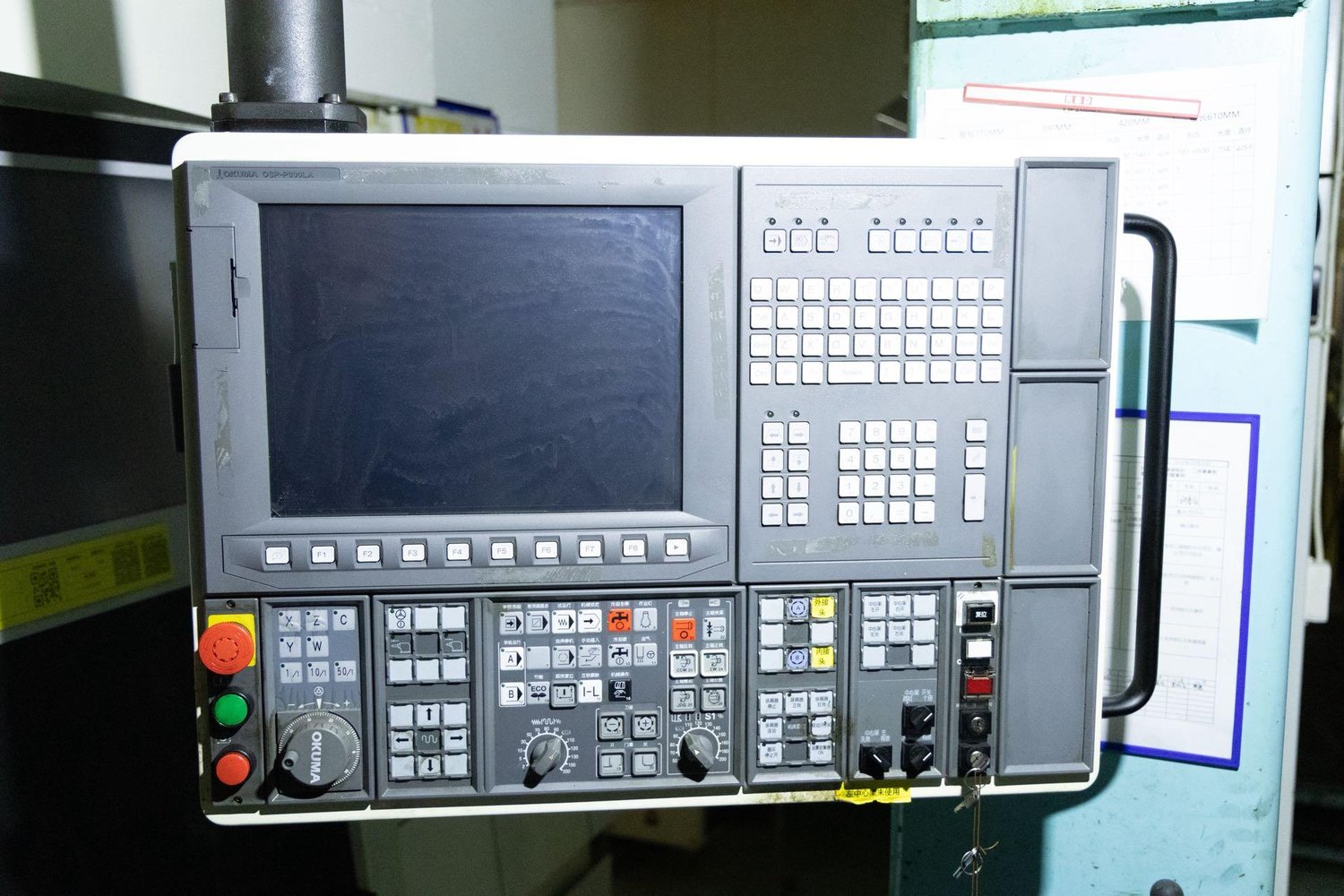

CNC System: OSP-P300LA
Distance between spindle and tailstock center: 1000 mm
Z-axis travel: 1000 mm
X1-axis travel (upper tool turret): 235 mm
X2-axis travel (lower turret): 210 mm
Maximum machining diameter over bed: Ø580 mm
Maximum machining length: 800 mm
Maximum outer circle cutting diameter: Ø340 mm
Maximum spindle speed: 5000 rpm
Spindle power: 22/15 kW
X-axis fast traverse: 25 m/min
Z-axis fast traverse: 30 m/min
Both upper and lower tool turrets are standard equipped with servo-driven turrets
