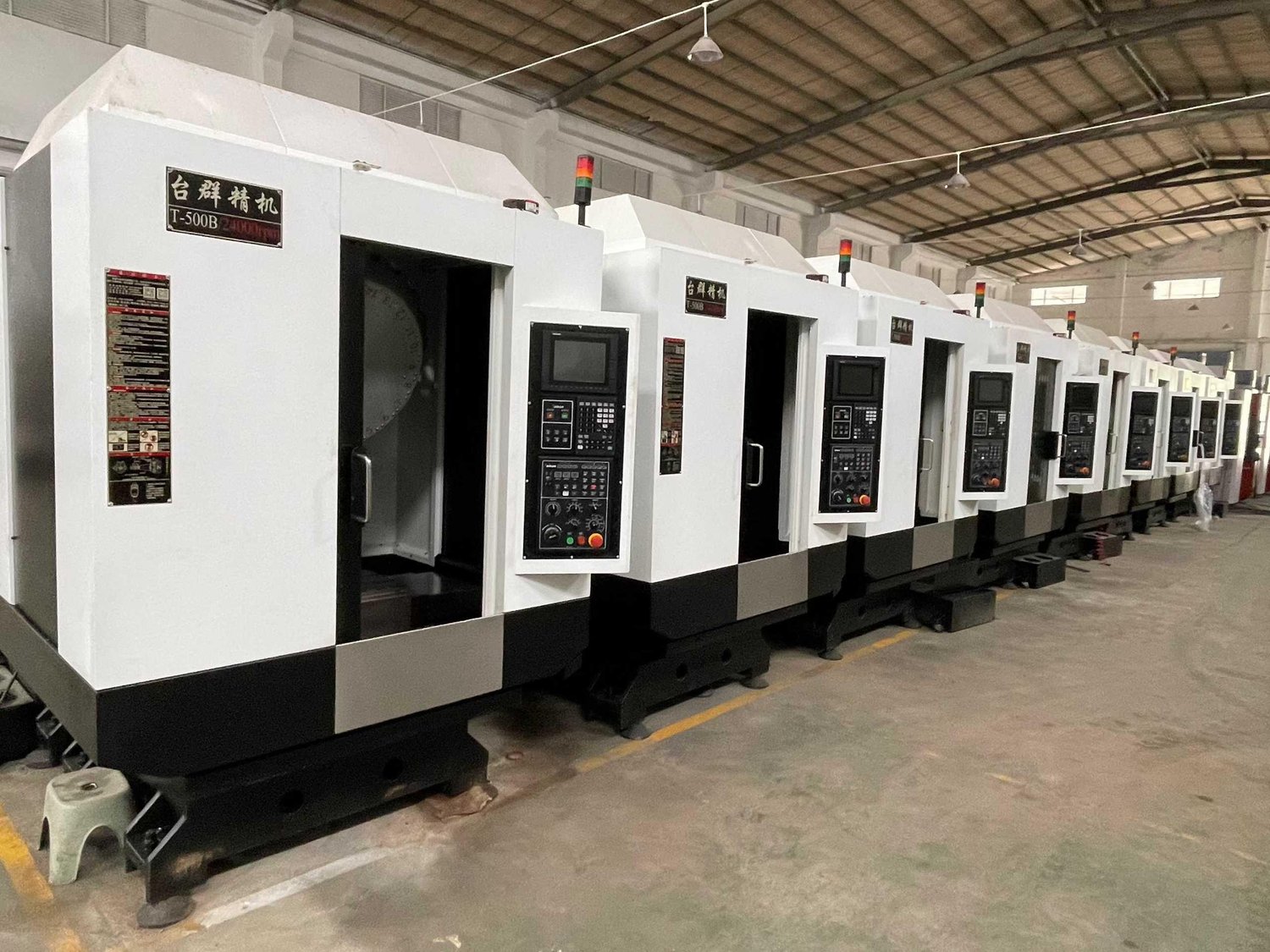

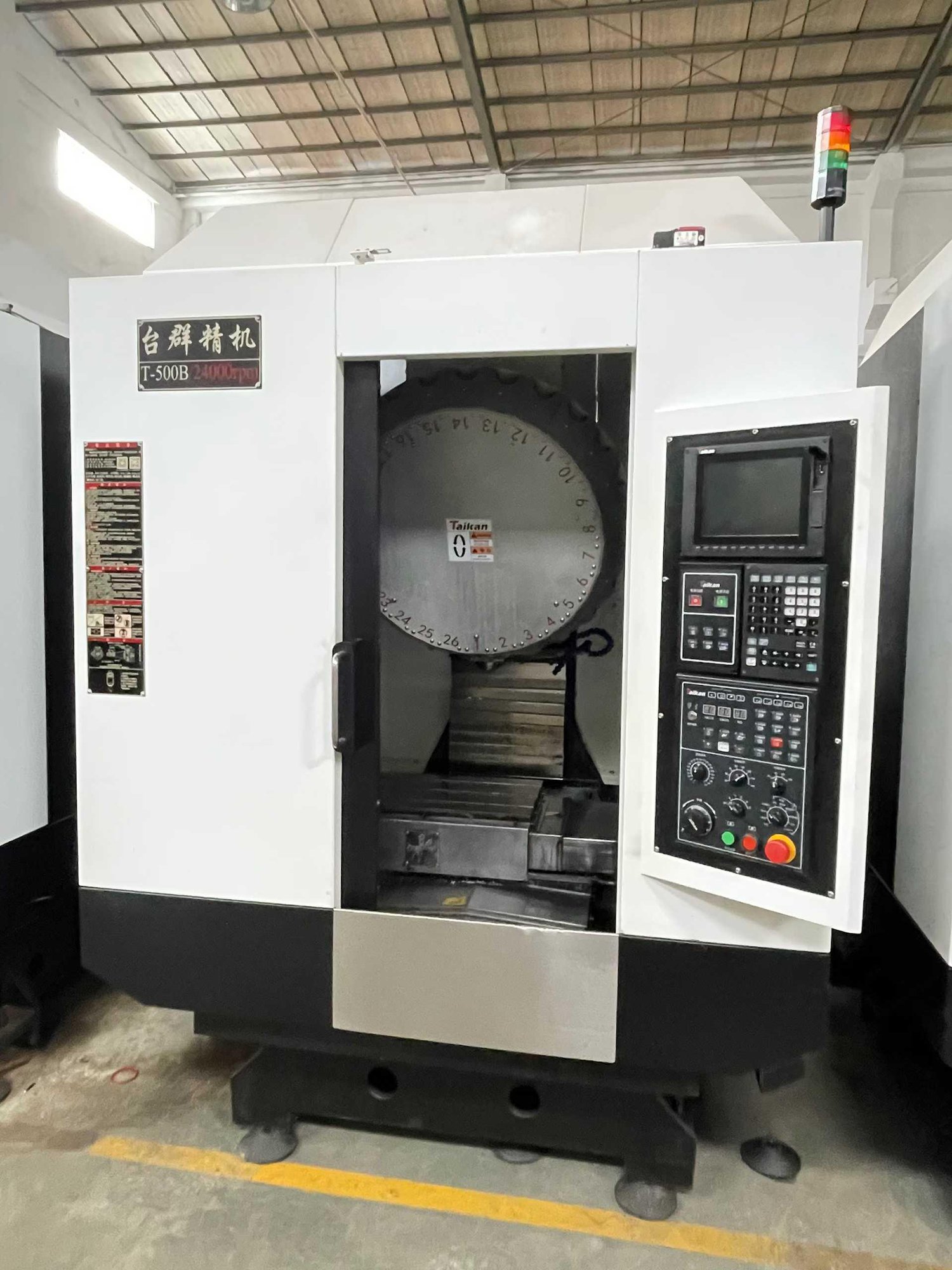

Taikan T-500B Tapping machine

three-axis travel: 500*400*320mm
Distance from spindle nose to Worktable surface: 160-480mm
Worktable size: 620*400mm
Worktable load: 250kg
T-slot: 3*14*120mm
Motor power: 2.2/3.7kw
Motor torque: 7/17.7Nm
Spindle speed: 24,000 RPM
Spindle diameter: 100mm
spindle taper: BT30
Cutting feed rate: 1- 30,000 mm/min
3 axes fast traverse speed: 48m/min
Positioning precision: 0.006mm
Repeated Positioning precision: 0.004mm
magazine capacity: 26
Maximum length of Tool: 200mm
Maximum diameter of the Tool: 60/80mm
Overall dimensions: 1600*2600*2300mm

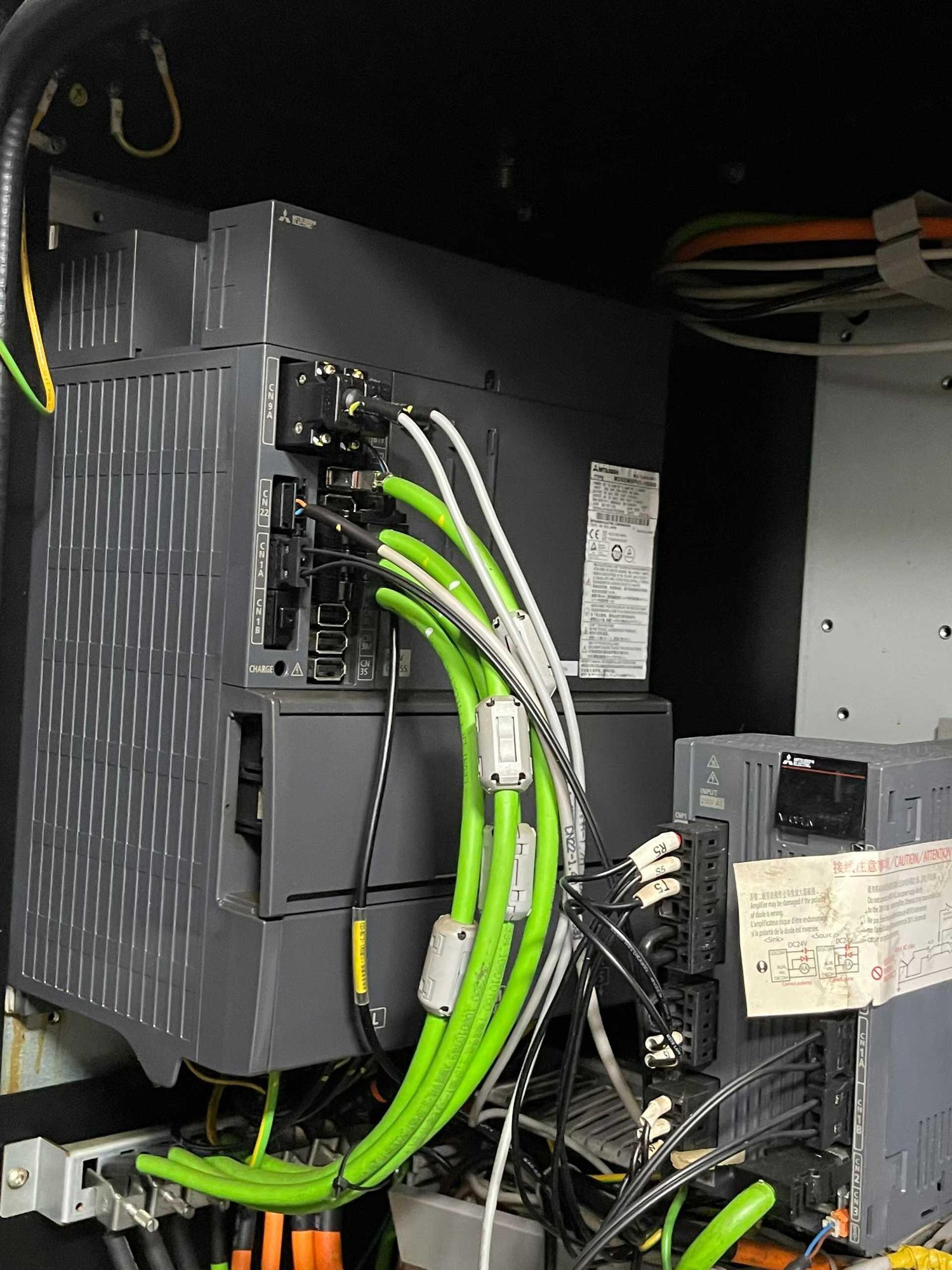

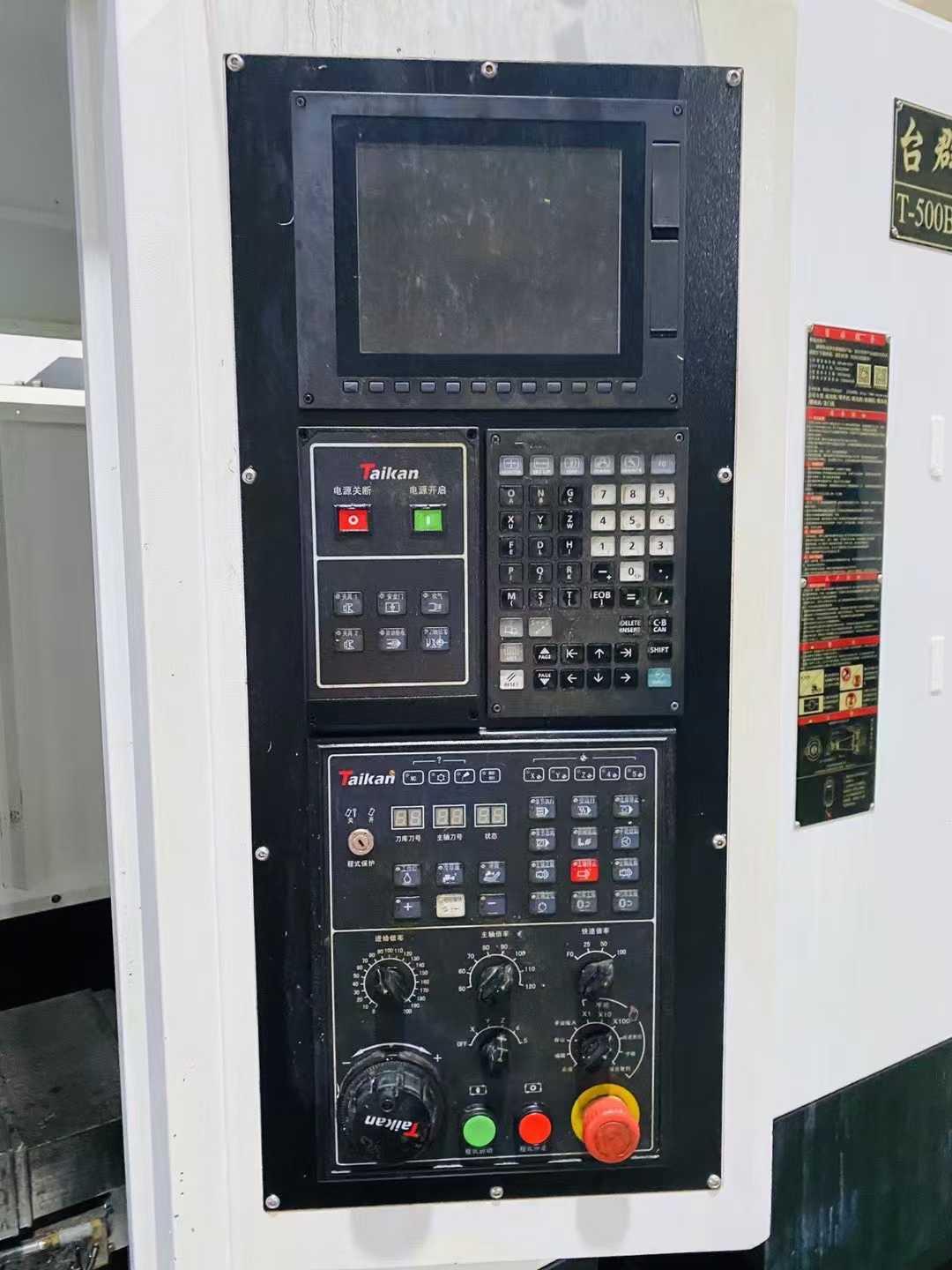

CNC System: Mitsubishi M80
