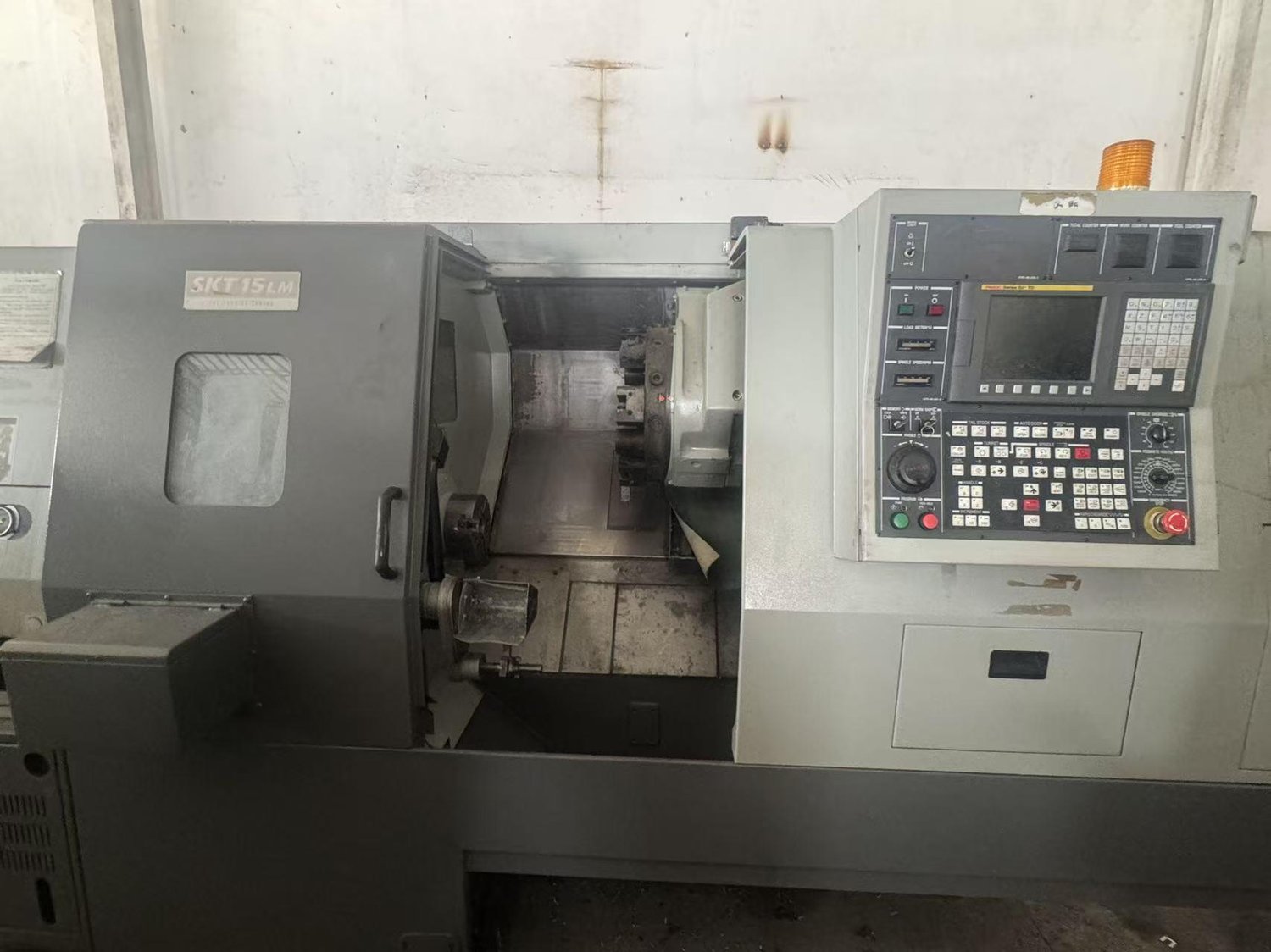

KIA SKT15LM FOI-TC CNC turning lathe

CNC System: FANUC oi-TF
The maximum rotation diameter of the bed: φ550mm
Maximum turning diameter: φ255mm
Maximum Machining length: 530mm
X-axis travel: 234mm
Z-axis travel: 530mm
spindle through hole diameter: φ45mm

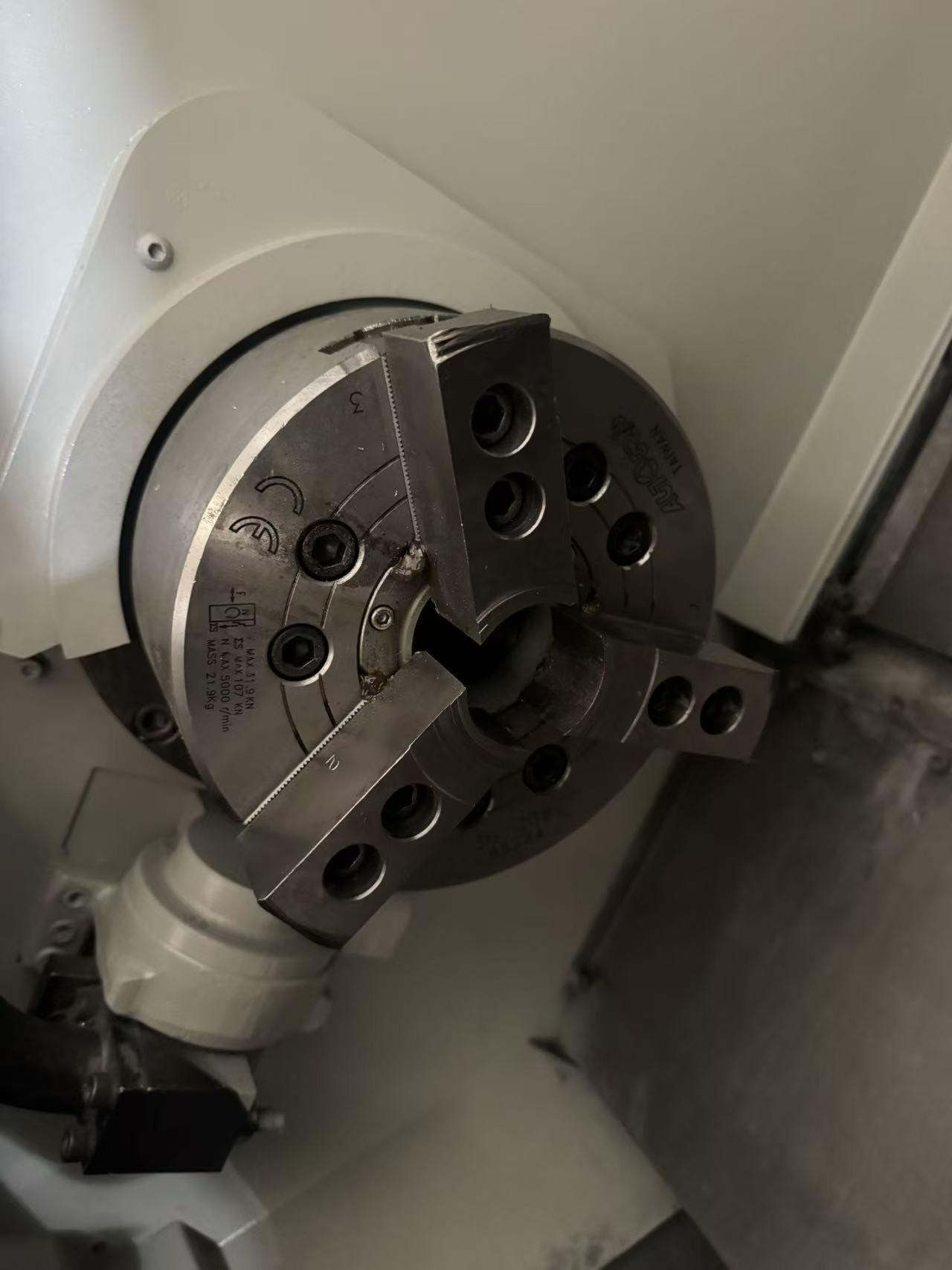

chuck: 8 inches
The maximum machining diameter of bar stock: φ42mm
The maximum distance between spindle and the tailstock is: 650mm
Spindle speed: 6000rpm

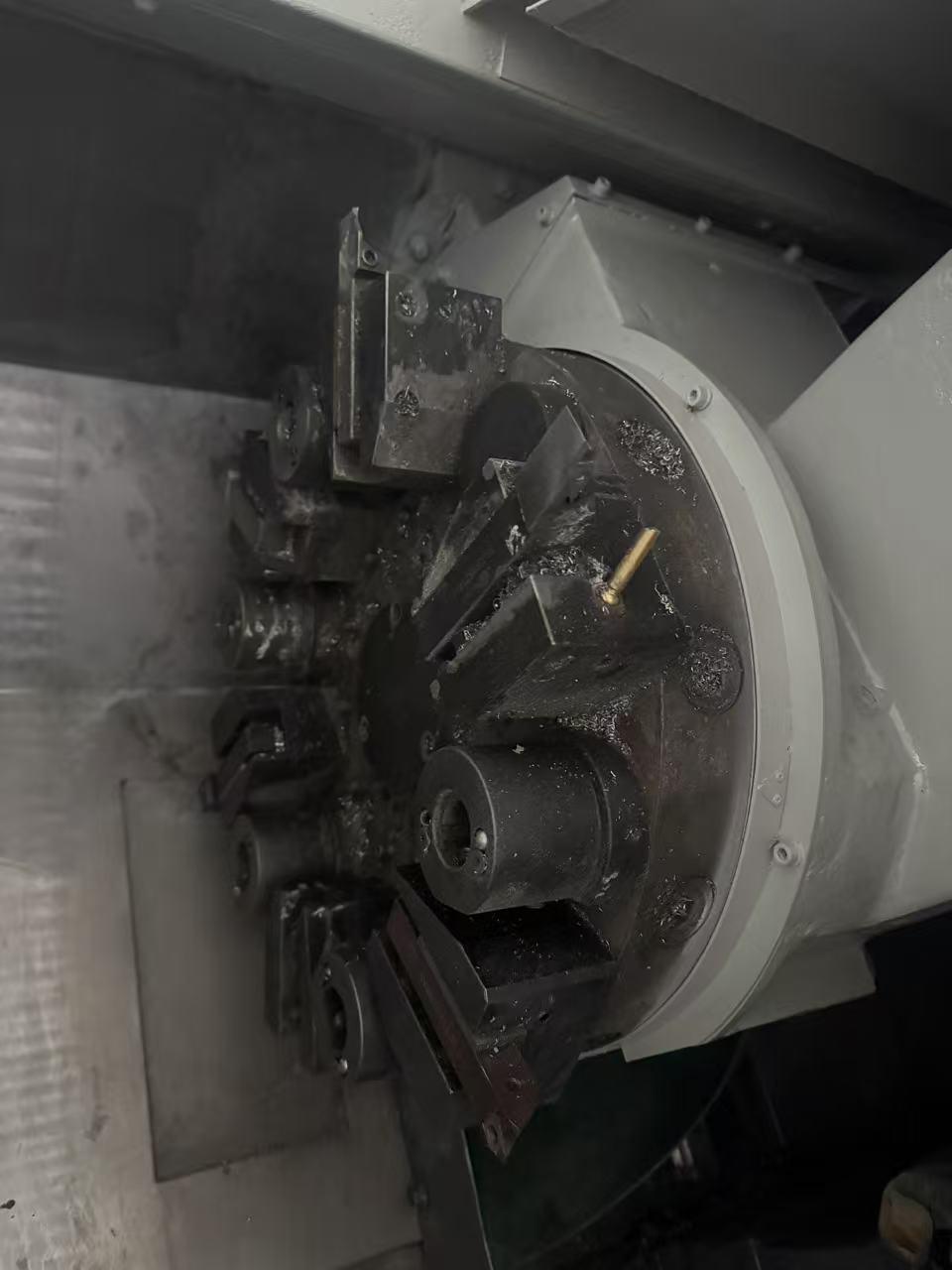

Tool turret form: 12-position hydraulic servo tool turret
