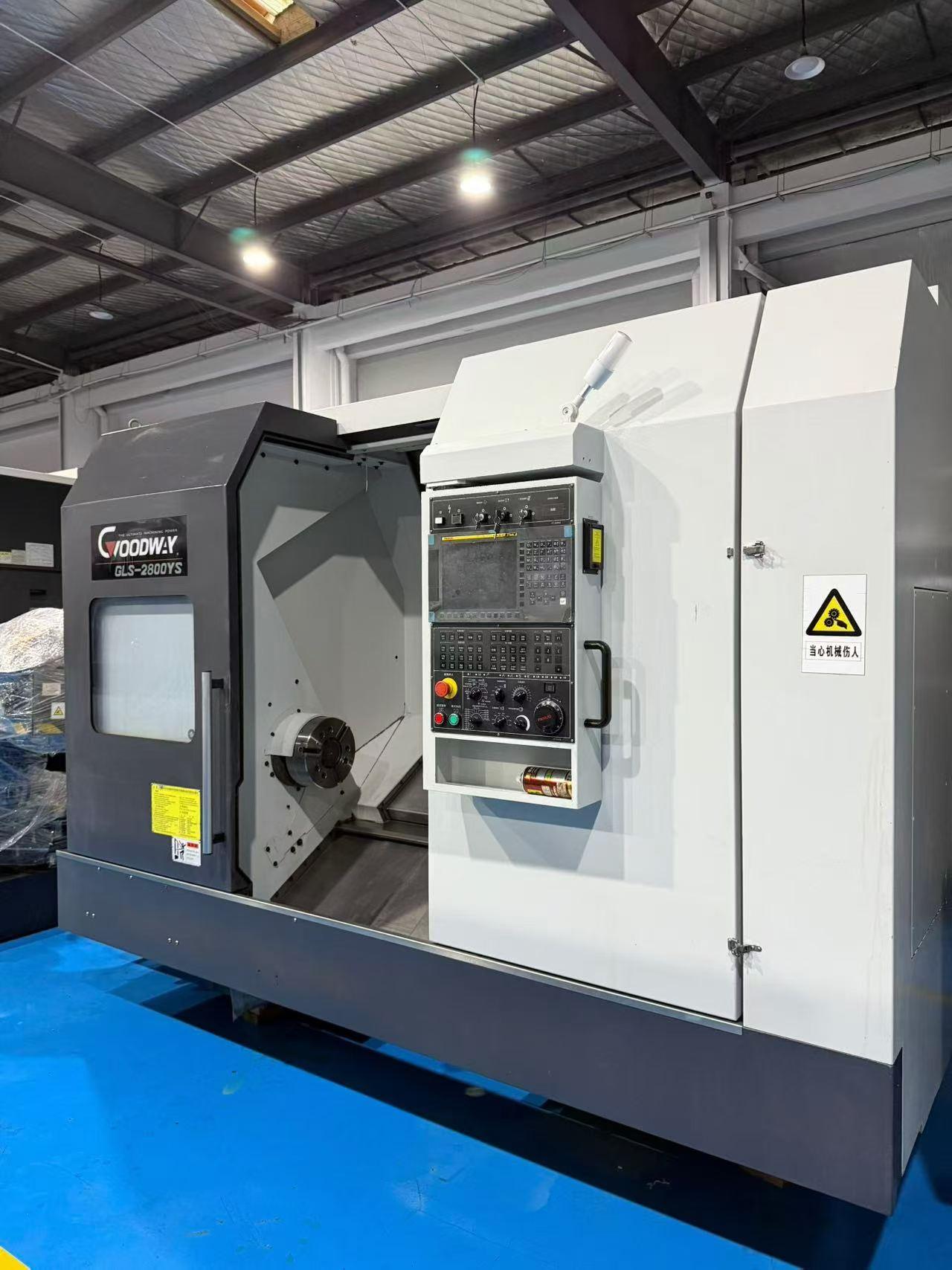

GOODWAY GLS-2800YS Turn Mill Machining Centre

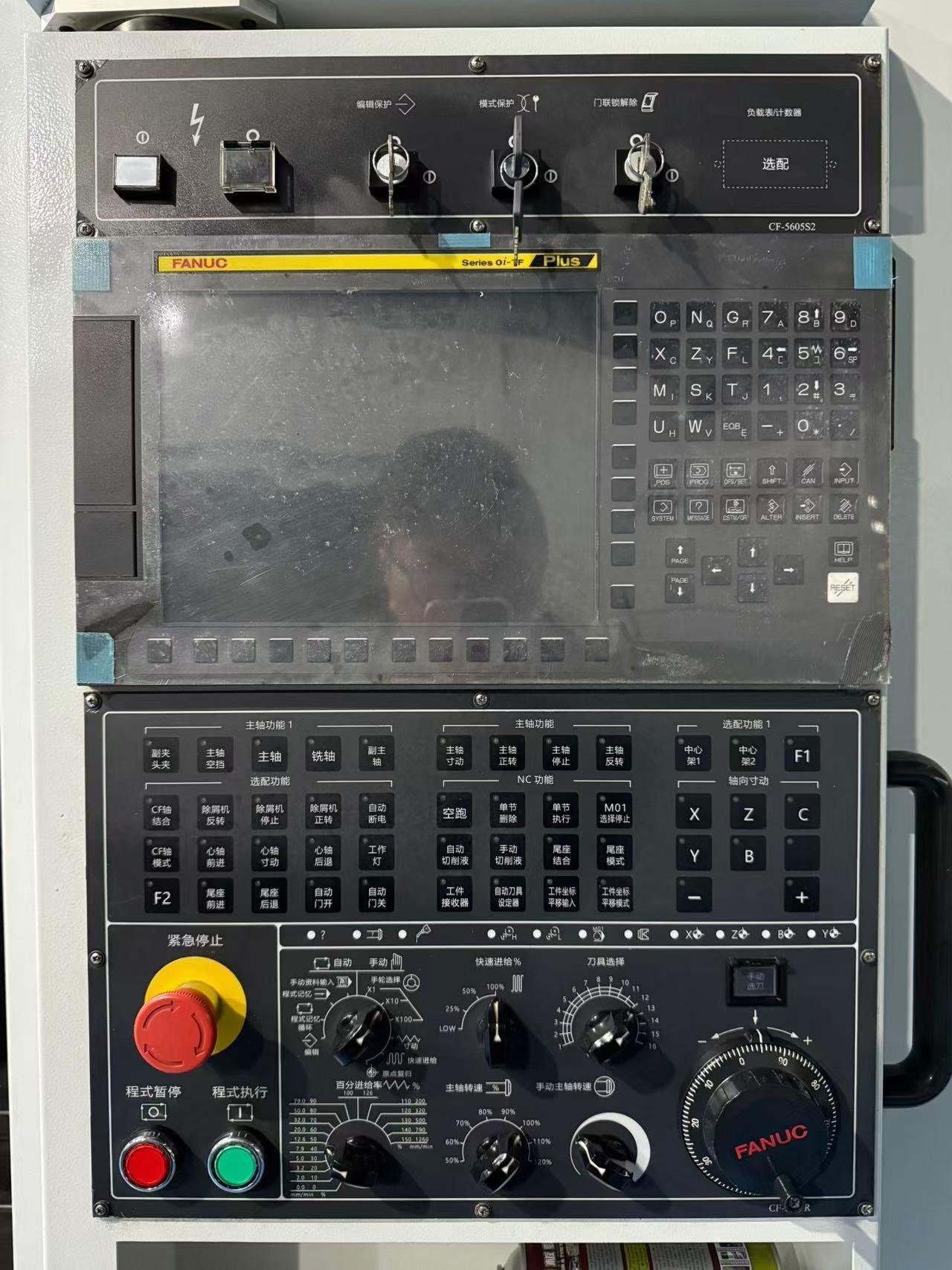

CNC System: FANUC 0i-TF Plus
three-axis travel: 555 * 200 * 760 mm
Maximum rotational diameter: 760mm
Maximum turning and milling diameter: 440mm
Maximum milling length: 720mm
Fast moving rate: 24m/min
Test run precision: 0.01mm
Positive spindle parameters
chuck specification: 10-inch chuck
drive method: strap drive
spindle motor power: 18.5kW
Maximum Spindle speed: 4500 rpm
The diameter of spindle through hole is: 76mm

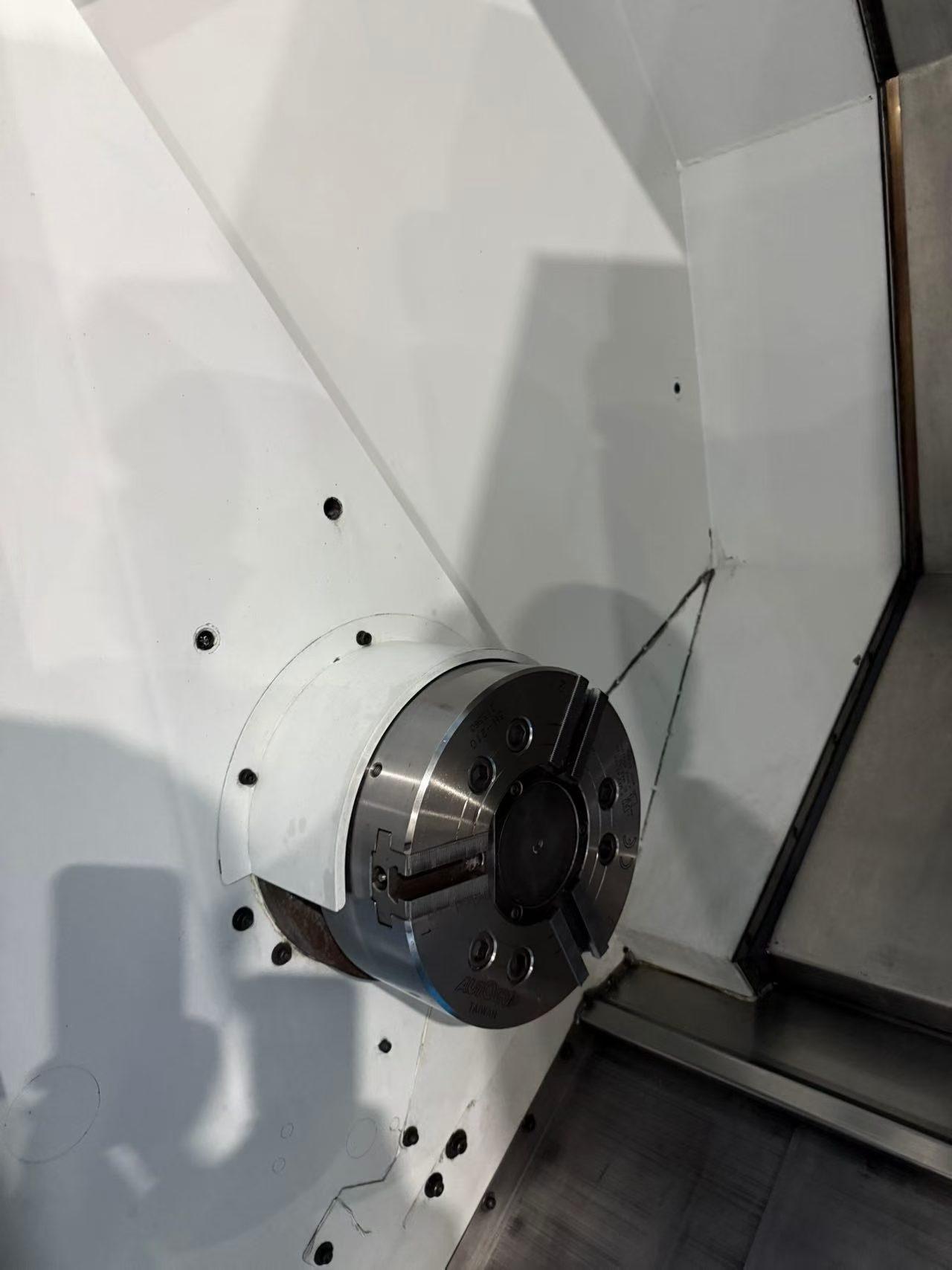

Sub-Spindle parameters:
chuck specification: 8-inch chuck
drive method: strap drive
spindle motor power: 11 kW
Maximum Spindle speed: 4500 rpm
The diameter of spindle through hole is: 52mm
The travel of the forward movement of the B-axis of the secondary spindle is: 750mm
