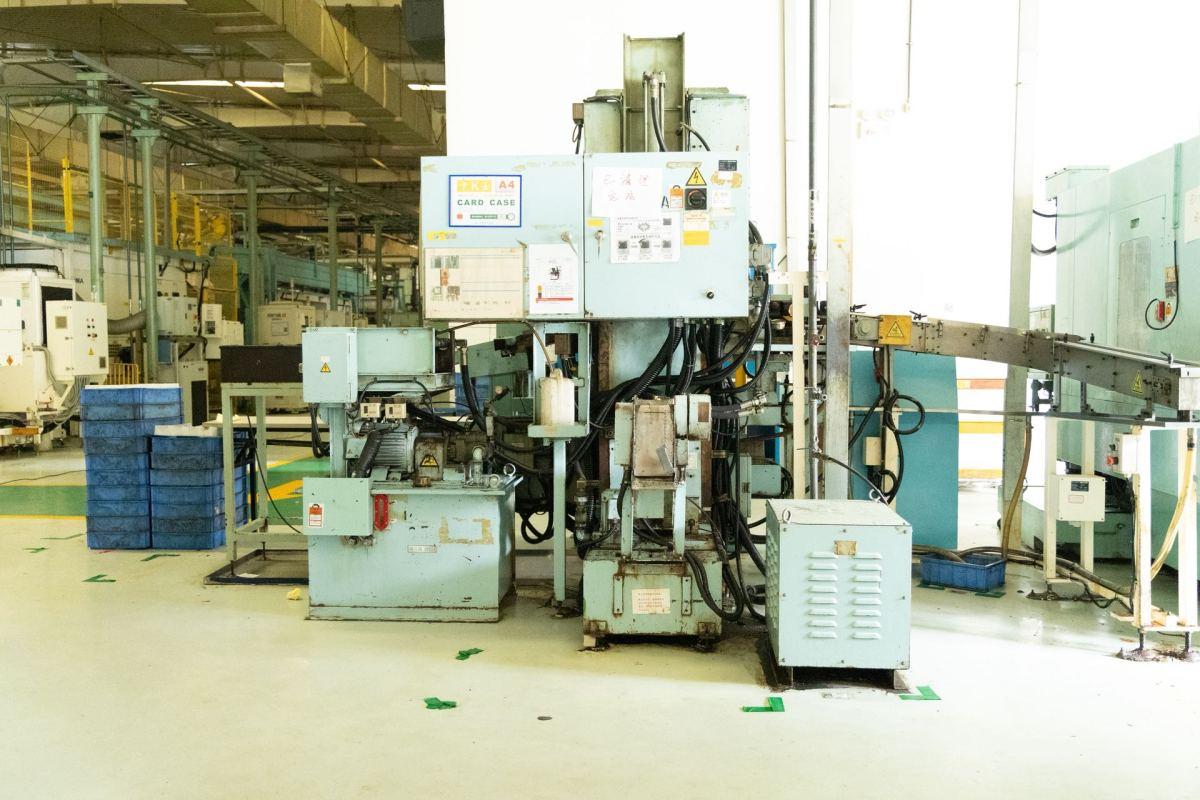

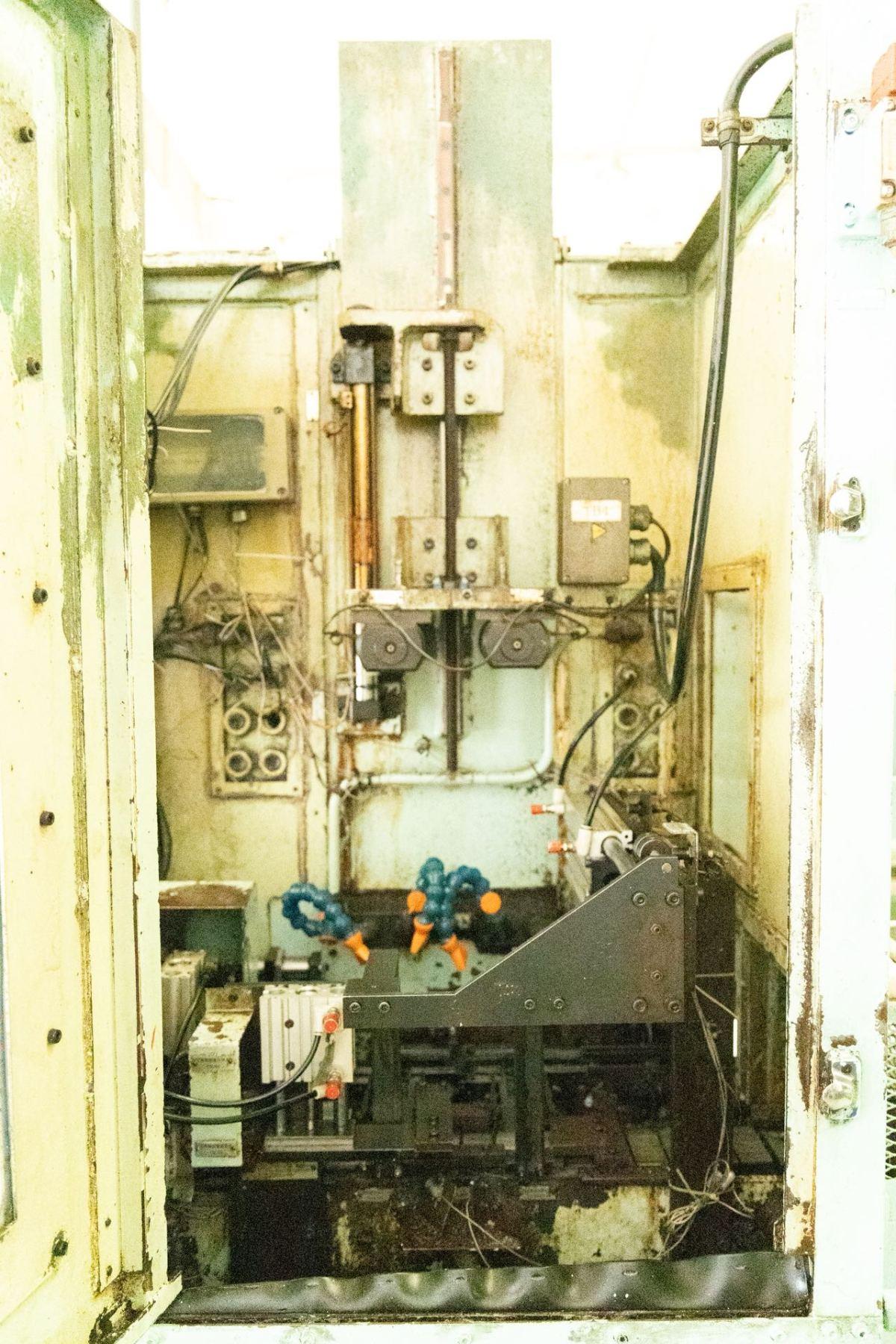

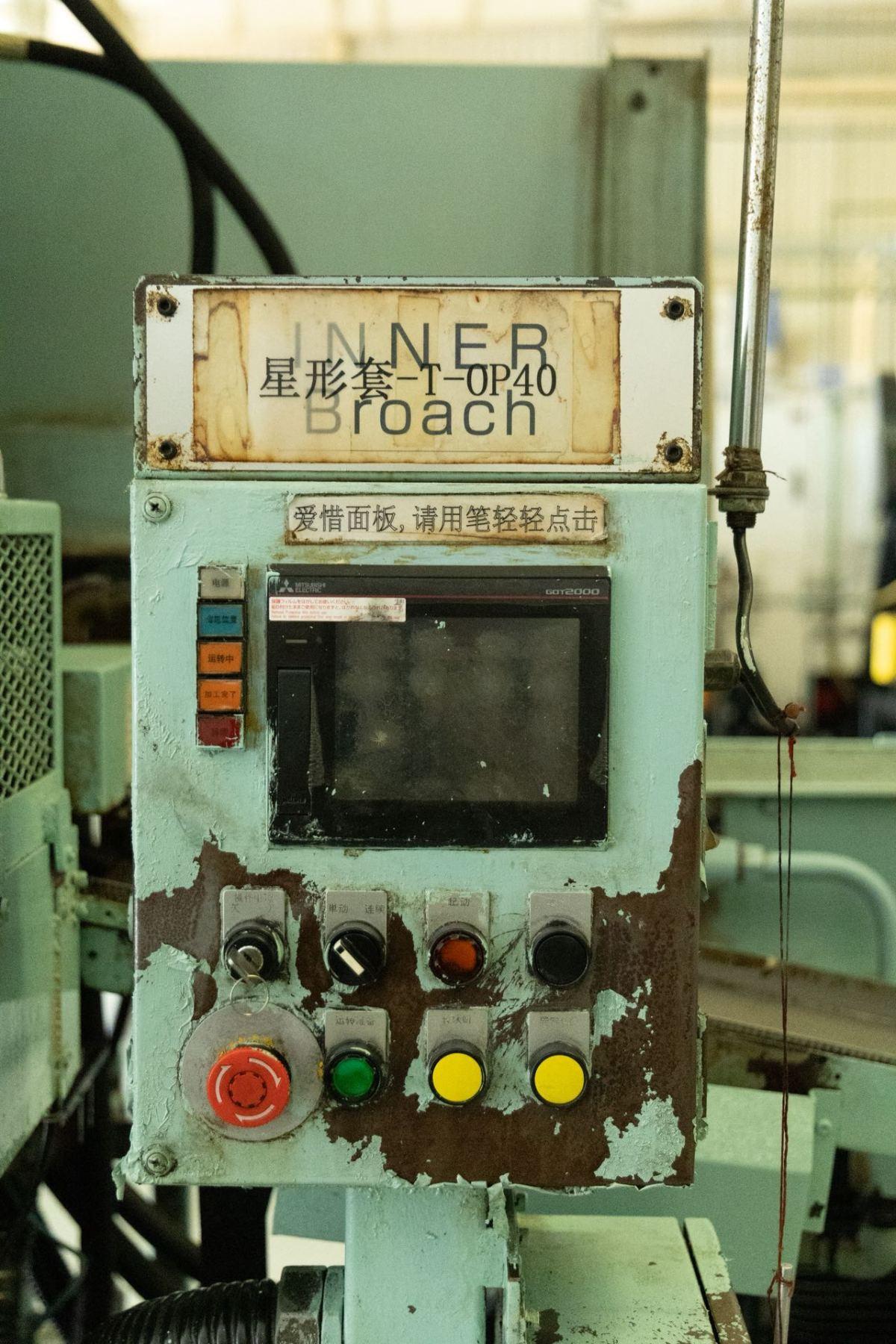

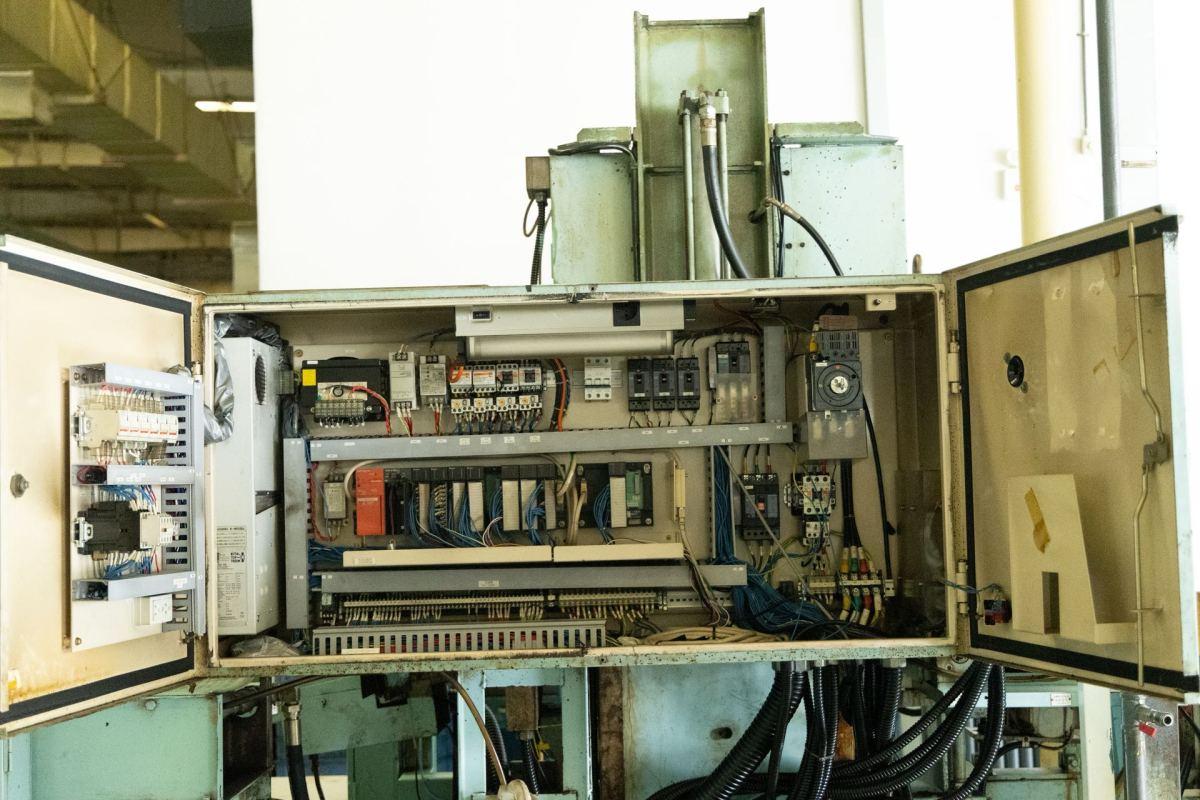

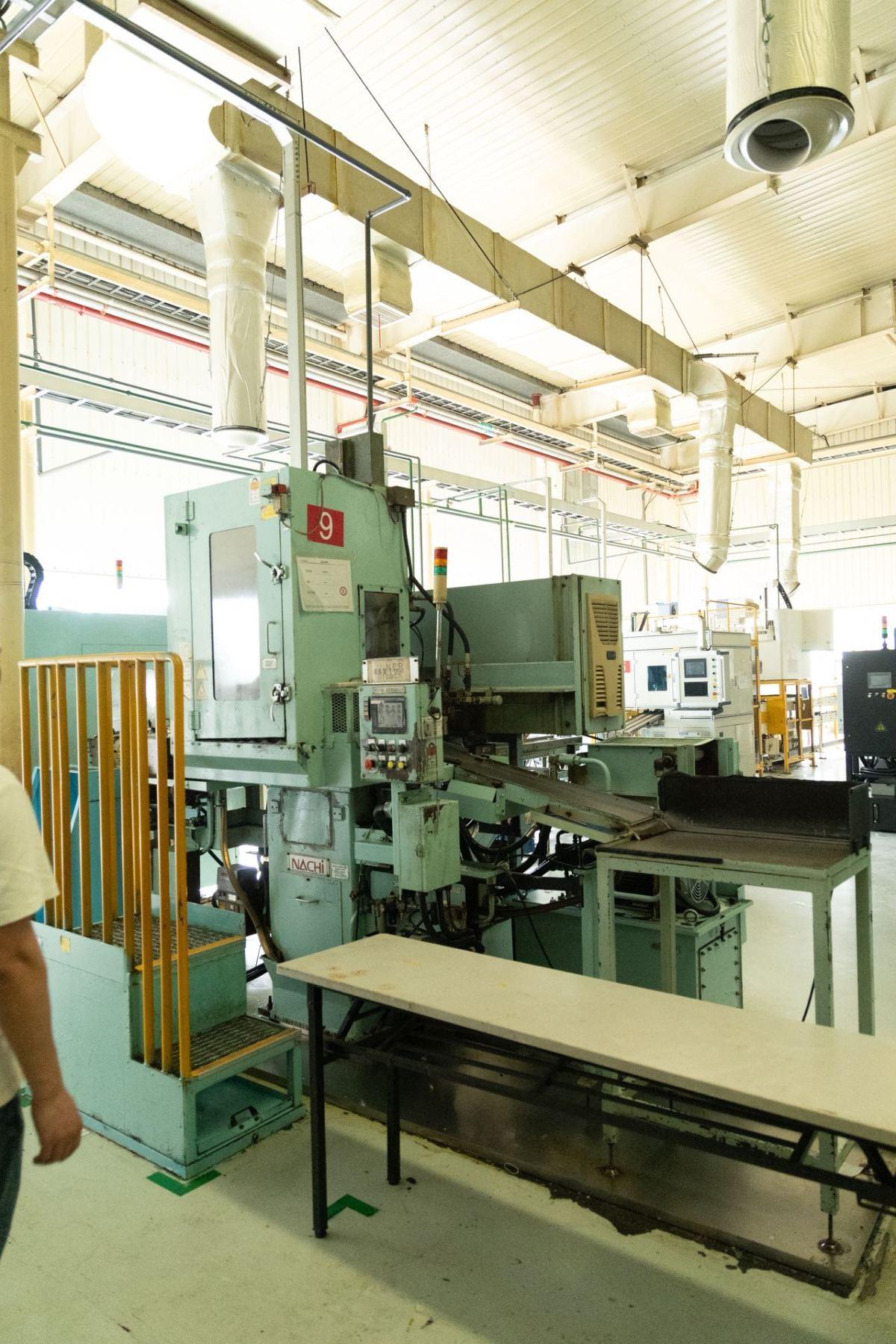

NACHI NBV-5-8ADHAL other
[Product Information]:
- Inventory number：4811742
- Brand：NACHI
- Model：NBV-5-8ADHAL
- Origin："Japan
- Location：China
- Year：2006
- Create Time：2026-05-02
Specifications:
The rated effective broaching stroke of the spindle ram: 800 mm
The compatible broach length adjustment range: 300 mm
Rated broaching force: 5 tons (50 kN)
Broaching feed speed: 1–8 m/min (servo stepless speed regulation)
Rapid return speed of the tool holder: 2–20 m/min (high-speed servo drive)
X/Y-axis travel: 400 × 300 mm
Diameter of the central through hole of the worktable: φ200 mm
