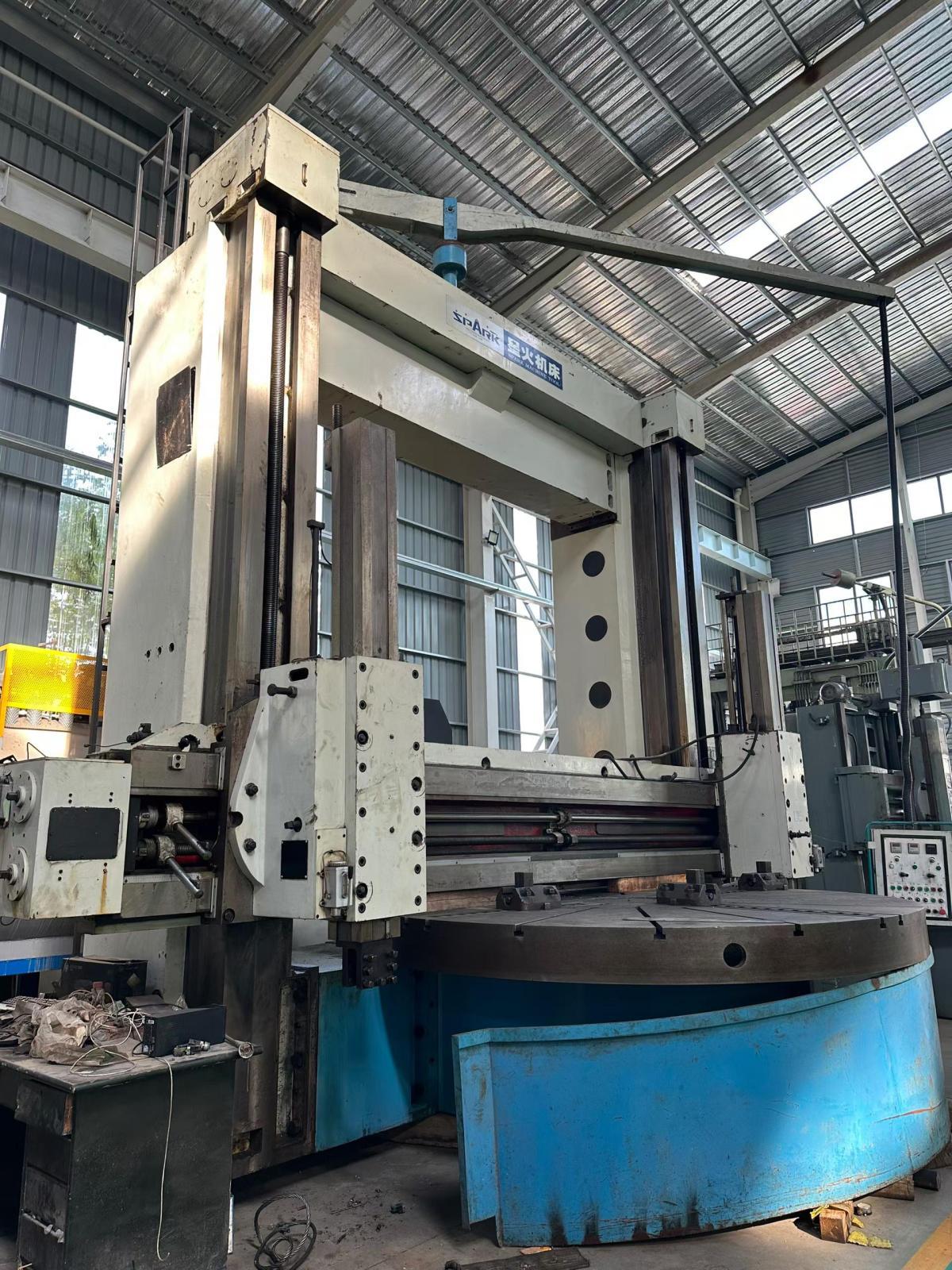

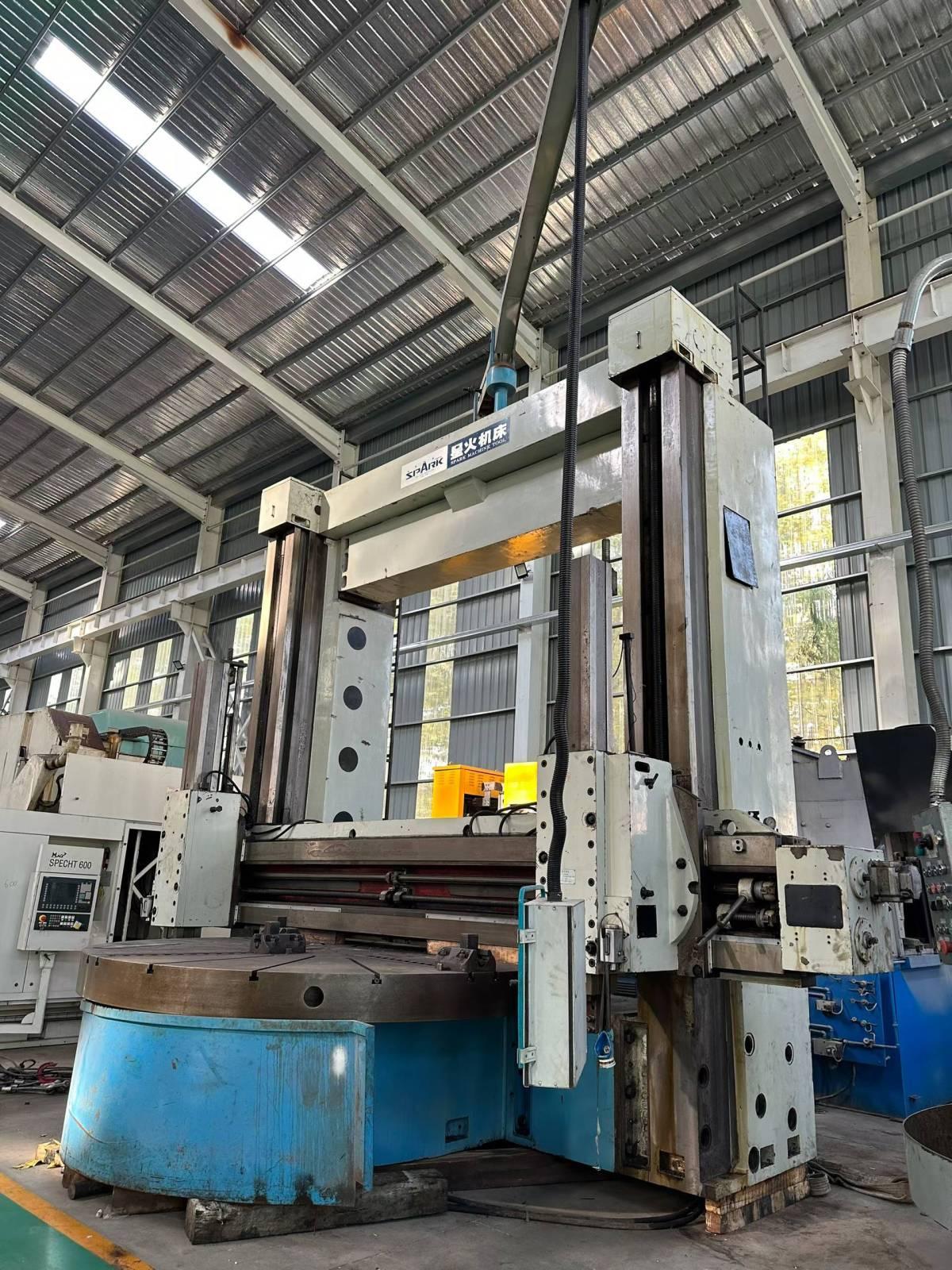

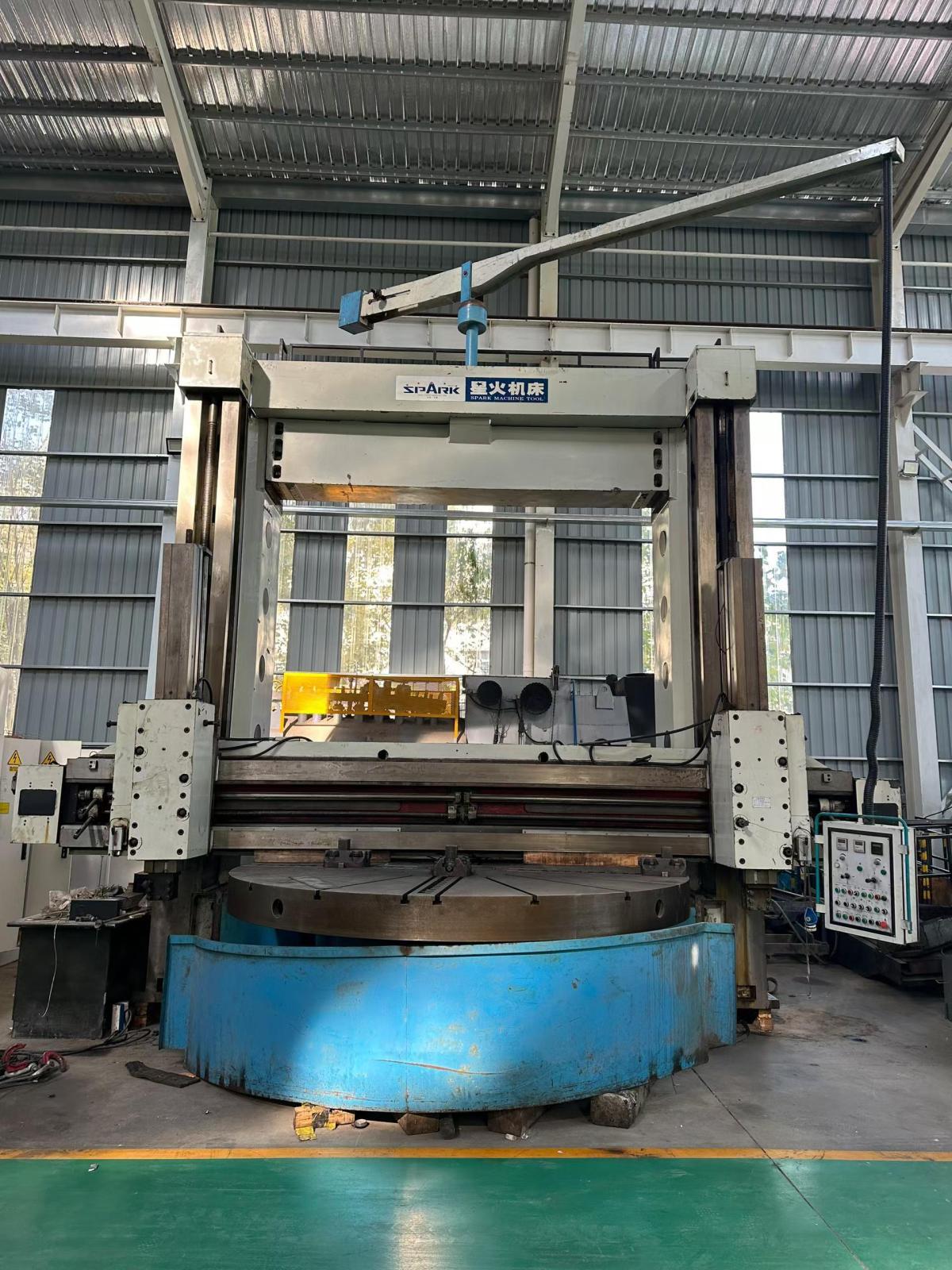

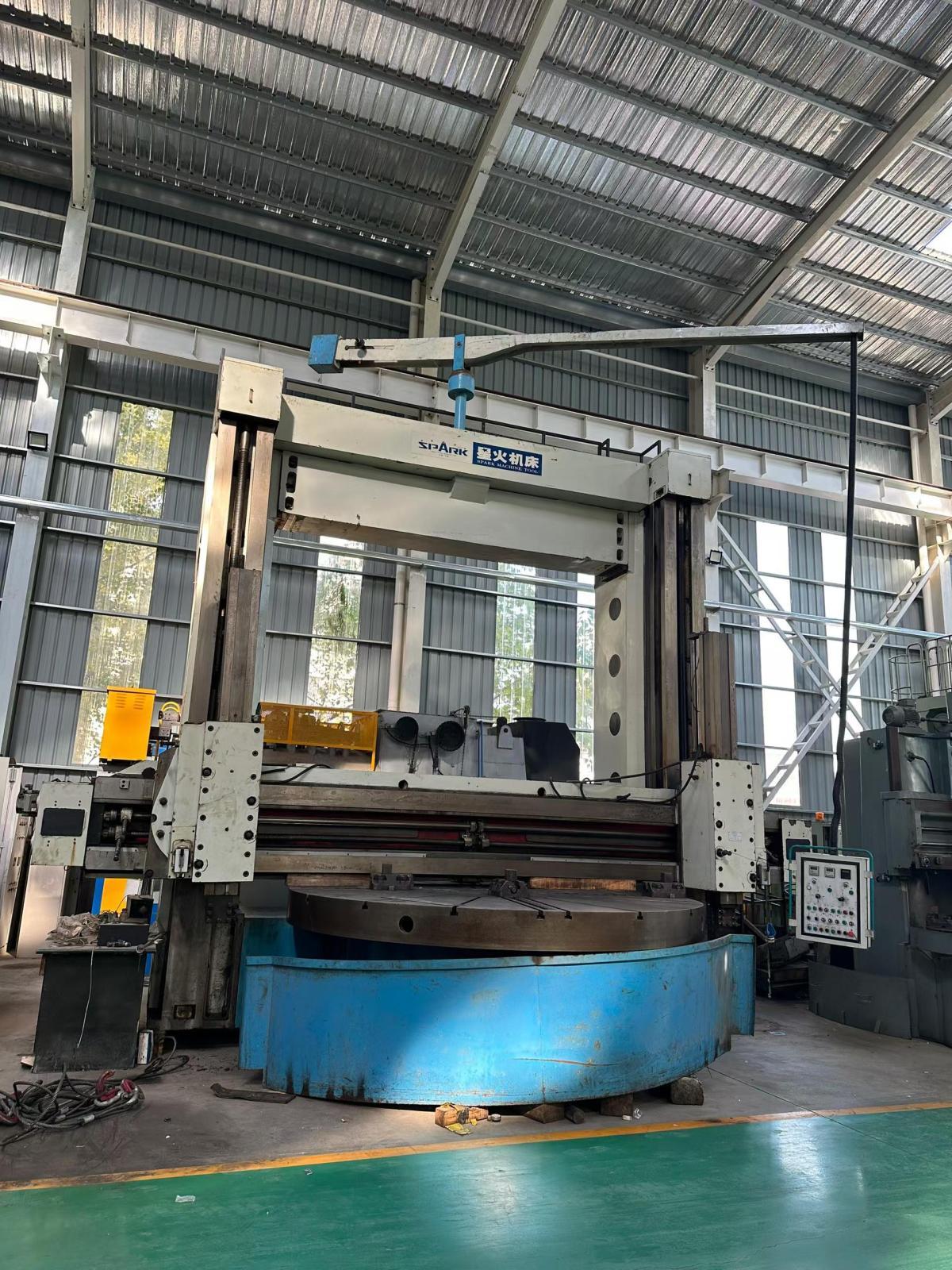

SPARK C5240 Vertical lathe

Maximum machining diameter: 4000 mm
WorkTable diameter: 3150 mm
Maximum workpiece height: 2500 mm (25 dm)
Maximum workpiece weight: 20 t
Right vertical tool post maximum cutting force: 40 kN
Left vertical tool post maximum cutting force: 40 kN
Maximum table torque: 100 kN·m
Table speed range: 1–560 r/min
Tool post feed range: 0.1–500 mm/min
Right vertical ram travel: 1250 mm
Left vertical ram travel: 1250 mm
Rapid traverse speed of tool post: 2000 mm/min
Tool shank section height: 50 mm
Main motor power: DC 55 kW
Machine dimensions (L × W × H): 9400 × 6550 × 8700 mm
