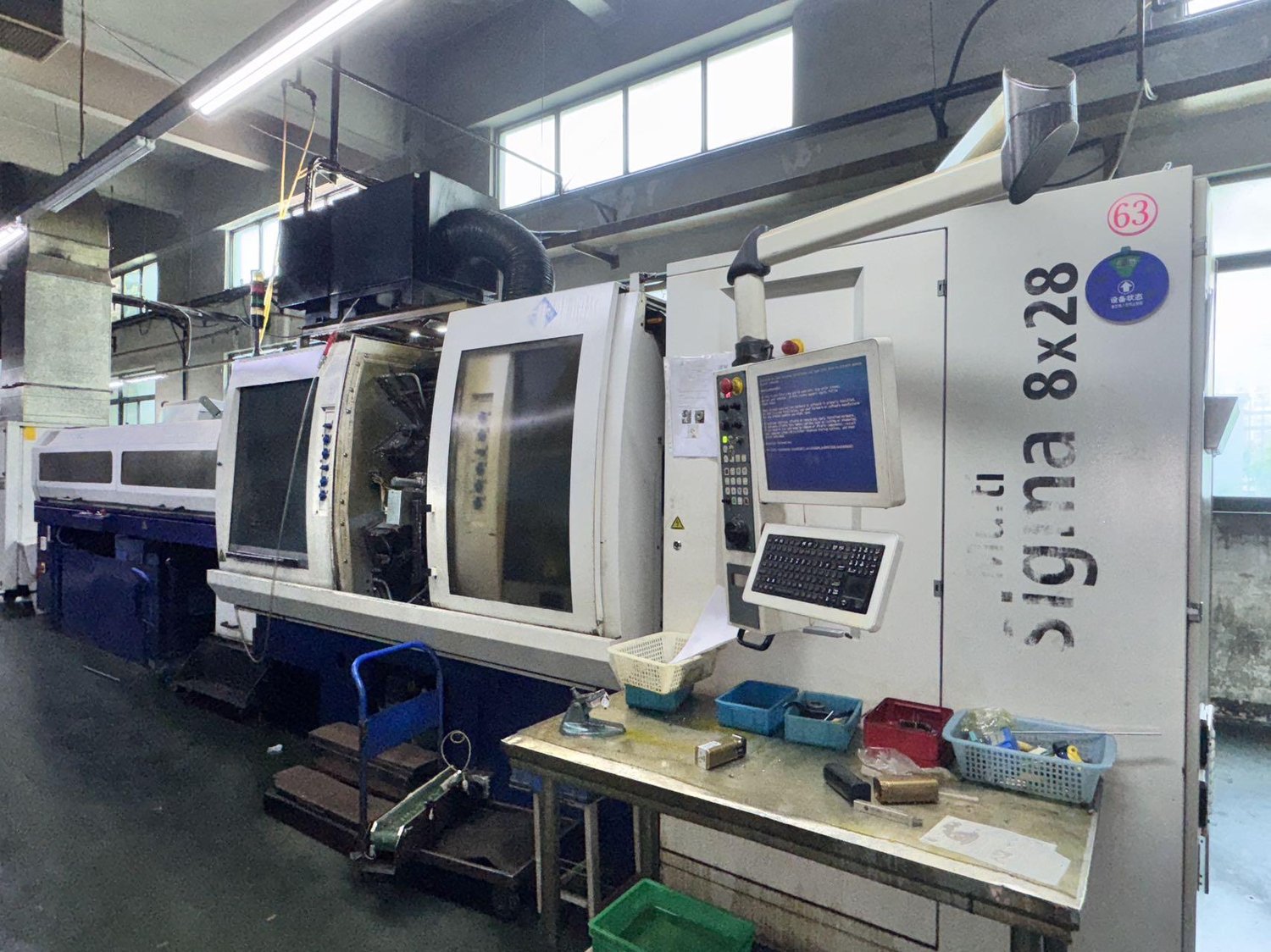

TORNOS Multi Sigma 8*28 CNC turning lathe

[Product Information]:

Inventory number：4811697
Brand：TORNOS

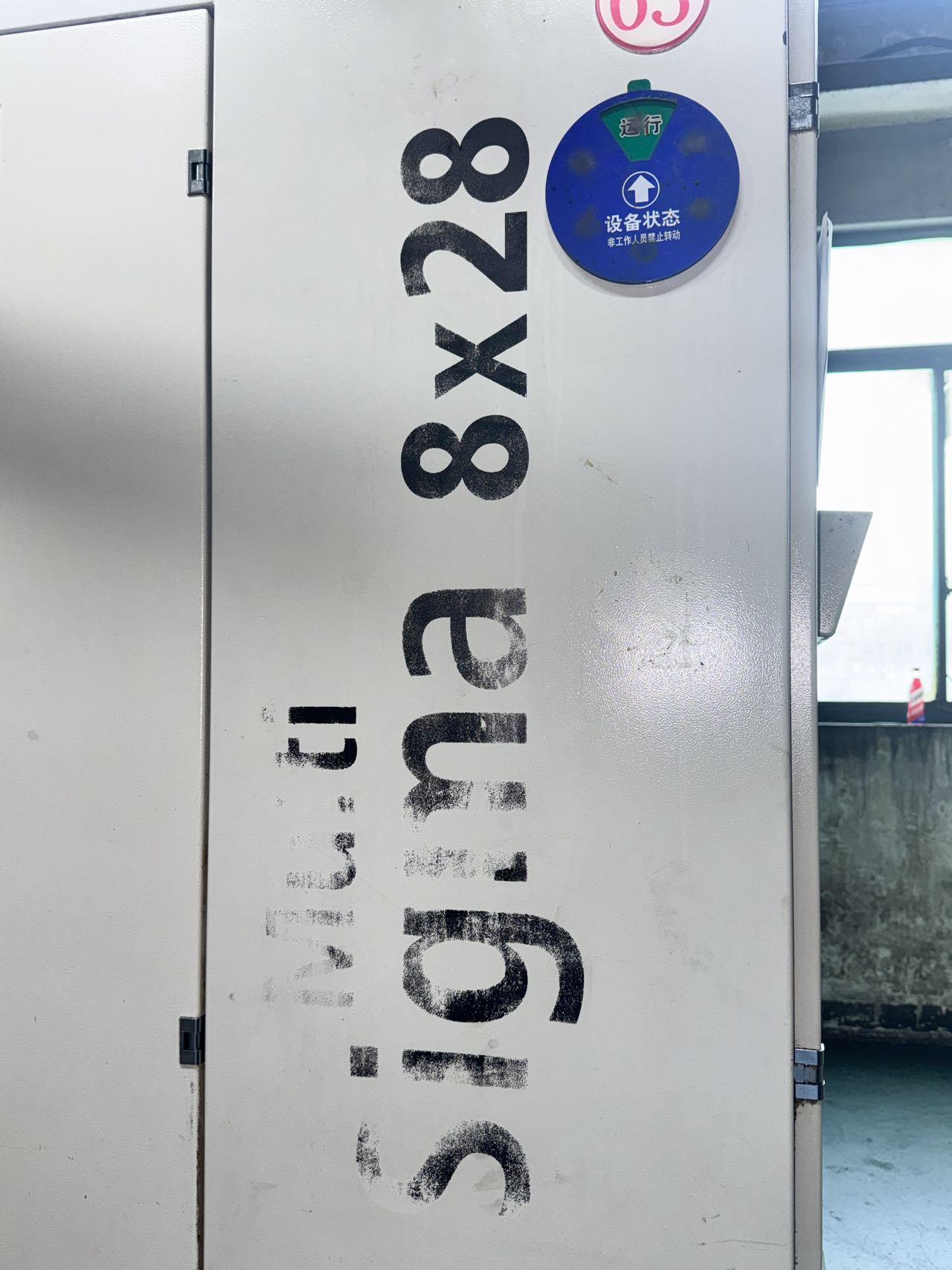

Model：Multi Sigma 8*28
Origin：Switzerland
Location：China
Year：2013
Create Time：2026-05-01

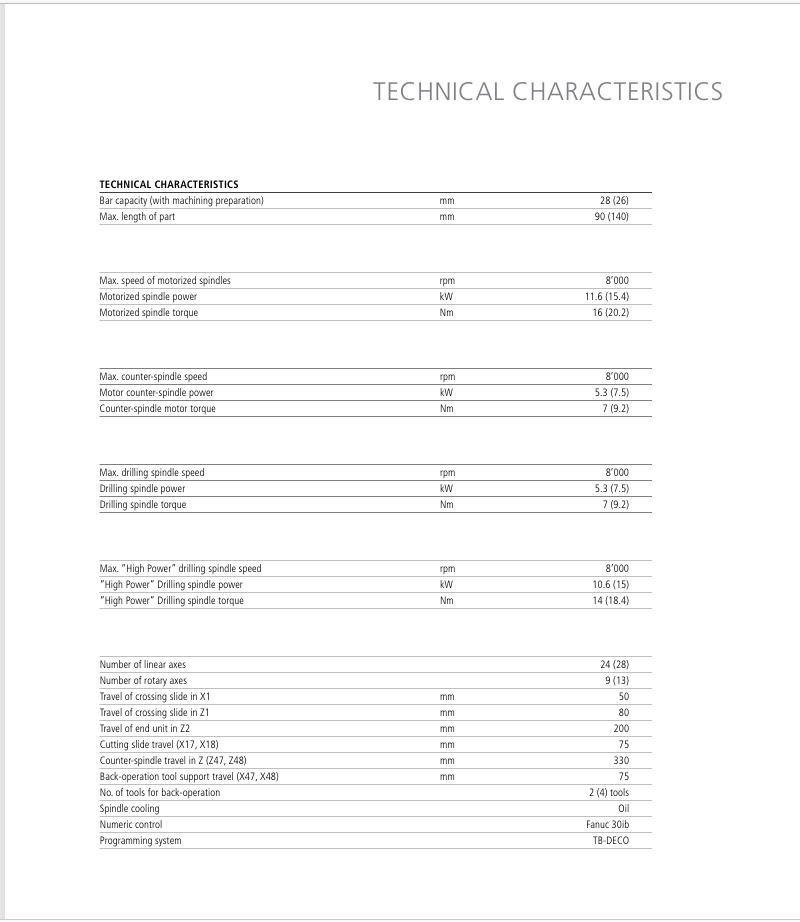

Specifications:

Bar Stock Capacity: 28 mm
Maximum Machining Length: 90 mm
Main Spindle
Spindle Speed: 8,000 rpm
Spindle Power: 11.6 / 15.4 kW
Spindle Torque: 16 / 20.2 Nm
Secondary Spindle
Speed: 8,000 rpm
Power: 5.3 / 7.5 kW
Torque: 7 / 9.2 Nm
Drilling Spindle
Speed: 8,000 rpm
Power: 5.3 / 7.5 kW (High Power: 10.6 / 15 kW)
Torque: 7 / 9.2 Nm (High Power: 14 / 18.4 Nm)
Axis Configuration
Linear Axes: 24 (28)
Rotary Axes: 9 (13)
Axis Travels
X1 Axis Travel: 50 mm
Z1 Axis Travel: 80 mm
Z2 Axis Travel: 200 mm
X17 Axis Travel: 75 mm
X18 Axis Travel: 75 mm
Z47 Axis Travel: 330 mm
Z48 Axis Travel: 330 mm
X47 Axis Travel: 75 mm
X48 Axis Travel: 75 mm
Other
Tool Stations: 2 (4)
Spindle Cooling: Oil cooling
